| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_078T01_9000002462_16668cztM0_level2.evt | modeM0/AS1A05_078T01_9000002462_16668cztM0_level2_quad_clean.evt |
| Size (bytes) | 522,432,000 | 91,293,120 |
| Size | 498.2 MB | 87.1 MB |
| Events in quadrant A | 6,206,298 | 498,016 |
| Events in quadrant B | 2,911,504 | 651,160 |
| Events in quadrant C | 2,425,923 | 632,172 |
| Events in quadrant D | 3,914,421 | 607,374 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22173 | 2 |
| B | 0 | 12138 | 1 |
| C | 0 | 10882 | 1 |
| D | 0 | 15293 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5362 | 1771 | 33.028721% |
| B | 5362 | 120 | 2.237971% |
| C | 5362 | 80 | 1.491981% |
| D | 5362 | 169 | 3.151809% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5953 | 5364 | 1478 | 1478 | 24.83% | 27.55% |  |
| B | 5953 | 5364 | 20 | 20 | 0.34% | 0.37% |  |
| C | 5953 | 5364 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5953 | 5364 | 89 | 89 | 1.50% | 1.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 4289896 | 41980.79 | 496 | 483 | 102.2 |
| A | 9 | 143 | 8695 | 80.37 | 496 | 483 | 102.2 |
| A | 0 | 226 | 4357 | 37.92 | 496 | 483 | 102.2 |
| B | 15 | 35 | 207557 | 1738.25 | 617 | 599 | 119.1 |
| B | 0 | 189 | 115619 | 966.06 | 617 | 599 | 119.1 |
| B | 4 | 173 | 69176 | 575.98 | 617 | 599 | 119.1 |
| C | 14 | 238 | 91399 | 650.65 | 594 | 596 | 139.6 |
| C | 7 | 247 | 11891 | 80.93 | 594 | 596 | 139.6 |
| C | 3 | 233 | 7178 | 47.16 | 594 | 596 | 139.6 |
| D | 1 | 52 | 1454224 | 9970.06 | 597 | 578 | 145.8 |
| D | 10 | 70 | 107350 | 732.31 | 597 | 578 | 145.8 |
| D | 2 | 16 | 31457 | 211.79 | 597 | 578 | 145.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

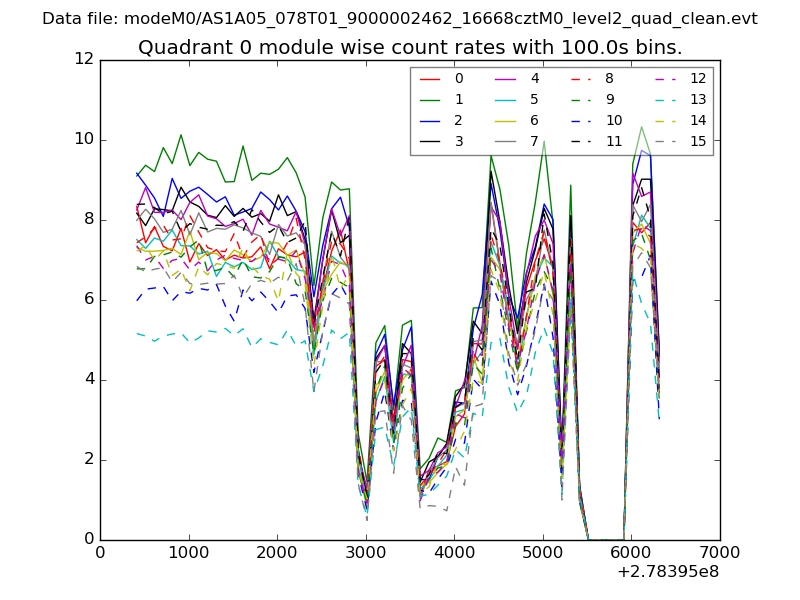

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

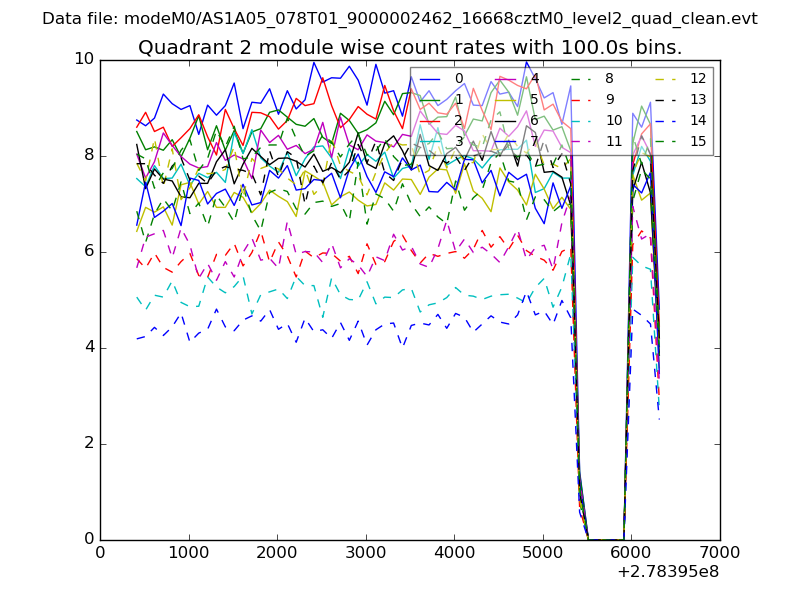

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

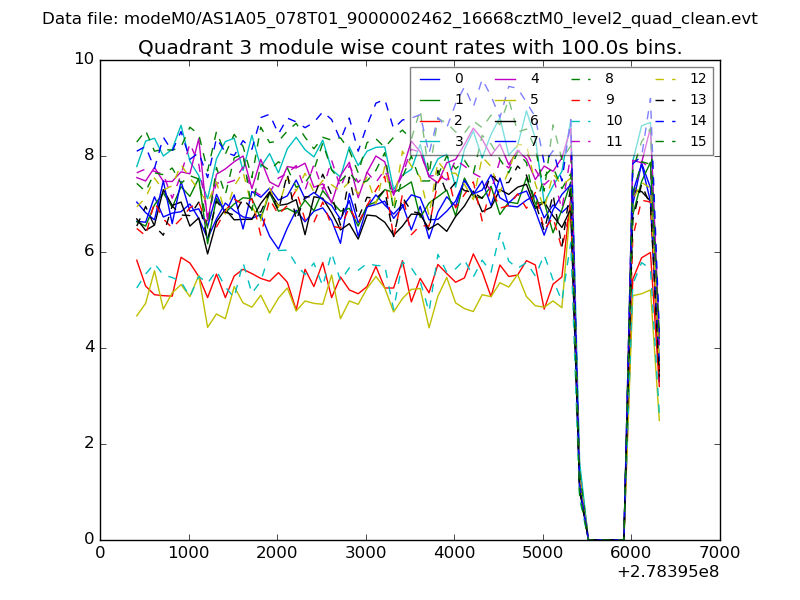

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

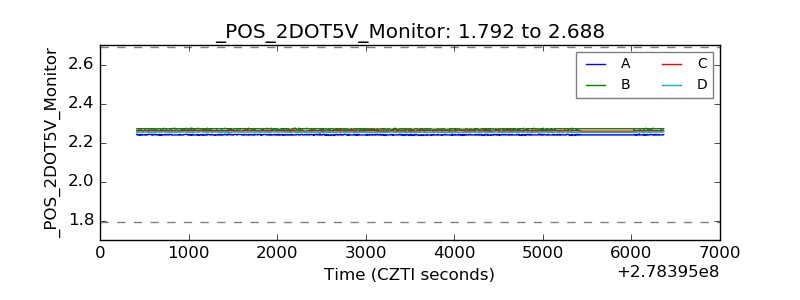

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

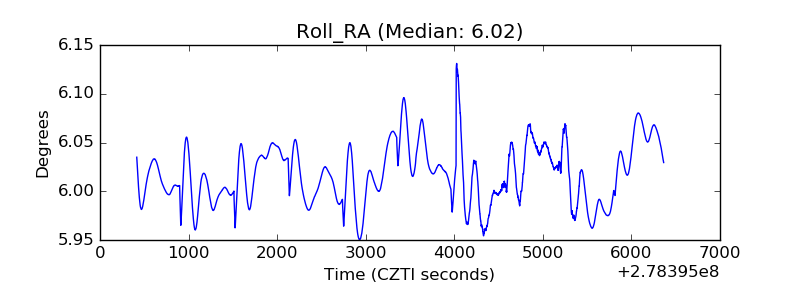

| _Roll_RA |  |
| Veto Counter |  |
