| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_101T09_9000002466_16677cztM0_level2.evt | modeM0/AS1A05_101T09_9000002466_16677cztM0_level2_quad_clean.evt |
| Size (bytes) | 289,808,640 | 70,018,560 |
| Size | 276.4 MB | 66.8 MB |
| Events in quadrant A | 2,094,974 | 468,069 |
| Events in quadrant B | 1,922,642 | 483,627 |
| Events in quadrant C | 1,760,195 | 464,579 |
| Events in quadrant D | 2,749,241 | 445,009 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 76 | 0 |
| B | 0 | 76 | 0 |
| C | 0 | 76 | 0 |
| D | 0 | 76 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8511 | 2 |
| B | 0 | 7995 | 1 |
| C | 0 | 7511 | 1 |
| D | 0 | 10641 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3658 | 87 | 2.378349% |
| B | 3658 | 29 | 0.792783% |
| C | 3658 | 26 | 0.710771% |
| D | 3658 | 135 | 3.690541% |

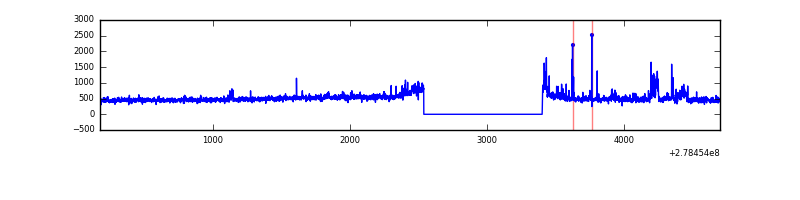

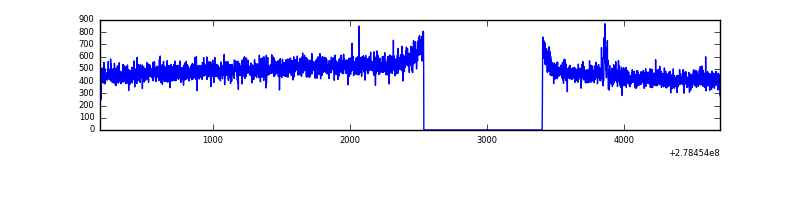

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4524 | 3660 | 63 | 63 | 1.39% | 1.72% |  |
| B | 4524 | 3660 | 2 | 2 | 0.04% | 0.05% |  |
| C | 4524 | 3660 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4524 | 3660 | 74 | 74 | 1.64% | 2.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 271946 | 2978.58 | 442 | 433 | 91.2 |
| A | 9 | 143 | 96983 | 1059.18 | 442 | 433 | 91.2 |
| A | 3 | 1 | 15408 | 164.28 | 442 | 433 | 91.2 |
| B | 15 | 35 | 97142 | 1126.04 | 446 | 435 | 85.9 |
| B | 0 | 229 | 31541 | 362.19 | 446 | 435 | 85.9 |
| B | 0 | 230 | 18058 | 205.2 | 446 | 435 | 85.9 |
| C | 14 | 238 | 66538 | 659.07 | 428 | 428 | 100.3 |
| C | 3 | 233 | 17231 | 167.52 | 428 | 428 | 100.3 |
| C | 7 | 247 | 7243 | 67.94 | 428 | 428 | 100.3 |
| D | 1 | 52 | 576149 | 5465.99 | 428 | 415 | 105.3 |
| D | 2 | 16 | 337539 | 3200.64 | 428 | 415 | 105.3 |
| D | 10 | 70 | 129638 | 1226.84 | 428 | 415 | 105.3 |

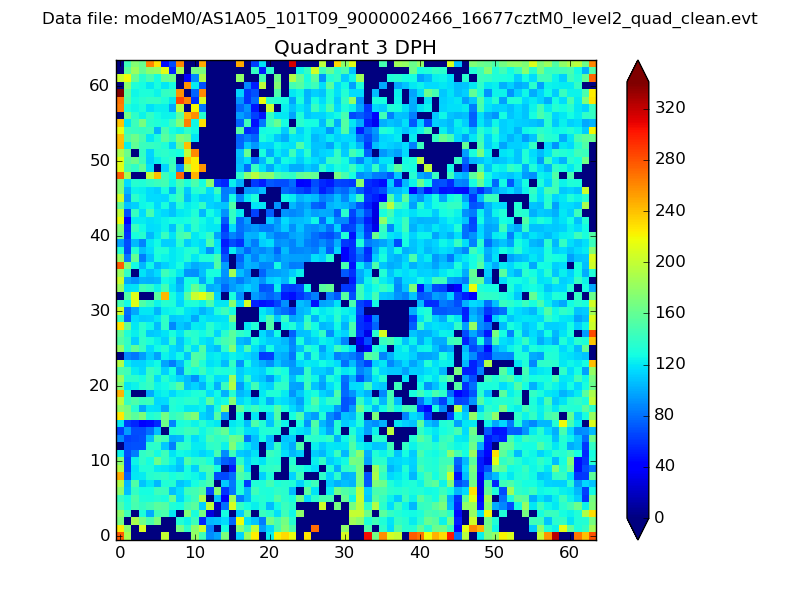

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

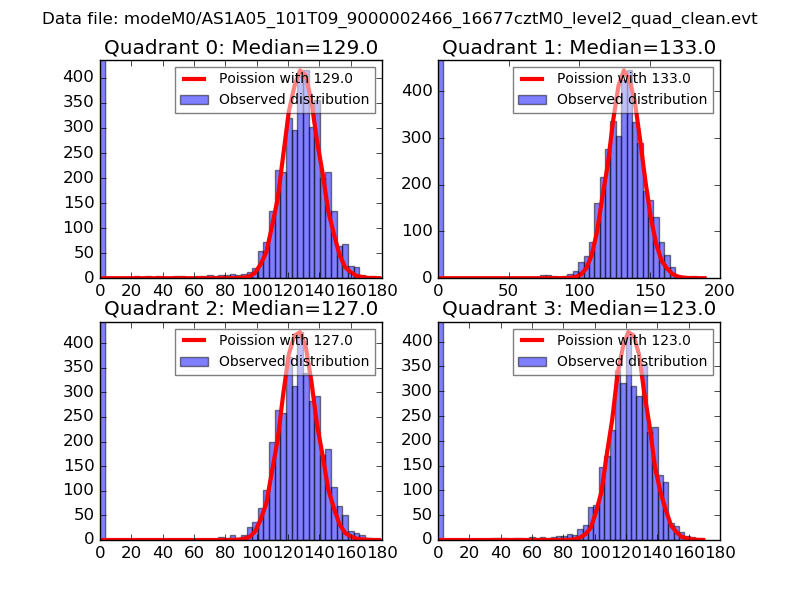

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

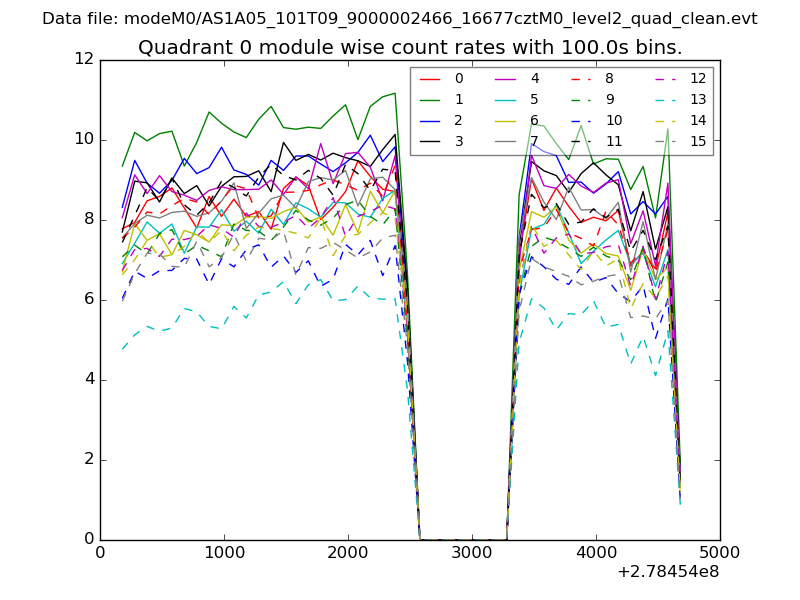

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

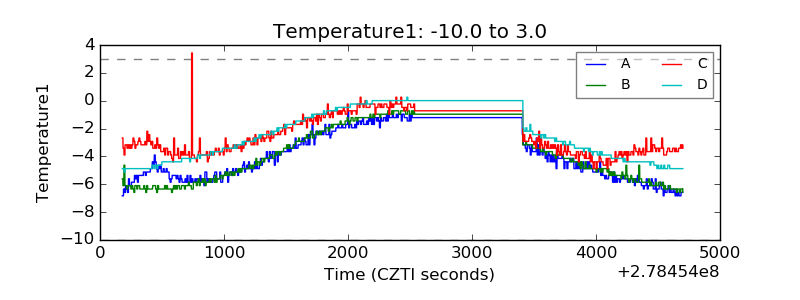

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

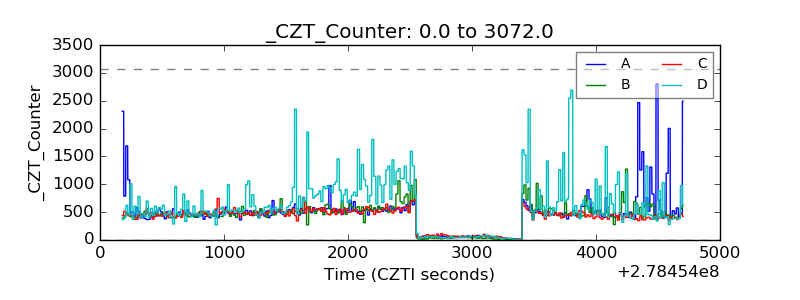

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

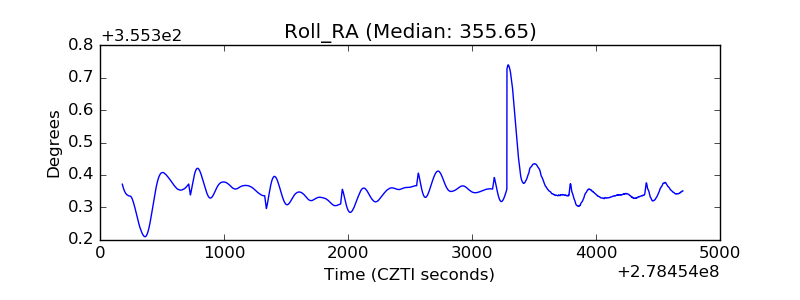

| _Roll_RA |  |
| Veto Counter |  |
