| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_104T04_9000002464_16676cztM0_level2.evt | modeM0/AS1A05_104T04_9000002464_16676cztM0_level2_quad_clean.evt |
| Size (bytes) | 518,806,080 | 92,652,480 |
| Size | 494.8 MB | 88.4 MB |
| Events in quadrant A | 3,239,733 | 611,929 |
| Events in quadrant B | 3,613,021 | 612,410 |
| Events in quadrant C | 3,272,839 | 589,730 |
| Events in quadrant D | 5,149,420 | 542,133 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13706 | 2 |
| B | 0 | 14761 | 1 |
| C | 0 | 13651 | 1 |
| D | 0 | 19556 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6438 | 74 | 1.149425% |
| B | 6438 | 93 | 1.444548% |
| C | 6438 | 94 | 1.460081% |
| D | 6438 | 648 | 10.065238% |

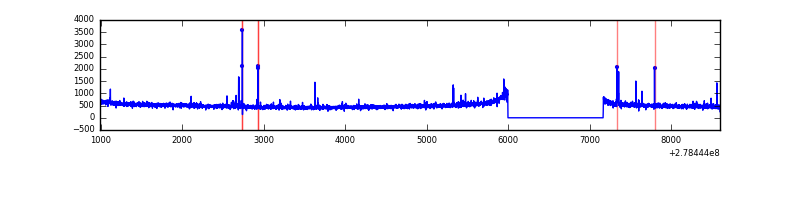

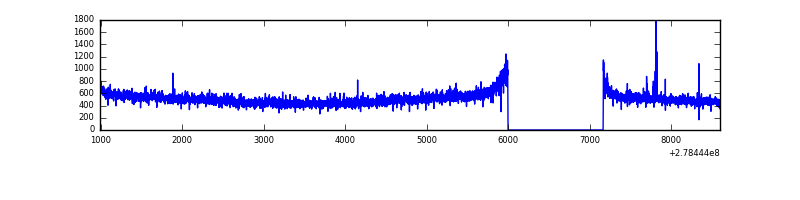

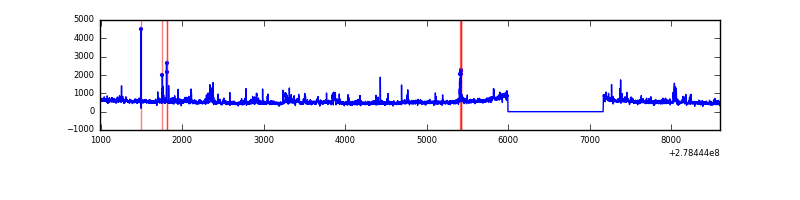

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7609 | 6440 | 6 | 6 | 0.08% | 0.09% |  |
| B | 7609 | 6440 | 8 | 8 | 0.11% | 0.12% |  |
| C | 7609 | 6440 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7609 | 6440 | 509 | 509 | 6.69% | 7.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 31781 | 186.02 | 820 | 803 | 166.5 |
| A | 12 | 96 | 30340 | 177.37 | 820 | 803 | 166.5 |
| A | 15 | 174 | 12813 | 72.12 | 820 | 803 | 166.5 |
| B | 15 | 35 | 178654 | 1151.11 | 817 | 797 | 154.5 |
| B | 0 | 229 | 90131 | 578.18 | 817 | 797 | 154.5 |
| B | 0 | 189 | 36472 | 230.89 | 817 | 797 | 154.5 |
| C | 14 | 238 | 121460 | 658.51 | 785 | 792 | 183.2 |
| C | 3 | 233 | 85305 | 461.21 | 785 | 792 | 183.2 |
| C | 0 | 207 | 7177 | 34.84 | 785 | 792 | 183.2 |
| D | 2 | 16 | 1477061 | 7787.66 | 778 | 755 | 189.6 |
| D | 1 | 52 | 412904 | 2174.13 | 778 | 755 | 189.6 |
| D | 5 | 222 | 111233 | 582.78 | 778 | 755 | 189.6 |

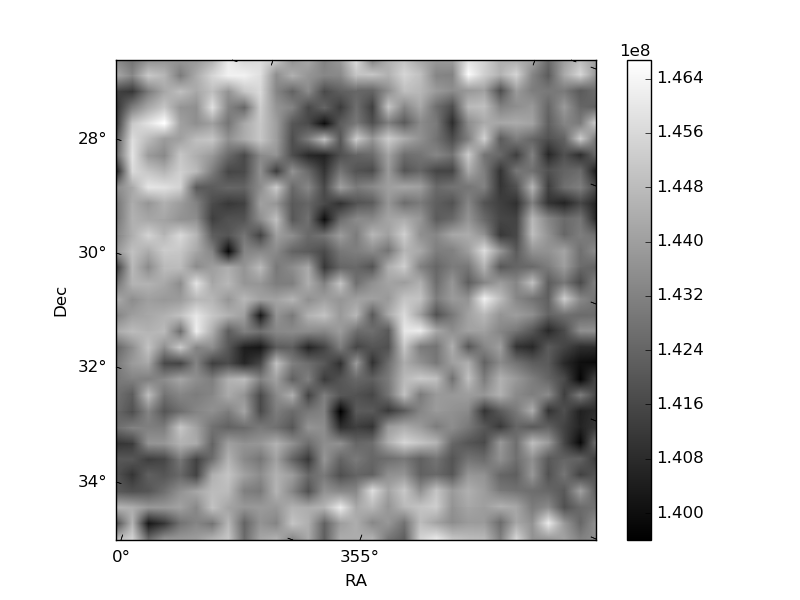

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

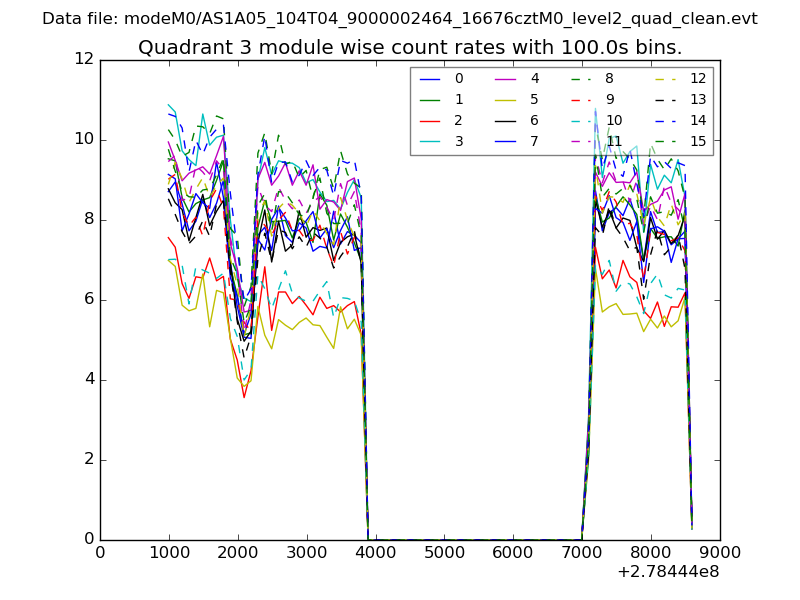

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

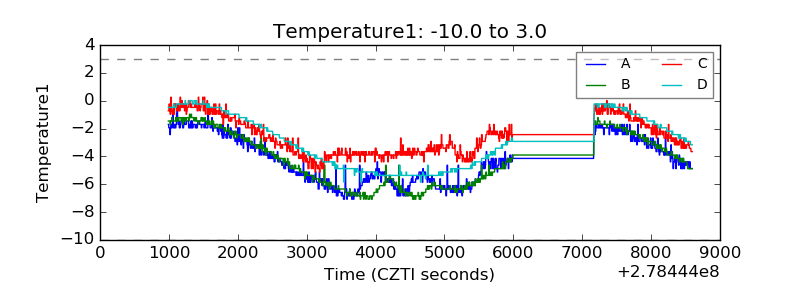

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

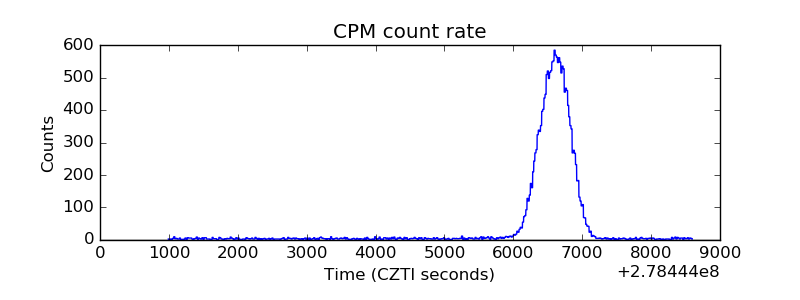

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

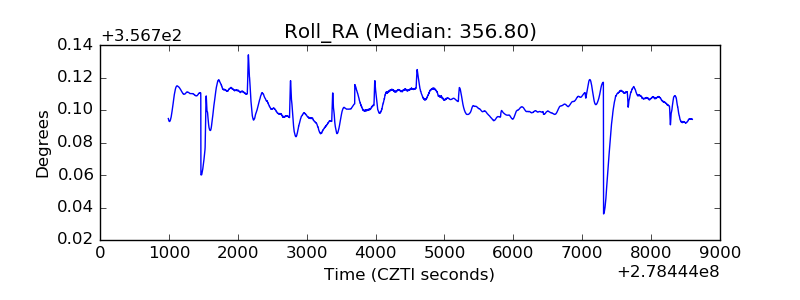

| _Roll_RA |  |
| Veto Counter |  |
