| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_104T04_9000002464_16677cztM0_level2.evt | modeM0/AS1A05_104T04_9000002464_16677cztM0_level2_quad_clean.evt |
| Size (bytes) | 142,871,040 | 37,324,800 |
| Size | 136.3 MB | 35.6 MB |
| Events in quadrant A | 931,410 | 253,791 |
| Events in quadrant B | 1,022,705 | 256,582 |
| Events in quadrant C | 931,743 | 246,555 |
| Events in quadrant D | 1,311,025 | 236,138 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3938 | 1 |
| B | 0 | 4219 | 1 |
| C | 0 | 3927 | 1 |
| D | 0 | 5067 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38 | 0 |
| B | 0 | 38 | 0 |
| C | 0 | 38 | 0 |
| D | 0 | 38 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1872 | 7 | 0.373932% |
| B | 1872 | 10 | 0.534188% |
| C | 1872 | 16 | 0.854701% |
| D | 1872 | 92 | 4.914530% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

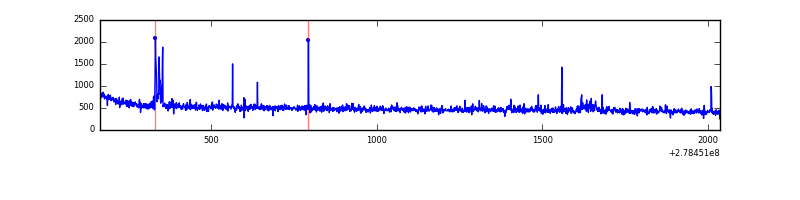

| A | 1873 | 1873 | 2 | 2 | 0.11% | 0.11% |  |
| B | 1873 | 1873 | 0 | 0 | 0.00% | 0.00% |  |

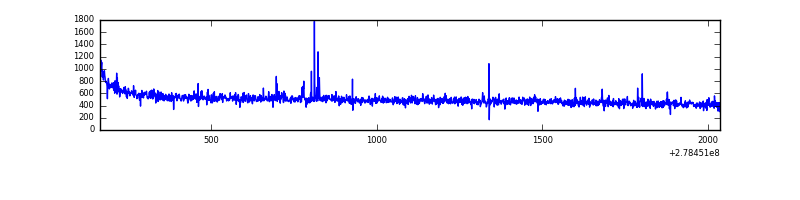

| C | 1873 | 1873 | 0 | 0 | 0.00% | 0.00% |  |

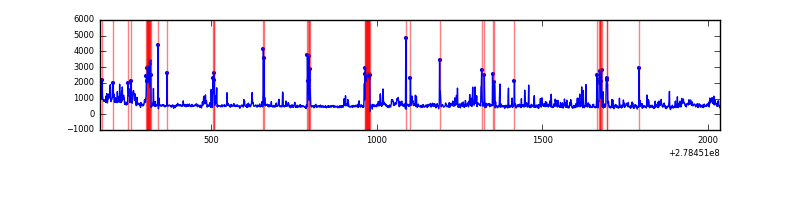

| D | 1873 | 1873 | 62 | 62 | 3.31% | 3.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 19358 | 387.99 | 232 | 226 | 49.3 |
| A | 9 | 143 | 8898 | 175.86 | 232 | 226 | 49.3 |
| A | 3 | 1 | 4841 | 93.59 | 232 | 226 | 49.3 |
| B | 15 | 35 | 58009 | 1273.07 | 231 | 226 | 45.4 |
| B | 0 | 229 | 36036 | 788.96 | 231 | 226 | 45.4 |
| B | 4 | 216 | 10670 | 230.1 | 231 | 226 | 45.4 |
| C | 14 | 238 | 34932 | 643.97 | 225 | 227 | 53.9 |
| C | 3 | 233 | 11752 | 213.85 | 225 | 227 | 53.9 |
| C | 0 | 207 | 6338 | 113.39 | 225 | 227 | 53.9 |
| D | 1 | 52 | 189849 | 3367.54 | 225 | 218 | 56.3 |
| D | 2 | 16 | 117221 | 2077.78 | 225 | 218 | 56.3 |
| D | 5 | 222 | 89964 | 1593.74 | 225 | 218 | 56.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

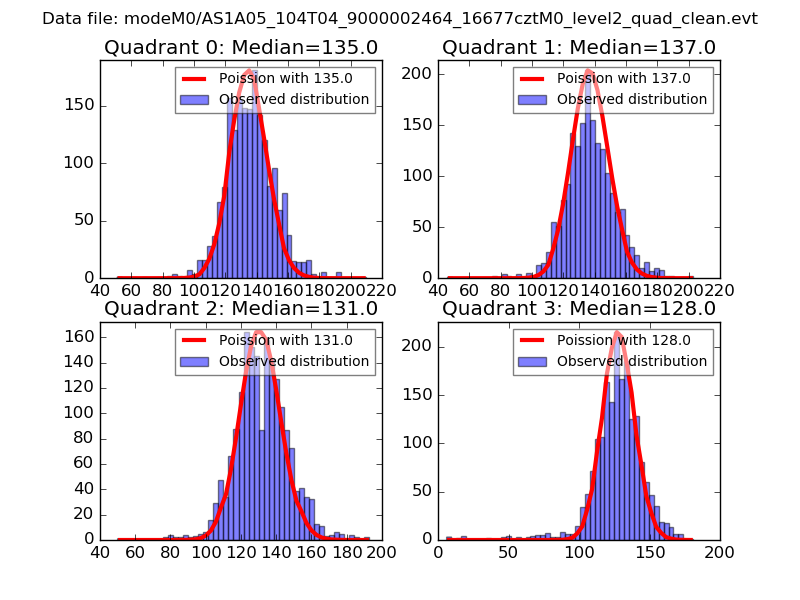

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

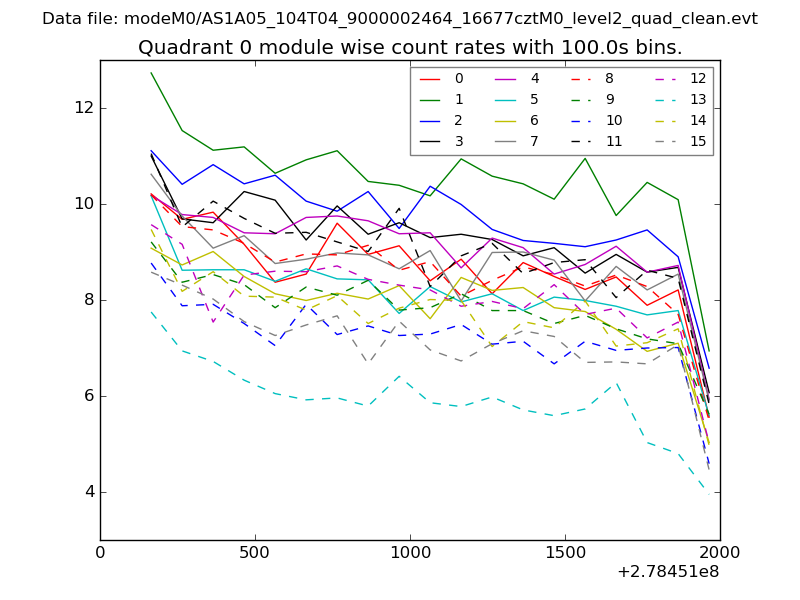

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

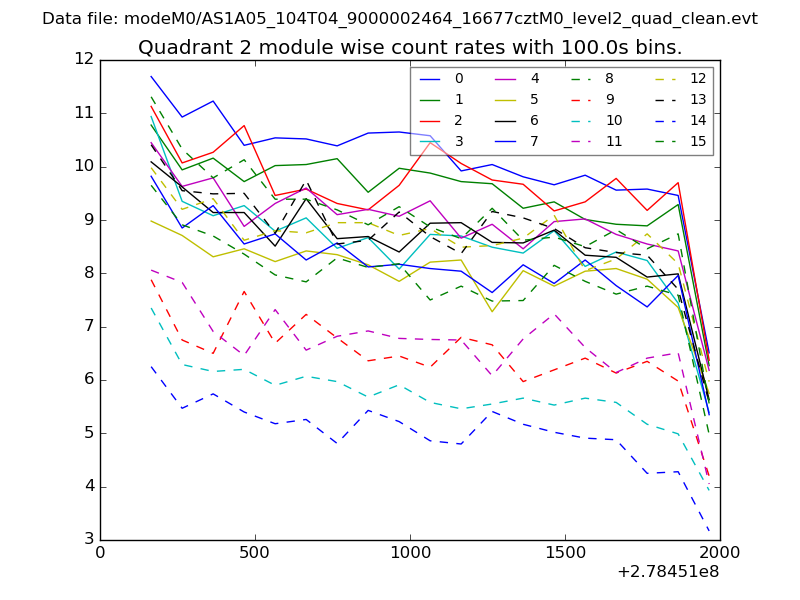

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

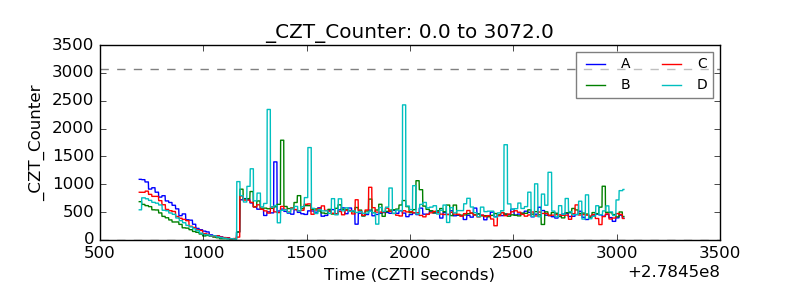

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

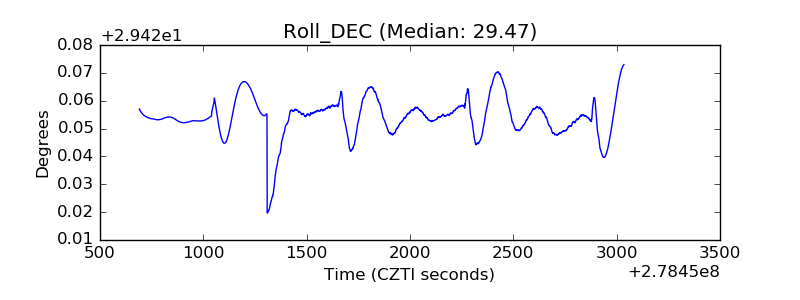

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
