| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_012T02_9000002468_16689cztM0_level2.evt | modeM0/AS1A05_012T02_9000002468_16689cztM0_level2_quad_clean.evt |
| Size (bytes) | 587,016,000 | 67,947,840 |
| Size | 559.8 MB | 64.8 MB |
| Events in quadrant A | 3,544,220 | 416,359 |
| Events in quadrant B | 3,615,169 | 417,896 |
| Events in quadrant C | 3,290,365 | 411,206 |
| Events in quadrant D | 6,913,665 | 384,361 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14370 | 2 |
| B | 0 | 14865 | 1 |
| C | 0 | 13619 | 1 |
| D | 0 | 24756 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6116 | 178 | 2.910399% |
| B | 6116 | 154 | 2.517986% |
| C | 6116 | 147 | 2.403532% |
| D | 6116 | 1011 | 16.530412% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7442 | 6118 | 31 | 31 | 0.42% | 0.51% |  |
| B | 7442 | 6118 | 13 | 13 | 0.17% | 0.21% |  |
| C | 7442 | 6118 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7442 | 6118 | 673 | 673 | 9.04% | 11.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 261390 | 1593.12 | 828 | 814 | 163.6 |
| A | 9 | 143 | 53341 | 321.14 | 828 | 814 | 163.6 |
| A | 12 | 96 | 42507 | 254.9 | 828 | 814 | 163.6 |
| B | 15 | 35 | 150657 | 980.95 | 826 | 806 | 152.8 |
| B | 0 | 229 | 113541 | 737.98 | 826 | 806 | 152.8 |
| B | 0 | 189 | 49193 | 316.75 | 826 | 806 | 152.8 |
| C | 14 | 238 | 126778 | 686.01 | 803 | 808 | 183.6 |
| C | 3 | 233 | 27662 | 146.24 | 803 | 808 | 183.6 |
| C | 13 | 61 | 5778 | 27.07 | 803 | 808 | 183.6 |
| D | 1 | 52 | 2281147 | 12283.34 | 776 | 755 | 185.6 |
| D | 2 | 16 | 1068944 | 5753.8 | 776 | 755 | 185.6 |
| D | 5 | 222 | 450687 | 2423.56 | 776 | 755 | 185.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

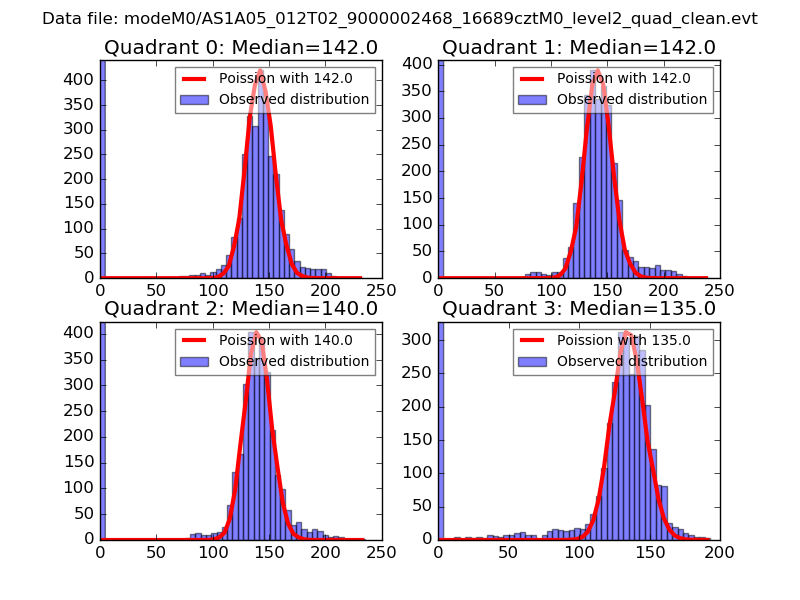

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

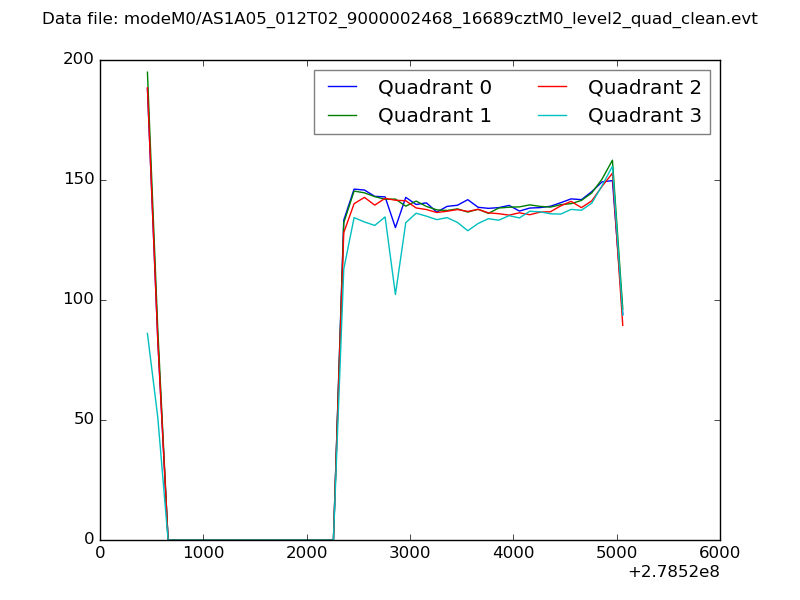

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

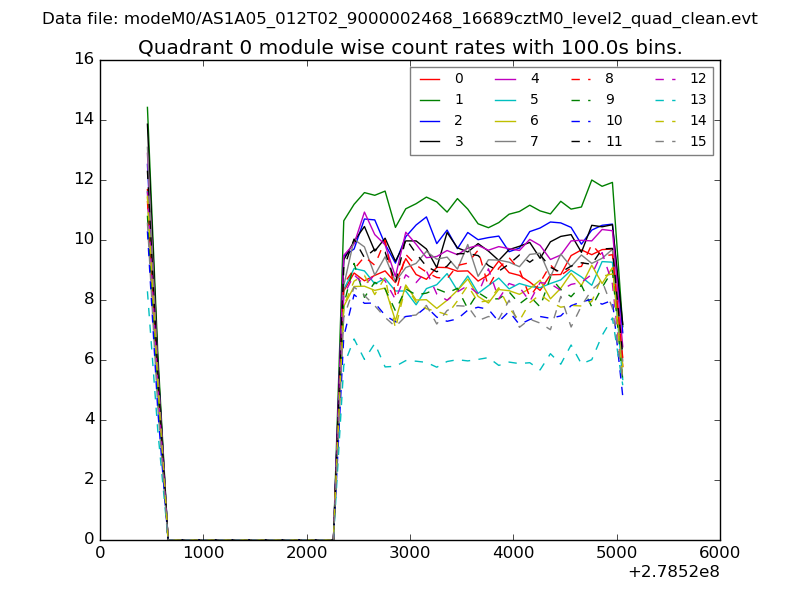

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

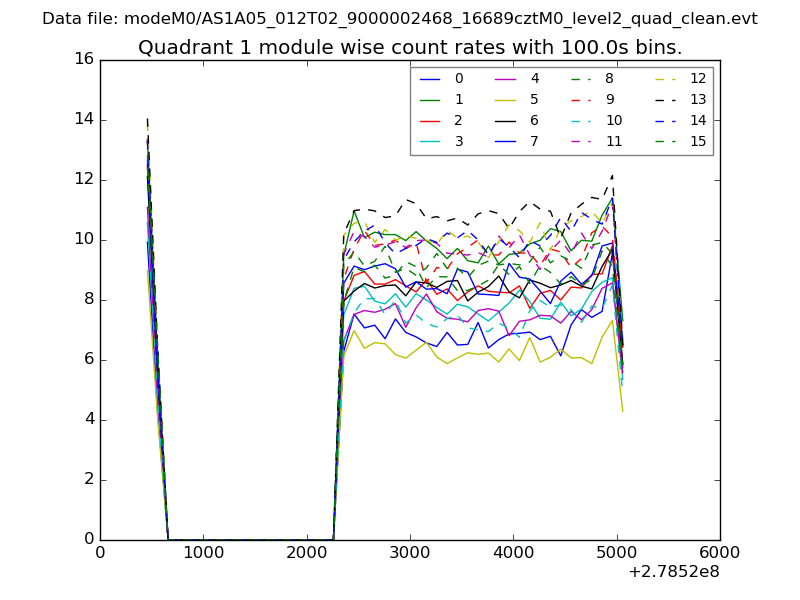

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

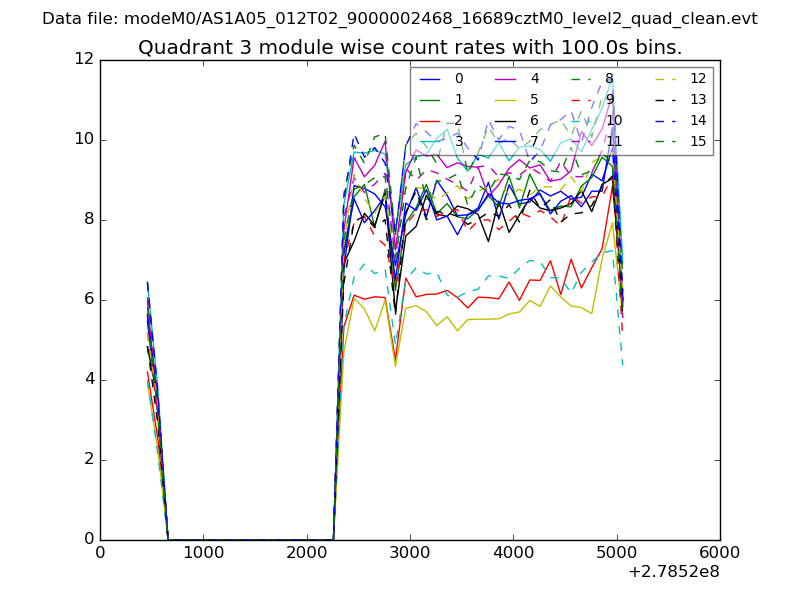

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

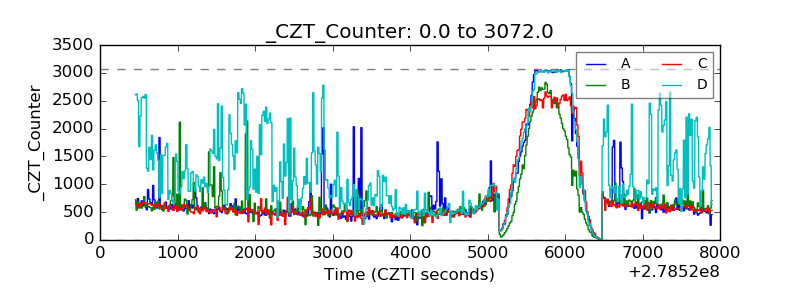

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

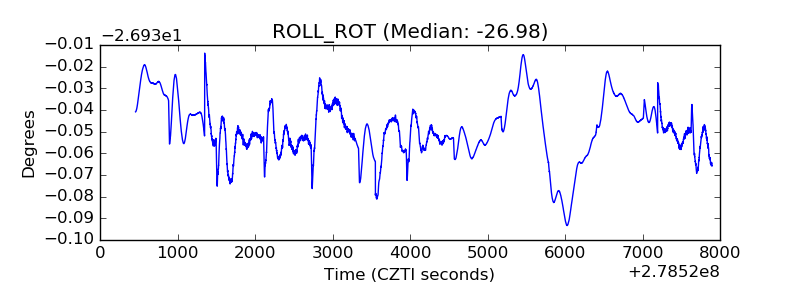

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
