| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_225T01_9000002470_16690cztM0_level2.evt | modeM0/AS1A05_225T01_9000002470_16690cztM0_level2_quad_clean.evt |
| Size (bytes) | 291,643,200 | 35,418,240 |
| Size | 278.1 MB | 33.8 MB |
| Events in quadrant A | 2,602,650 | 213,050 |
| Events in quadrant B | 1,778,250 | 222,581 |
| Events in quadrant C | 1,654,300 | 213,546 |
| Events in quadrant D | 2,586,955 | 203,607 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9769 | 2 |
| B | 0 | 7154 | 1 |
| C | 0 | 6715 | 1 |
| D | 0 | 9834 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 64 | 0 |
| B | 0 | 64 | 0 |
| C | 0 | 64 | 0 |
| D | 0 | 64 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3078 | 309 | 10.038986% |
| B | 3078 | 126 | 4.093567% |
| C | 3078 | 127 | 4.126056% |
| D | 3078 | 171 | 5.555556% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4314 | 3080 | 72 | 72 | 1.67% | 2.34% |  |
| B | 4314 | 3080 | 8 | 8 | 0.19% | 0.26% |  |
| C | 4314 | 3080 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4314 | 3080 | 33 | 33 | 0.76% | 1.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 984774 | 11509.53 | 413 | 404 | 85.5 |
| A | 9 | 143 | 18873 | 215.94 | 413 | 404 | 85.5 |
| A | 3 | 1 | 5942 | 64.75 | 413 | 404 | 85.5 |
| B | 15 | 35 | 83955 | 1025.74 | 419 | 409 | 81.4 |
| B | 0 | 229 | 14817 | 176.89 | 419 | 409 | 81.4 |
| B | 15 | 222 | 12704 | 150.95 | 419 | 409 | 81.4 |
| C | 14 | 238 | 62615 | 648.55 | 405 | 408 | 95.9 |
| C | 3 | 233 | 8235 | 81.6 | 405 | 408 | 95.9 |
| C | 7 | 247 | 4364 | 41.24 | 405 | 408 | 95.9 |
| D | 2 | 16 | 478551 | 4756.06 | 408 | 396 | 100.5 |
| D | 1 | 52 | 380560 | 3781.37 | 408 | 396 | 100.5 |
| D | 5 | 222 | 143155 | 1419.98 | 408 | 396 | 100.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

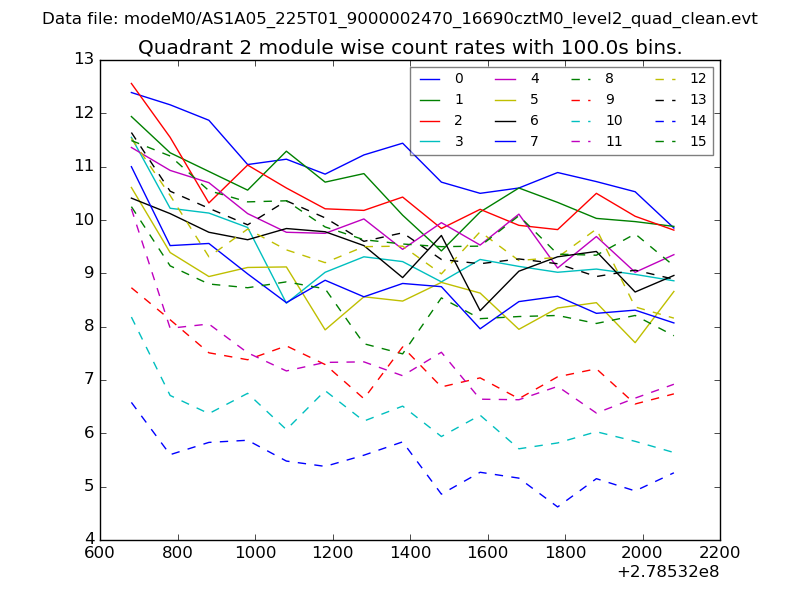

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

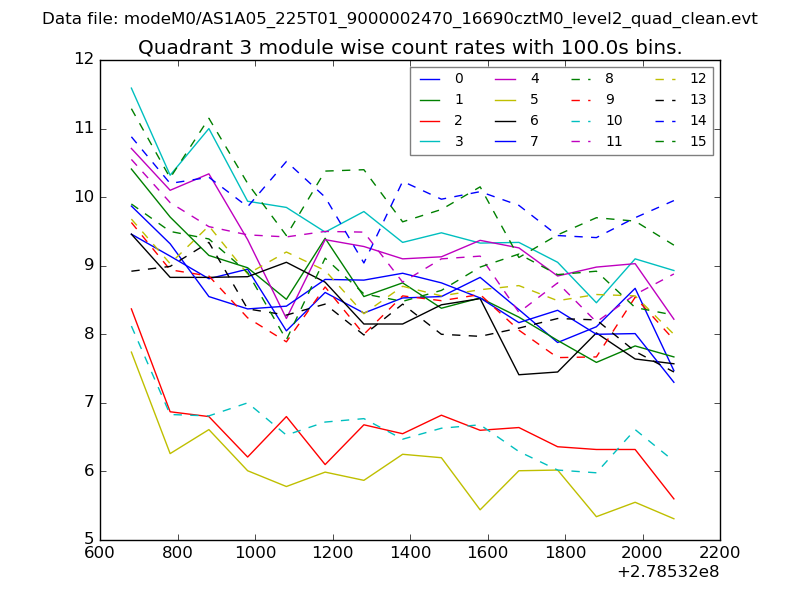

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

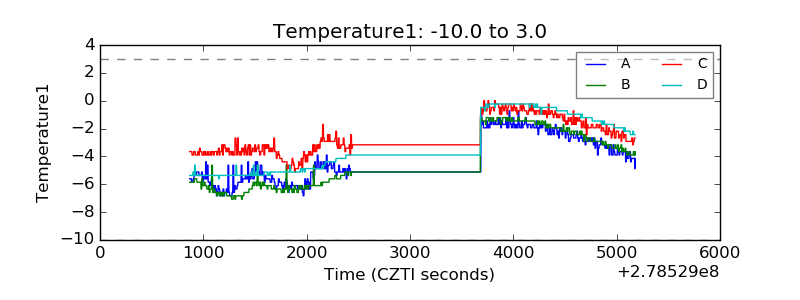

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

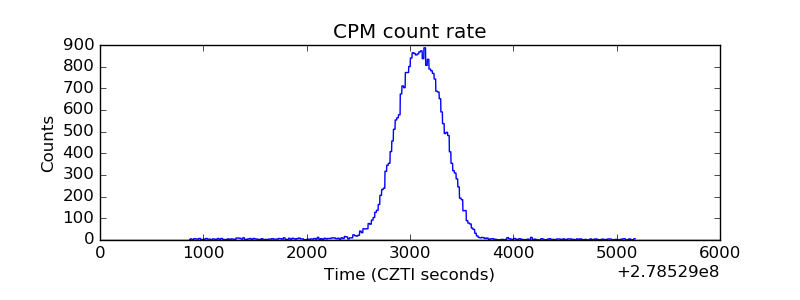

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

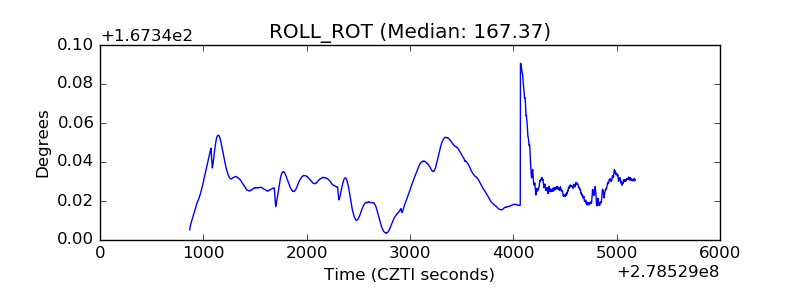

| _ROLL_ROT |  |

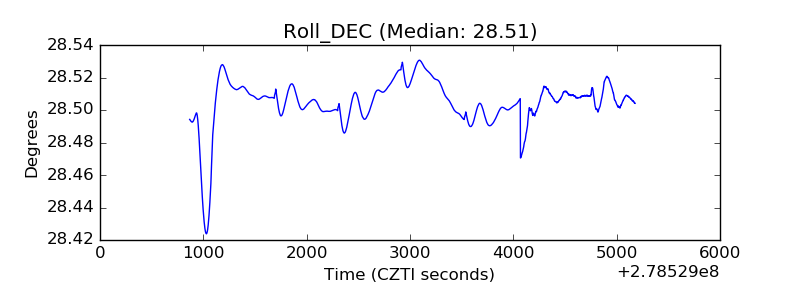

| _Roll_DEC |  |
| _Roll_RA |  |

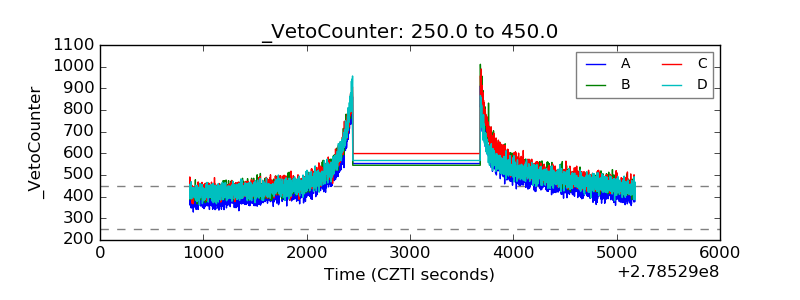

| Veto Counter |  |
