| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_024T01_9000002472_16700cztM0_level2.evt | modeM0/AS1T03_024T01_9000002472_16700cztM0_level2_quad_clean.evt |
| Size (bytes) | 735,704,640 | 78,932,160 |
| Size | 701.6 MB | 75.3 MB |
| Events in quadrant A | 4,724,205 | 496,831 |
| Events in quadrant B | 3,617,519 | 510,350 |
| Events in quadrant C | 3,400,231 | 488,301 |
| Events in quadrant D | 10,090,683 | 431,407 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18347 | 3 |
| B | 0 | 14750 | 2 |
| C | 0 | 14058 | 2 |
| D | 0 | 34584 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6641 | 388 | 5.842494% |
| B | 6641 | 71 | 1.069116% |
| C | 6641 | 94 | 1.415449% |
| D | 6641 | 2133 | 32.118657% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7722 | 6643 | 207 | 207 | 2.68% | 3.12% |  |
| B | 7722 | 6643 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7722 | 6643 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7722 | 6643 | 1820 | 1820 | 23.57% | 27.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 1228966 | 7100.61 | 859 | 843 | 173.0 |
| A | 12 | 96 | 113632 | 652.11 | 859 | 843 | 173.0 |
| A | 13 | 228 | 27536 | 154.33 | 859 | 843 | 173.0 |
| B | 15 | 35 | 123473 | 746.0 | 866 | 846 | 164.4 |
| B | 5 | 236 | 31502 | 186.5 | 866 | 846 | 164.4 |
| B | 0 | 189 | 18693 | 108.57 | 866 | 846 | 164.4 |
| C | 14 | 238 | 129235 | 658.8 | 833 | 842 | 194.9 |
| C | 3 | 233 | 8250 | 38.01 | 833 | 842 | 194.9 |
| C | 0 | 207 | 7740 | 35.39 | 833 | 842 | 194.9 |
| D | 1 | 52 | 6679539 | 35074.45 | 779 | 758 | 190.4 |
| D | 2 | 16 | 206199 | 1078.9 | 779 | 758 | 190.4 |
| D | 5 | 222 | 106169 | 553.58 | 779 | 758 | 190.4 |

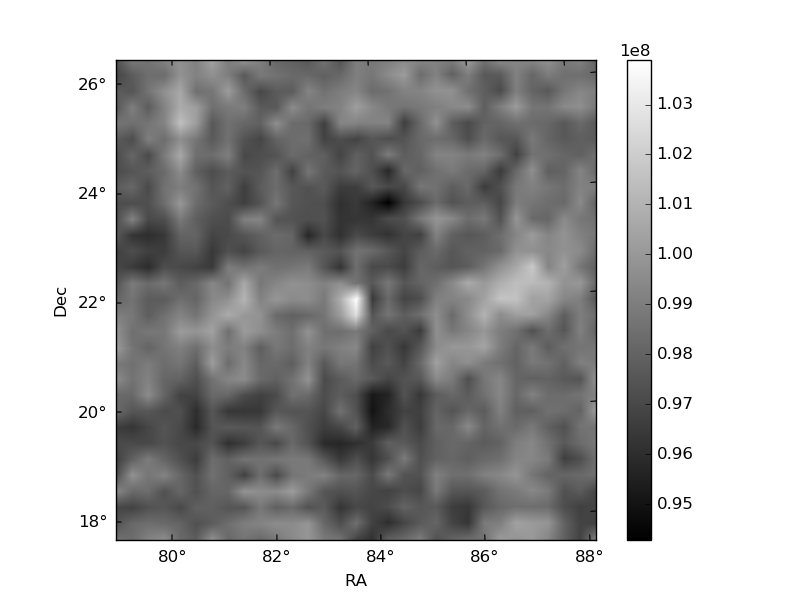

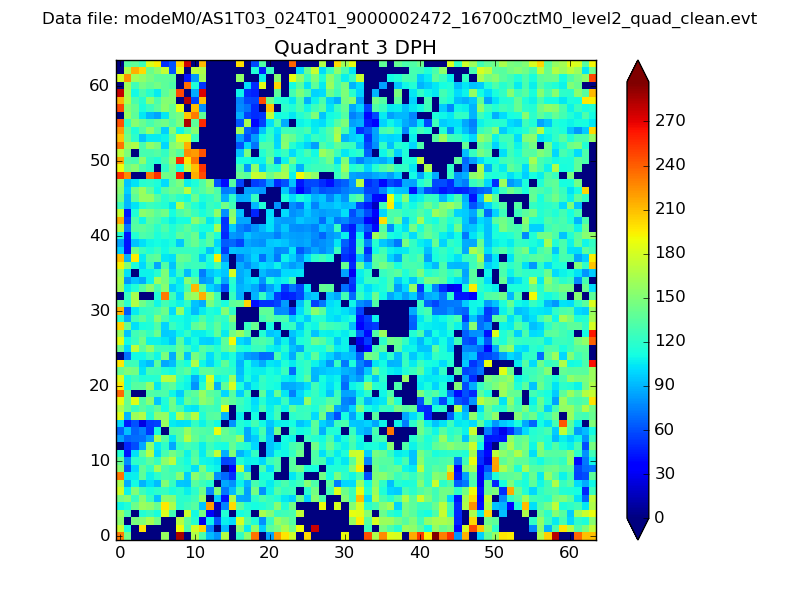

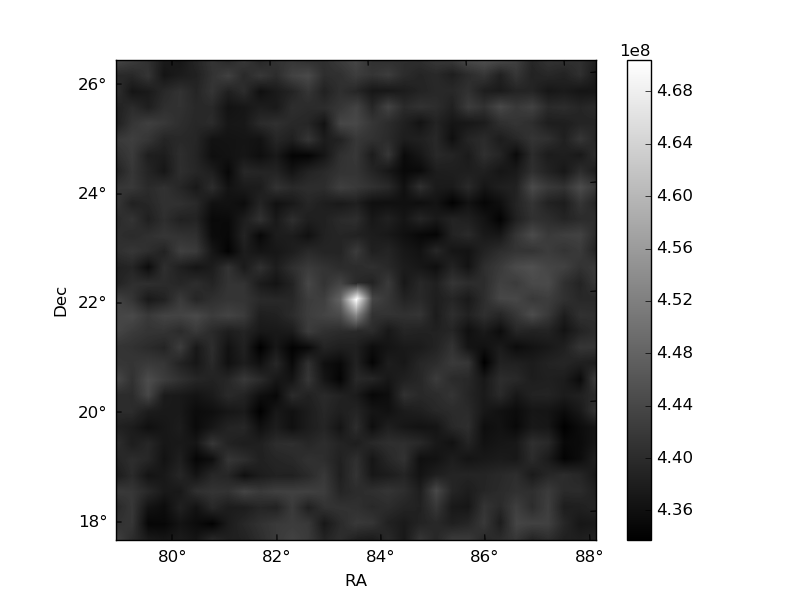

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

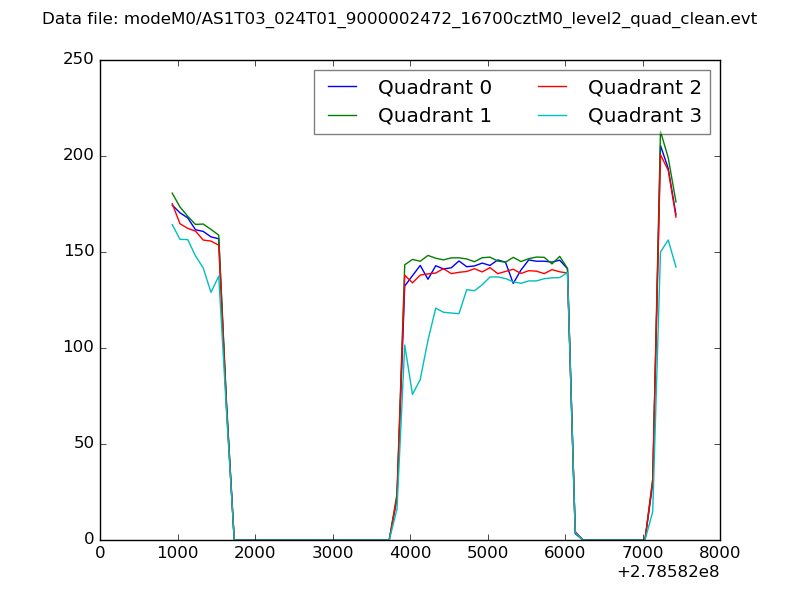

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

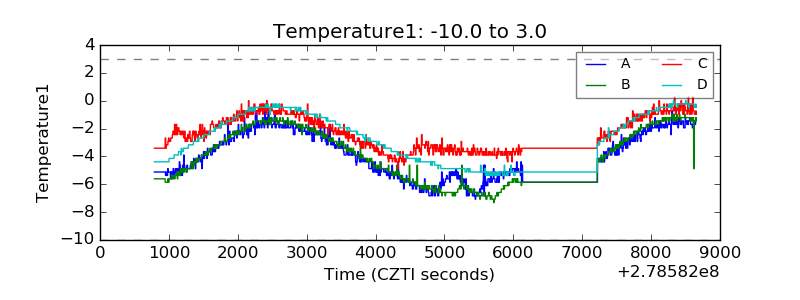

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

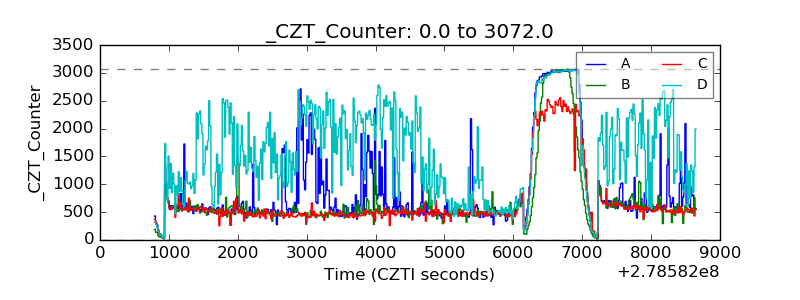

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
