| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_059T05_9000002478_16721cztM0_level2.evt | modeM0/AS1A05_059T05_9000002478_16721cztM0_level2_quad_clean.evt |
| Size (bytes) | 375,408,000 | 92,868,480 |
| Size | 358.0 MB | 88.6 MB |
| Events in quadrant A | 2,844,228 | 620,687 |
| Events in quadrant B | 2,488,364 | 639,435 |
| Events in quadrant C | 3,239,010 | 603,721 |
| Events in quadrant D | 2,460,586 | 601,237 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11794 | 2 |
| B | 0 | 10493 | 1 |
| C | 0 | 12982 | 1 |
| D | 0 | 10737 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4943 | 166 | 3.358284% |
| B | 4943 | 23 | 0.465304% |
| C | 4943 | 66 | 1.335222% |
| D | 4943 | 30 | 0.606919% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

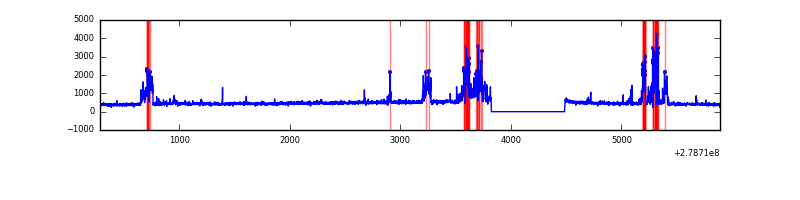

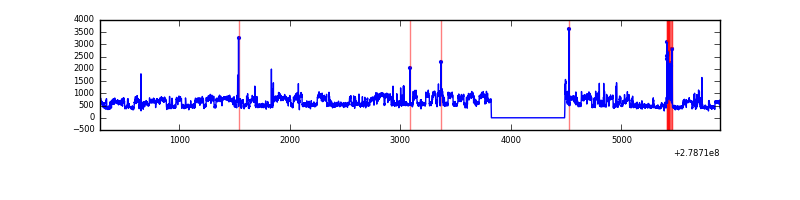

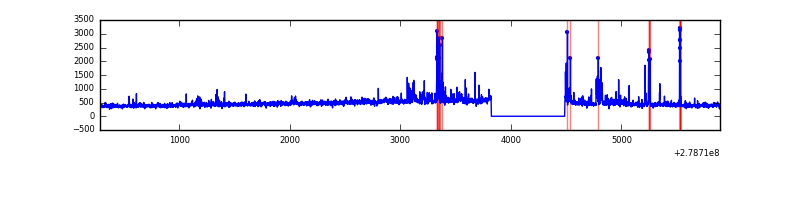

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5609 | 4945 | 89 | 89 | 1.59% | 1.80% |  |
| B | 5609 | 4945 | 0 | 0 | 0.00% | 0.00% |  |
| C | 5609 | 4945 | 17 | 17 | 0.30% | 0.34% |  |
| D | 5609 | 4945 | 22 | 22 | 0.39% | 0.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 601385 | 5188.73 | 574 | 562 | 115.8 |
| A | 9 | 143 | 27330 | 231.17 | 574 | 562 | 115.8 |
| A | 0 | 226 | 5210 | 40.14 | 574 | 562 | 115.8 |
| B | 0 | 229 | 68927 | 617.02 | 583 | 569 | 110.8 |
| B | 10 | 16 | 48795 | 435.3 | 583 | 569 | 110.8 |
| B | 15 | 35 | 35064 | 311.36 | 583 | 569 | 110.8 |
| C | 3 | 233 | 840362 | 6467.07 | 556 | 558 | 129.9 |
| C | 0 | 207 | 133801 | 1026.06 | 556 | 558 | 129.9 |
| C | 14 | 238 | 86366 | 660.78 | 556 | 558 | 129.9 |
| D | 1 | 52 | 120638 | 872.72 | 564 | 546 | 137.6 |
| D | 10 | 70 | 95174 | 687.67 | 564 | 546 | 137.6 |
| D | 5 | 222 | 50778 | 365.04 | 564 | 546 | 137.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

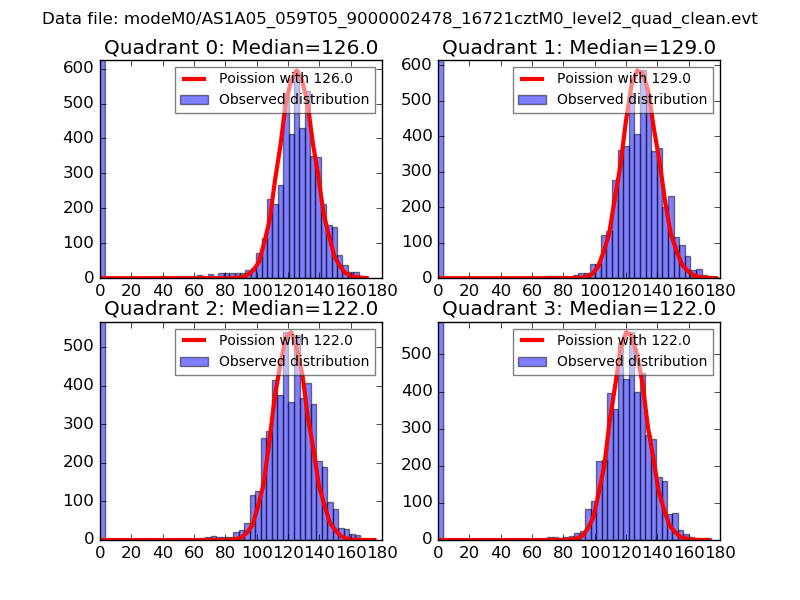

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

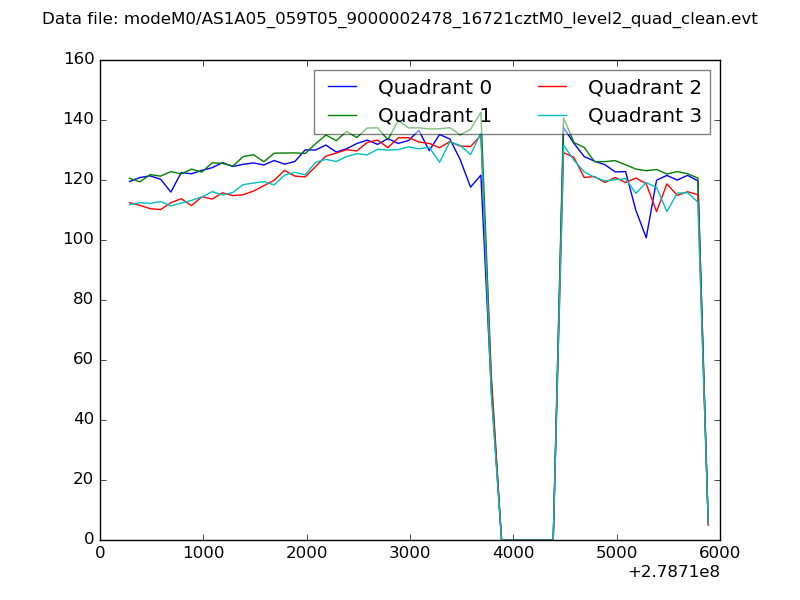

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

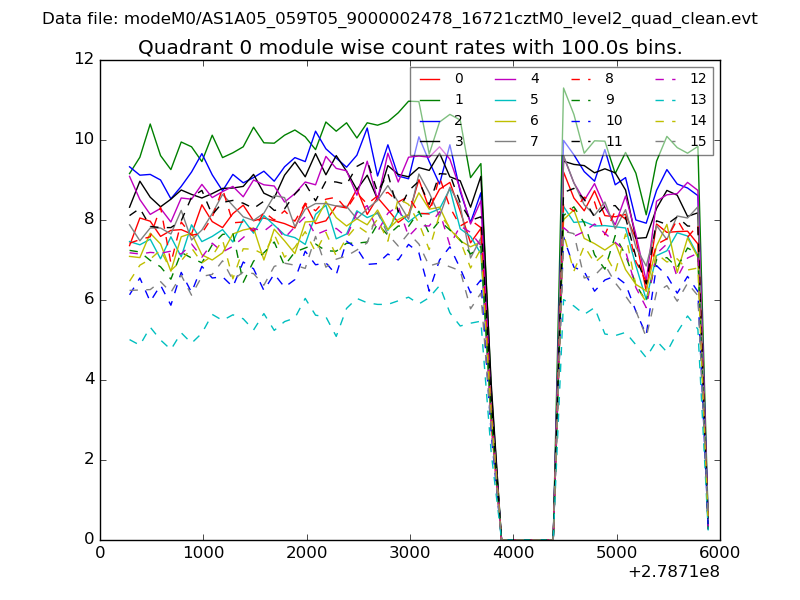

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

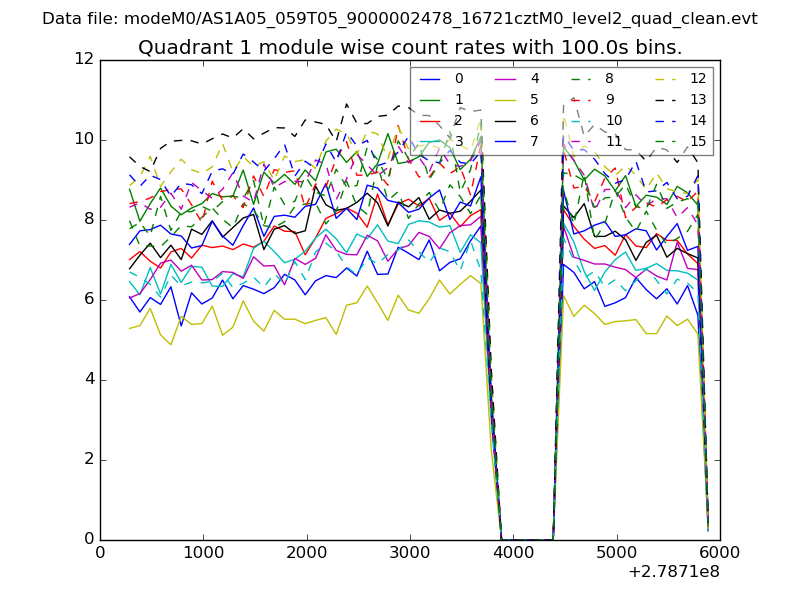

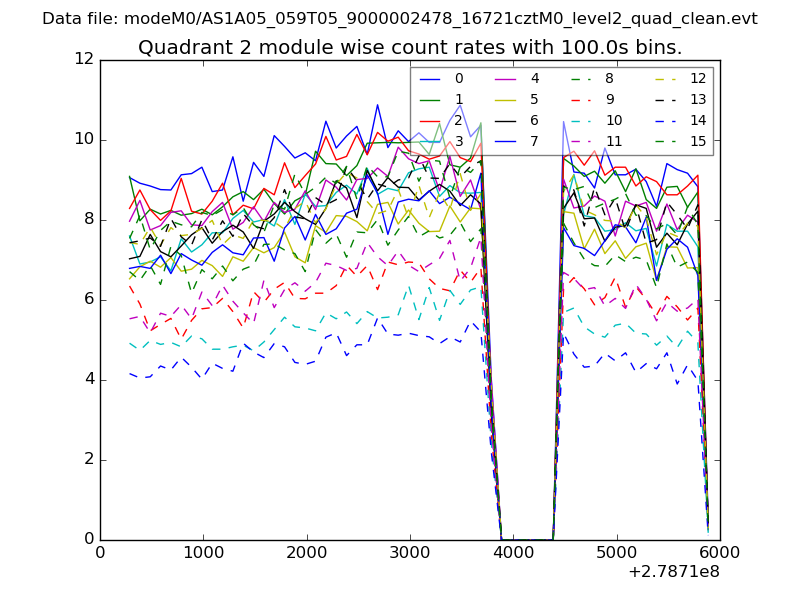

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

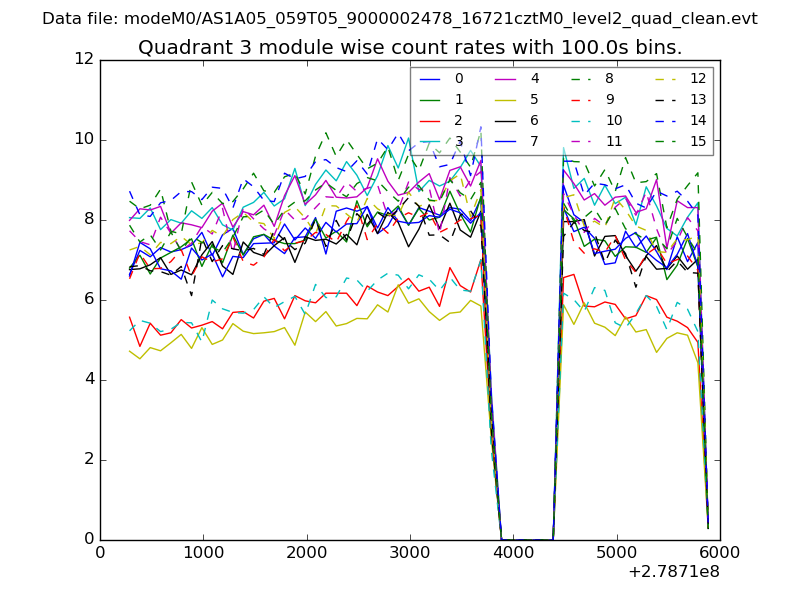

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

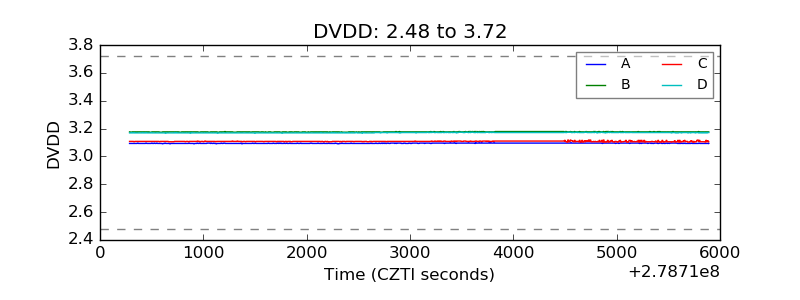

| D_VDD |  |

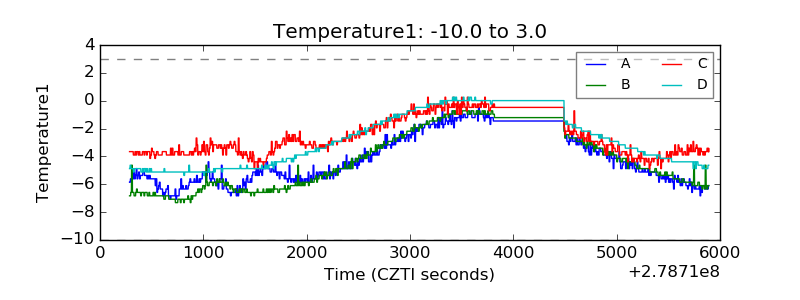

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

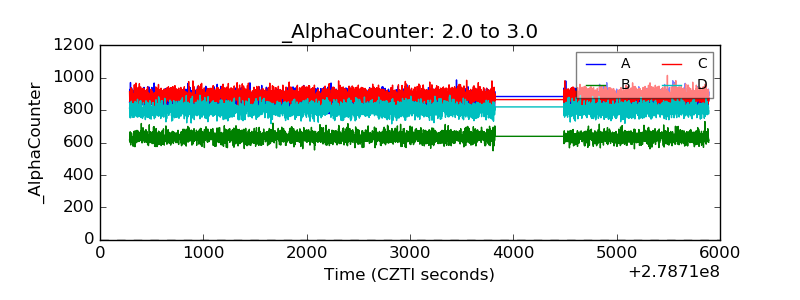

| Alpha Counter |  |

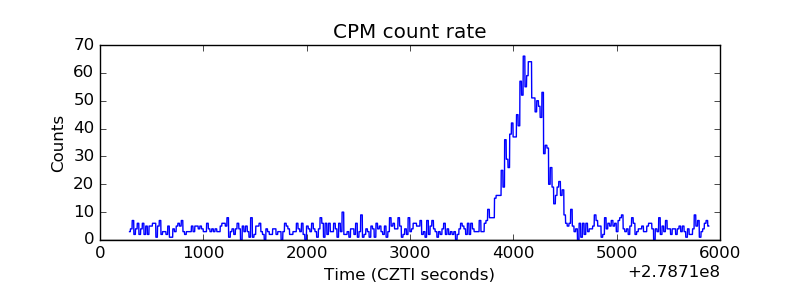

| _CPM_Rate |  |

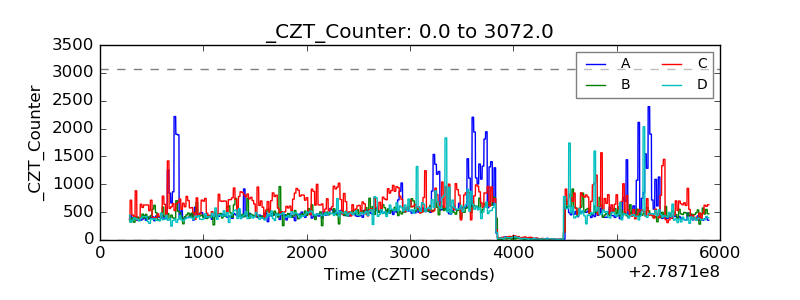

| CZT Counter |  |

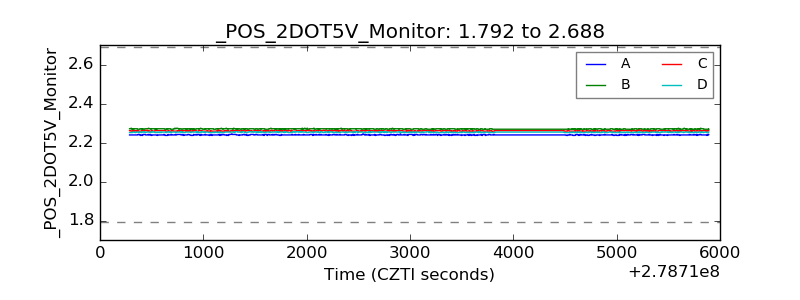

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

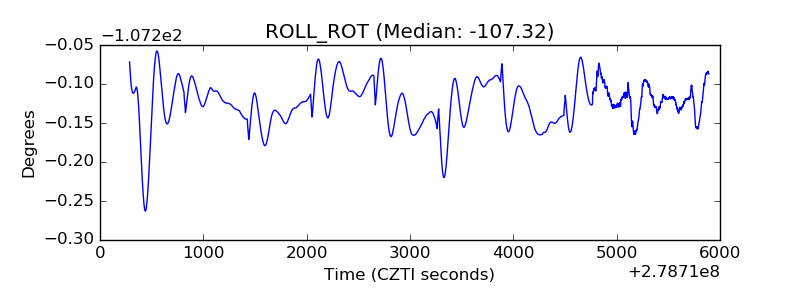

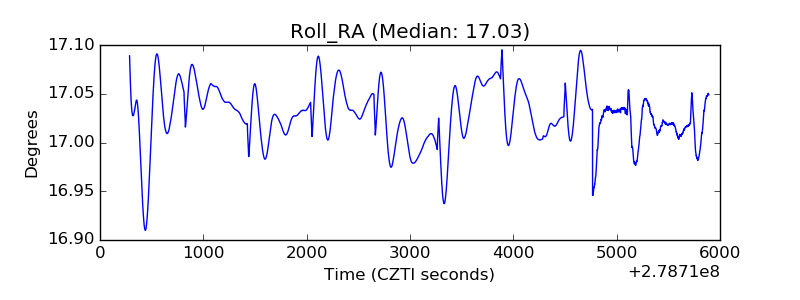

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

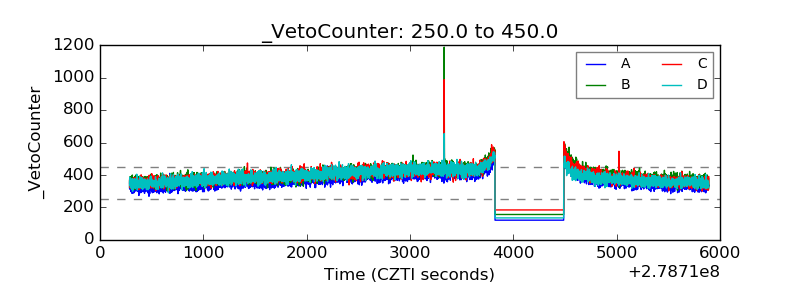

| Veto Counter |  |
