| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_101T07_9000002482_16727cztM0_level2.evt | modeM0/AS1A05_101T07_9000002482_16727cztM0_level2_quad_clean.evt |
| Size (bytes) | 132,094,080 | 29,712,960 |
| Size | 126.0 MB | 28.3 MB |
| Events in quadrant A | 891,349 | 197,248 |
| Events in quadrant B | 949,473 | 200,183 |
| Events in quadrant C | 1,006,383 | 188,707 |
| Events in quadrant D | 1,031,471 | 184,620 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38 | 0 |
| B | 0 | 38 | 0 |
| C | 0 | 38 | 0 |
| D | 0 | 38 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3679 | 2 |
| B | 0 | 3818 | 1 |
| C | 0 | 4046 | 1 |
| D | 0 | 4127 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1749 | 11 | 0.628931% |
| B | 1749 | 28 | 1.600915% |
| C | 1749 | 39 | 2.229846% |
| D | 1749 | 25 | 1.429388% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

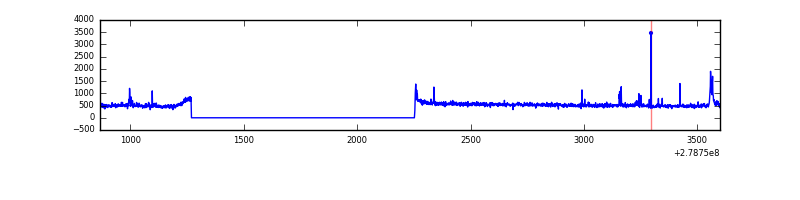

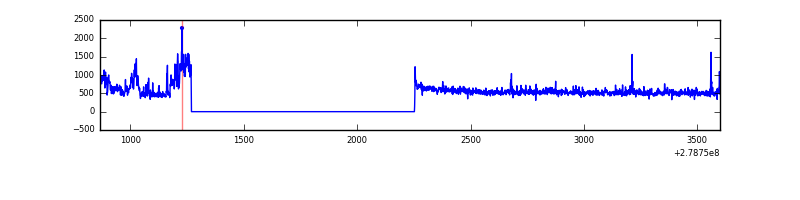

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2735 | 1751 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2735 | 1751 | 1 | 1 | 0.04% | 0.06% |  |
| C | 2735 | 1751 | 4 | 4 | 0.15% | 0.23% |  |
| D | 2735 | 1751 | 1 | 1 | 0.04% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 6632 | 134.43 | 229 | 224 | 47.7 |
| A | 0 | 226 | 2093 | 39.21 | 229 | 224 | 47.7 |
| A | 12 | 194 | 1679 | 30.52 | 229 | 224 | 47.7 |
| B | 10 | 16 | 34715 | 756.87 | 229 | 224 | 45.6 |
| B | 15 | 35 | 9817 | 210.51 | 229 | 224 | 45.6 |
| B | 0 | 229 | 6874 | 145.93 | 229 | 224 | 45.6 |
| C | 0 | 207 | 80032 | 1476.16 | 225 | 227 | 54.1 |
| C | 14 | 238 | 34560 | 635.06 | 225 | 227 | 54.1 |
| C | 8 | 128 | 4447 | 78.06 | 225 | 227 | 54.1 |
| D | 1 | 52 | 125366 | 2228.41 | 226 | 218 | 56.2 |
| D | 2 | 16 | 25148 | 443.91 | 226 | 218 | 56.2 |
| D | 10 | 70 | 11607 | 202.8 | 226 | 218 | 56.2 |

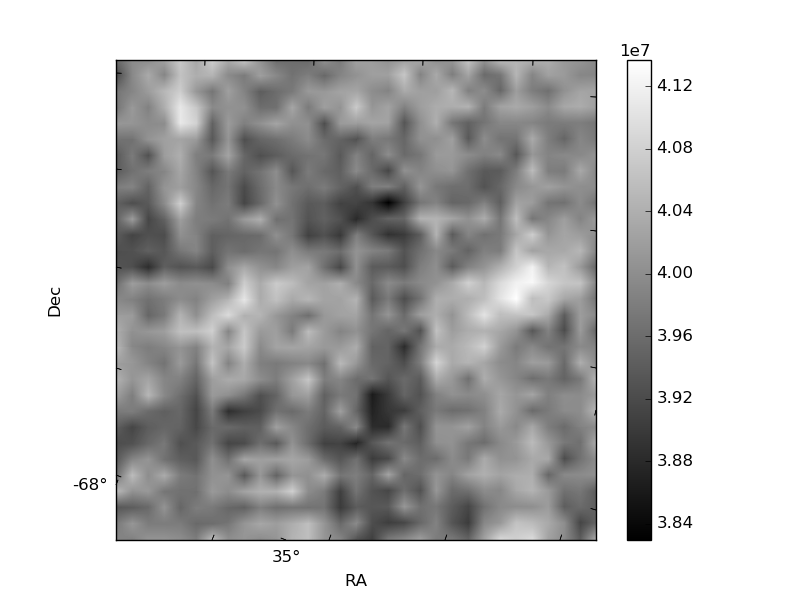

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

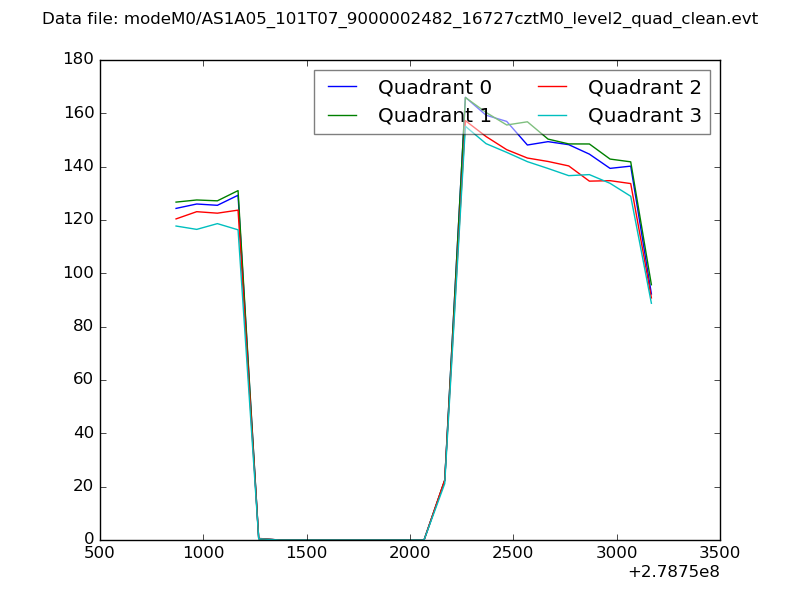

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

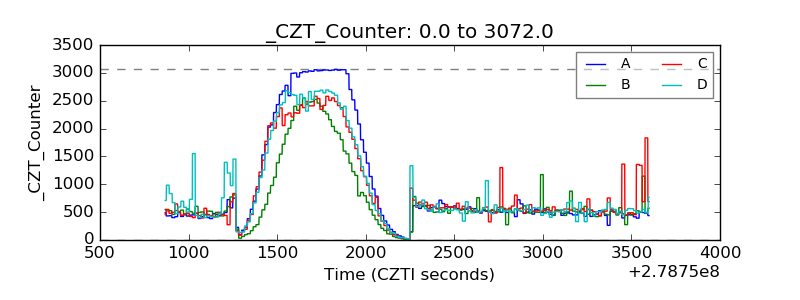

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

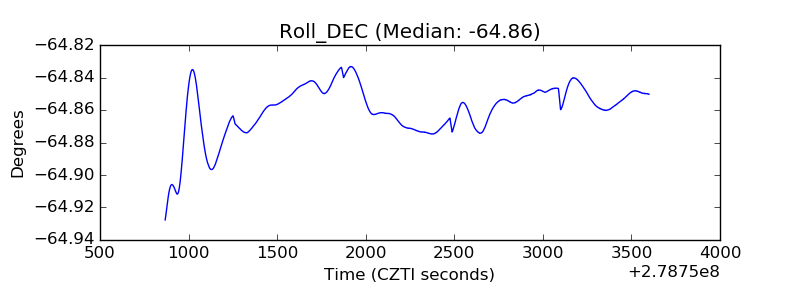

| _Roll_DEC |  |

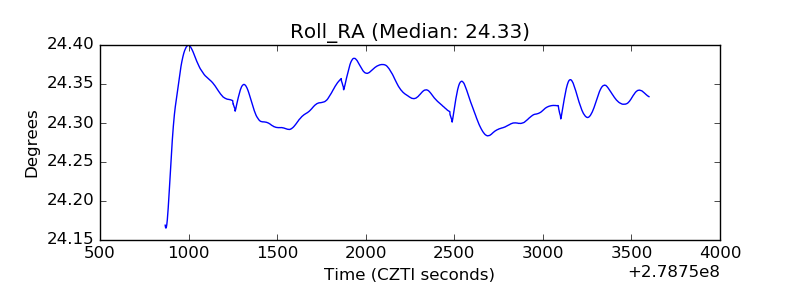

| _Roll_RA |  |

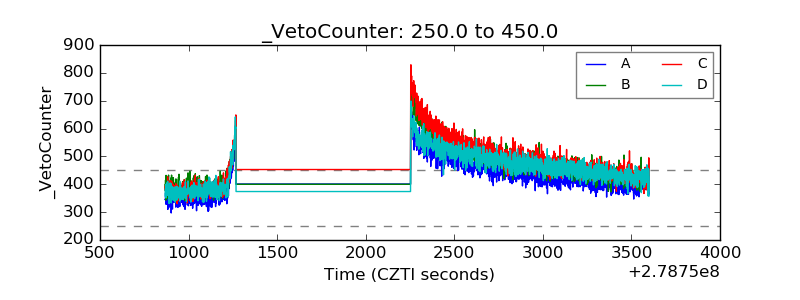

| Veto Counter |  |
