| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_101T07_9000002482_16729cztM0_level2.evt | modeM0/AS1A05_101T07_9000002482_16729cztM0_level2_quad_clean.evt |
| Size (bytes) | 571,959,360 | 105,197,760 |
| Size | 545.5 MB | 100.3 MB |
| Events in quadrant A | 4,519,054 | 667,969 |
| Events in quadrant B | 3,452,969 | 718,761 |
| Events in quadrant C | 3,396,497 | 692,762 |
| Events in quadrant D | 5,512,563 | 652,699 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17598 | 2 |
| B | 0 | 14362 | 1 |
| C | 0 | 14386 | 1 |
| D | 0 | 20665 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6501 | 626 | 9.629288% |
| B | 6501 | 100 | 1.538225% |
| C | 6501 | 129 | 1.984310% |
| D | 6501 | 661 | 10.167667% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7567 | 6502 | 443 | 443 | 5.85% | 6.81% |  |
| B | 7567 | 6502 | 11 | 11 | 0.15% | 0.17% |  |
| C | 7567 | 6502 | 11 | 11 | 0.15% | 0.17% |  |
| D | 7567 | 6503 | 661 | 661 | 8.74% | 10.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 1517123 | 9759.06 | 775 | 758 | 155.4 |
| A | 3 | 1 | 11530 | 69.33 | 775 | 758 | 155.4 |
| A | 4 | 2 | 9460 | 56.0 | 775 | 758 | 155.4 |
| B | 10 | 16 | 142786 | 943.8 | 805 | 785 | 150.5 |
| B | 15 | 35 | 85517 | 563.16 | 805 | 785 | 150.5 |
| B | 0 | 230 | 23495 | 150.94 | 805 | 785 | 150.5 |
| C | 0 | 207 | 201691 | 1116.63 | 779 | 785 | 179.9 |
| C | 14 | 238 | 122171 | 674.66 | 779 | 785 | 179.9 |
| C | 3 | 233 | 17687 | 93.94 | 779 | 785 | 179.9 |
| D | 12 | 110 | 2159512 | 11565.41 | 773 | 751 | 186.7 |
| D | 1 | 52 | 220702 | 1178.37 | 773 | 751 | 186.7 |
| D | 5 | 222 | 76121 | 403.79 | 773 | 751 | 186.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

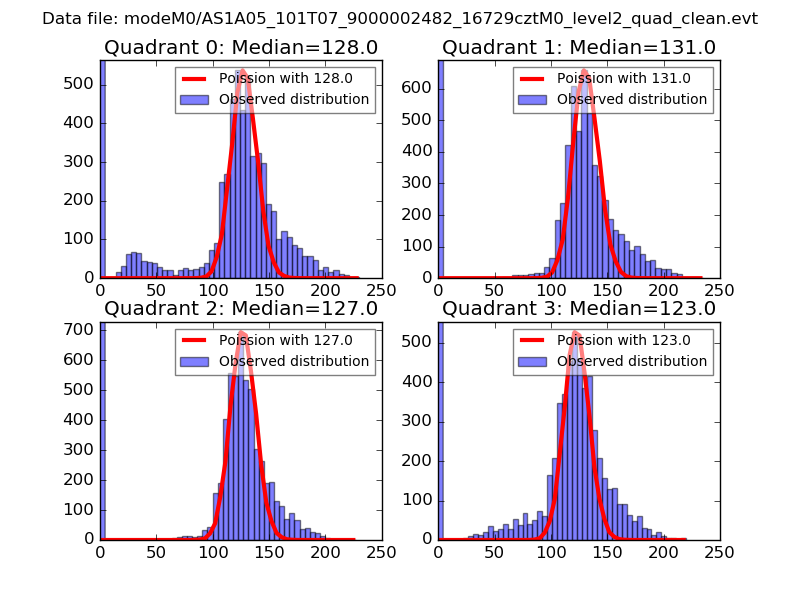

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

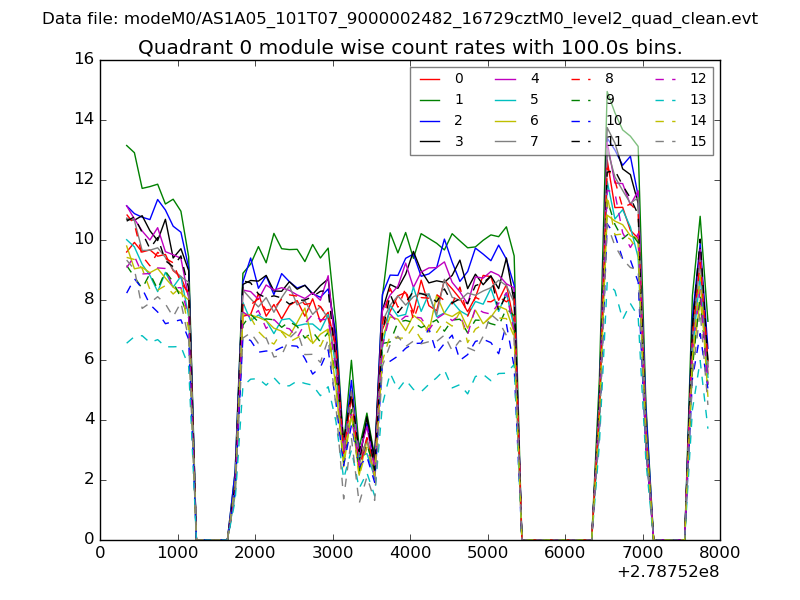

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

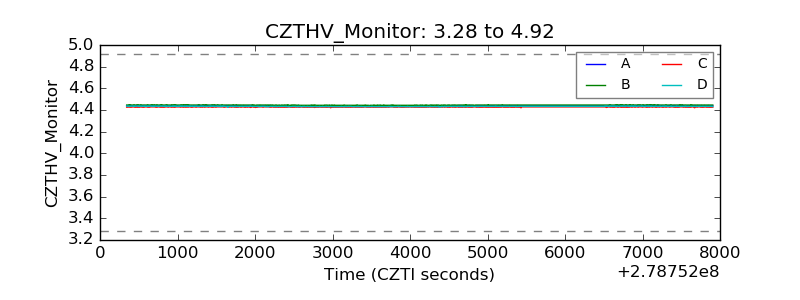

| CZT HV Monitor |  |
| D_VDD |  |

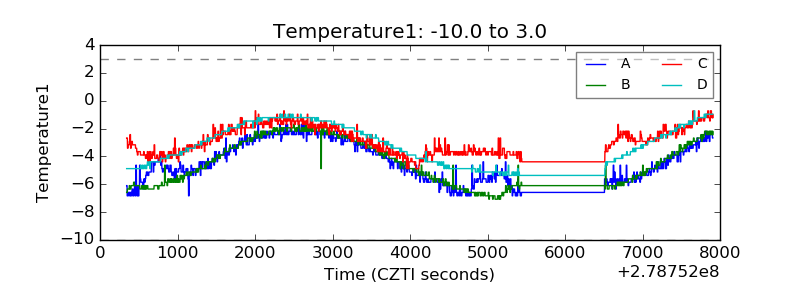

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
