| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_202T01_9000002484_16740cztM0_level2.evt | modeM0/AS1A05_202T01_9000002484_16740cztM0_level2_quad_clean.evt |
| Size (bytes) | 660,873,600 | 114,497,280 |
| Size | 630.3 MB | 109.2 MB |
| Events in quadrant A | 5,060,416 | 750,751 |
| Events in quadrant B | 3,455,451 | 796,828 |
| Events in quadrant C | 3,396,238 | 763,136 |
| Events in quadrant D | 7,624,709 | 664,789 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19717 | 2 |
| B | 0 | 14933 | 1 |
| C | 0 | 14639 | 1 |
| D | 0 | 27446 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7059 | 651 | 9.222269% |
| B | 7059 | 111 | 1.572461% |
| C | 7059 | 88 | 1.246636% |
| D | 7059 | 1301 | 18.430373% |

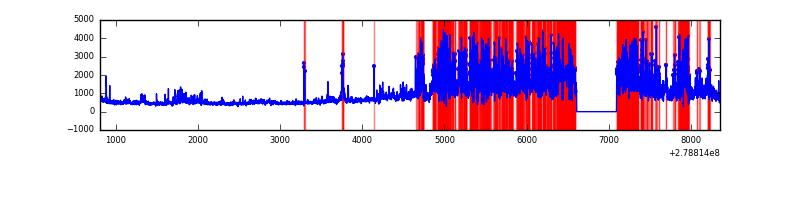

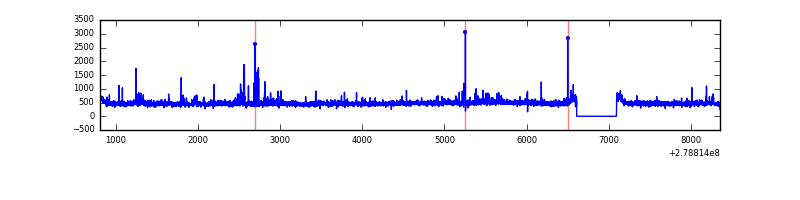

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7545 | 7061 | 511 | 511 | 6.77% | 7.24% |  |
| B | 7545 | 7061 | 20 | 20 | 0.27% | 0.28% |  |
| C | 7545 | 7061 | 3 | 3 | 0.04% | 0.04% |  |
| D | 7545 | 7061 | 936 | 936 | 12.41% | 13.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 2014582 | 12609.96 | 792 | 773 | 159.7 |
| A | 0 | 226 | 7067 | 39.41 | 792 | 773 | 159.7 |
| A | 12 | 194 | 5813 | 31.56 | 792 | 773 | 159.7 |
| B | 10 | 16 | 56049 | 352.37 | 822 | 803 | 156.8 |
| B | 15 | 35 | 54952 | 345.37 | 822 | 803 | 156.8 |
| B | 0 | 197 | 45059 | 282.27 | 822 | 803 | 156.8 |
| C | 0 | 207 | 165925 | 892.27 | 790 | 795 | 185.1 |
| C | 14 | 238 | 124319 | 667.45 | 790 | 795 | 185.1 |
| C | 7 | 247 | 20223 | 104.98 | 790 | 795 | 185.1 |
| D | 1 | 52 | 4551387 | 25925.92 | 721 | 700 | 175.5 |
| D | 2 | 16 | 145038 | 822.31 | 721 | 700 | 175.5 |
| D | 10 | 70 | 57601 | 324.17 | 721 | 700 | 175.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

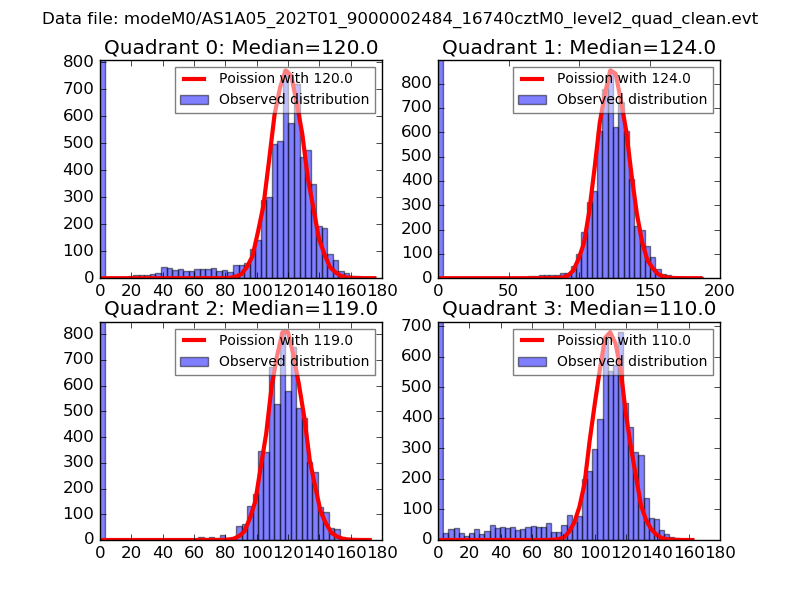

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

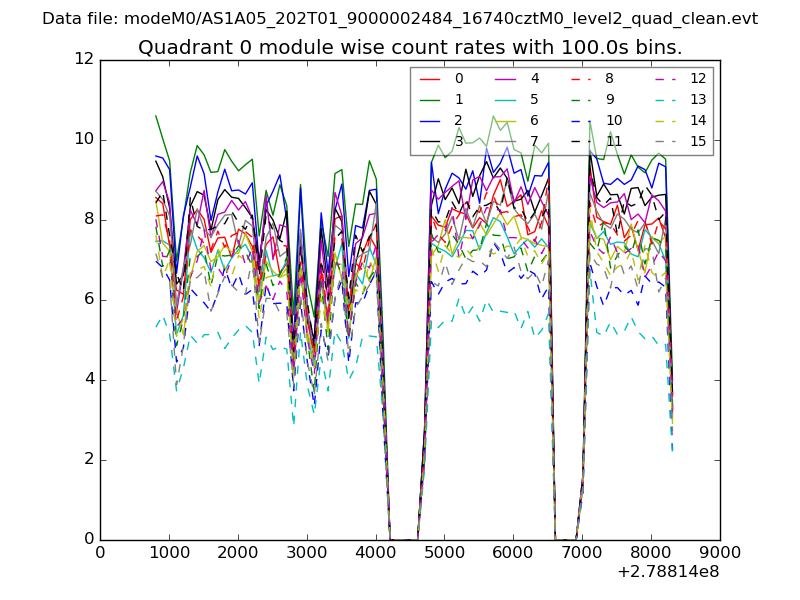

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

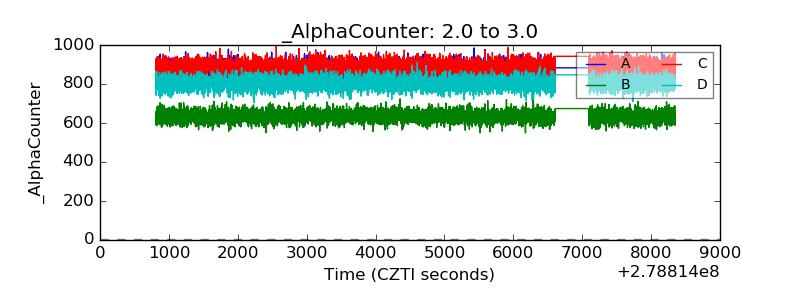

| Alpha Counter |  |

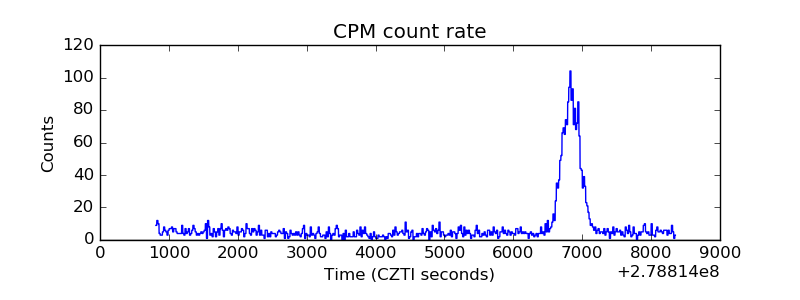

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

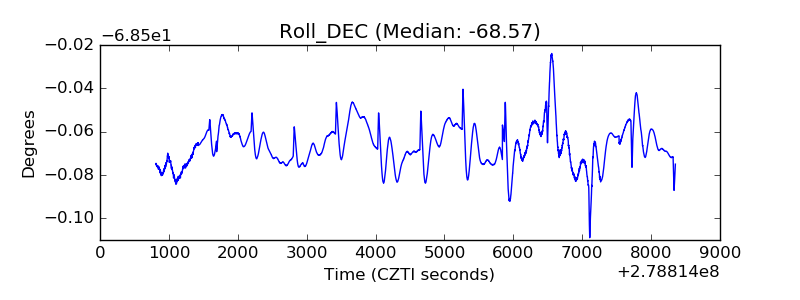

| _Roll_DEC |  |
| _Roll_RA |  |

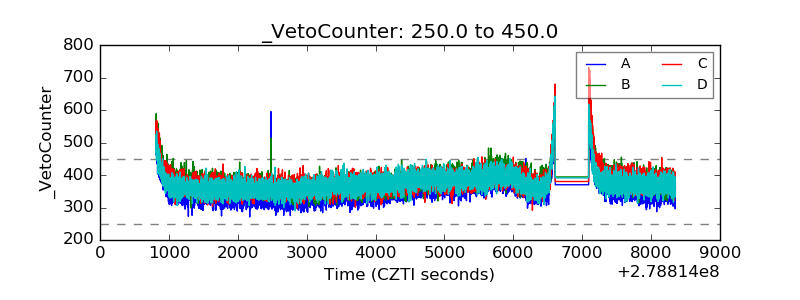

| Veto Counter |  |
