| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_202T01_9000002484_16752cztM0_level2.evt | modeM0/AS1A05_202T01_9000002484_16752cztM0_level2_quad_clean.evt |
| Size (bytes) | 605,039,040 | 130,458,240 |
| Size | 577.0 MB | 124.4 MB |
| Events in quadrant A | 3,625,777 | 874,142 |
| Events in quadrant B | 4,178,393 | 878,332 |
| Events in quadrant C | 3,929,004 | 844,562 |
| Events in quadrant D | 6,060,149 | 809,971 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16216 | 3 |
| B | 0 | 17709 | 2 |
| C | 0 | 16865 | 2 |
| D | 0 | 23370 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7820 | 53 | 0.677749% |
| B | 7820 | 211 | 2.698210% |
| C | 7820 | 106 | 1.355499% |
| D | 7820 | 333 | 4.258312% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

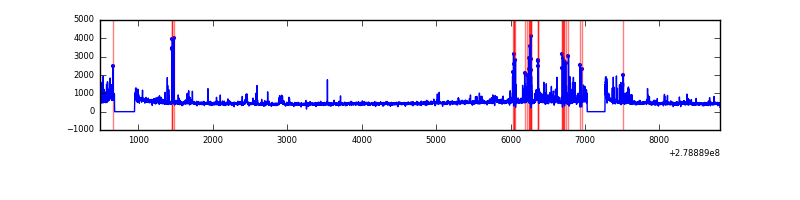

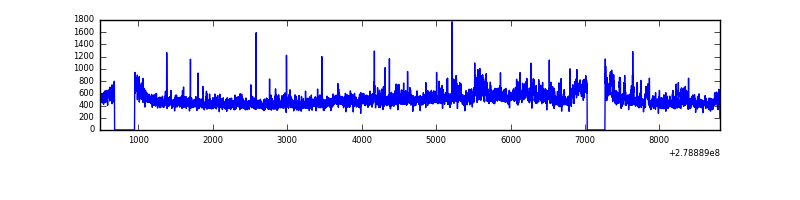

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8331 | 7823 | 5 | 5 | 0.06% | 0.06% |  |
| B | 8331 | 7823 | 33 | 33 | 0.40% | 0.42% |  |
| C | 8331 | 7823 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8331 | 7823 | 191 | 191 | 2.29% | 2.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 70346 | 372.61 | 919 | 898 | 186.4 |
| A | 3 | 1 | 24501 | 126.64 | 919 | 898 | 186.4 |
| A | 0 | 226 | 8115 | 38.72 | 919 | 898 | 186.4 |
| B | 10 | 16 | 161178 | 915.27 | 919 | 894 | 175.1 |
| B | 15 | 35 | 122847 | 696.39 | 919 | 894 | 175.1 |
| B | 7 | 220 | 105181 | 595.51 | 919 | 894 | 175.1 |
| C | 3 | 233 | 184334 | 895.27 | 879 | 882 | 204.9 |
| C | 0 | 207 | 160348 | 778.22 | 879 | 882 | 204.9 |
| C | 14 | 238 | 134673 | 652.92 | 879 | 882 | 204.9 |
| D | 1 | 52 | 2422305 | 11275.59 | 875 | 846 | 214.8 |
| D | 11 | 176 | 175360 | 812.63 | 875 | 846 | 214.8 |
| D | 15 | 0 | 71423 | 328.64 | 875 | 846 | 214.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

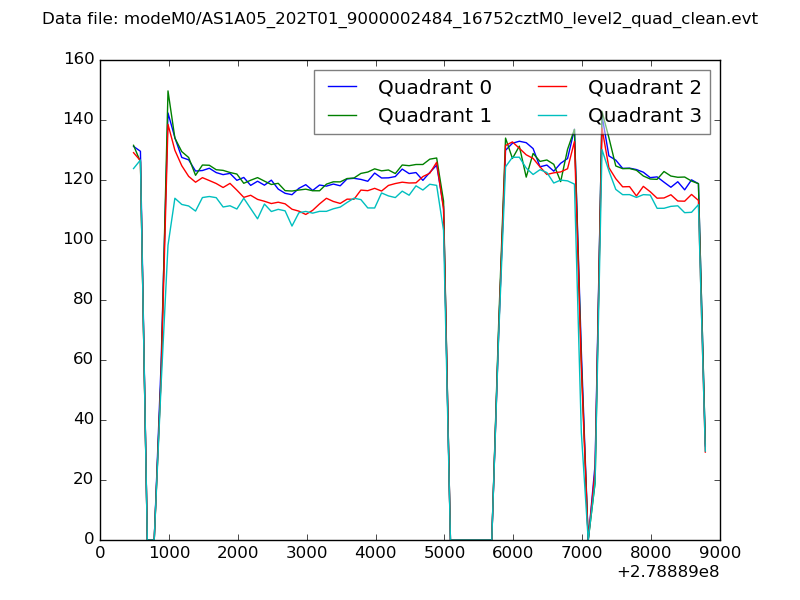

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

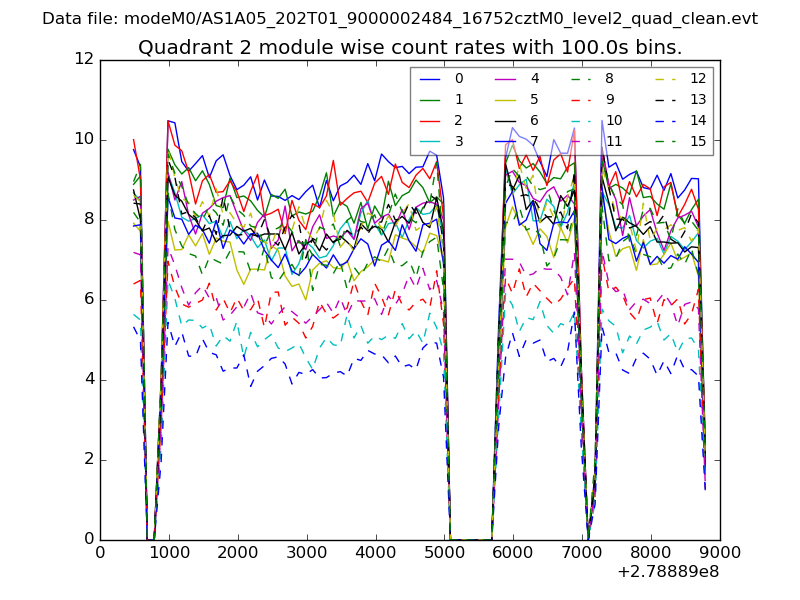

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

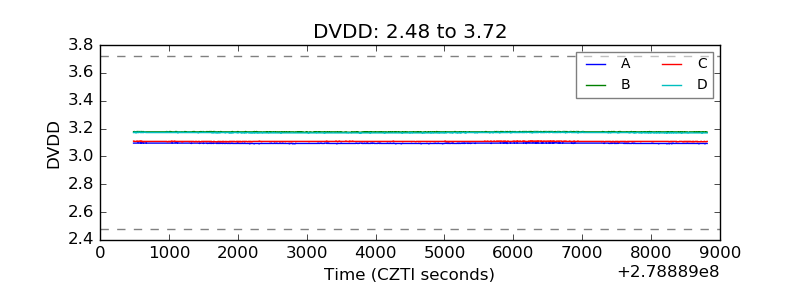

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

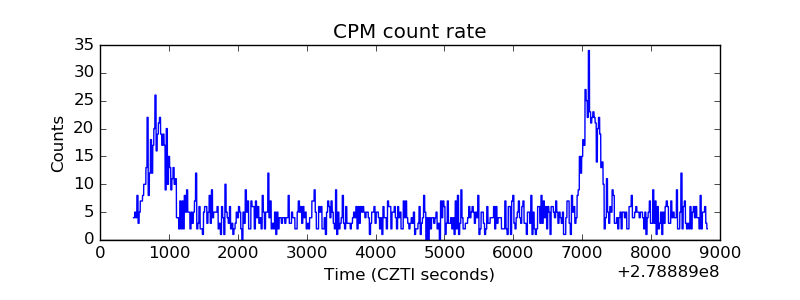

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

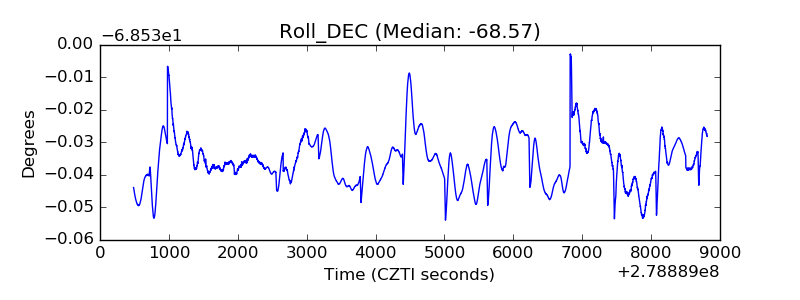

| _Roll_DEC |  |

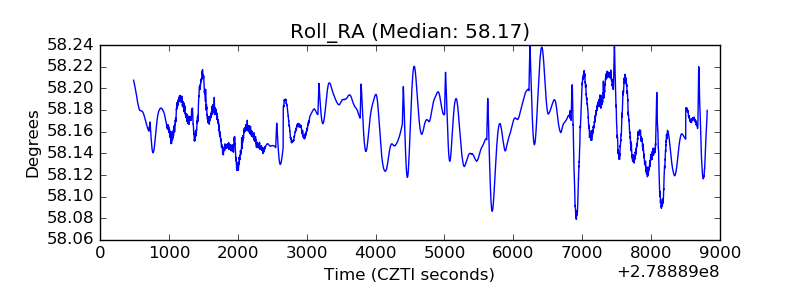

| _Roll_RA |  |
| Veto Counter |  |
