| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_004T05_9000002488_16765cztM0_level2.evt | modeM0/AS1A05_004T05_9000002488_16765cztM0_level2_quad_clean.evt |
| Size (bytes) | 556,421,760 | 101,168,640 |
| Size | 530.6 MB | 96.5 MB |
| Events in quadrant A | 3,398,841 | 655,547 |
| Events in quadrant B | 3,686,664 | 655,364 |
| Events in quadrant C | 5,034,715 | 627,762 |
| Events in quadrant D | 4,242,512 | 623,410 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14929 | 3 |
| B | 0 | 15621 | 2 |
| C | 0 | 19954 | 2 |
| D | 0 | 17444 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7205 | 44 | 0.610687% |
| B | 7205 | 74 | 1.027065% |
| C | 7205 | 238 | 3.303262% |
| D | 7205 | 131 | 1.818182% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7631 | 7207 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7631 | 7207 | 10 | 10 | 0.13% | 0.14% |  |
| C | 7631 | 7207 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7631 | 7207 | 66 | 66 | 0.86% | 0.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7768 | 38.58 | 883 | 864 | 178.9 |
| A | 12 | 194 | 6474 | 31.35 | 883 | 864 | 178.9 |
| A | 3 | 137 | 6300 | 30.38 | 883 | 864 | 178.9 |
| B | 15 | 35 | 118763 | 704.16 | 876 | 854 | 167.4 |
| B | 5 | 236 | 33069 | 192.39 | 876 | 854 | 167.4 |
| B | 0 | 189 | 30953 | 179.75 | 876 | 854 | 167.4 |
| C | 3 | 233 | 1391791 | 7105.81 | 840 | 845 | 195.7 |
| C | 0 | 207 | 231930 | 1180.52 | 840 | 845 | 195.7 |
| C | 14 | 238 | 130001 | 659.81 | 840 | 845 | 195.7 |
| D | 1 | 52 | 497161 | 2354.61 | 857 | 833 | 210.8 |
| D | 13 | 232 | 272224 | 1287.5 | 857 | 833 | 210.8 |
| D | 11 | 176 | 114320 | 538.39 | 857 | 833 | 210.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

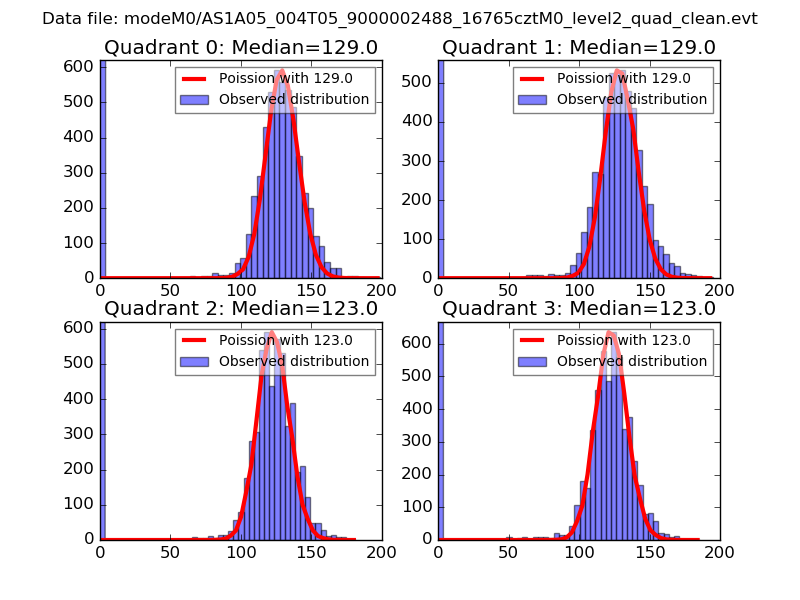

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

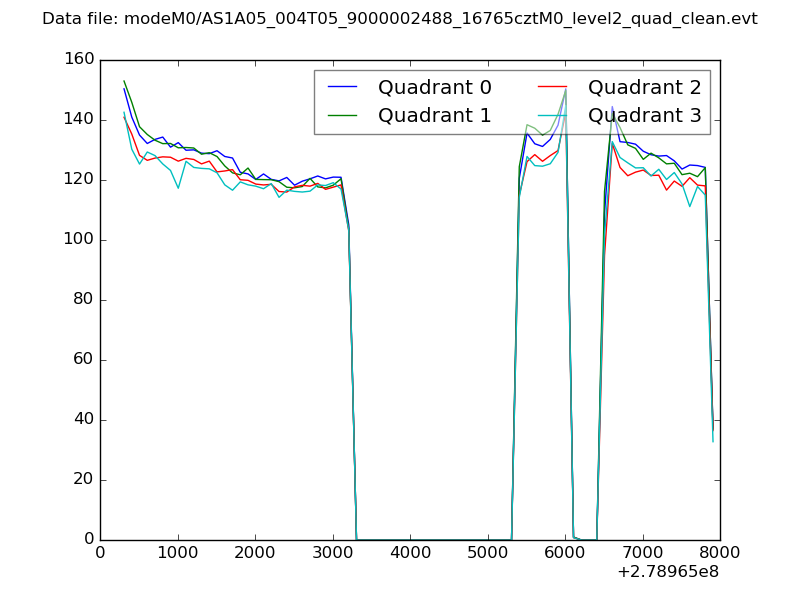

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

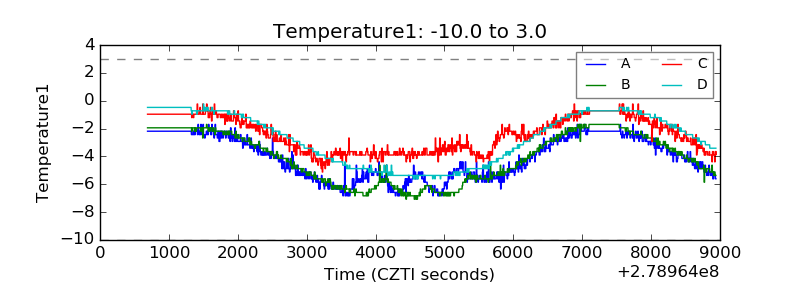

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
