| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_015T01_9000002486_16756cztM0_level2.evt | modeM0/AS1T03_015T01_9000002486_16756cztM0_level2_quad_clean.evt |
| Size (bytes) | 538,715,520 | 124,994,880 |
| Size | 513.8 MB | 119.2 MB |
| Events in quadrant A | 4,853,886 | 818,681 |
| Events in quadrant B | 3,449,564 | 859,527 |
| Events in quadrant C | 3,337,542 | 828,786 |
| Events in quadrant D | 4,212,996 | 804,951 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19147 | 3 |
| B | 0 | 14602 | 2 |
| C | 0 | 14279 | 2 |
| D | 0 | 17106 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6797 | 604 | 8.886273% |
| B | 6797 | 91 | 1.338826% |
| C | 6797 | 78 | 1.147565% |
| D | 6797 | 162 | 2.383404% |

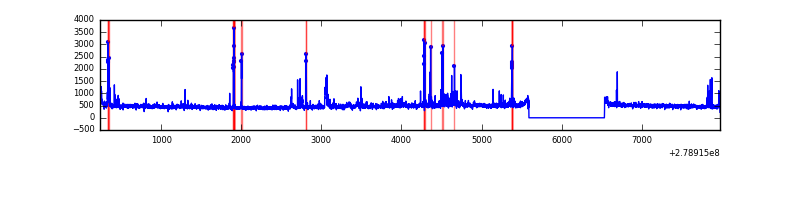

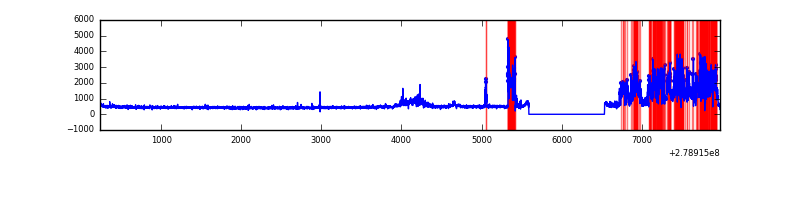

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7743 | 6799 | 404 | 404 | 5.22% | 5.94% |  |
| B | 7743 | 6799 | 29 | 29 | 0.37% | 0.43% |  |
| C | 7743 | 6799 | 30 | 30 | 0.39% | 0.44% |  |
| D | 7742 | 6798 | 110 | 110 | 1.42% | 1.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 1863257 | 11907.53 | 775 | 757 | 156.4 |
| A | 0 | 226 | 6893 | 39.23 | 775 | 757 | 156.4 |
| A | 3 | 1 | 6714 | 38.08 | 775 | 757 | 156.4 |
| B | 15 | 35 | 93269 | 612.25 | 794 | 774 | 151.1 |
| B | 0 | 229 | 66407 | 434.44 | 794 | 774 | 151.1 |
| B | 0 | 189 | 38117 | 247.18 | 794 | 774 | 151.1 |
| C | 0 | 207 | 197528 | 1114.06 | 758 | 762 | 176.6 |
| C | 14 | 238 | 118312 | 665.55 | 758 | 762 | 176.6 |
| C | 3 | 233 | 50422 | 281.17 | 758 | 762 | 176.6 |
| D | 1 | 52 | 788665 | 4269.92 | 763 | 739 | 184.5 |
| D | 15 | 0 | 254877 | 1377.22 | 763 | 739 | 184.5 |
| D | 11 | 176 | 147592 | 795.82 | 763 | 739 | 184.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

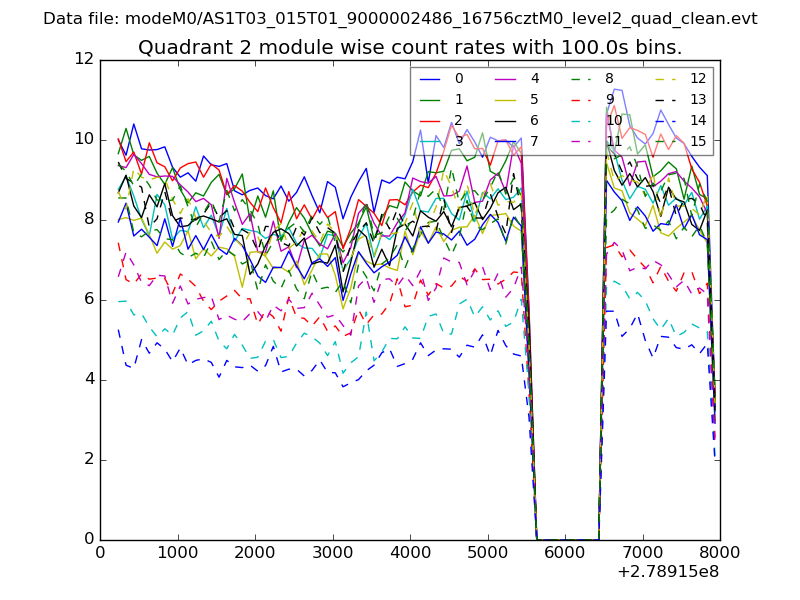

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

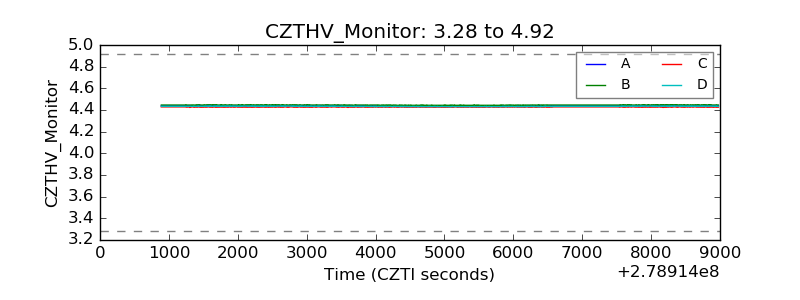

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

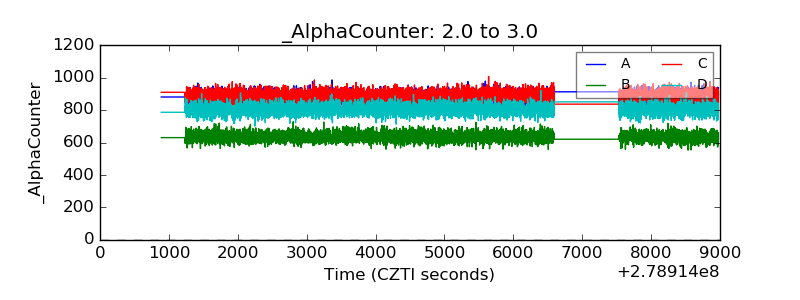

| Alpha Counter |  |

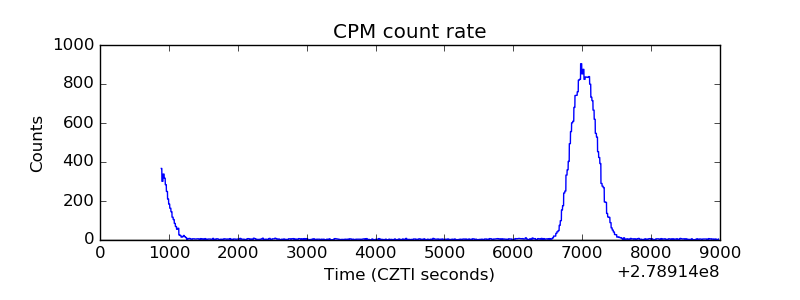

| _CPM_Rate |  |

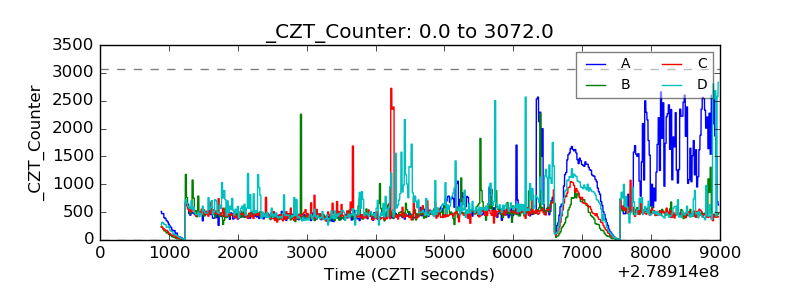

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

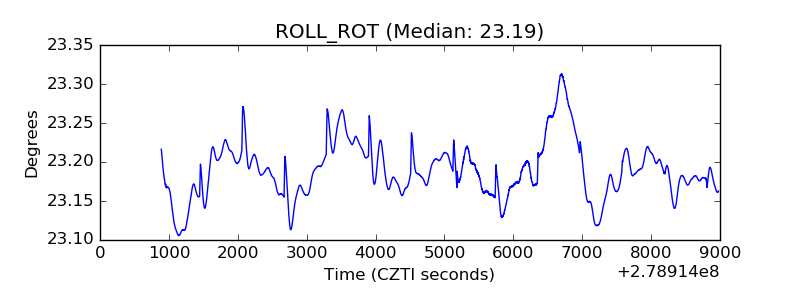

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
