| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_004T02_9000002490_16774cztM0_level2.evt | modeM0/AS1A05_004T02_9000002490_16774cztM0_level2_quad_clean.evt |
| Size (bytes) | 589,527,360 | 76,556,160 |
| Size | 562.2 MB | 73.0 MB |
| Events in quadrant A | 3,463,112 | 499,917 |
| Events in quadrant B | 3,705,108 | 500,199 |
| Events in quadrant C | 4,454,023 | 474,458 |
| Events in quadrant D | 5,801,375 | 399,777 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14229 | 3 |
| B | 0 | 15140 | 2 |
| C | 0 | 17661 | 2 |
| D | 0 | 21299 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6351 | 65 | 1.023461% |
| B | 6351 | 88 | 1.385609% |
| C | 6351 | 146 | 2.298851% |
| D | 6351 | 904 | 14.233979% |

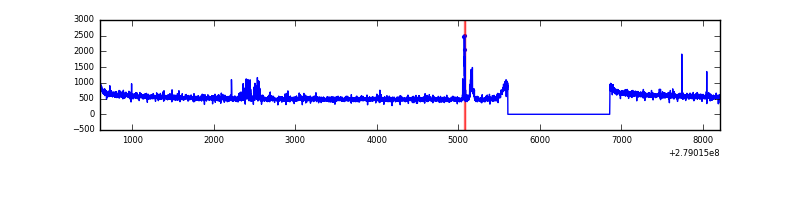

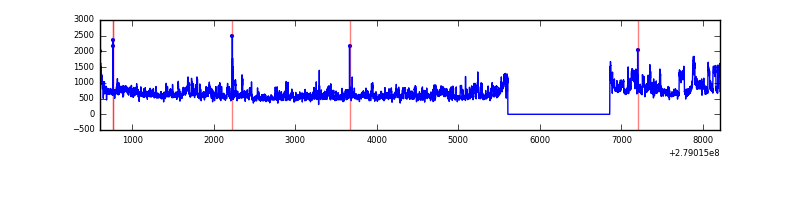

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7602 | 6353 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7602 | 6353 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7602 | 6353 | 6 | 6 | 0.08% | 0.09% |  |
| D | 7602 | 6353 | 767 | 767 | 10.09% | 12.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 90951 | 516.05 | 872 | 859 | 174.6 |
| A | 0 | 13 | 15541 | 84.1 | 872 | 859 | 174.6 |
| A | 0 | 226 | 7756 | 39.5 | 872 | 859 | 174.6 |
| B | 0 | 229 | 152547 | 948.48 | 859 | 839 | 159.9 |
| B | 5 | 236 | 71272 | 440.35 | 859 | 839 | 159.9 |
| B | 15 | 35 | 58227 | 358.79 | 859 | 839 | 159.9 |
| C | 3 | 233 | 1079513 | 5801.32 | 809 | 816 | 185.9 |
| C | 14 | 238 | 127526 | 681.46 | 809 | 816 | 185.9 |
| C | 0 | 207 | 92487 | 493.01 | 809 | 816 | 185.9 |
| D | 12 | 110 | 2135283 | 11436.0 | 776 | 754 | 186.6 |
| D | 1 | 52 | 588159 | 3147.09 | 776 | 754 | 186.6 |
| D | 10 | 70 | 52723 | 278.43 | 776 | 754 | 186.6 |

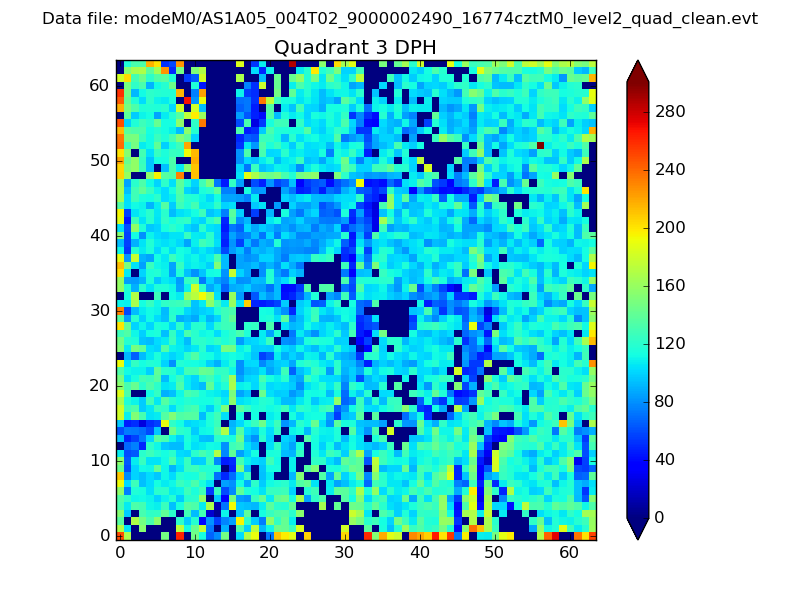

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

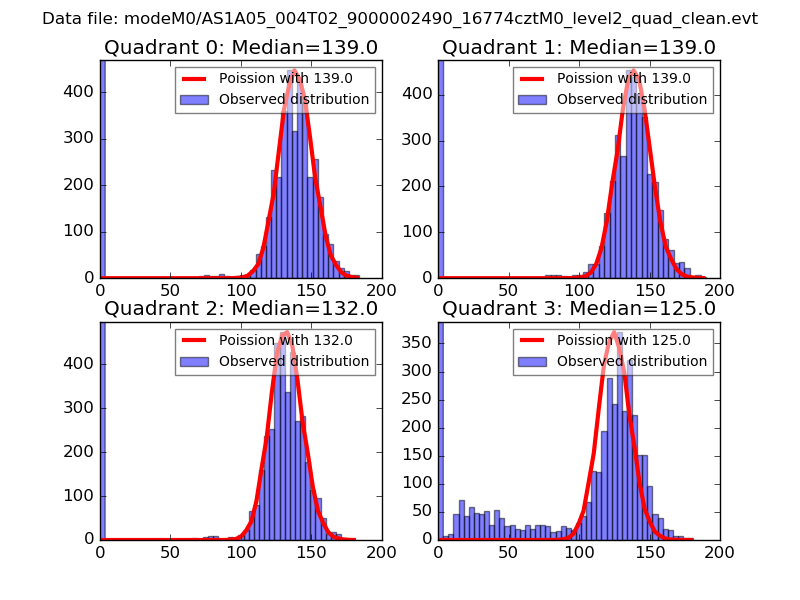

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

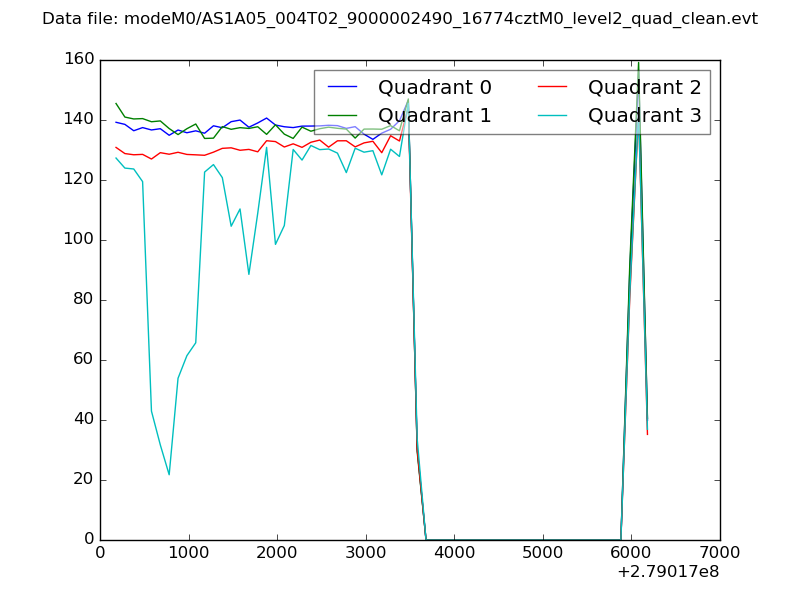

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

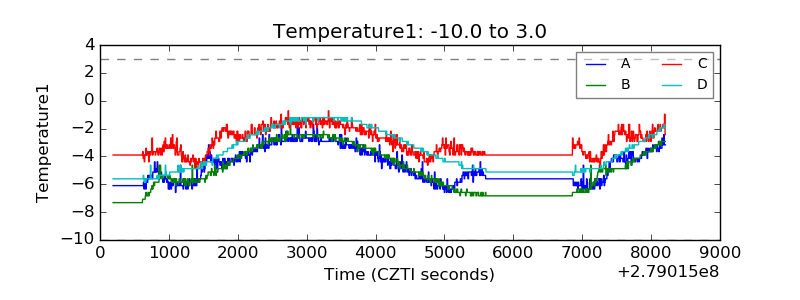

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

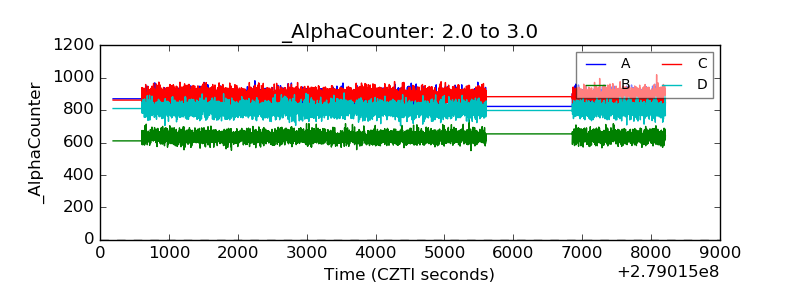

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
