| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_004T02_9000002490_16779cztM0_level2.evt | modeM0/AS1A05_004T02_9000002490_16779cztM0_level2_quad_clean.evt |
| Size (bytes) | 808,830,720 | 85,973,760 |
| Size | 771.4 MB | 82.0 MB |
| Events in quadrant A | 5,266,890 | 579,808 |
| Events in quadrant B | 3,517,246 | 621,039 |
| Events in quadrant C | 4,060,470 | 595,684 |
| Events in quadrant D | 11,184,737 | 325,139 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20295 | 2 |
| B | 0 | 14831 | 1 |
| C | 0 | 16633 | 1 |
| D | 0 | 38015 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6884 | 701 | 10.183033% |
| B | 6884 | 88 | 1.278327% |
| C | 6884 | 176 | 2.556653% |
| D | 6884 | 3608 | 52.411389% |

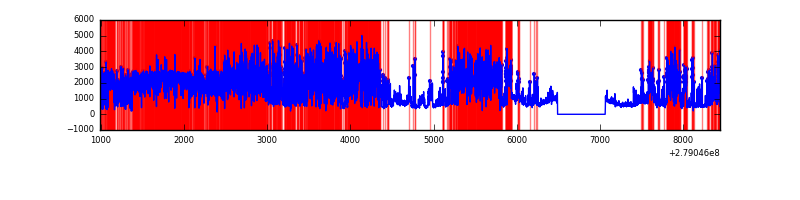

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7460 | 6886 | 540 | 540 | 7.24% | 7.84% |  |
| B | 7460 | 6886 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7460 | 6886 | 3 | 3 | 0.04% | 0.04% |  |
| D | 7460 | 6886 | 2391 | 2391 | 32.05% | 34.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 2113438 | 12808.63 | 817 | 797 | 164.9 |
| A | 0 | 13 | 14349 | 82.16 | 817 | 797 | 164.9 |
| A | 0 | 226 | 7297 | 39.41 | 817 | 797 | 164.9 |
| B | 15 | 35 | 122007 | 747.63 | 842 | 821 | 162.1 |
| B | 0 | 189 | 37734 | 227.73 | 842 | 821 | 162.1 |
| B | 3 | 209 | 29129 | 174.64 | 842 | 821 | 162.1 |
| C | 3 | 233 | 695107 | 3642.58 | 812 | 817 | 190.6 |
| C | 14 | 238 | 124564 | 649.24 | 812 | 817 | 190.6 |
| C | 0 | 207 | 75504 | 391.84 | 812 | 817 | 190.6 |
| D | 1 | 52 | 8589911 | 61444.68 | 565 | 549 | 139.8 |
| D | 11 | 176 | 227633 | 1624.46 | 565 | 549 | 139.8 |
| D | 12 | 218 | 190927 | 1361.88 | 565 | 549 | 139.8 |

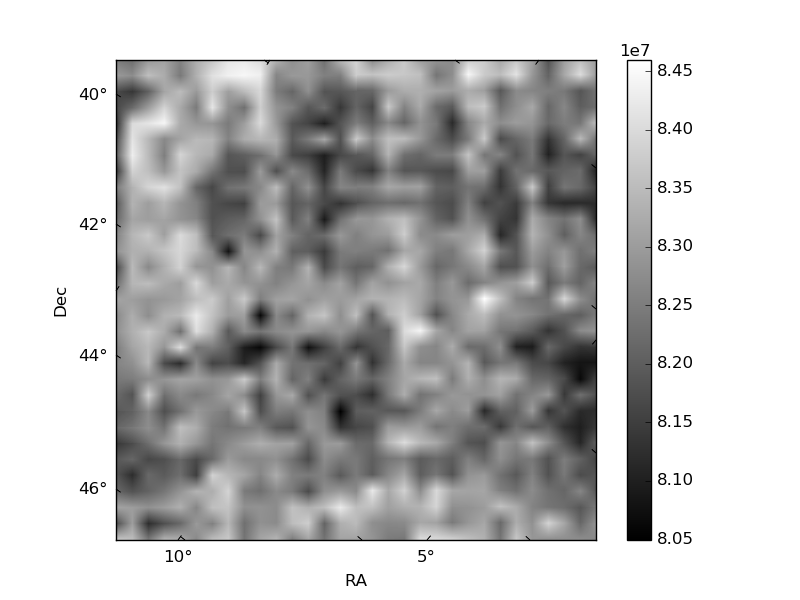

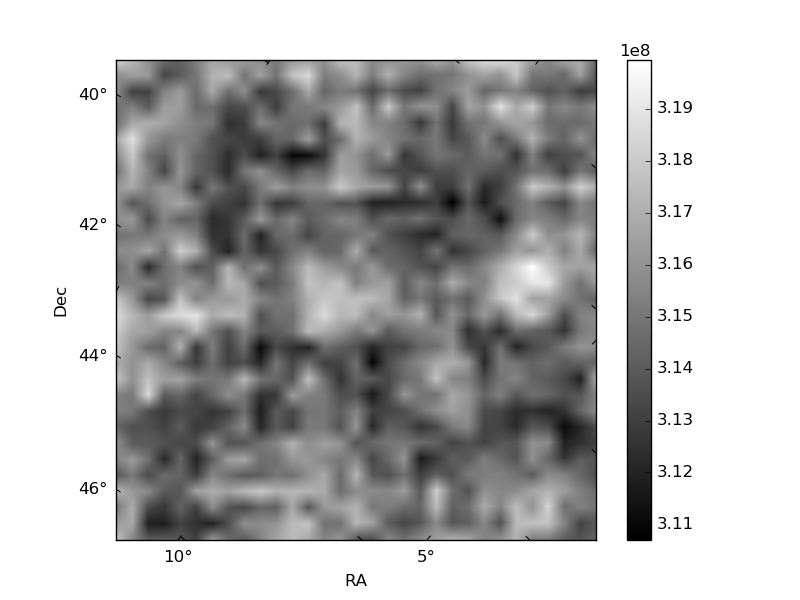

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

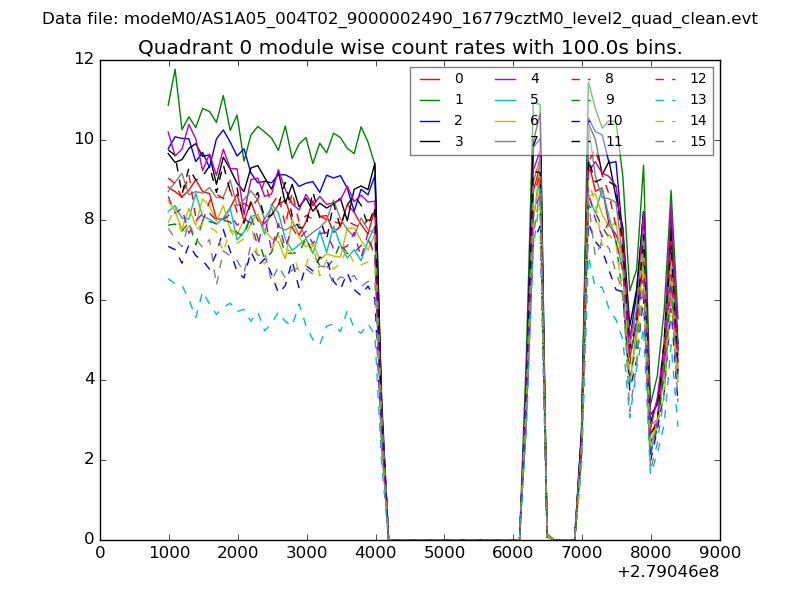

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

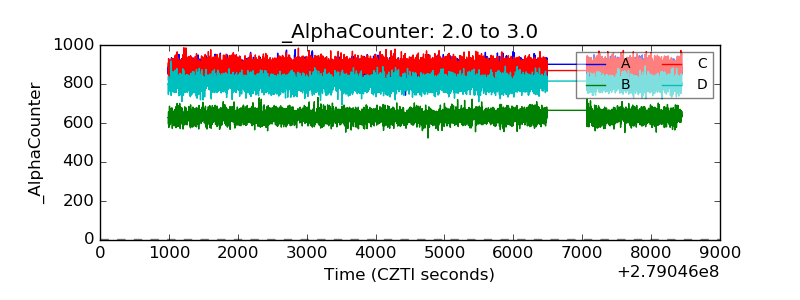

| Alpha Counter |  |

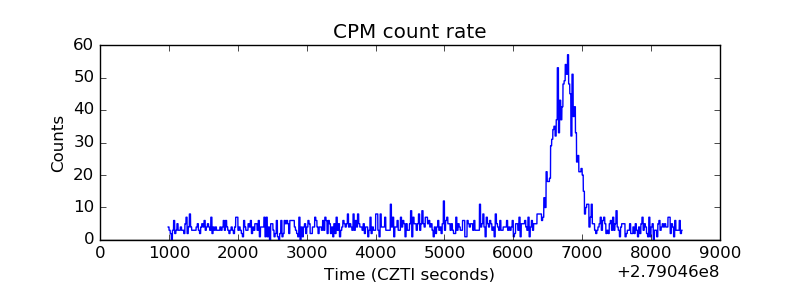

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

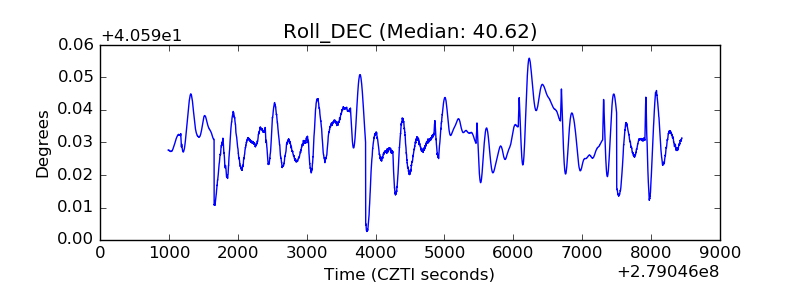

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
