| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_004T04_9000002494_16800cztM0_level2.evt | modeM0/AS1A05_004T04_9000002494_16800cztM0_level2_quad_clean.evt |
| Size (bytes) | 582,670,080 | 77,120,640 |
| Size | 555.7 MB | 73.5 MB |
| Events in quadrant A | 4,210,516 | 467,462 |
| Events in quadrant B | 3,579,152 | 475,426 |
| Events in quadrant C | 4,052,121 | 457,155 |
| Events in quadrant D | 5,322,464 | 439,505 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17083 | 3 |
| B | 0 | 15005 | 2 |
| C | 0 | 16599 | 2 |
| D | 0 | 20751 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7116 | 169 | 2.374930% |
| B | 7116 | 65 | 0.913435% |
| C | 7116 | 96 | 1.349073% |
| D | 7116 | 329 | 4.623384% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9022 | 7119 | 92 | 92 | 1.02% | 1.29% |  |
| B | 9022 | 7119 | 7 | 7 | 0.08% | 0.10% |  |
| C | 9022 | 7119 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9022 | 7119 | 223 | 223 | 2.47% | 3.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 234 | 452059 | 2553.16 | 869 | 852 | 176.7 |
| A | 15 | 174 | 328405 | 1853.46 | 869 | 852 | 176.7 |
| A | 15 | 190 | 43260 | 239.97 | 869 | 852 | 176.7 |
| B | 0 | 229 | 52075 | 306.6 | 876 | 855 | 167.1 |
| B | 0 | 189 | 45979 | 270.11 | 876 | 855 | 167.1 |
| B | 15 | 35 | 27859 | 161.64 | 876 | 855 | 167.1 |
| C | 3 | 233 | 588085 | 3005.29 | 838 | 844 | 195.4 |
| C | 14 | 238 | 131147 | 666.84 | 838 | 844 | 195.4 |
| C | 7 | 247 | 38047 | 190.39 | 838 | 844 | 195.4 |
| D | 1 | 52 | 1531395 | 7530.03 | 834 | 810 | 203.3 |
| D | 12 | 218 | 376683 | 1849.19 | 834 | 810 | 203.3 |
| D | 2 | 33 | 161946 | 792.74 | 834 | 810 | 203.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

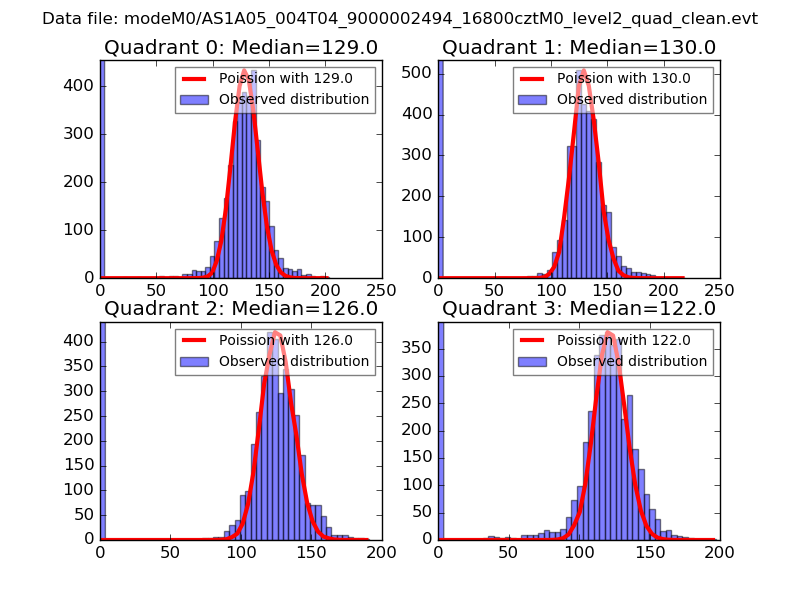

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

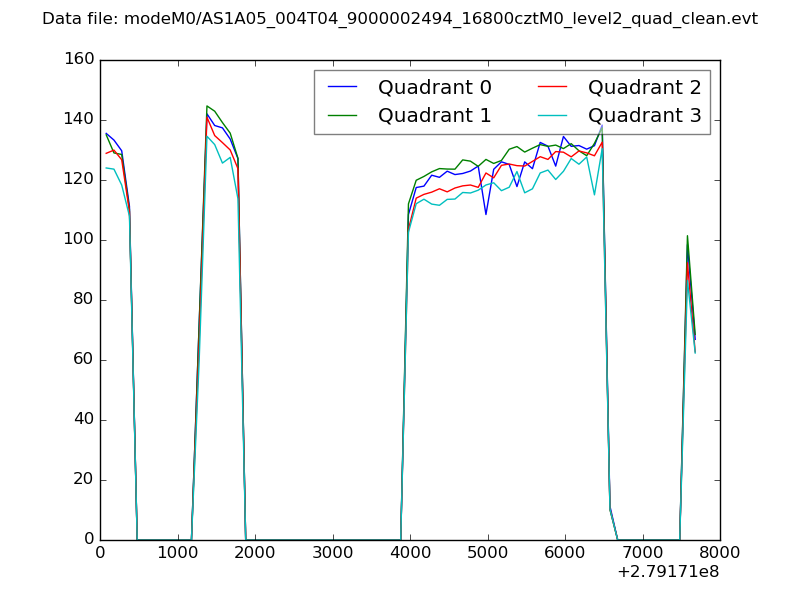

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

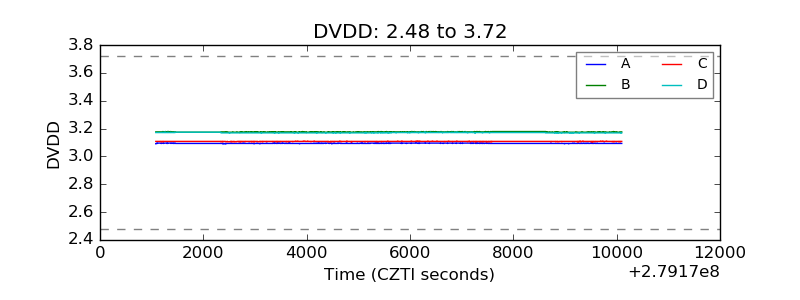

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

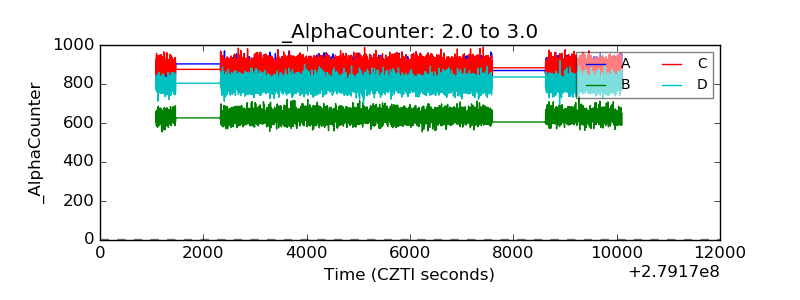

| Alpha Counter |  |

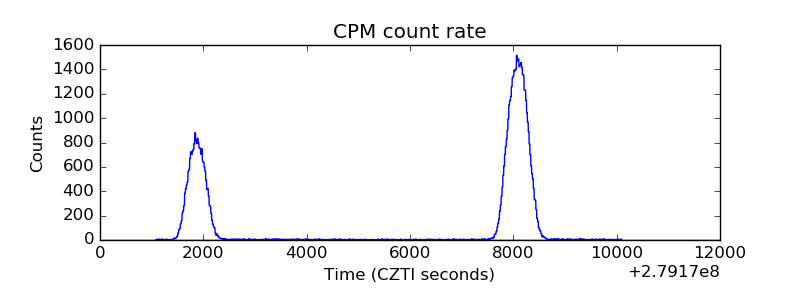

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

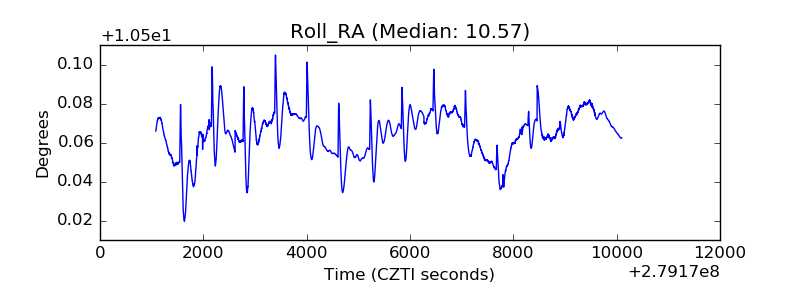

| _Roll_RA |  |

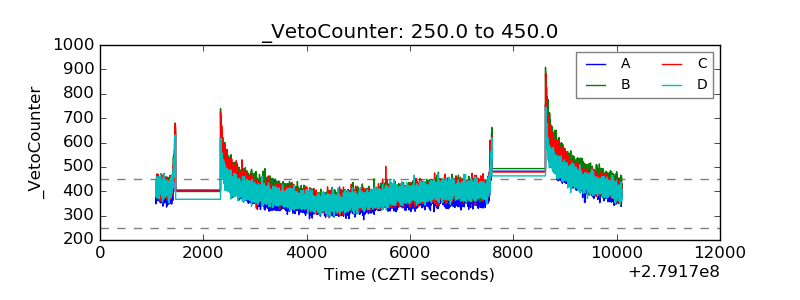

| Veto Counter |  |
