| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_004T04_9000002494_16802cztM0_level2.evt | modeM0/AS1A05_004T04_9000002494_16802cztM0_level2_quad_clean.evt |
| Size (bytes) | 546,488,640 | 65,776,320 |
| Size | 521.2 MB | 62.7 MB |
| Events in quadrant A | 3,886,447 | 390,956 |
| Events in quadrant B | 3,463,736 | 398,733 |
| Events in quadrant C | 4,260,246 | 375,026 |
| Events in quadrant D | 4,492,316 | 365,889 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15776 | 3 |
| B | 0 | 14359 | 2 |
| C | 0 | 17079 | 2 |
| D | 0 | 17667 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6610 | 90 | 1.361573% |
| B | 6610 | 69 | 1.043873% |
| C | 6610 | 95 | 1.437216% |
| D | 6610 | 215 | 3.252648% |

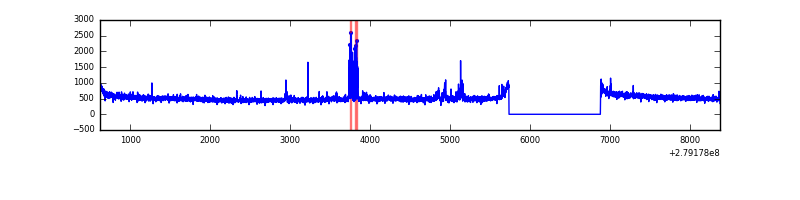

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7756 | 6612 | 19 | 19 | 0.24% | 0.29% |  |
| B | 7756 | 6612 | 5 | 5 | 0.06% | 0.08% |  |
| C | 7756 | 6612 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7756 | 6612 | 142 | 142 | 1.83% | 2.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 234 | 398860 | 2343.7 | 845 | 829 | 169.8 |
| A | 15 | 174 | 226149 | 1326.74 | 845 | 829 | 169.8 |
| A | 9 | 143 | 15964 | 89.12 | 845 | 829 | 169.8 |
| B | 15 | 35 | 110761 | 692.05 | 846 | 829 | 158.9 |
| B | 12 | 111 | 19031 | 114.59 | 846 | 829 | 158.9 |
| B | 11 | 111 | 16275 | 97.24 | 846 | 829 | 158.9 |
| C | 3 | 233 | 923732 | 4976.98 | 800 | 808 | 185.4 |
| C | 14 | 238 | 126759 | 679.21 | 800 | 808 | 185.4 |
| C | 0 | 207 | 68839 | 366.87 | 800 | 808 | 185.4 |
| D | 1 | 52 | 943949 | 4831.98 | 806 | 784 | 195.2 |
| D | 12 | 218 | 372117 | 1902.4 | 806 | 784 | 195.2 |
| D | 2 | 33 | 87475 | 444.13 | 806 | 784 | 195.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

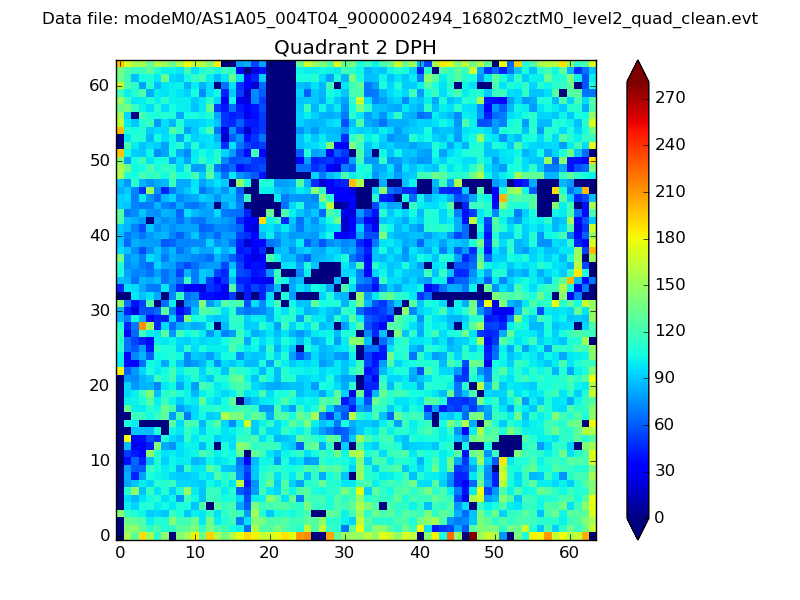

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

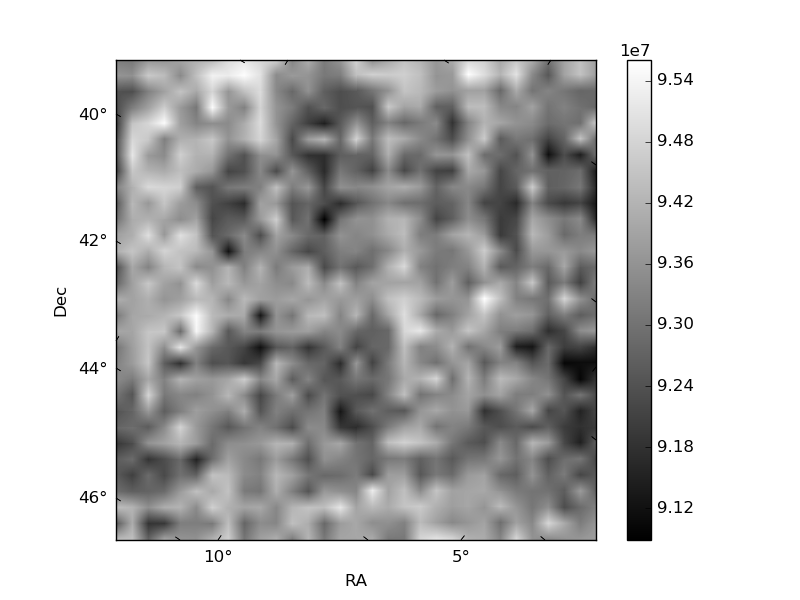

| Plot type | Count rate plots | Images |
|---|---|---|

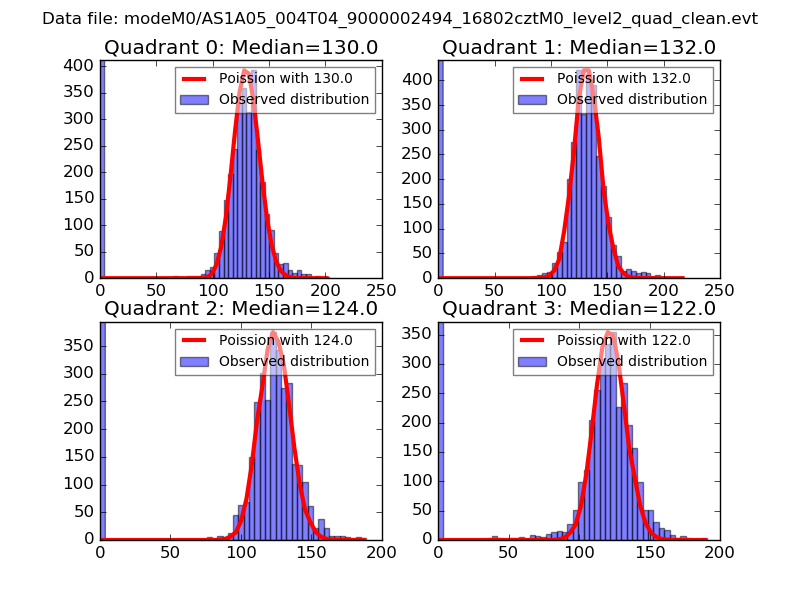

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

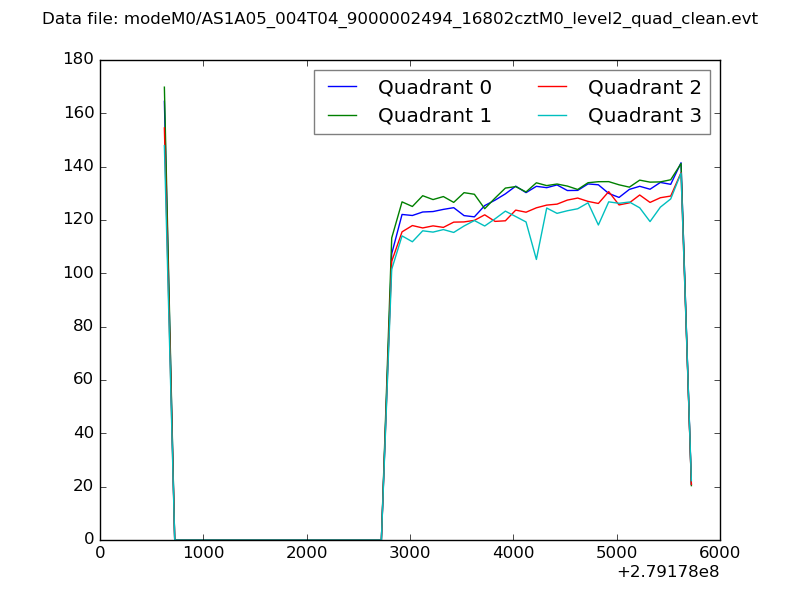

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

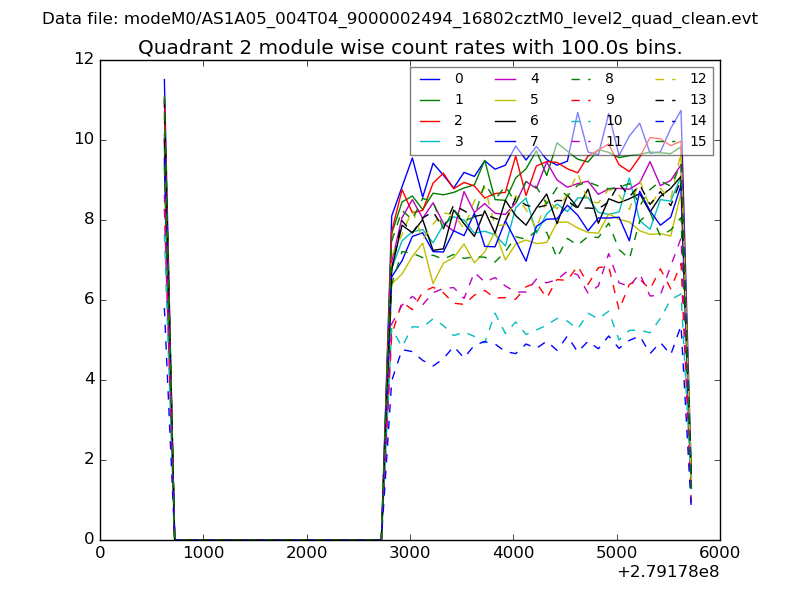

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

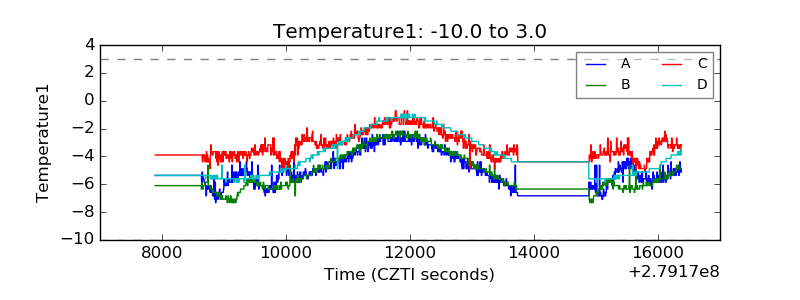

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

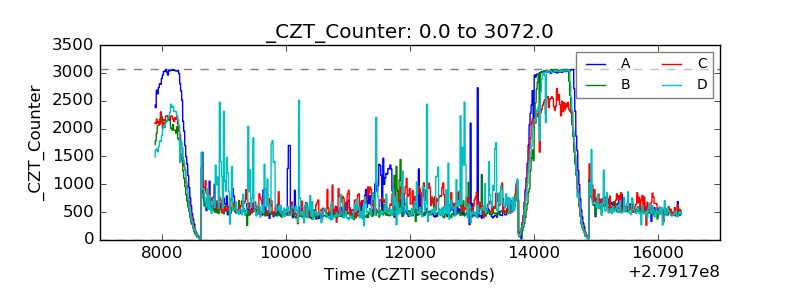

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
