| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_004T04_9000002494_16803cztM0_level2.evt | modeM0/AS1A05_004T04_9000002494_16803cztM0_level2_quad_clean.evt |
| Size (bytes) | 565,994,880 | 71,326,080 |
| Size | 539.8 MB | 68.0 MB |
| Events in quadrant A | 4,513,378 | 432,077 |
| Events in quadrant B | 3,544,458 | 446,907 |
| Events in quadrant C | 3,928,846 | 423,423 |
| Events in quadrant D | 4,723,638 | 413,284 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17543 | 3 |
| B | 0 | 14465 | 2 |
| C | 0 | 15961 | 2 |
| D | 0 | 18238 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6360 | 289 | 4.544025% |
| B | 6360 | 164 | 2.578616% |
| C | 6360 | 181 | 2.845912% |
| D | 6360 | 359 | 5.644654% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7536 | 6361 | 113 | 113 | 1.50% | 1.78% |  |
| B | 7536 | 6362 | 8 | 8 | 0.11% | 0.13% |  |
| C | 7536 | 6362 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7535 | 6360 | 196 | 196 | 2.60% | 3.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 1186704 | 6884.28 | 858 | 843 | 172.3 |
| A | 9 | 143 | 22982 | 128.52 | 858 | 843 | 172.3 |
| A | 0 | 226 | 7610 | 39.28 | 858 | 843 | 172.3 |
| B | 15 | 35 | 115398 | 707.49 | 858 | 839 | 161.9 |
| B | 0 | 229 | 39174 | 236.75 | 858 | 839 | 161.9 |
| B | 0 | 214 | 27456 | 164.38 | 858 | 839 | 161.9 |
| C | 3 | 233 | 597908 | 3211.3 | 809 | 816 | 185.9 |
| C | 14 | 238 | 127874 | 683.35 | 809 | 816 | 185.9 |
| C | 7 | 247 | 29599 | 154.8 | 809 | 816 | 185.9 |
| D | 1 | 52 | 1030661 | 5319.26 | 801 | 781 | 193.6 |
| D | 2 | 33 | 406970 | 2097.94 | 801 | 781 | 193.6 |
| D | 12 | 218 | 104646 | 536.46 | 801 | 781 | 193.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

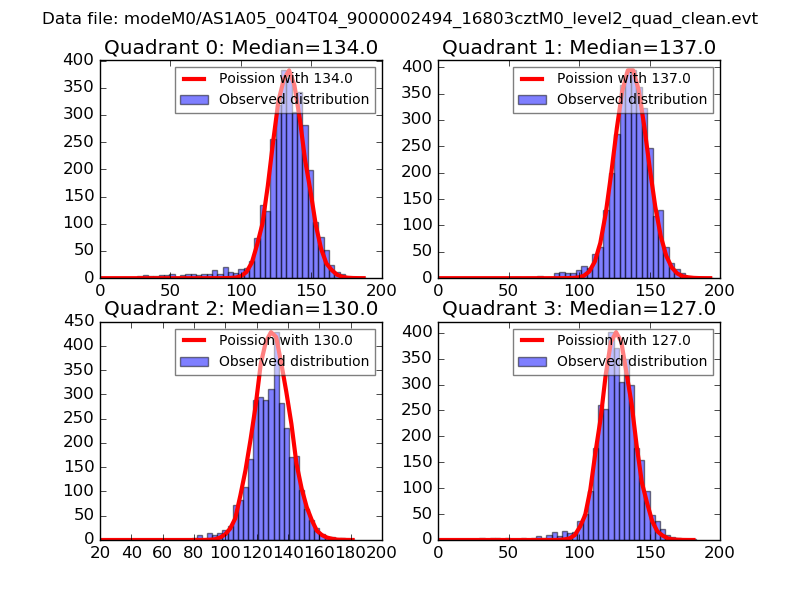

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

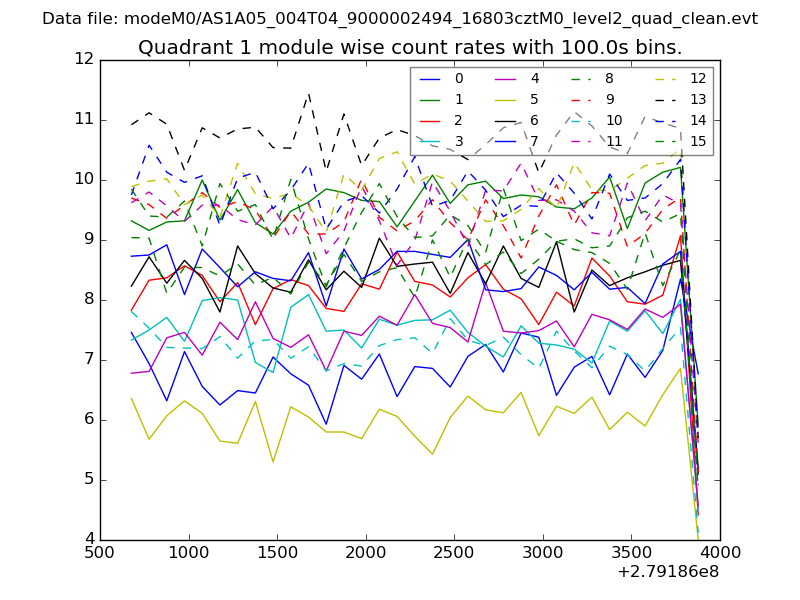

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

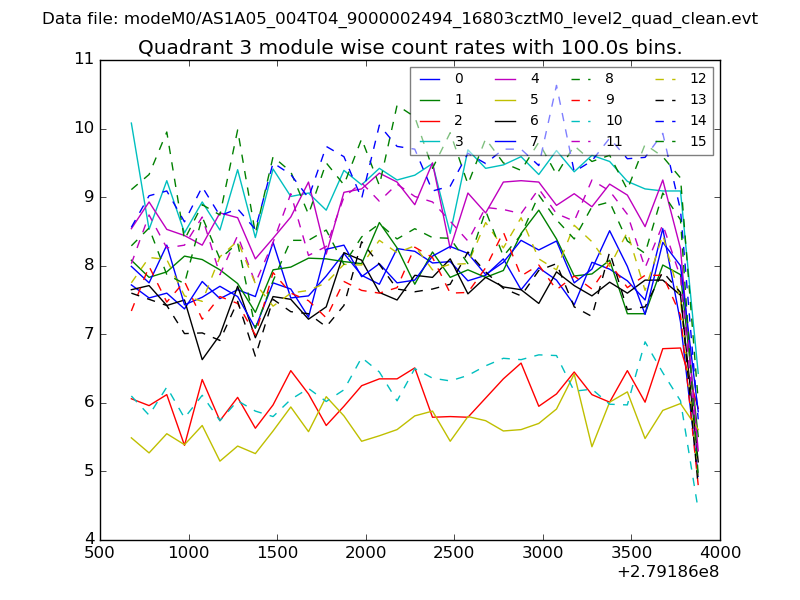

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
