| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_004T04_9000002494_16805cztM0_level2.evt | modeM0/AS1A05_004T04_9000002494_16805cztM0_level2_quad_clean.evt |
| Size (bytes) | 612,616,320 | 96,111,360 |
| Size | 584.2 MB | 91.7 MB |
| Events in quadrant A | 4,868,764 | 630,323 |
| Events in quadrant B | 3,767,860 | 649,311 |
| Events in quadrant C | 3,607,045 | 614,192 |
| Events in quadrant D | 5,879,250 | 573,076 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18722 | 3 |
| B | 0 | 15125 | 2 |
| C | 0 | 14527 | 2 |
| D | 0 | 21587 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6359 | 554 | 8.712062% |
| B | 6359 | 164 | 2.579022% |
| C | 6359 | 172 | 2.704828% |
| D | 6359 | 830 | 13.052367% |

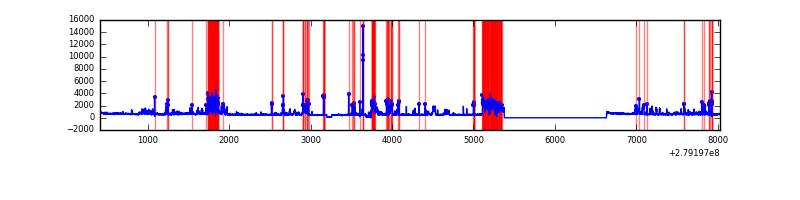

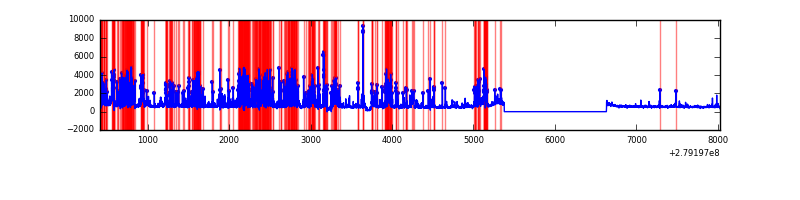

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7615 | 6358 | 297 | 297 | 3.90% | 4.67% |  |
| B | 7615 | 6361 | 18 | 18 | 0.24% | 0.28% |  |
| C | 7615 | 6361 | 10 | 10 | 0.13% | 0.16% |  |
| D | 7615 | 6358 | 560 | 560 | 7.35% | 8.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 1447433 | 8604.43 | 840 | 825 | 168.1 |
| A | 9 | 143 | 162007 | 958.71 | 840 | 825 | 168.1 |
| A | 15 | 190 | 16730 | 94.6 | 840 | 825 | 168.1 |
| B | 15 | 35 | 224715 | 1375.65 | 864 | 845 | 162.7 |
| B | 0 | 229 | 115925 | 707.15 | 864 | 845 | 162.7 |
| B | 12 | 111 | 18394 | 107.84 | 864 | 845 | 162.7 |
| C | 3 | 233 | 222758 | 1173.27 | 822 | 828 | 189.2 |
| C | 14 | 238 | 129069 | 677.97 | 822 | 828 | 189.2 |
| C | 0 | 207 | 29590 | 152.06 | 822 | 828 | 189.2 |
| D | 1 | 52 | 2345414 | 11984.26 | 808 | 785 | 195.6 |
| D | 12 | 218 | 287355 | 1464.76 | 808 | 785 | 195.6 |
| D | 2 | 136 | 78363 | 396.53 | 808 | 785 | 195.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

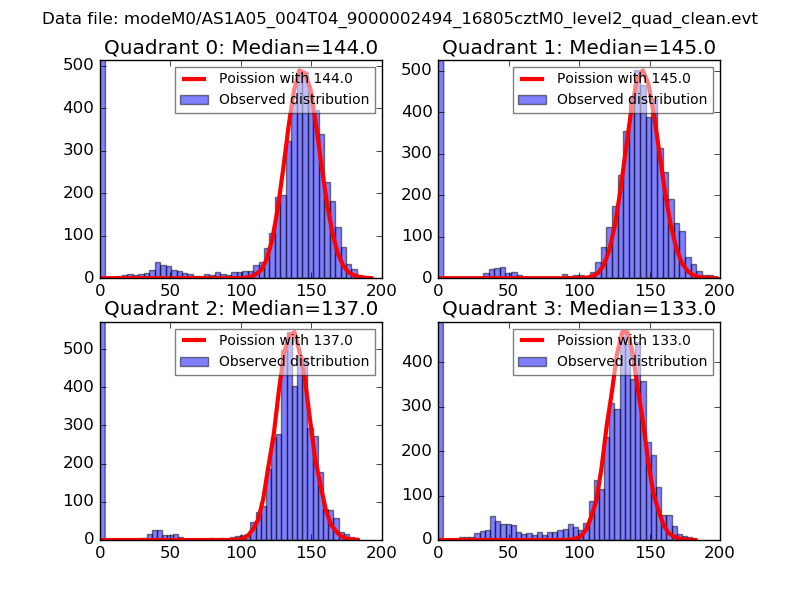

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

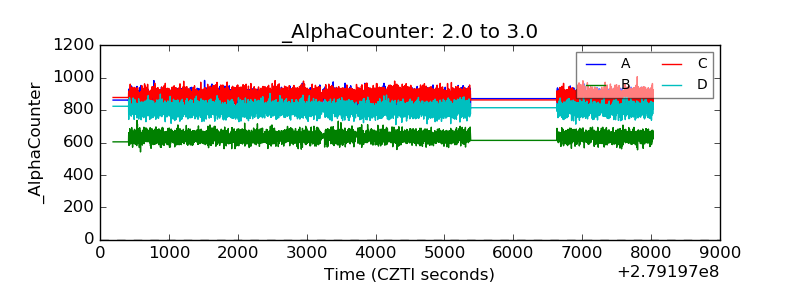

| Alpha Counter |  |
| _CPM_Rate |  |

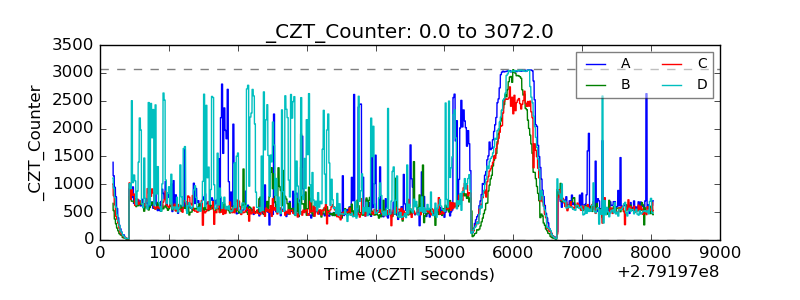

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

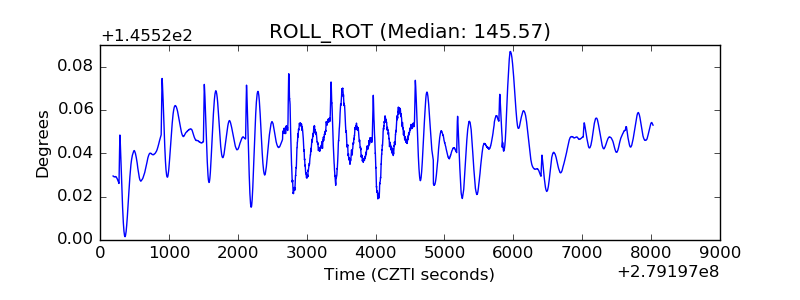

| _ROLL_ROT |  |

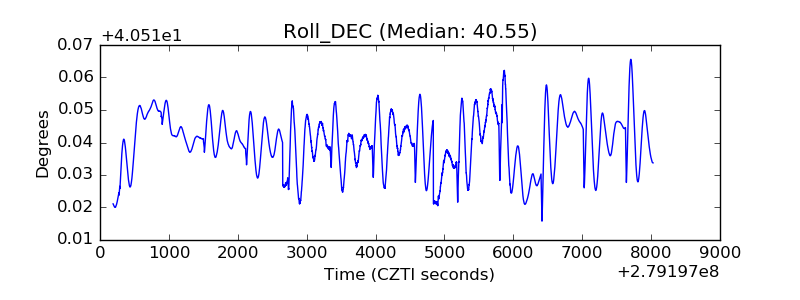

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
