| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_004T07_9000002492_16788cztM0_level2.evt | modeM0/AS1A05_004T07_9000002492_16788cztM0_level2_quad_clean.evt |
| Size (bytes) | 567,432,000 | 67,985,280 |
| Size | 541.1 MB | 64.8 MB |
| Events in quadrant A | 3,374,840 | 422,485 |
| Events in quadrant B | 3,435,623 | 424,235 |
| Events in quadrant C | 3,613,934 | 402,889 |
| Events in quadrant D | 6,325,519 | 360,696 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13956 | 3 |
| B | 0 | 14127 | 2 |
| C | 0 | 14833 | 2 |
| D | 0 | 23142 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6420 | 84 | 1.308411% |
| B | 6420 | 80 | 1.246106% |
| C | 6420 | 124 | 1.931464% |
| D | 6420 | 815 | 12.694704% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7601 | 6422 | 20 | 20 | 0.26% | 0.31% |  |
| B | 7601 | 6422 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7601 | 6422 | 12 | 12 | 0.16% | 0.19% |  |
| D | 7601 | 6422 | 604 | 604 | 7.95% | 9.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 74323 | 430.12 | 851 | 835 | 170.9 |
| A | 9 | 143 | 11402 | 61.85 | 851 | 835 | 170.9 |
| A | 10 | 234 | 10781 | 58.21 | 851 | 835 | 170.9 |
| B | 15 | 35 | 69263 | 429.27 | 845 | 826 | 159.4 |
| B | 3 | 209 | 20548 | 123.71 | 845 | 826 | 159.4 |
| B | 12 | 111 | 18412 | 110.31 | 845 | 826 | 159.4 |
| C | 3 | 233 | 195290 | 1048.49 | 798 | 804 | 185.5 |
| C | 0 | 207 | 174249 | 935.05 | 798 | 804 | 185.5 |
| C | 14 | 238 | 127784 | 684.56 | 798 | 804 | 185.5 |
| D | 1 | 52 | 2834202 | 14687.88 | 788 | 765 | 192.9 |
| D | 10 | 70 | 363723 | 1881.49 | 788 | 765 | 192.9 |
| D | 12 | 110 | 130956 | 674.88 | 788 | 765 | 192.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

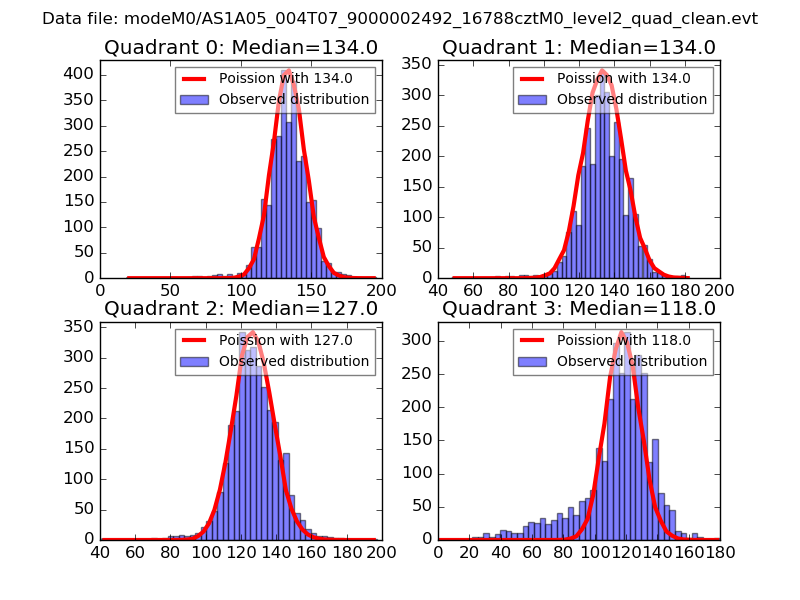

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

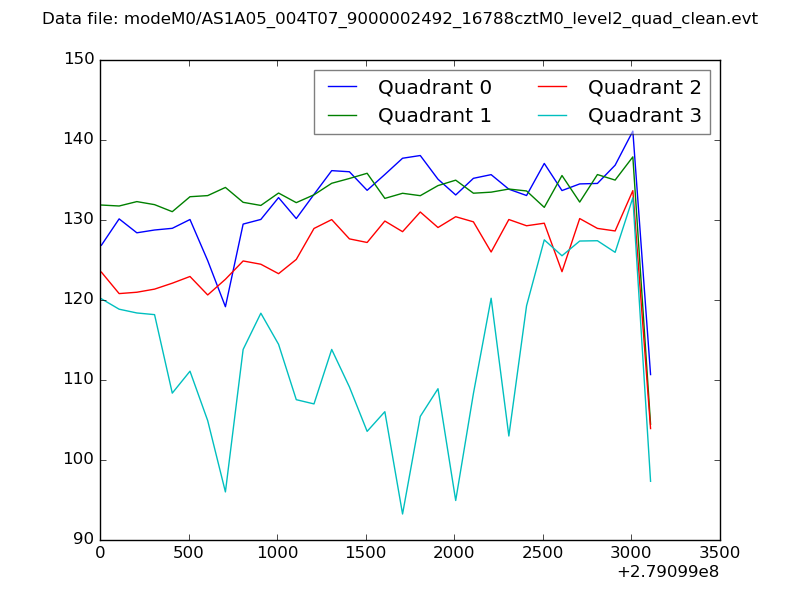

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

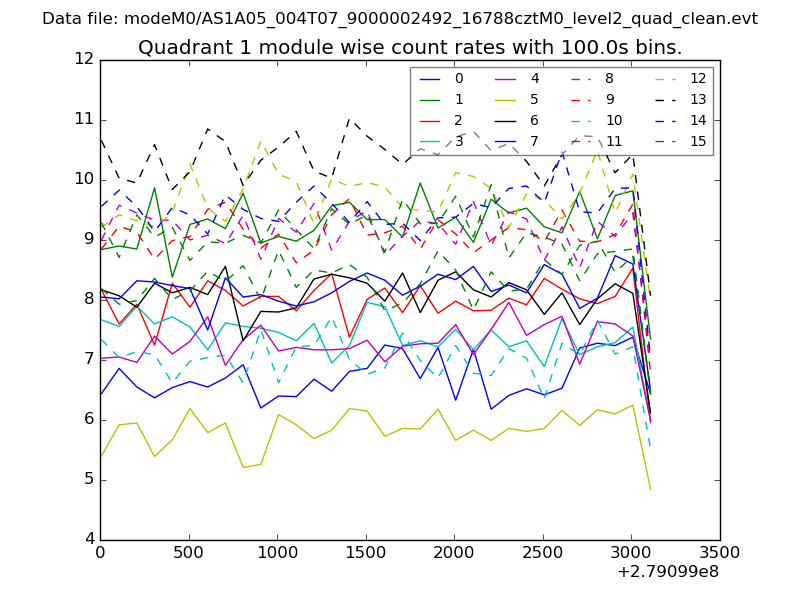

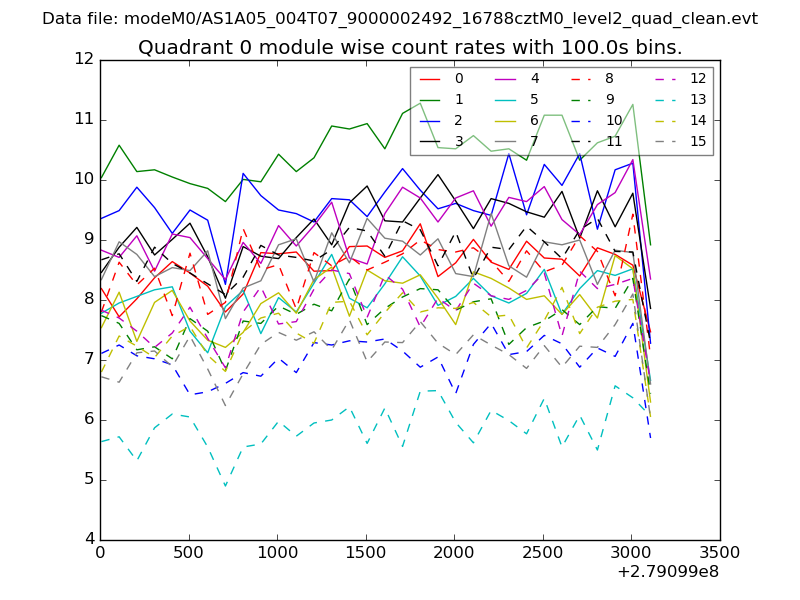

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

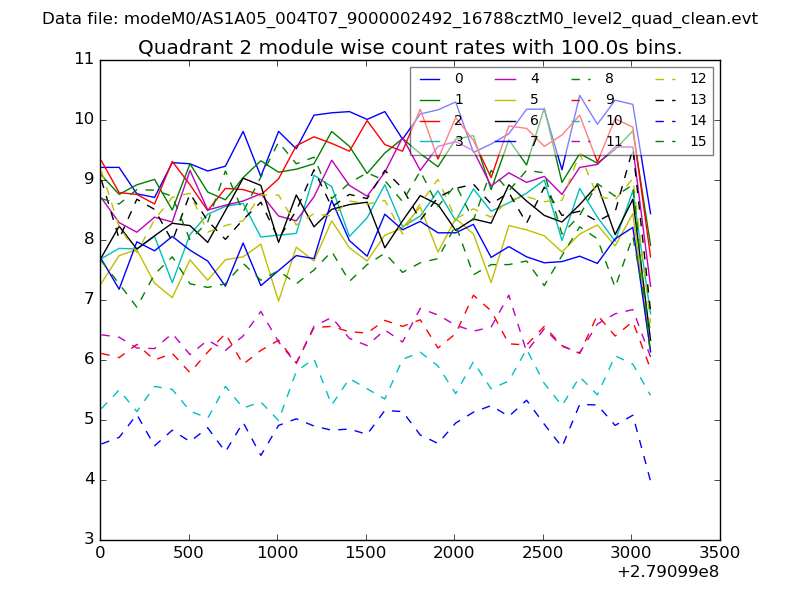

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

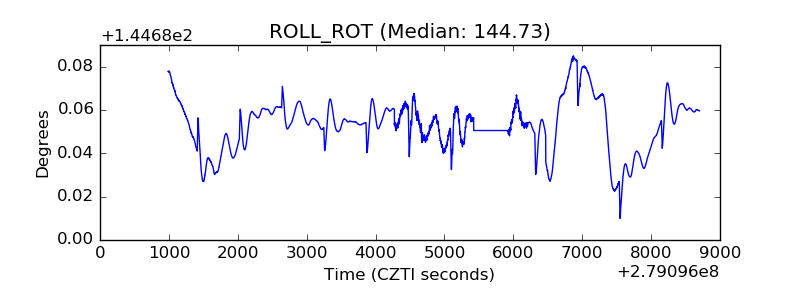

| _ROLL_ROT |  |

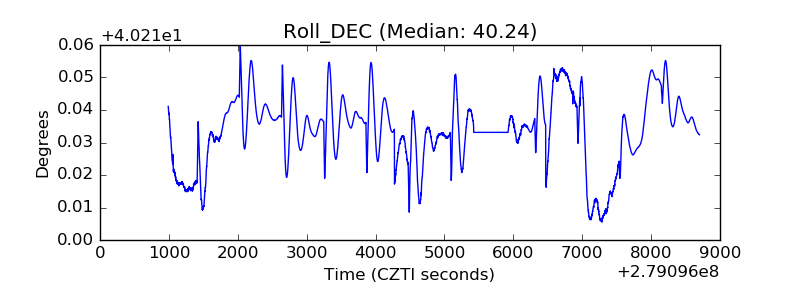

| _Roll_DEC |  |

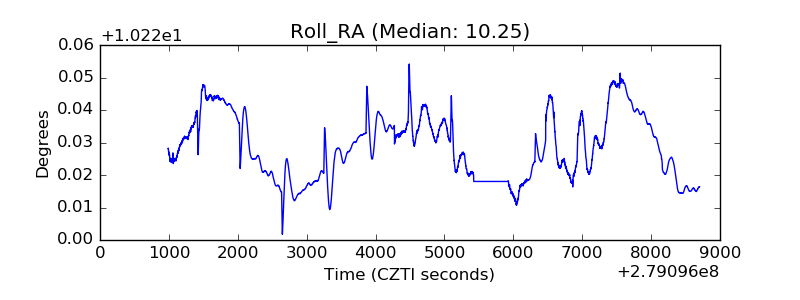

| _Roll_RA |  |
| Veto Counter |  |
