| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_004T07_9000002492_16790cztM0_level2.evt | modeM0/AS1A05_004T07_9000002492_16790cztM0_level2_quad_clean.evt |
| Size (bytes) | 547,908,480 | 95,650,560 |
| Size | 522.5 MB | 91.2 MB |
| Events in quadrant A | 3,982,362 | 633,326 |
| Events in quadrant B | 3,619,372 | 639,010 |
| Events in quadrant C | 3,631,042 | 602,418 |
| Events in quadrant D | 4,935,082 | 583,548 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15976 | 3 |
| B | 0 | 14706 | 2 |
| C | 0 | 14635 | 2 |
| D | 0 | 18758 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6281 | 234 | 3.725521% |
| B | 6281 | 150 | 2.388155% |
| C | 6281 | 176 | 2.802102% |
| D | 6281 | 399 | 6.352492% |

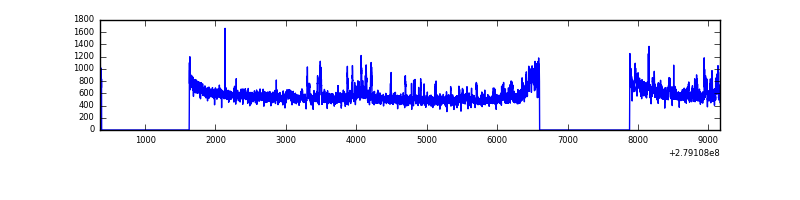

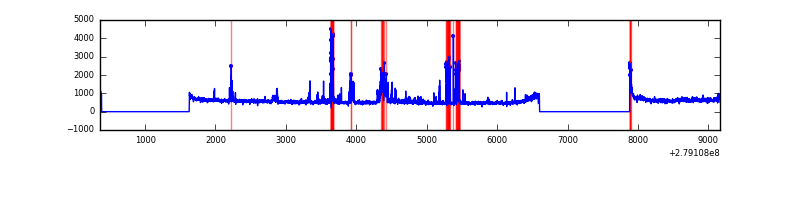

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8807 | 6284 | 71 | 71 | 0.81% | 1.13% |  |
| B | 8807 | 6283 | 4 | 4 | 0.05% | 0.06% |  |
| C | 8807 | 6284 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8807 | 6284 | 244 | 244 | 2.77% | 3.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 429043 | 2432.99 | 874 | 859 | 176.0 |
| A | 10 | 234 | 188026 | 1063.5 | 874 | 859 | 176.0 |
| A | 0 | 226 | 7814 | 39.52 | 874 | 859 | 176.0 |
| B | 15 | 35 | 100800 | 611.71 | 864 | 846 | 163.4 |
| B | 0 | 189 | 33734 | 201.27 | 864 | 846 | 163.4 |
| B | 0 | 229 | 29063 | 172.69 | 864 | 846 | 163.4 |
| C | 3 | 233 | 287235 | 1520.17 | 817 | 825 | 188.4 |
| C | 14 | 238 | 128811 | 679.31 | 817 | 825 | 188.4 |
| C | 0 | 207 | 18405 | 93.31 | 817 | 825 | 188.4 |
| D | 1 | 52 | 964336 | 4859.18 | 830 | 806 | 198.3 |
| D | 12 | 218 | 394843 | 1987.17 | 830 | 806 | 198.3 |
| D | 10 | 70 | 340541 | 1713.32 | 830 | 806 | 198.3 |

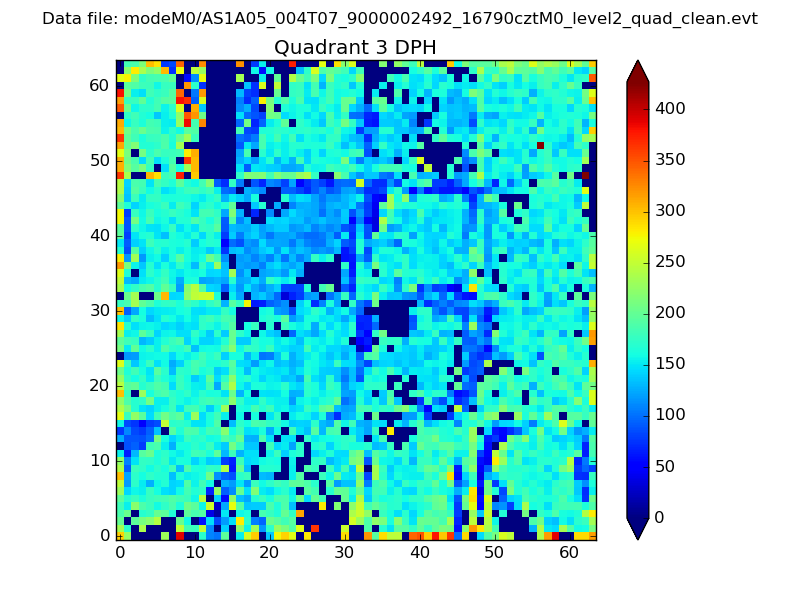

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

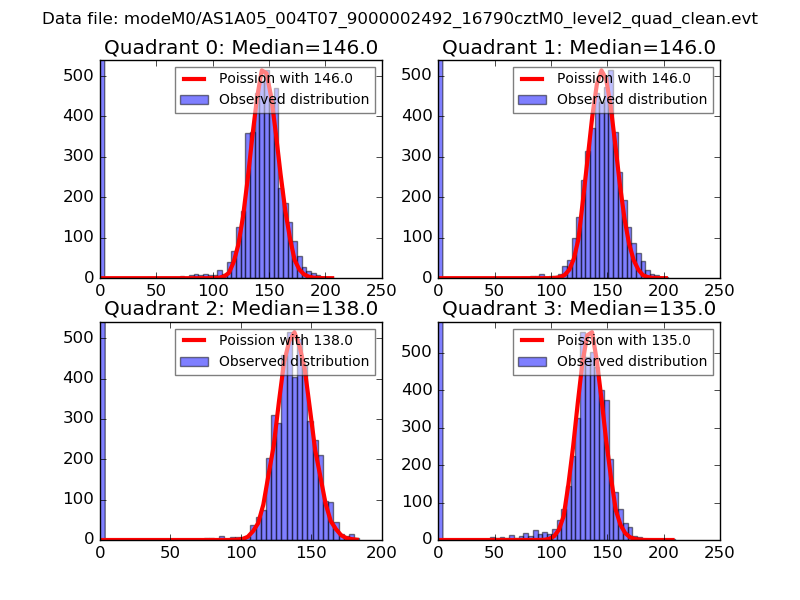

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

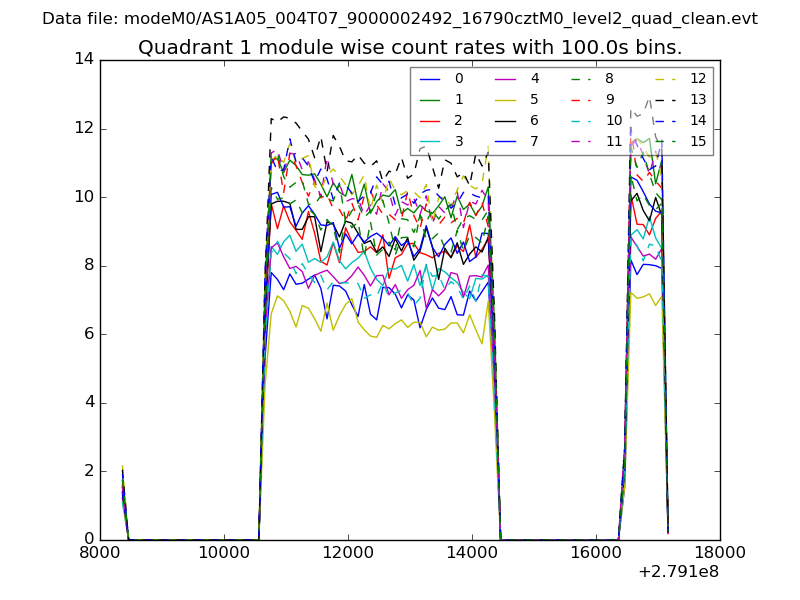

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

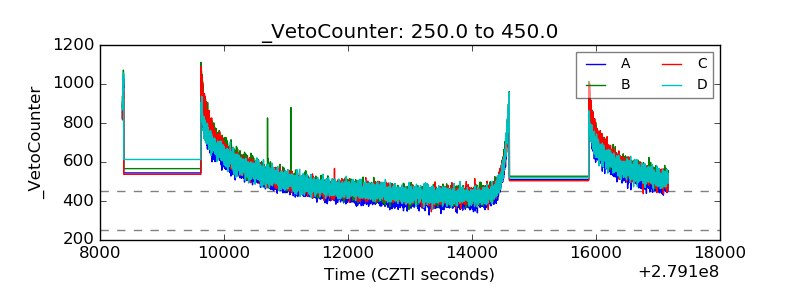

| Veto HV Monitor |  |
| Veto LLD |  |

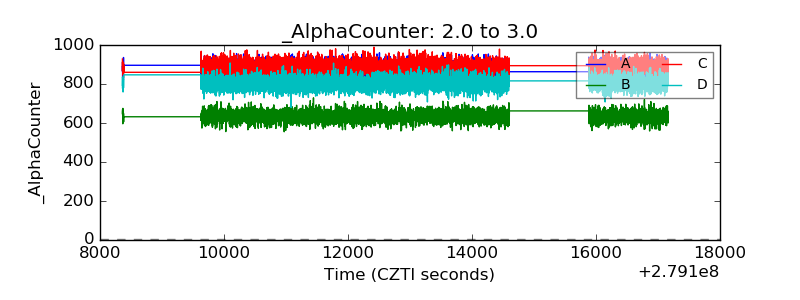

| Alpha Counter |  |
| _CPM_Rate |  |

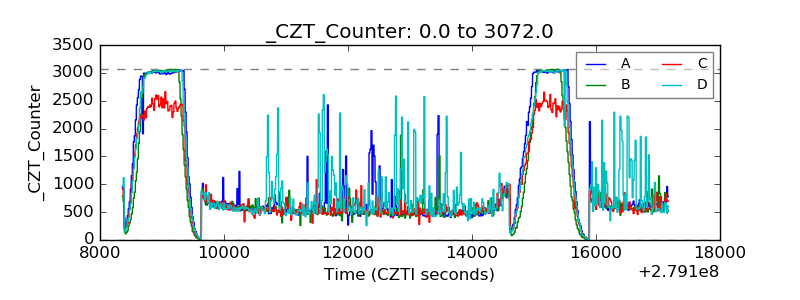

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
