| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_004T07_9000002492_16792cztM0_level2.evt | modeM0/AS1A05_004T07_9000002492_16792cztM0_level2_quad_clean.evt |
| Size (bytes) | 677,580,480 | 102,672,000 |
| Size | 646.2 MB | 97.9 MB |
| Events in quadrant A | 4,026,252 | 703,858 |
| Events in quadrant B | 3,379,738 | 712,043 |
| Events in quadrant C | 4,657,346 | 674,987 |
| Events in quadrant D | 8,029,973 | 576,493 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15942 | 2 |
| B | 0 | 13872 | 1 |
| C | 0 | 18135 | 1 |
| D | 0 | 28117 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6326 | 211 | 3.335441% |
| B | 6326 | 92 | 1.454316% |
| C | 6326 | 182 | 2.877015% |
| D | 6326 | 1524 | 24.091053% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7432 | 6328 | 113 | 113 | 1.52% | 1.79% |  |
| B | 7432 | 6328 | 9 | 9 | 0.12% | 0.14% |  |
| C | 7432 | 6328 | 5 | 5 | 0.07% | 0.08% |  |
| D | 7432 | 6328 | 1203 | 1203 | 16.19% | 19.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 234 | 663610 | 4192.89 | 796 | 779 | 158.1 |
| A | 15 | 174 | 295627 | 1865.13 | 796 | 779 | 158.1 |
| A | 0 | 226 | 7087 | 39.9 | 796 | 779 | 158.1 |
| B | 15 | 35 | 121032 | 805.8 | 788 | 771 | 149.2 |
| B | 0 | 229 | 93827 | 623.52 | 788 | 771 | 149.2 |
| B | 3 | 209 | 24703 | 160.36 | 788 | 771 | 149.2 |
| C | 3 | 233 | 1493945 | 8485.29 | 759 | 763 | 176.0 |
| C | 14 | 238 | 117236 | 661.88 | 759 | 763 | 176.0 |
| C | 0 | 207 | 68813 | 386.71 | 759 | 763 | 176.0 |
| D | 1 | 52 | 5168406 | 30102.08 | 706 | 686 | 171.7 |
| D | 12 | 218 | 110508 | 639.72 | 706 | 686 | 171.7 |
| D | 10 | 70 | 42686 | 244.65 | 706 | 686 | 171.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

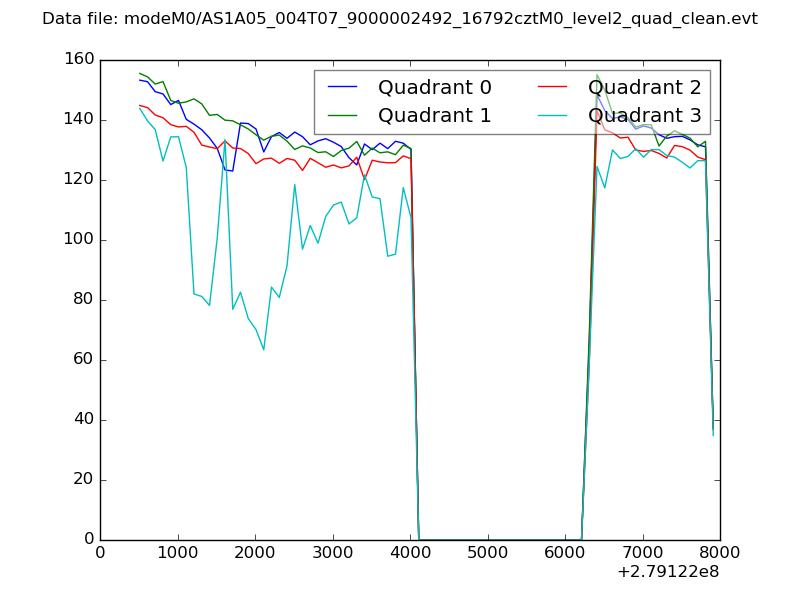

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

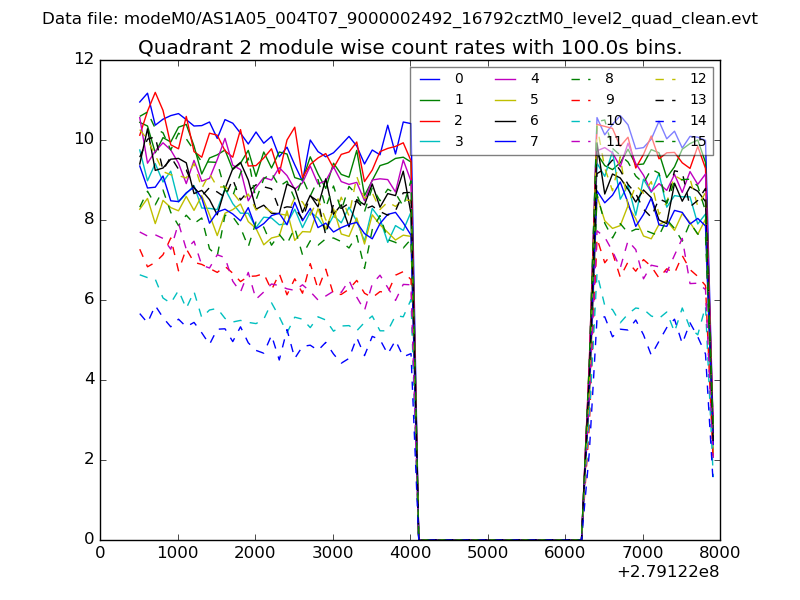

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

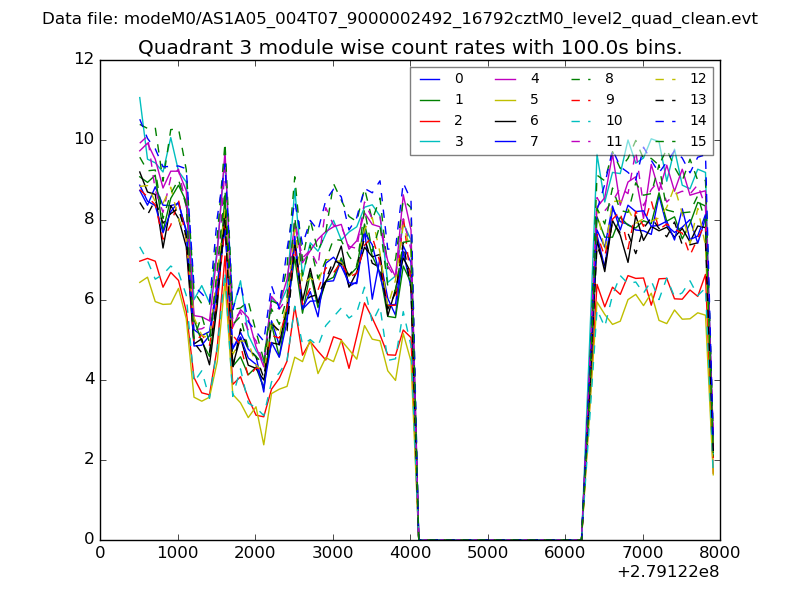

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

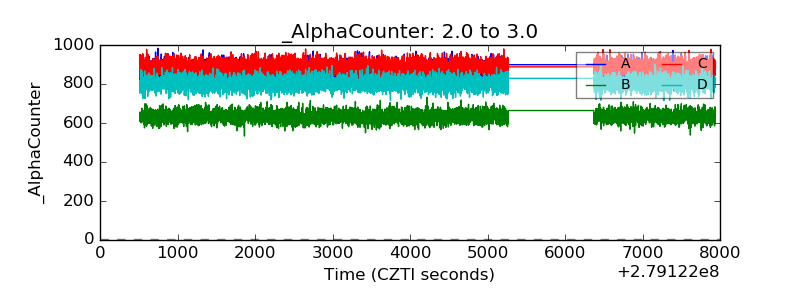

| Alpha Counter |  |
| _CPM_Rate |  |

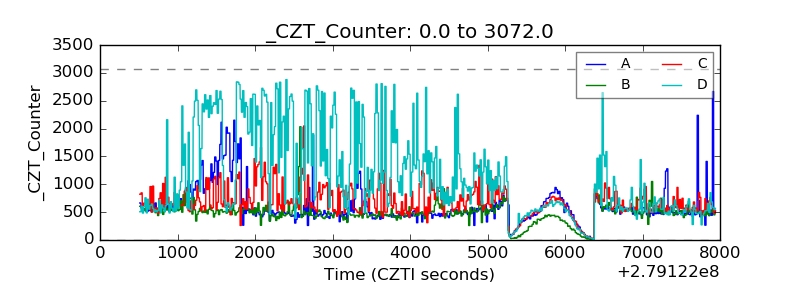

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

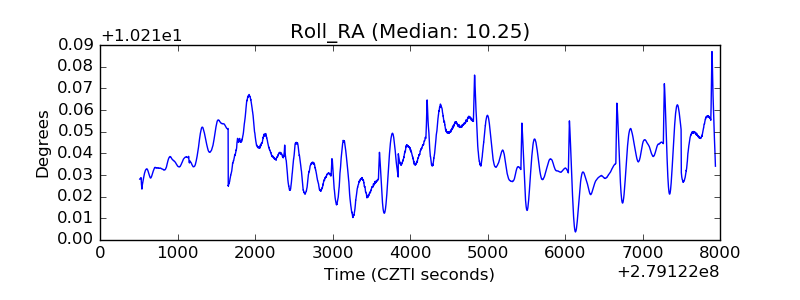

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
