| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_056T01_9000002498_16828cztM0_level2.evt | modeM0/AS1A05_056T01_9000002498_16828cztM0_level2_quad_clean.evt |
| Size (bytes) | 533,577,600 | 97,421,760 |
| Size | 508.9 MB | 92.9 MB |
| Events in quadrant A | 3,428,938 | 630,248 |
| Events in quadrant B | 3,479,959 | 641,963 |
| Events in quadrant C | 3,984,252 | 600,469 |
| Events in quadrant D | 4,787,045 | 585,461 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14710 | 3 |
| B | 0 | 14720 | 2 |
| C | 0 | 16065 | 2 |
| D | 0 | 18921 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7072 | 59 | 0.834276% |
| B | 7072 | 87 | 1.230204% |
| C | 7072 | 132 | 1.866516% |
| D | 7072 | 235 | 3.322964% |

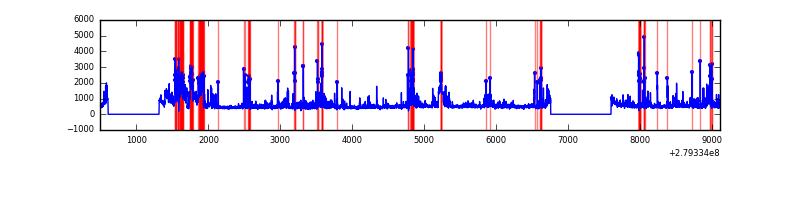

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8623 | 7075 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8623 | 7075 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8623 | 7075 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8623 | 7075 | 177 | 177 | 2.05% | 2.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 110945 | 638.66 | 855 | 835 | 172.4 |
| A | 9 | 143 | 25820 | 144.92 | 855 | 835 | 172.4 |
| A | 13 | 228 | 8364 | 43.67 | 855 | 835 | 172.4 |
| B | 4 | 173 | 56175 | 335.76 | 856 | 834 | 164.8 |
| B | 0 | 229 | 53598 | 320.12 | 856 | 834 | 164.8 |
| B | 12 | 111 | 20290 | 118.04 | 856 | 834 | 164.8 |
| C | 3 | 233 | 602622 | 3114.89 | 825 | 830 | 193.2 |
| C | 14 | 238 | 126626 | 651.12 | 825 | 830 | 193.2 |
| C | 0 | 207 | 37404 | 189.31 | 825 | 830 | 193.2 |
| D | 1 | 52 | 686994 | 3422.15 | 828 | 805 | 200.5 |
| D | 5 | 222 | 625027 | 3113.11 | 828 | 805 | 200.5 |
| D | 13 | 170 | 159857 | 793.22 | 828 | 805 | 200.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

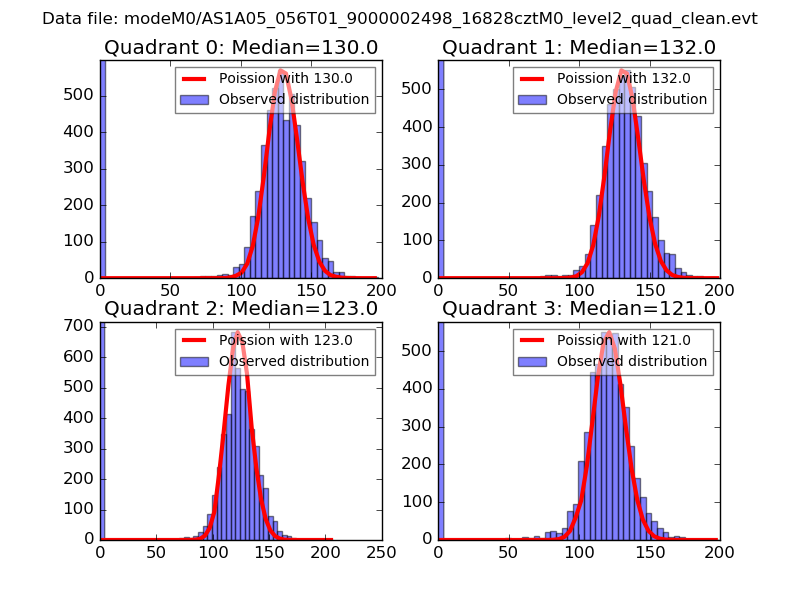

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

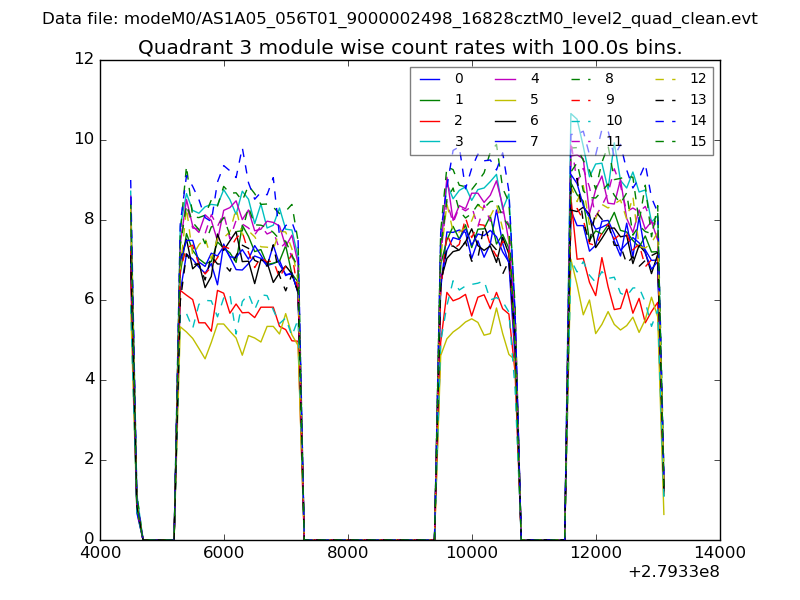

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

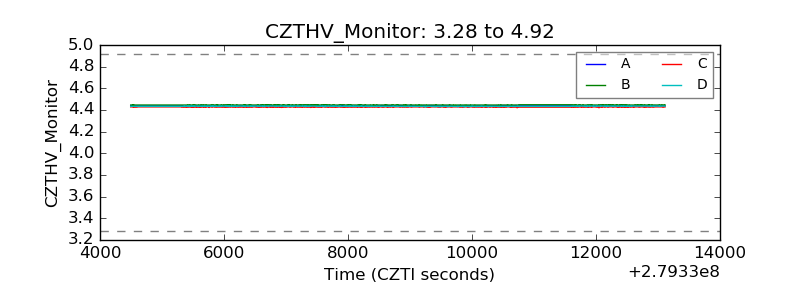

| CZT HV Monitor |  |
| D_VDD |  |

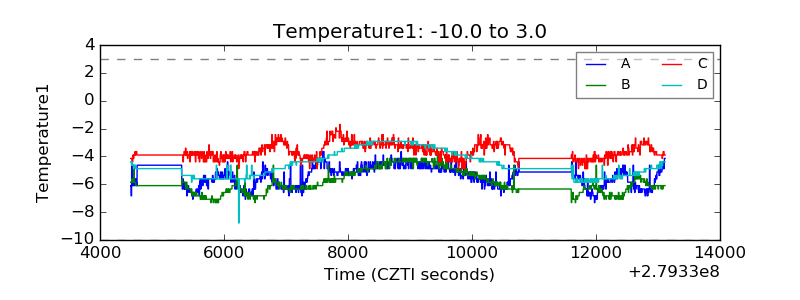

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

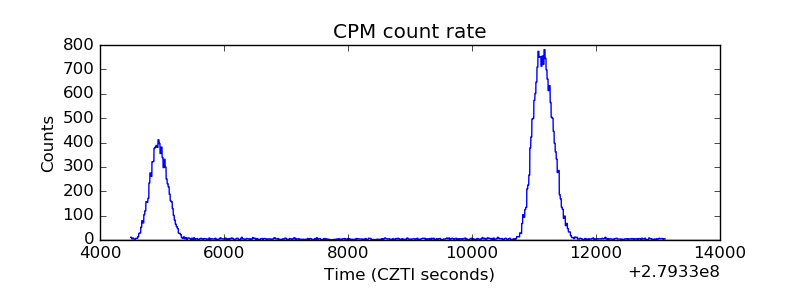

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

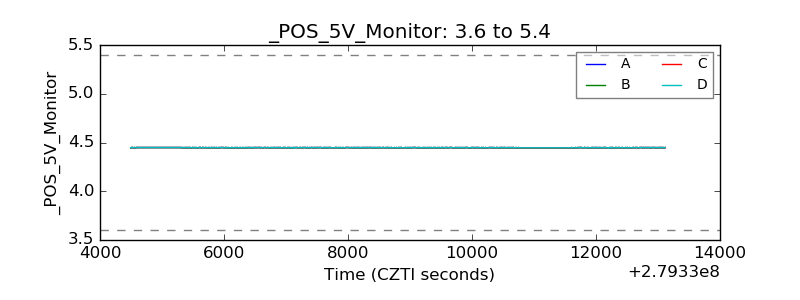

| +5 Volts monitor |  |
| _ROLL_ROT |  |

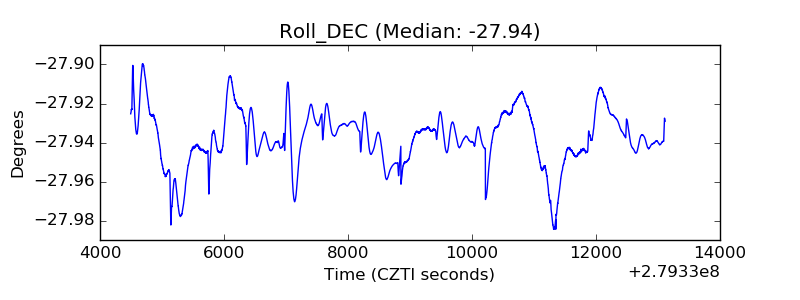

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
