| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_056T01_9000002498_16829cztM0_level2.evt | modeM0/AS1A05_056T01_9000002498_16829cztM0_level2_quad_clean.evt |
| Size (bytes) | 519,387,840 | 80,066,880 |
| Size | 495.3 MB | 76.4 MB |
| Events in quadrant A | 2,964,425 | 510,407 |
| Events in quadrant B | 3,126,961 | 524,178 |
| Events in quadrant C | 4,196,237 | 486,061 |
| Events in quadrant D | 5,023,311 | 472,442 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12706 | 2 |
| B | 0 | 12957 | 1 |
| C | 0 | 16495 | 1 |
| D | 0 | 19035 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6177 | 25 | 0.404727% |
| B | 6177 | 39 | 0.631374% |
| C | 6177 | 146 | 2.363607% |
| D | 6177 | 457 | 7.398413% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7203 | 6179 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7203 | 6179 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7203 | 6179 | 25 | 25 | 0.35% | 0.40% |  |
| D | 7203 | 6179 | 343 | 343 | 4.76% | 5.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 41766 | 269.47 | 756 | 740 | 152.2 |
| A | 9 | 143 | 17909 | 112.77 | 756 | 740 | 152.2 |
| A | 0 | 226 | 6522 | 37.98 | 756 | 740 | 152.2 |
| B | 0 | 229 | 103439 | 711.35 | 757 | 738 | 144.4 |
| B | 4 | 173 | 40581 | 275.97 | 757 | 738 | 144.4 |
| B | 12 | 111 | 17292 | 114.66 | 757 | 738 | 144.4 |
| C | 3 | 233 | 1196285 | 6965.87 | 730 | 735 | 171.6 |
| C | 14 | 238 | 112463 | 650.98 | 730 | 735 | 171.6 |
| C | 0 | 207 | 39648 | 226.73 | 730 | 735 | 171.6 |
| D | 1 | 52 | 2225199 | 12535.79 | 723 | 703 | 177.5 |
| D | 13 | 170 | 36698 | 202.84 | 723 | 703 | 177.5 |
| D | 2 | 234 | 22382 | 122.17 | 723 | 703 | 177.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

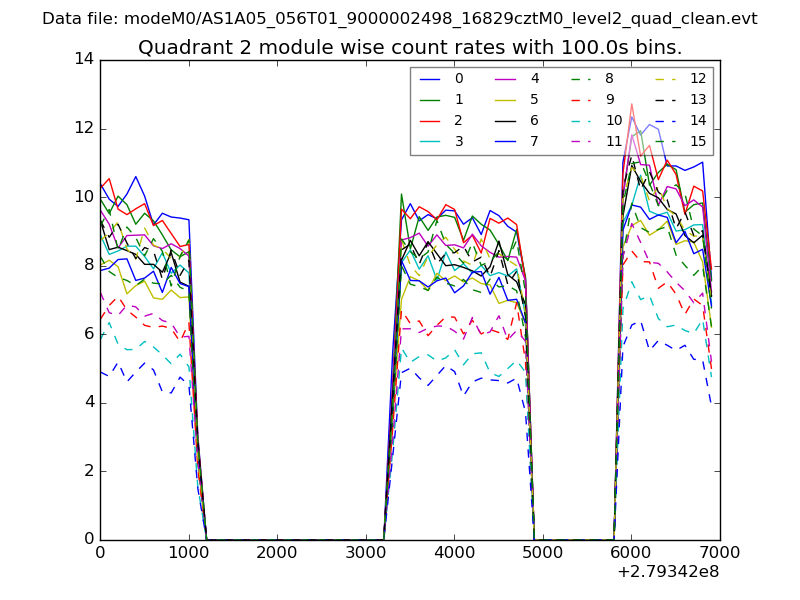

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

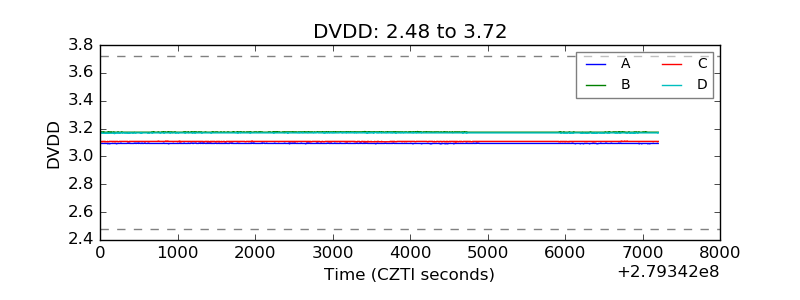

| D_VDD |  |

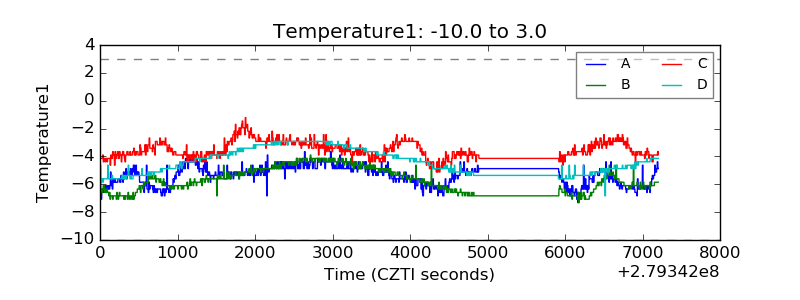

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

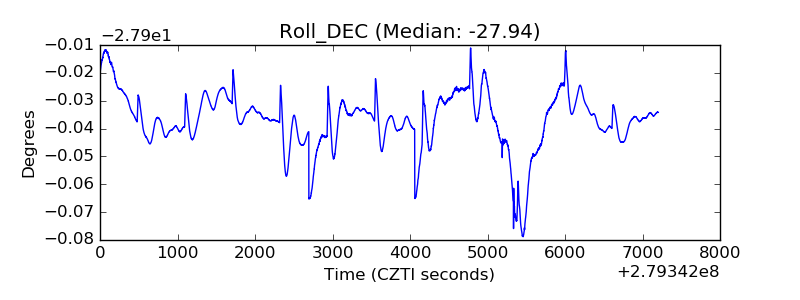

| _Roll_DEC |  |
| _Roll_RA |  |

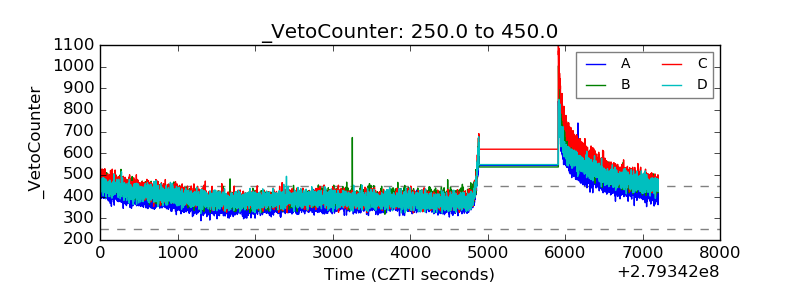

| Veto Counter |  |
