| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_056T01_9000002498_16834cztM0_level2.evt | modeM0/AS1A05_056T01_9000002498_16834cztM0_level2_quad_clean.evt |
| Size (bytes) | 506,615,040 | 68,112,000 |
| Size | 483.1 MB | 65.0 MB |
| Events in quadrant A | 3,313,052 | 414,515 |
| Events in quadrant B | 3,514,180 | 422,668 |
| Events in quadrant C | 3,753,985 | 400,148 |
| Events in quadrant D | 4,342,126 | 392,995 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13681 | 3 |
| B | 0 | 14220 | 2 |
| C | 0 | 15450 | 2 |
| D | 0 | 17114 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6192 | 106 | 1.711886% |
| B | 6192 | 143 | 2.309432% |
| C | 6192 | 163 | 2.632429% |
| D | 6192 | 227 | 3.666021% |

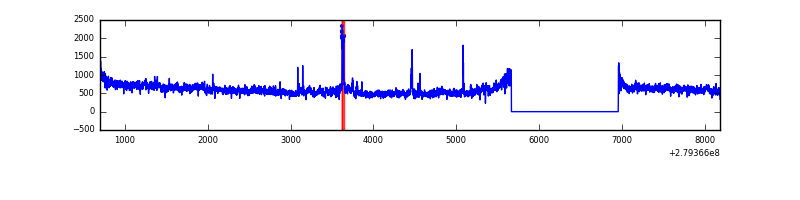

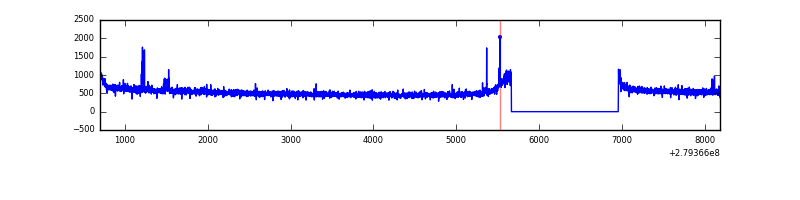

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7483 | 6194 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7483 | 6194 | 8 | 8 | 0.11% | 0.13% |  |
| C | 7483 | 6194 | 8 | 8 | 0.11% | 0.13% |  |
| D | 7483 | 6194 | 106 | 106 | 1.42% | 1.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 29642 | 170.66 | 849 | 834 | 168.8 |
| A | 9 | 143 | 16928 | 95.34 | 849 | 834 | 168.8 |
| A | 0 | 226 | 7338 | 38.53 | 849 | 834 | 168.8 |
| B | 4 | 173 | 90969 | 564.45 | 849 | 830 | 159.7 |
| B | 0 | 229 | 61863 | 382.19 | 849 | 830 | 159.7 |
| B | 15 | 35 | 33689 | 205.76 | 849 | 830 | 159.7 |
| C | 3 | 233 | 405725 | 2154.72 | 817 | 826 | 187.9 |
| C | 14 | 238 | 128445 | 679.14 | 817 | 826 | 187.9 |
| C | 0 | 207 | 26750 | 137.96 | 817 | 826 | 187.9 |
| D | 1 | 52 | 1106517 | 5670.82 | 820 | 799 | 195.0 |
| D | 5 | 222 | 132139 | 673.59 | 820 | 799 | 195.0 |
| D | 2 | 234 | 24290 | 120.48 | 820 | 799 | 195.0 |

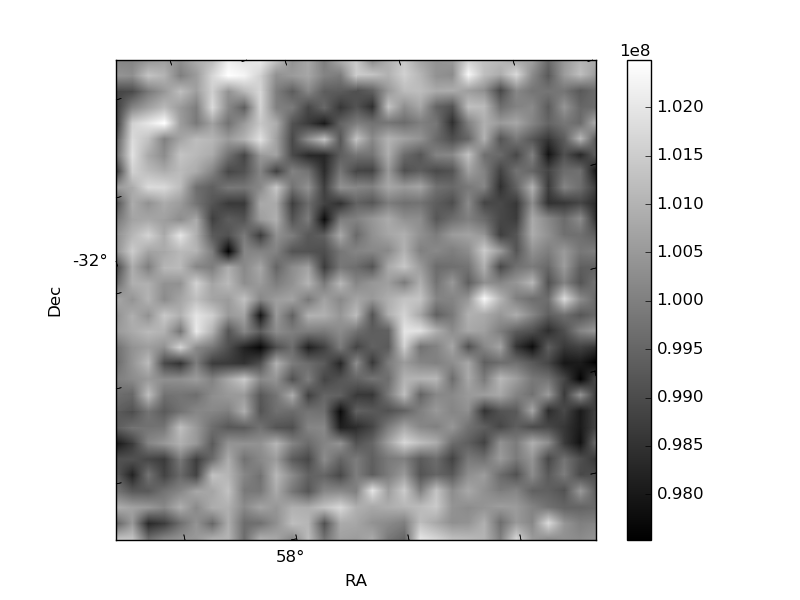

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

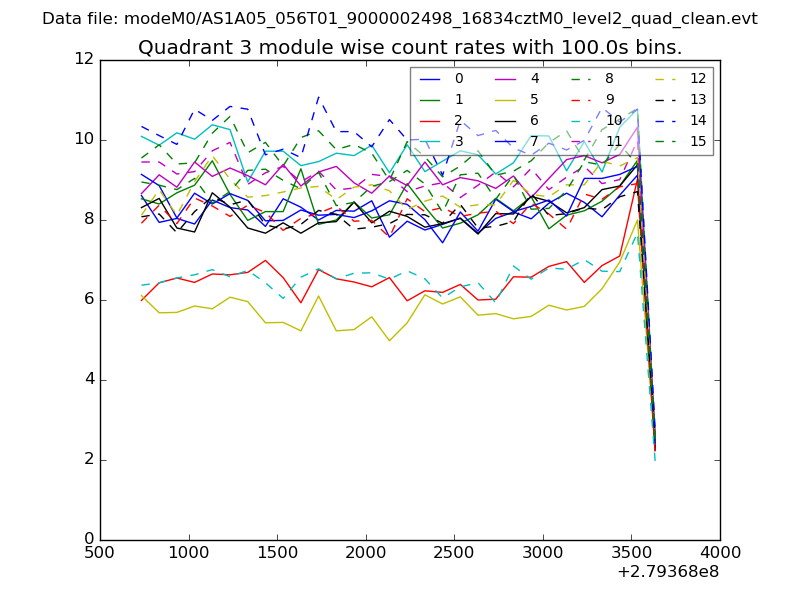

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

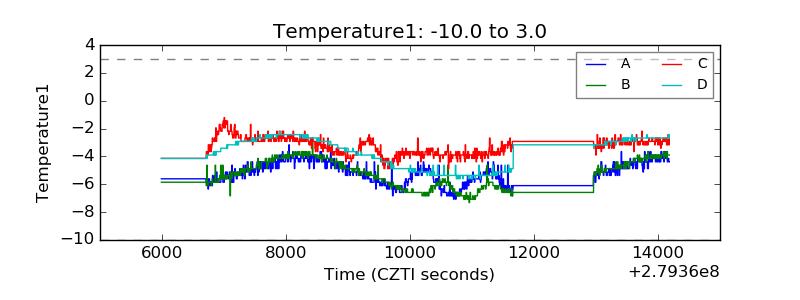

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

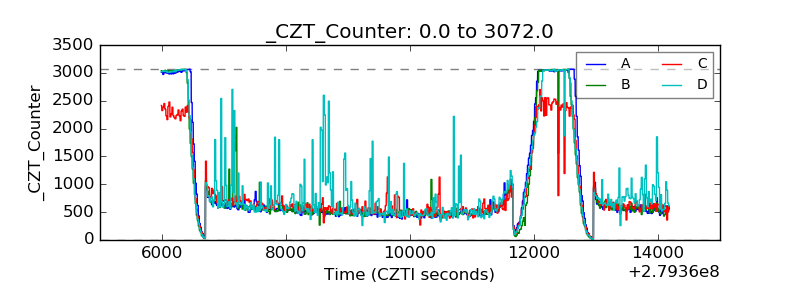

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

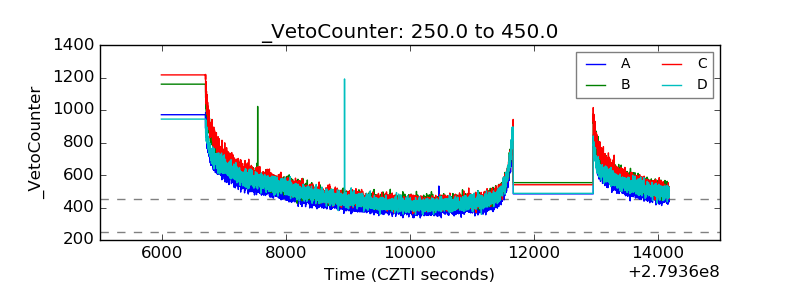

| Veto Counter |  |
