| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_056T01_9000002498_16836cztM0_level2.evt | modeM0/AS1A05_056T01_9000002498_16836cztM0_level2_quad_clean.evt |
| Size (bytes) | 540,230,400 | 93,890,880 |
| Size | 515.2 MB | 89.5 MB |
| Events in quadrant A | 3,457,975 | 600,940 |
| Events in quadrant B | 3,538,427 | 613,260 |
| Events in quadrant C | 3,759,315 | 577,123 |
| Events in quadrant D | 5,125,764 | 559,701 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14785 | 3 |
| B | 0 | 14800 | 2 |
| C | 0 | 15535 | 2 |
| D | 0 | 20090 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7069 | 84 | 1.188287% |
| B | 7069 | 101 | 1.428774% |
| C | 7069 | 120 | 1.697553% |
| D | 7069 | 245 | 3.465837% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8000 | 7071 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8000 | 7071 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8000 | 7071 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8000 | 7071 | 135 | 135 | 1.69% | 1.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 46566 | 257.33 | 883 | 867 | 177.6 |
| A | 15 | 174 | 12276 | 64.24 | 883 | 867 | 177.6 |
| A | 0 | 226 | 7794 | 39.01 | 883 | 867 | 177.6 |
| B | 0 | 229 | 40718 | 236.81 | 882 | 860 | 168.3 |
| B | 15 | 35 | 21136 | 120.46 | 882 | 860 | 168.3 |
| B | 12 | 111 | 20494 | 116.65 | 882 | 860 | 168.3 |
| C | 3 | 233 | 250705 | 1270.57 | 843 | 850 | 196.6 |
| C | 14 | 238 | 131153 | 662.62 | 843 | 850 | 196.6 |
| C | 7 | 247 | 50122 | 250.56 | 843 | 850 | 196.6 |
| D | 1 | 52 | 1760556 | 8582.21 | 844 | 821 | 205.0 |
| D | 5 | 222 | 92806 | 448.61 | 844 | 821 | 205.0 |
| D | 10 | 70 | 36922 | 176.06 | 844 | 821 | 205.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

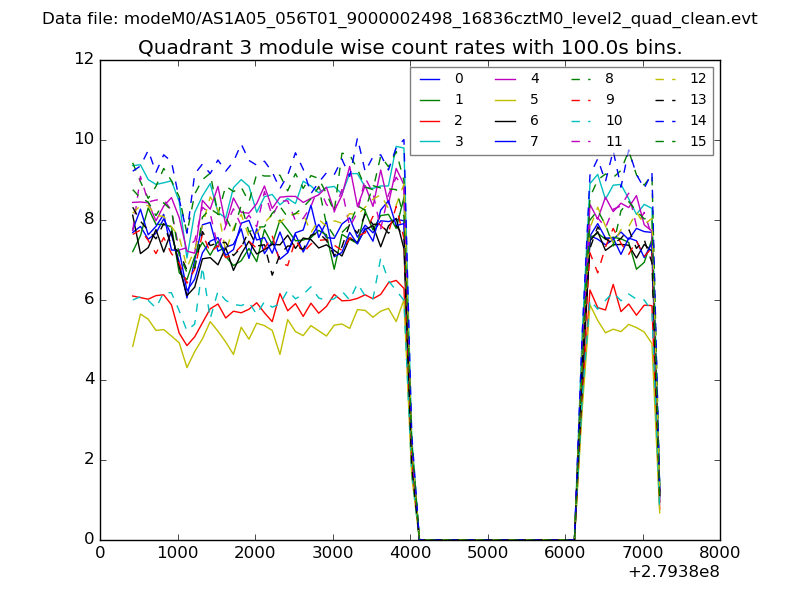

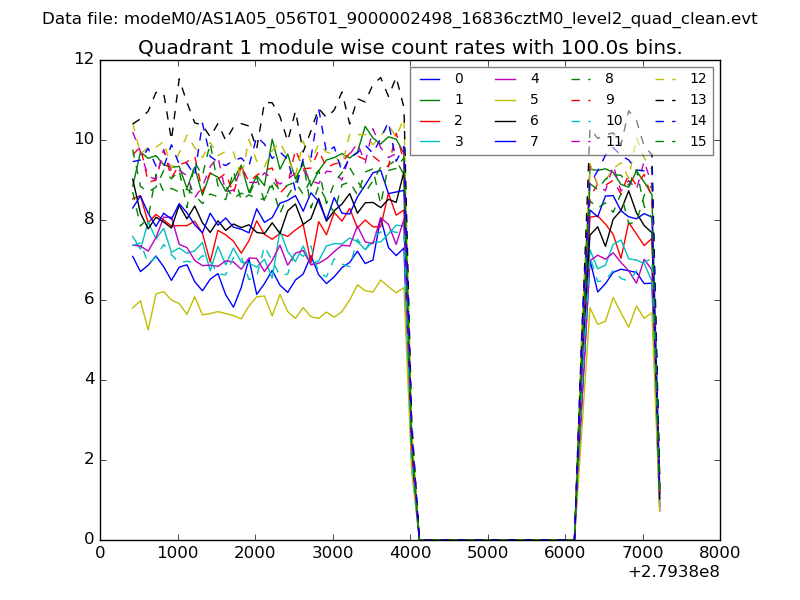

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

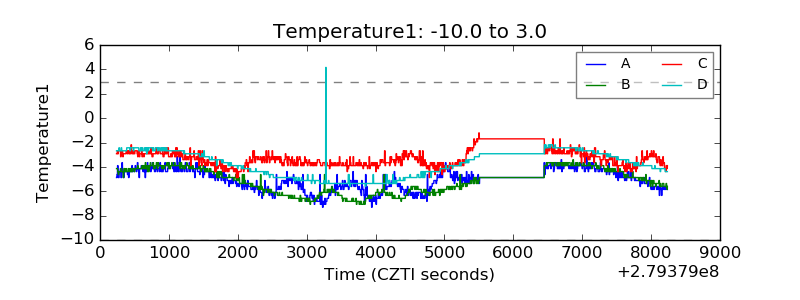

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

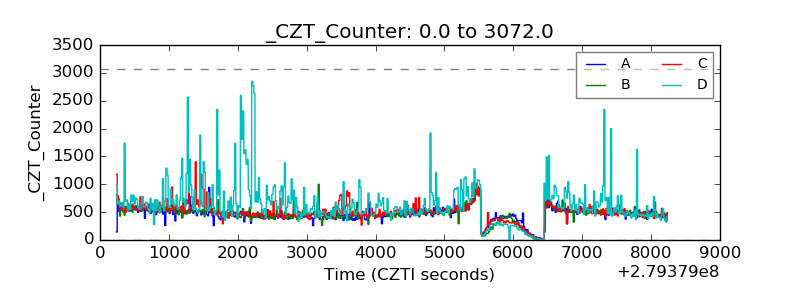

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

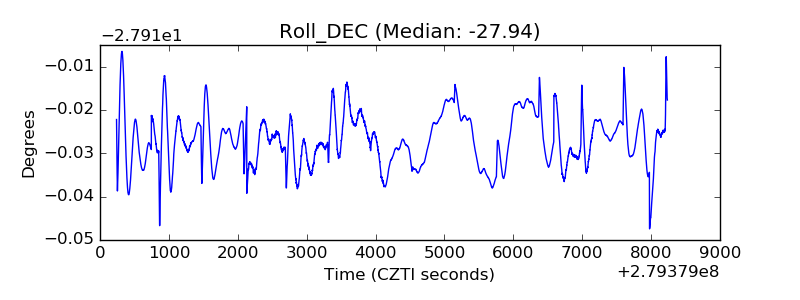

| _Roll_DEC |  |

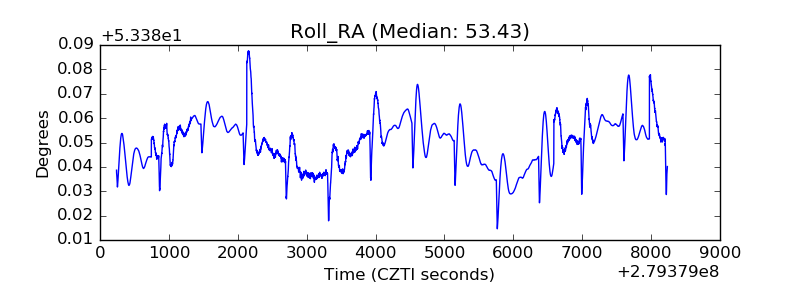

| _Roll_RA |  |
| Veto Counter |  |
