| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_056T01_9000002498_16837cztM0_level2.evt | modeM0/AS1A05_056T01_9000002498_16837cztM0_level2_quad_clean.evt |
| Size (bytes) | 552,902,400 | 95,123,520 |
| Size | 527.3 MB | 90.7 MB |
| Events in quadrant A | 3,514,485 | 608,667 |
| Events in quadrant B | 3,606,259 | 620,258 |
| Events in quadrant C | 3,598,576 | 585,224 |
| Events in quadrant D | 5,528,765 | 556,886 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15224 | 3 |
| B | 0 | 15341 | 2 |
| C | 0 | 15447 | 2 |
| D | 0 | 21486 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7313 | 57 | 0.779434% |
| B | 7313 | 72 | 0.984548% |
| C | 7313 | 94 | 1.285382% |
| D | 7313 | 645 | 8.819910% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7889 | 7315 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7889 | 7315 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7889 | 7315 | 3 | 3 | 0.04% | 0.04% |  |
| D | 7889 | 7315 | 460 | 460 | 5.83% | 6.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 66964 | 366.61 | 894 | 876 | 180.3 |
| A | 15 | 174 | 14954 | 78.09 | 894 | 876 | 180.3 |
| A | 0 | 226 | 7895 | 38.94 | 894 | 876 | 180.3 |
| B | 0 | 230 | 39417 | 224.46 | 892 | 869 | 171.7 |
| B | 15 | 35 | 32954 | 186.82 | 892 | 869 | 171.7 |
| B | 0 | 229 | 31636 | 179.15 | 892 | 869 | 171.7 |
| C | 14 | 238 | 131837 | 660.29 | 850 | 855 | 198.4 |
| C | 0 | 207 | 76376 | 380.71 | 850 | 855 | 198.4 |
| C | 3 | 233 | 71693 | 357.1 | 850 | 855 | 198.4 |
| D | 1 | 52 | 1135923 | 5608.57 | 831 | 808 | 202.4 |
| D | 5 | 222 | 1124707 | 5553.15 | 831 | 808 | 202.4 |
| D | 2 | 33 | 96087 | 470.77 | 831 | 808 | 202.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

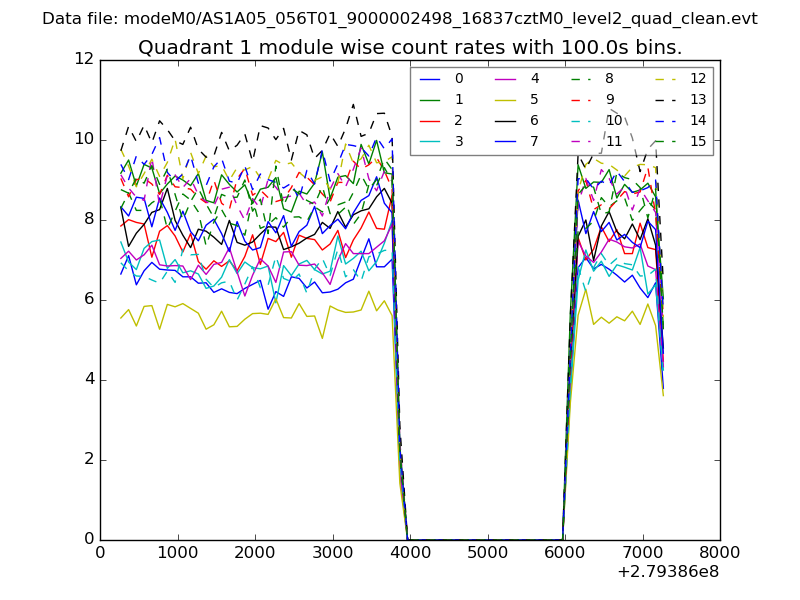

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

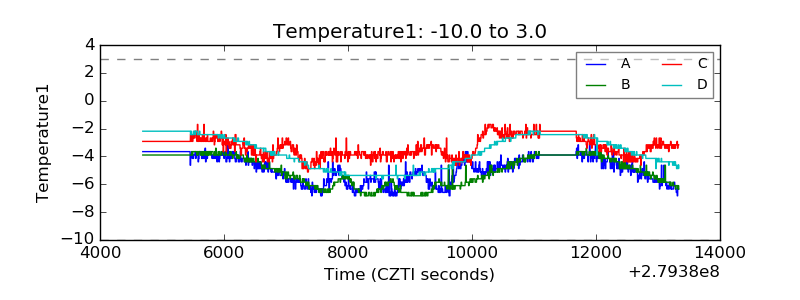

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

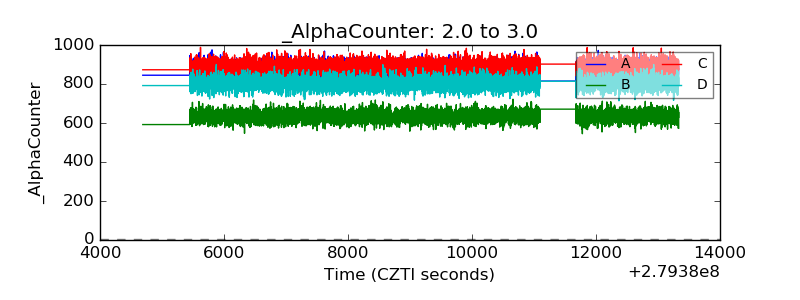

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

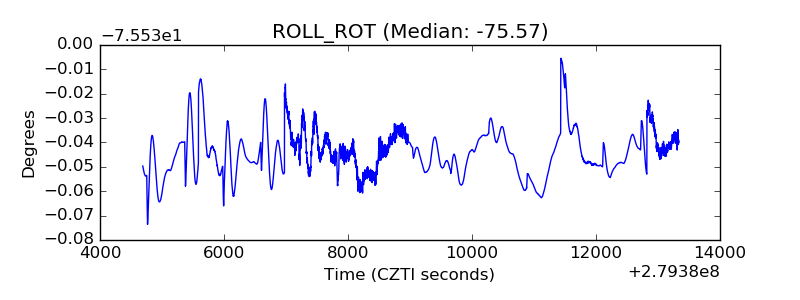

| _ROLL_ROT |  |
| _Roll_DEC |  |

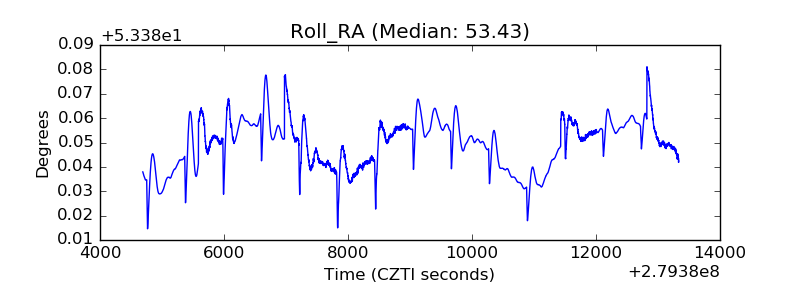

| _Roll_RA |  |

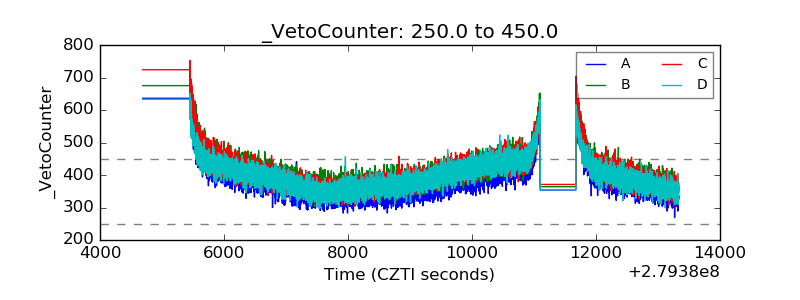

| Veto Counter |  |
