| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_056T01_9000002498_16839cztM0_level2.evt | modeM0/AS1A05_056T01_9000002498_16839cztM0_level2_quad_clean.evt |
| Size (bytes) | 522,650,880 | 99,973,440 |
| Size | 498.4 MB | 95.3 MB |
| Events in quadrant A | 3,483,972 | 643,631 |
| Events in quadrant B | 3,619,236 | 651,713 |
| Events in quadrant C | 3,456,298 | 612,395 |
| Events in quadrant D | 4,763,545 | 601,761 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15320 | 2 |
| B | 0 | 15437 | 1 |
| C | 0 | 15250 | 1 |
| D | 0 | 19293 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7447 | 39 | 0.523701% |
| B | 7447 | 37 | 0.496844% |
| C | 7447 | 49 | 0.657983% |
| D | 7447 | 347 | 4.659594% |

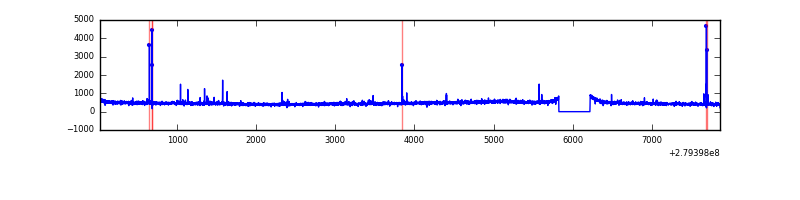

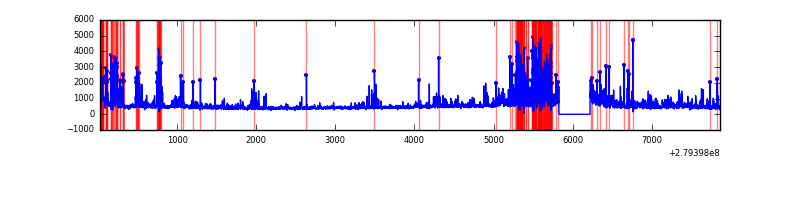

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7843 | 7449 | 6 | 6 | 0.08% | 0.08% |  |
| B | 7843 | 7449 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7843 | 7449 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7843 | 7449 | 235 | 235 | 3.00% | 3.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 59440 | 326.11 | 885 | 867 | 179.6 |
| A | 13 | 228 | 26589 | 143.21 | 885 | 867 | 179.6 |
| A | 0 | 226 | 7700 | 38.04 | 885 | 867 | 179.6 |
| B | 0 | 229 | 59642 | 343.93 | 884 | 859 | 170.9 |
| B | 3 | 64 | 49302 | 283.43 | 884 | 859 | 170.9 |
| B | 4 | 173 | 29443 | 167.24 | 884 | 859 | 170.9 |
| C | 14 | 238 | 129657 | 648.81 | 843 | 850 | 198.5 |
| C | 3 | 233 | 29901 | 146.33 | 843 | 850 | 198.5 |
| C | 0 | 207 | 9408 | 43.11 | 843 | 850 | 198.5 |
| D | 1 | 52 | 1470704 | 7250.68 | 832 | 808 | 202.7 |
| D | 5 | 222 | 101804 | 498.19 | 832 | 808 | 202.7 |
| D | 2 | 234 | 26277 | 125.63 | 832 | 808 | 202.7 |

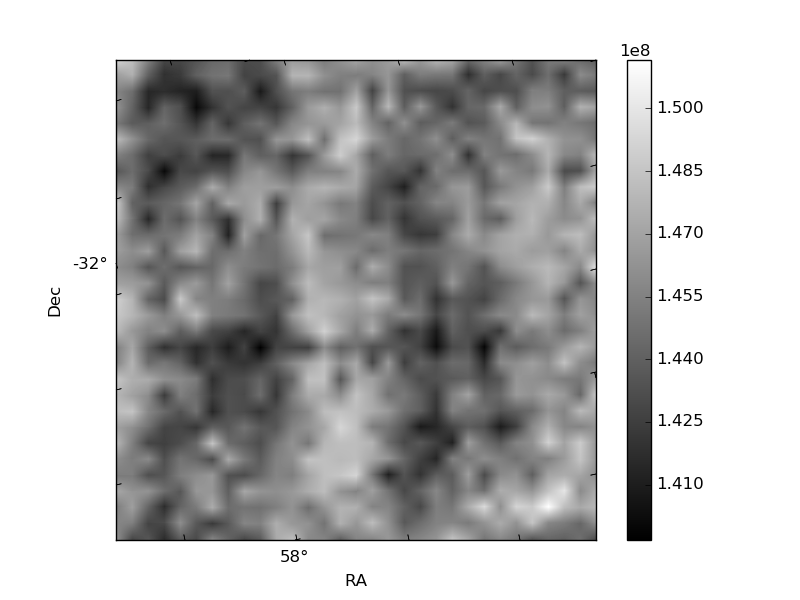

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

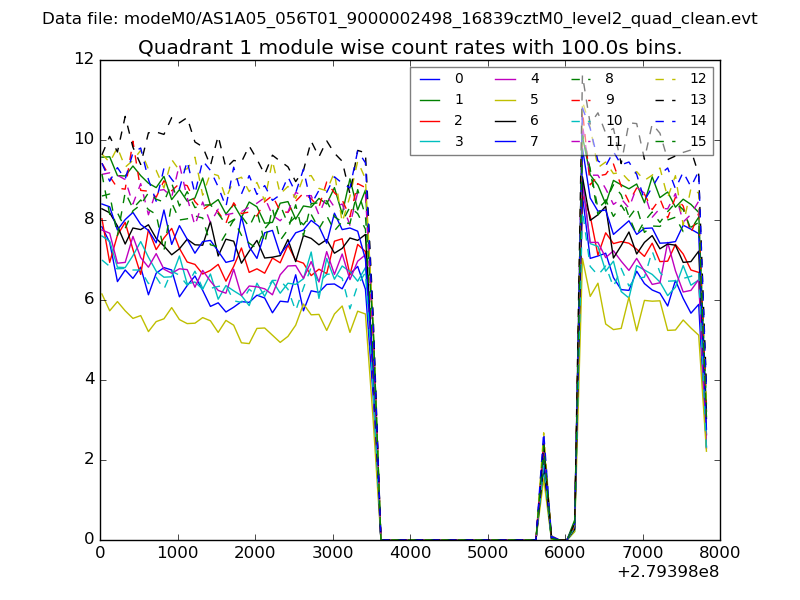

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

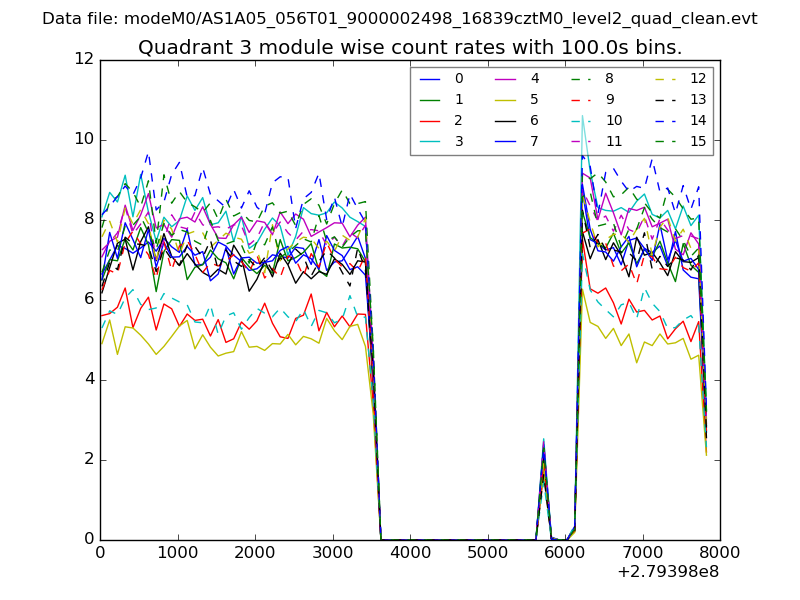

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

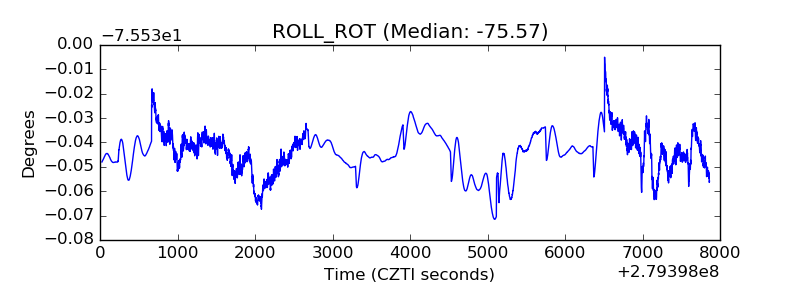

| _ROLL_ROT |  |

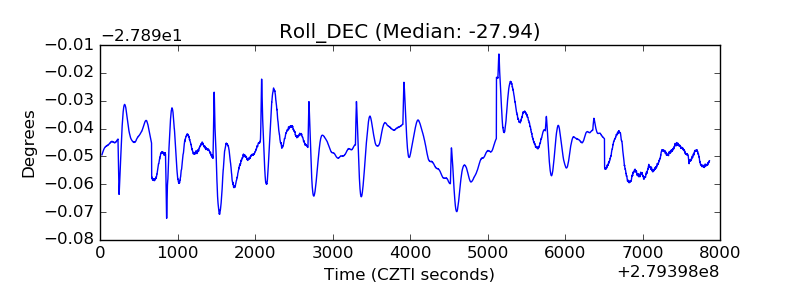

| _Roll_DEC |  |
| _Roll_RA |  |

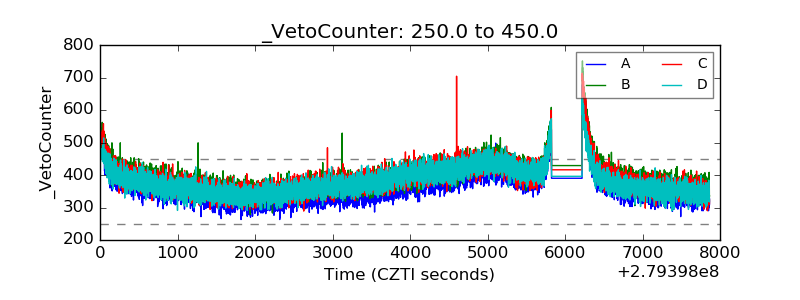

| Veto Counter |  |
