| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_056T01_9000002498_16843cztM0_level2.evt | modeM0/AS1A05_056T01_9000002498_16843cztM0_level2_quad_clean.evt |
| Size (bytes) | 533,416,320 | 94,046,400 |
| Size | 508.7 MB | 89.7 MB |
| Events in quadrant A | 3,213,089 | 609,530 |
| Events in quadrant B | 3,464,356 | 622,402 |
| Events in quadrant C | 3,331,211 | 586,640 |
| Events in quadrant D | 5,683,737 | 554,693 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13911 | 3 |
| B | 0 | 14247 | 2 |
| C | 0 | 14026 | 2 |
| D | 0 | 21478 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6813 | 45 | 0.660502% |
| B | 6813 | 74 | 1.086159% |
| C | 6813 | 120 | 1.761339% |
| D | 6813 | 500 | 7.338911% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

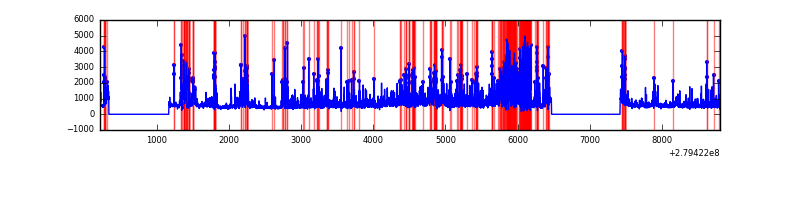

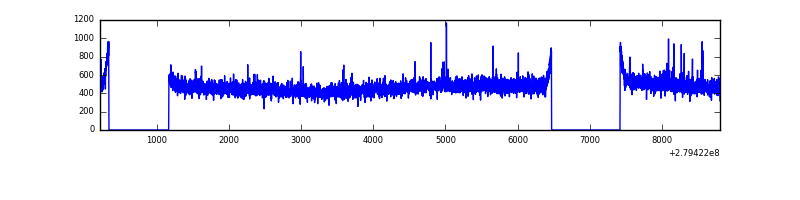

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8594 | 6816 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8594 | 6816 | 3 | 3 | 0.03% | 0.04% |  |
| C | 8594 | 6816 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8594 | 6816 | 351 | 351 | 4.08% | 5.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 24661 | 142.62 | 828 | 811 | 167.2 |
| A | 0 | 226 | 7188 | 38.13 | 828 | 811 | 167.2 |
| A | 3 | 137 | 6114 | 31.71 | 828 | 811 | 167.2 |
| B | 0 | 229 | 156210 | 970.91 | 831 | 810 | 160.1 |
| B | 4 | 173 | 22148 | 133.32 | 831 | 810 | 160.1 |
| B | 12 | 111 | 19836 | 118.87 | 831 | 810 | 160.1 |
| C | 14 | 238 | 124935 | 653.96 | 805 | 810 | 189.8 |
| C | 0 | 207 | 42909 | 221.8 | 805 | 810 | 189.8 |
| C | 3 | 233 | 19184 | 96.8 | 805 | 810 | 189.8 |
| D | 1 | 52 | 2633546 | 13647.44 | 790 | 766 | 192.9 |
| D | 2 | 136 | 27703 | 139.63 | 790 | 766 | 192.9 |
| D | 2 | 234 | 20386 | 101.7 | 790 | 766 | 192.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

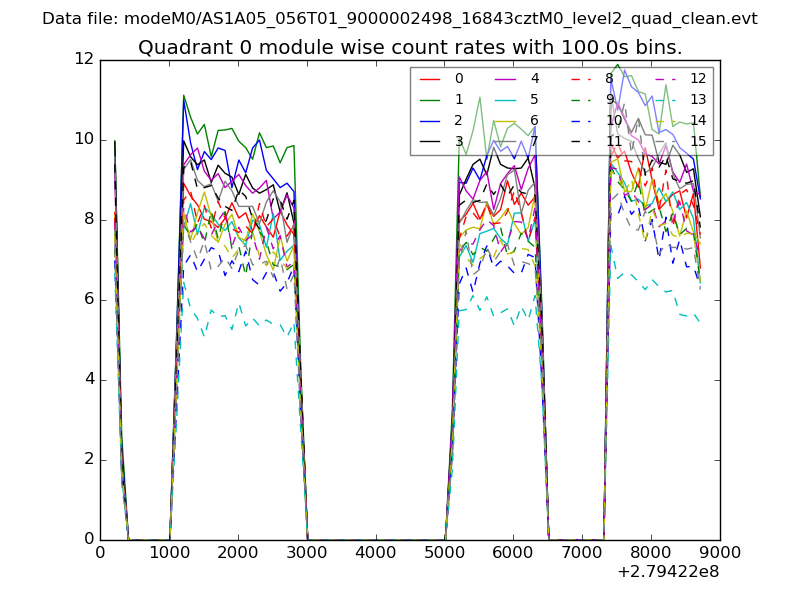

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

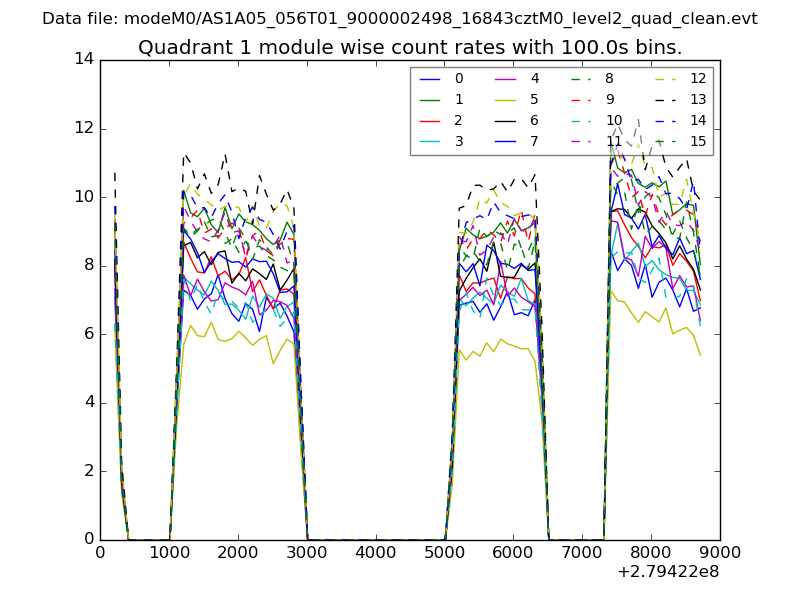

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

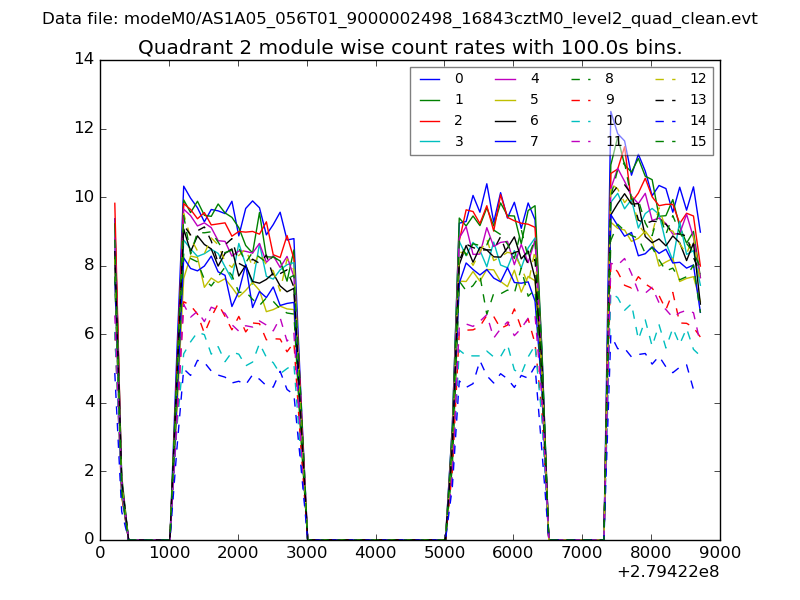

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

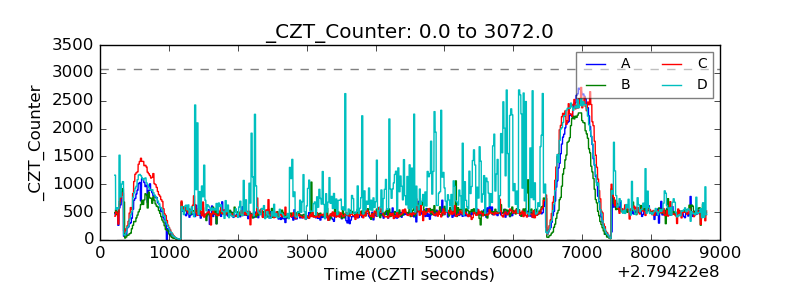

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

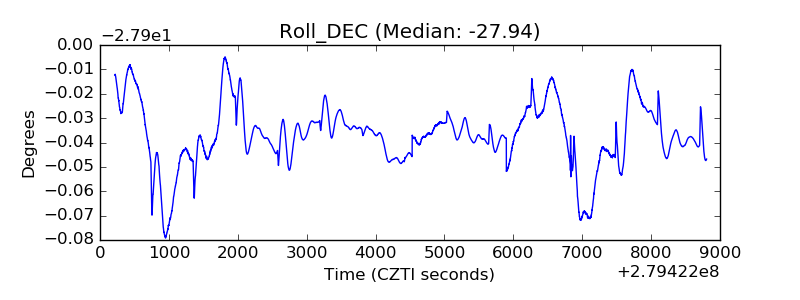

| _Roll_DEC |  |

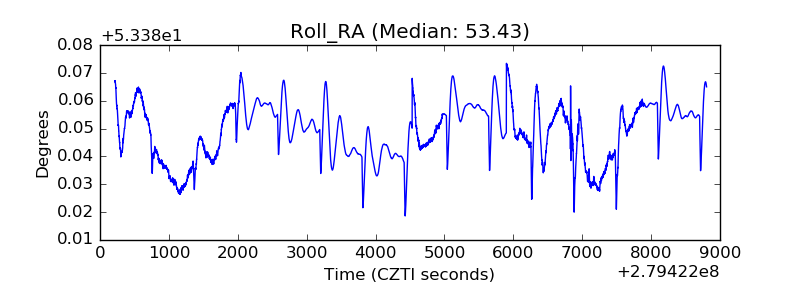

| _Roll_RA |  |
| Veto Counter |  |
