| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_056T01_9000002498_16847cztM0_level2.evt | modeM0/AS1A05_056T01_9000002498_16847cztM0_level2_quad_clean.evt |
| Size (bytes) | 509,719,680 | 71,317,440 |
| Size | 486.1 MB | 68.0 MB |
| Events in quadrant A | 3,365,527 | 436,084 |
| Events in quadrant B | 3,702,481 | 445,003 |
| Events in quadrant C | 3,461,244 | 425,583 |
| Events in quadrant D | 4,480,159 | 412,994 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13906 | 3 |
| B | 0 | 14796 | 2 |
| C | 0 | 14262 | 2 |
| D | 0 | 17415 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6301 | 91 | 1.444215% |
| B | 6301 | 129 | 2.047294% |
| C | 6301 | 143 | 2.269481% |
| D | 6301 | 267 | 4.237423% |

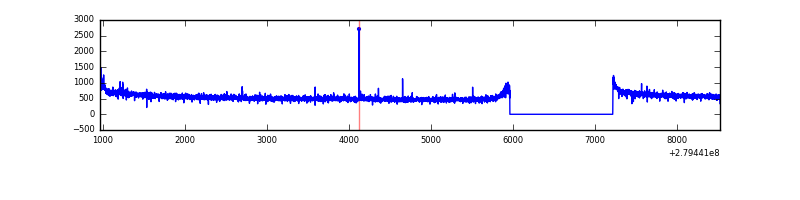

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7557 | 6303 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7557 | 6303 | 21 | 21 | 0.28% | 0.33% |  |
| C | 7557 | 6303 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7557 | 6303 | 137 | 137 | 1.81% | 2.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 228 | 23061 | 129.64 | 865 | 852 | 171.3 |
| A | 9 | 143 | 18974 | 105.78 | 865 | 852 | 171.3 |
| A | 0 | 226 | 7475 | 38.66 | 865 | 852 | 171.3 |
| B | 10 | 16 | 167160 | 1034.4 | 862 | 843 | 160.8 |
| B | 3 | 64 | 77385 | 476.05 | 862 | 843 | 160.8 |
| B | 0 | 229 | 75414 | 463.79 | 862 | 843 | 160.8 |
| C | 14 | 238 | 132004 | 677.57 | 842 | 850 | 193.6 |
| C | 0 | 207 | 28957 | 145.21 | 842 | 850 | 193.6 |
| C | 3 | 233 | 11132 | 53.12 | 842 | 850 | 193.6 |
| D | 1 | 52 | 1242296 | 6114.21 | 841 | 820 | 203.0 |
| D | 5 | 222 | 26634 | 127.13 | 841 | 820 | 203.0 |
| D | 15 | 145 | 26358 | 125.77 | 841 | 820 | 203.0 |

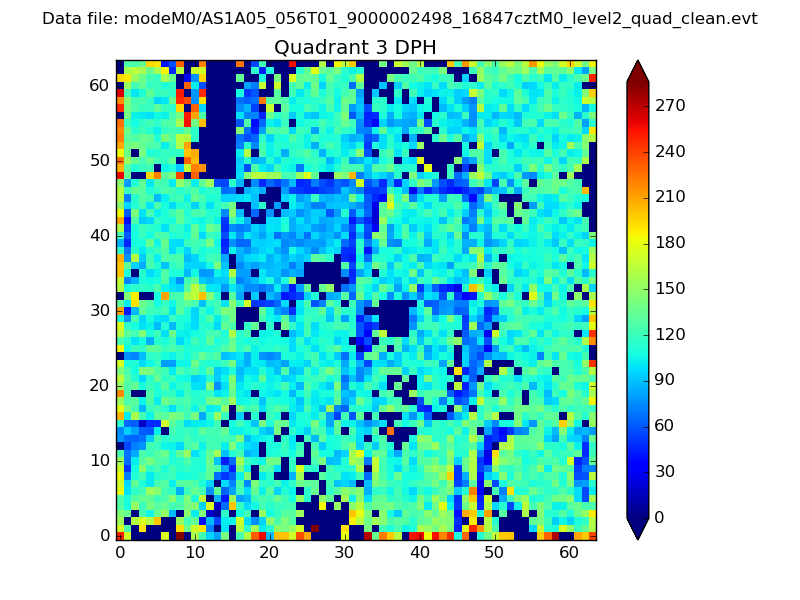

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

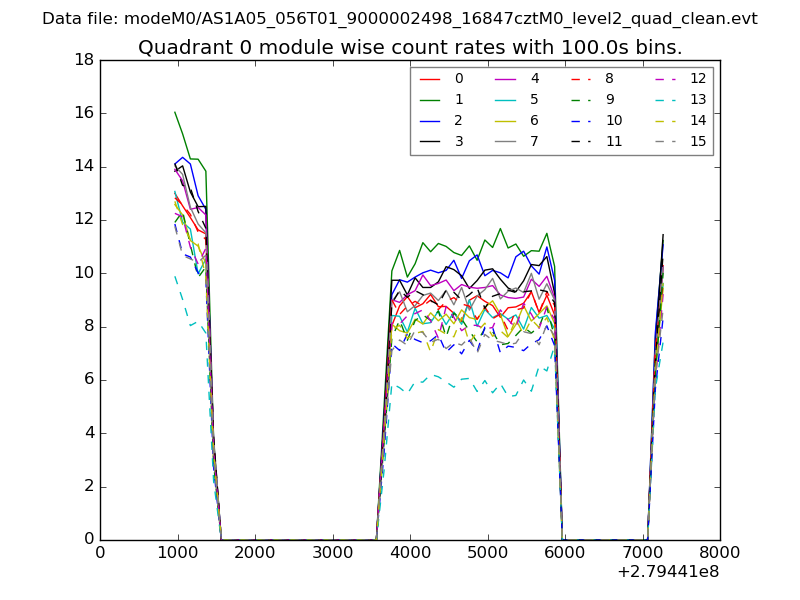

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

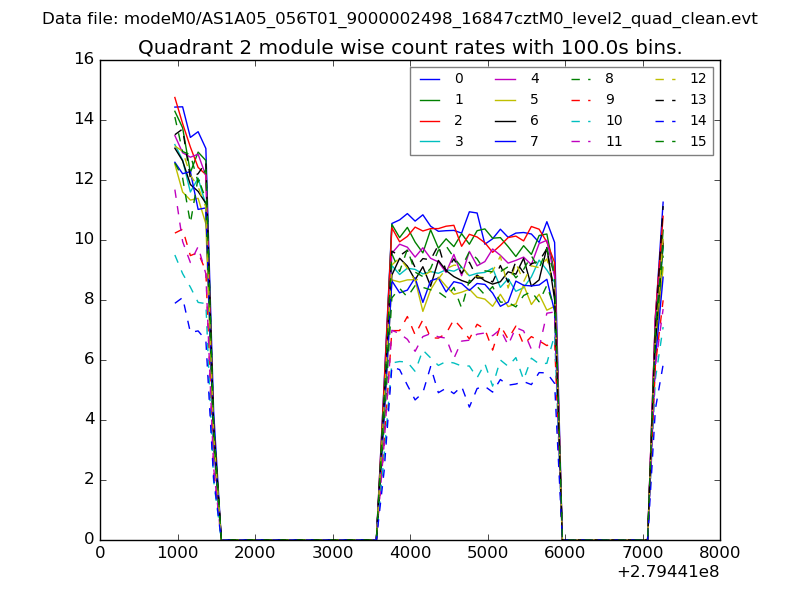

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

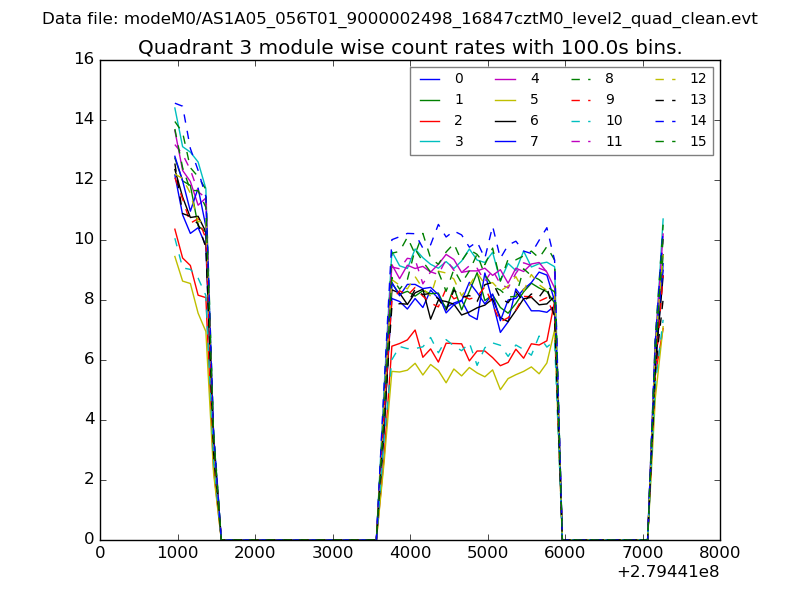

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

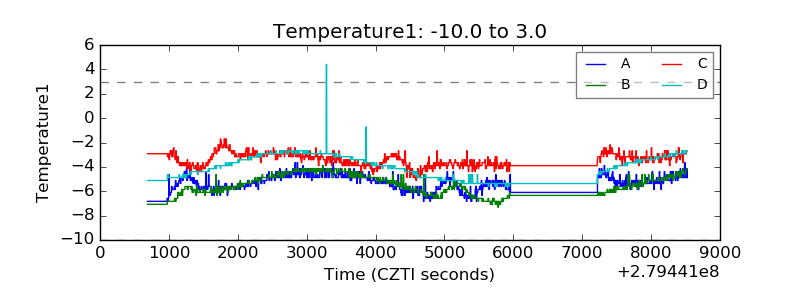

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

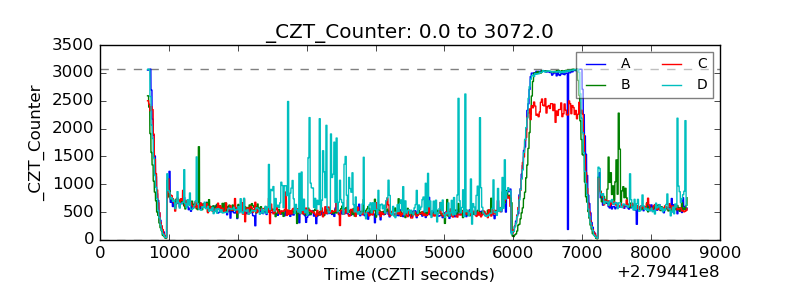

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

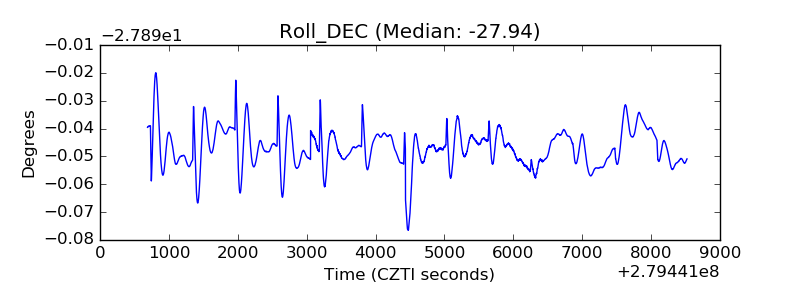

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
