| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_056T01_9000002498_16853cztM0_level2.evt | modeM0/AS1A05_056T01_9000002498_16853cztM0_level2_quad_clean.evt |
| Size (bytes) | 559,460,160 | 100,860,480 |
| Size | 533.5 MB | 96.2 MB |
| Events in quadrant A | 5,616,562 | 631,818 |
| Events in quadrant B | 3,813,774 | 660,189 |
| Events in quadrant C | 3,579,283 | 622,460 |
| Events in quadrant D | 3,427,124 | 620,402 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21682 | 2 |
| B | 0 | 16058 | 1 |
| C | 0 | 15492 | 1 |
| D | 0 | 15562 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7464 | 605 | 8.105573% |
| B | 7464 | 89 | 1.192390% |
| C | 7464 | 61 | 0.817256% |
| D | 7464 | 19 | 0.254555% |

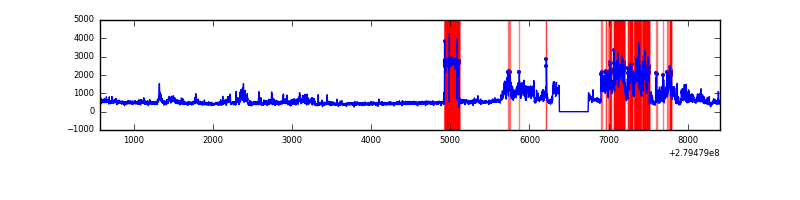

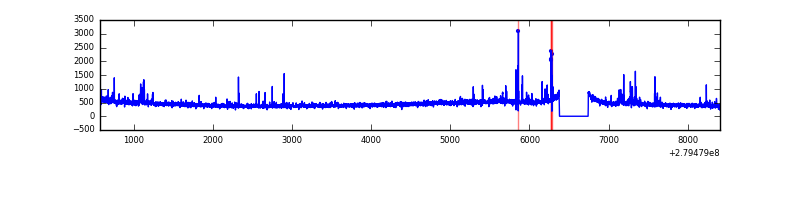

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7830 | 7466 | 439 | 439 | 5.61% | 5.88% |  |
| B | 7830 | 7466 | 24 | 24 | 0.31% | 0.32% |  |
| C | 7830 | 7466 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7830 | 7466 | 5 | 5 | 0.06% | 0.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 2161398 | 12297.24 | 865 | 850 | 175.7 |
| A | 0 | 226 | 135125 | 764.26 | 865 | 850 | 175.7 |
| A | 9 | 143 | 7167 | 35.95 | 865 | 850 | 175.7 |
| B | 10 | 16 | 138345 | 801.34 | 892 | 869 | 171.6 |
| B | 0 | 229 | 93681 | 541.0 | 892 | 869 | 171.6 |
| B | 15 | 35 | 58235 | 334.38 | 892 | 869 | 171.6 |
| C | 14 | 238 | 133059 | 654.95 | 855 | 859 | 201.8 |
| C | 0 | 207 | 93247 | 457.72 | 855 | 859 | 201.8 |
| C | 3 | 233 | 22368 | 106.56 | 855 | 859 | 201.8 |
| D | 1 | 52 | 90669 | 423.07 | 864 | 837 | 212.3 |
| D | 15 | 145 | 29591 | 135.42 | 864 | 837 | 212.3 |
| D | 2 | 234 | 28334 | 129.5 | 864 | 837 | 212.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

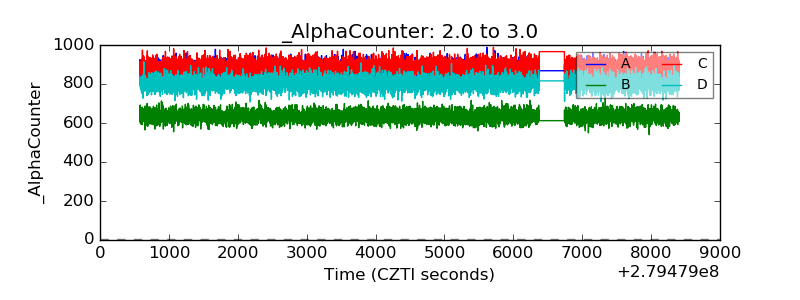

| Alpha Counter |  |

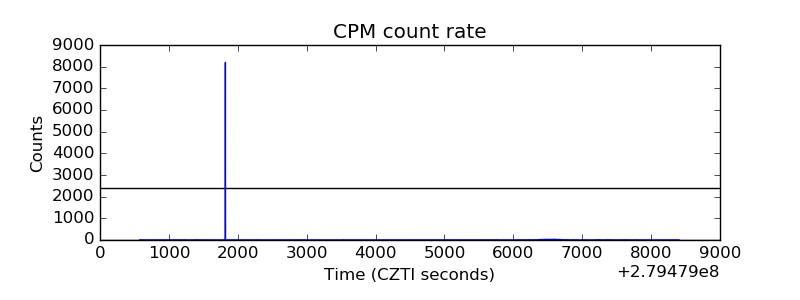

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

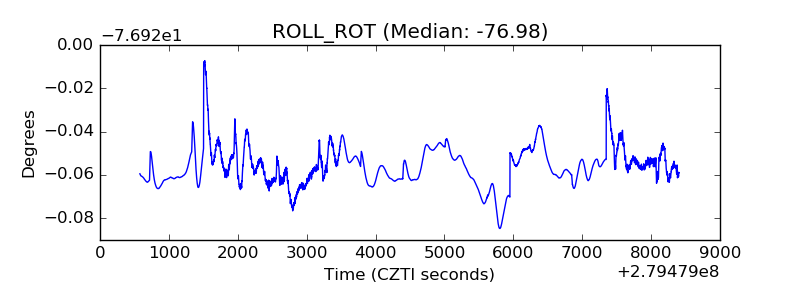

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
