| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_056T01_9000002498_16857cztM0_level2.evt | modeM0/AS1A05_056T01_9000002498_16857cztM0_level2_quad_clean.evt |
| Size (bytes) | 601,214,400 | 101,370,240 |
| Size | 573.4 MB | 96.7 MB |
| Events in quadrant A | 6,871,288 | 630,219 |
| Events in quadrant B | 3,548,469 | 672,431 |
| Events in quadrant C | 3,473,389 | 633,778 |
| Events in quadrant D | 3,818,298 | 623,558 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25319 | 3 |
| B | 0 | 15065 | 2 |
| C | 0 | 14884 | 2 |
| D | 0 | 16216 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7318 | 976 | 13.336977% |
| B | 7318 | 60 | 0.819896% |
| C | 7318 | 69 | 0.942881% |
| D | 7318 | 72 | 0.983875% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

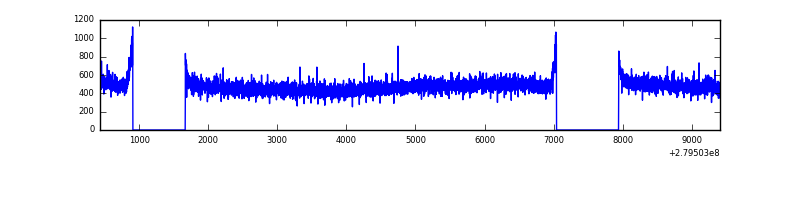

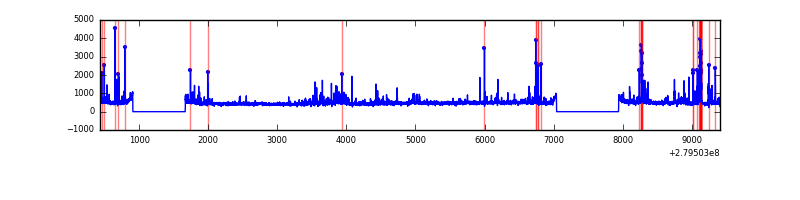

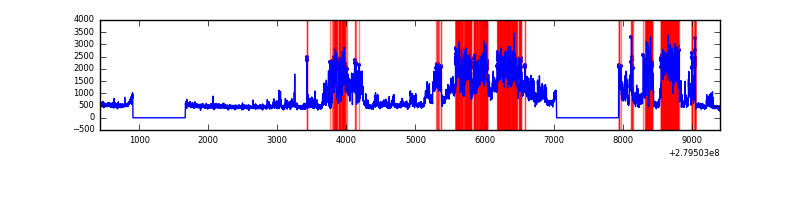

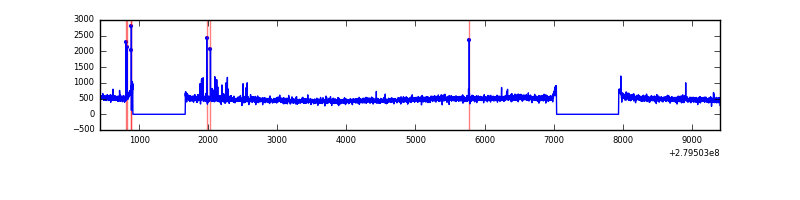

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8979 | 7321 | 733 | 733 | 8.16% | 10.01% |  |
| B | 8979 | 7321 | 7 | 7 | 0.08% | 0.10% |  |
| C | 8979 | 7321 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8979 | 7321 | 41 | 41 | 0.46% | 0.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 3386322 | 19468.56 | 854 | 838 | 173.9 |
| A | 0 | 226 | 206928 | 1185.14 | 854 | 838 | 173.9 |
| A | 9 | 143 | 6941 | 35.1 | 854 | 838 | 173.9 |
| B | 10 | 16 | 47738 | 274.71 | 883 | 857 | 170.7 |
| B | 12 | 111 | 21264 | 119.58 | 883 | 857 | 170.7 |
| B | 11 | 111 | 18769 | 104.96 | 883 | 857 | 170.7 |
| C | 14 | 238 | 130931 | 647.7 | 854 | 858 | 200.8 |
| C | 3 | 233 | 9494 | 43.0 | 854 | 858 | 200.8 |
| C | 13 | 61 | 5995 | 25.58 | 854 | 858 | 200.8 |
| D | 1 | 52 | 328714 | 1575.92 | 857 | 831 | 208.1 |
| D | 13 | 104 | 233855 | 1119.99 | 857 | 831 | 208.1 |
| D | 2 | 234 | 25293 | 117.57 | 857 | 831 | 208.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

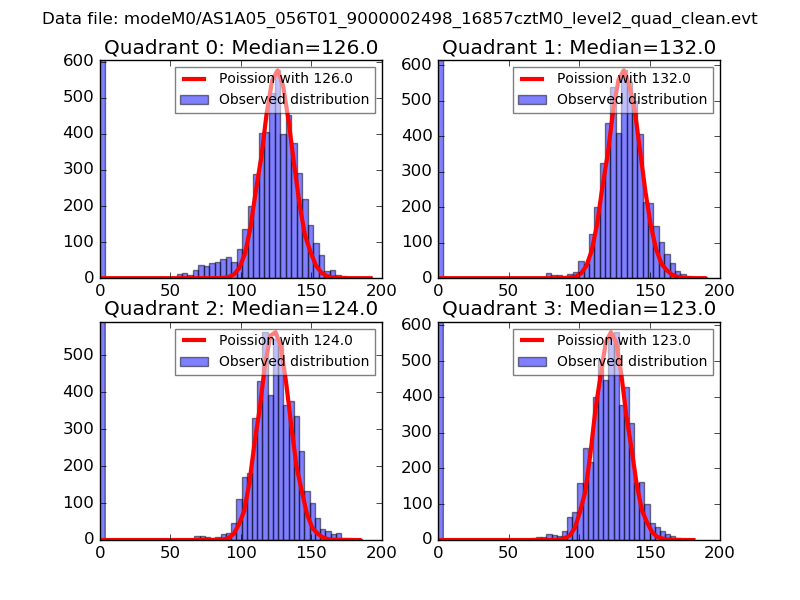

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

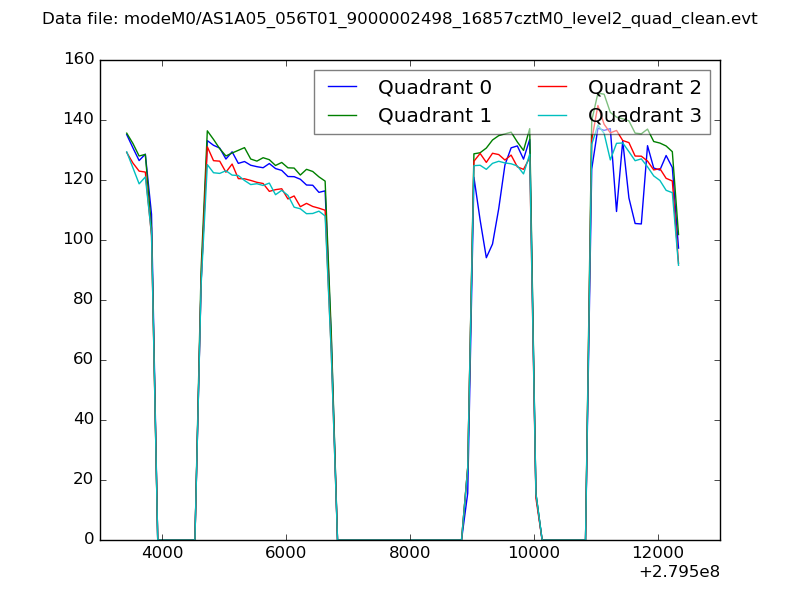

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

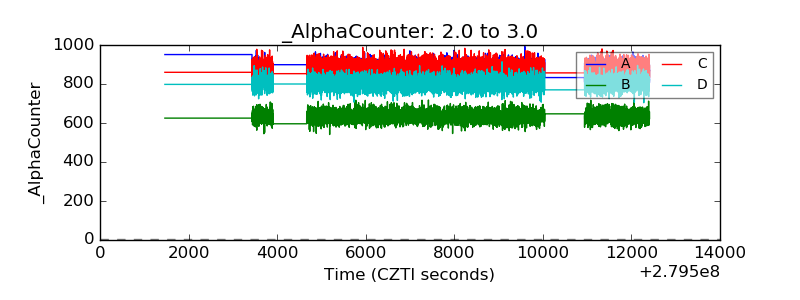

| Alpha Counter |  |

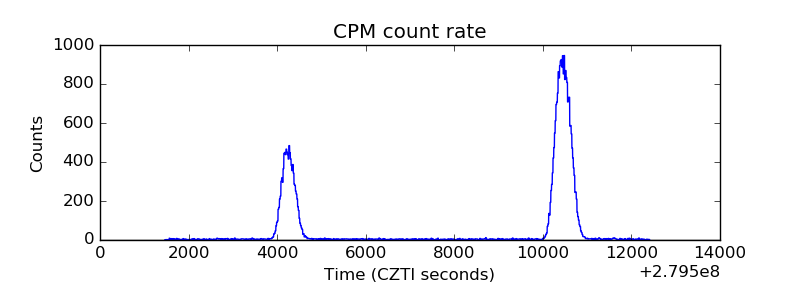

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
