| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_101T05_9000002502_16871cztM0_level2.evt | modeM0/AS1A05_101T05_9000002502_16871cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,221,168,960 | 189,904,320 |
| Size | 1.1 GB | 181.1 MB |
| Events in quadrant A | 5,772,885 | 1,290,883 |
| Events in quadrant B | 7,580,078 | 1,271,592 |
| Events in quadrant C | 5,826,450 | 1,258,466 |
| Events in quadrant D | 16,954,128 | 1,058,575 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 258 | 0 |
| B | 0 | 258 | 0 |
| C | 0 | 258 | 0 |
| D | 0 | 258 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25799 | 3 |
| B | 0 | 30951 | 3 |
| C | 0 | 25804 | 3 |
| D | 0 | 59189 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12588 | 89 | 0.707023% |
| B | 12588 | 671 | 5.330473% |
| C | 12588 | 121 | 0.961233% |
| D | 12588 | 3120 | 24.785510% |

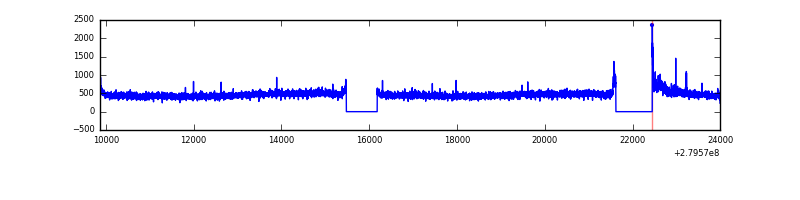

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

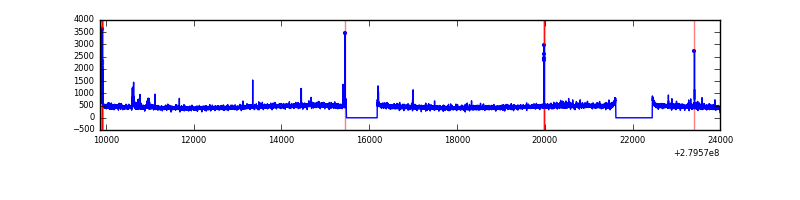

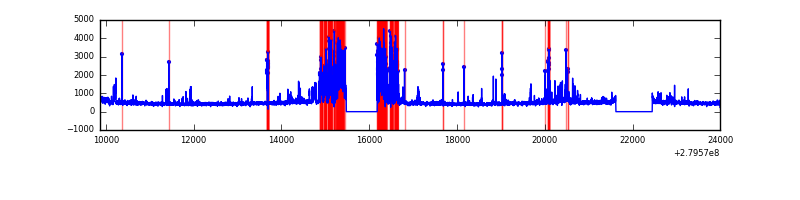

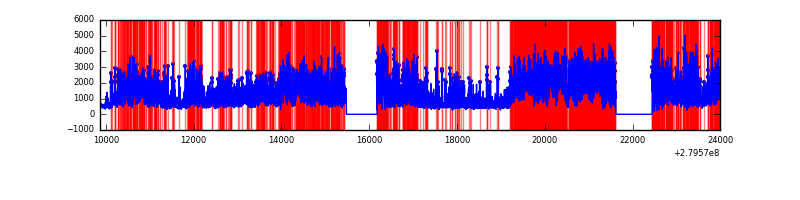

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14124 | 12591 | 14 | 14 | 0.10% | 0.11% |  |
| B | 14124 | 12591 | 401 | 401 | 2.84% | 3.18% |  |
| C | 14124 | 12591 | 1 | 1 | 0.01% | 0.01% |  |
| D | 14124 | 12591 | 2566 | 2566 | 18.17% | 20.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 119770 | 407.56 | 1447 | 1415 | 290.4 |
| A | 13 | 228 | 26739 | 87.2 | 1447 | 1415 | 290.4 |
| A | 9 | 143 | 25613 | 83.33 | 1447 | 1415 | 290.4 |
| B | 10 | 16 | 1466617 | 5393.55 | 1424 | 1385 | 271.7 |
| B | 15 | 35 | 240708 | 880.95 | 1424 | 1385 | 271.7 |
| B | 0 | 189 | 105799 | 384.35 | 1424 | 1385 | 271.7 |
| C | 14 | 238 | 216118 | 662.07 | 1394 | 1400 | 324.3 |
| C | 3 | 233 | 133377 | 406.94 | 1394 | 1400 | 324.3 |
| C | 15 | 127 | 20257 | 58.14 | 1394 | 1400 | 324.3 |
| D | 1 | 52 | 11933095 | 38692.74 | 1278 | 1239 | 308.4 |
| D | 2 | 120 | 63044 | 200.42 | 1278 | 1239 | 308.4 |
| D | 10 | 70 | 53369 | 169.05 | 1278 | 1239 | 308.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

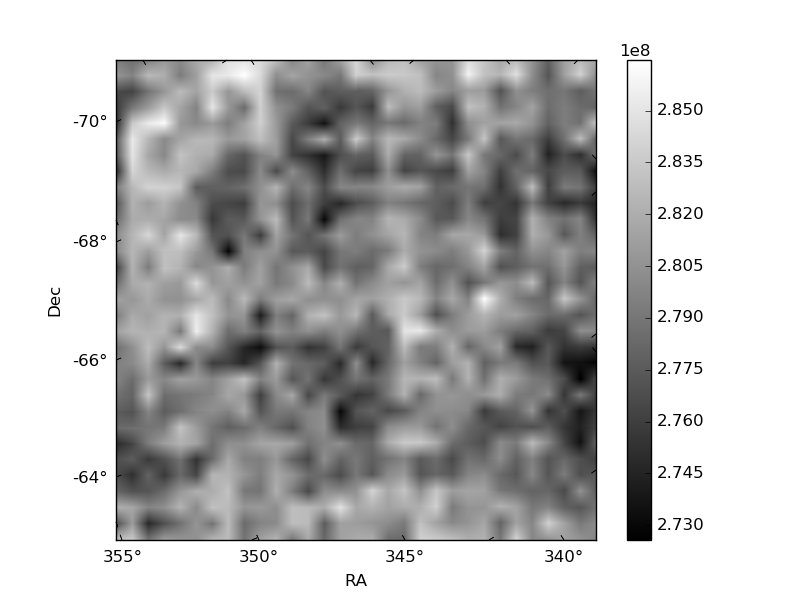

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

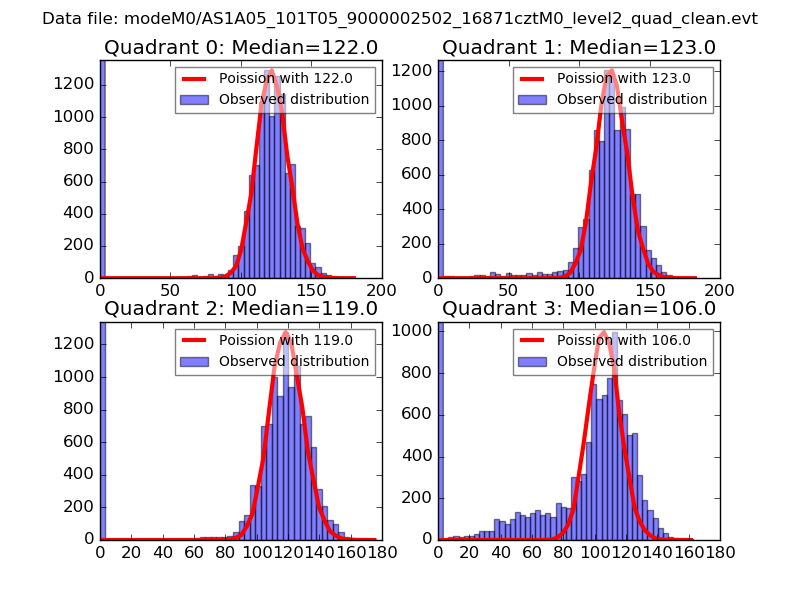

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

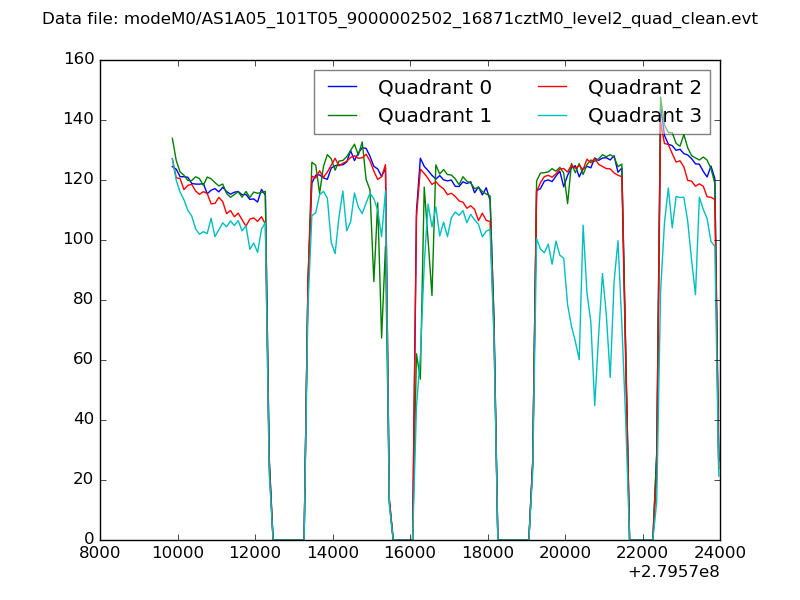

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

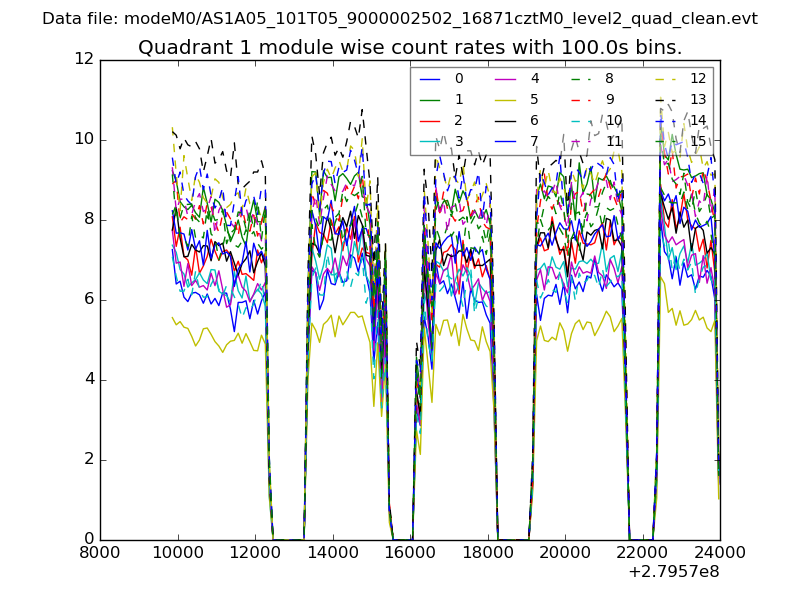

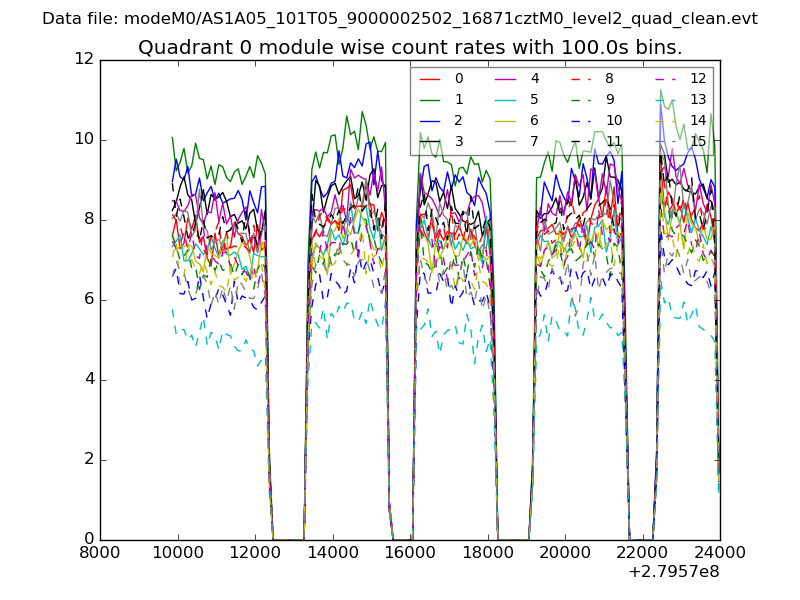

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

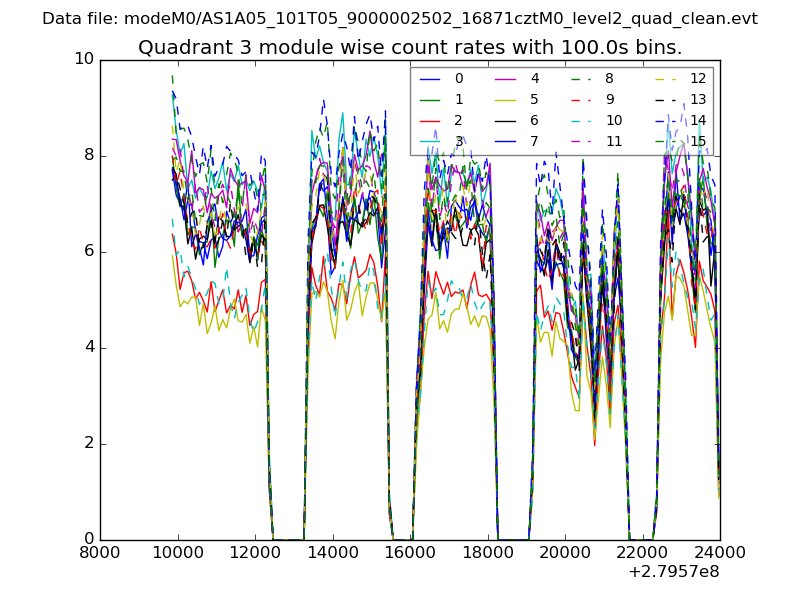

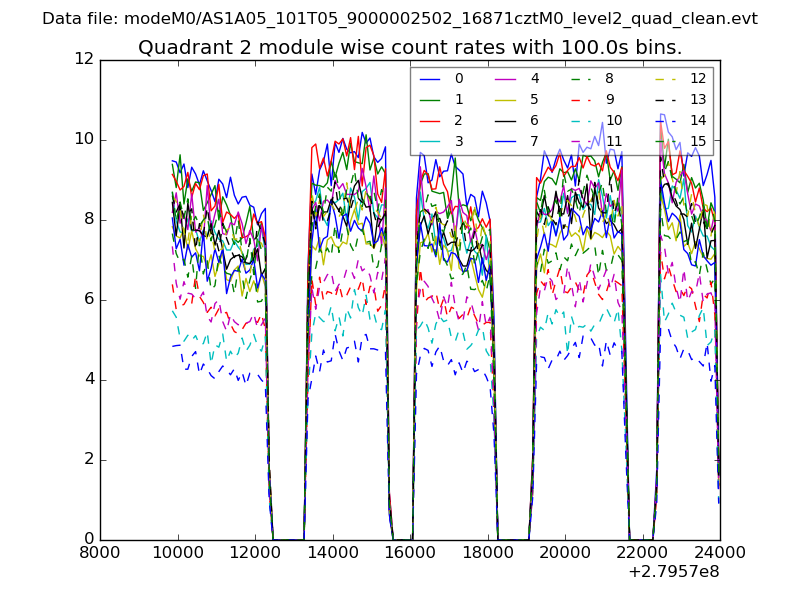

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

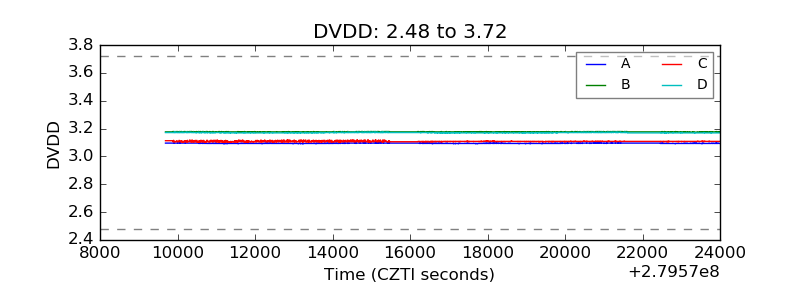

| D_VDD |  |

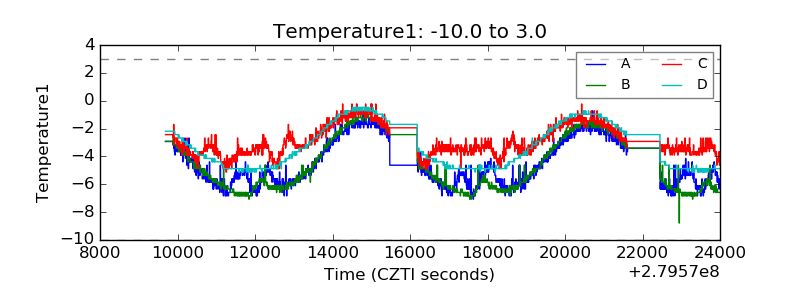

| Temperature 1 |  |
| Veto HV Monitor |  |

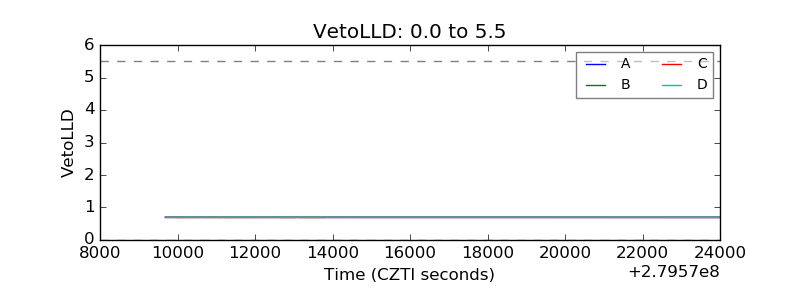

| Veto LLD |  |

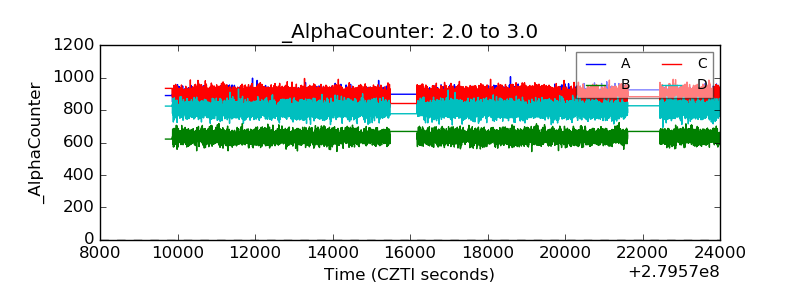

| Alpha Counter |  |

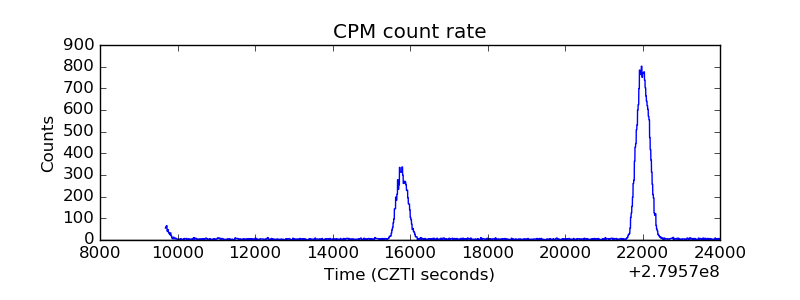

| _CPM_Rate |  |

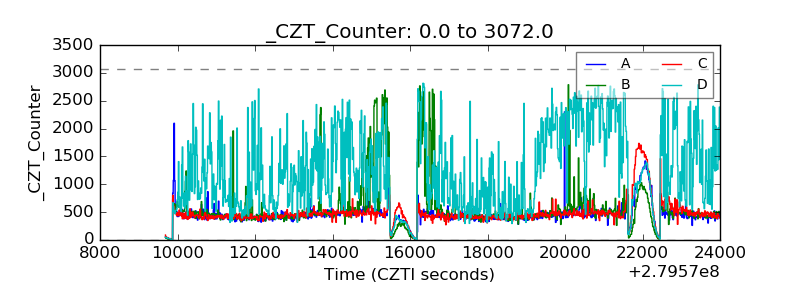

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

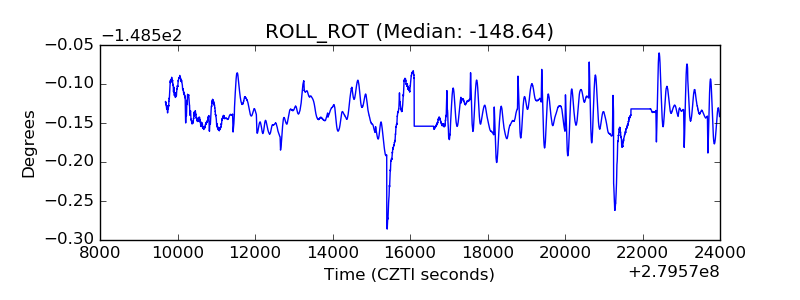

| _ROLL_ROT |  |

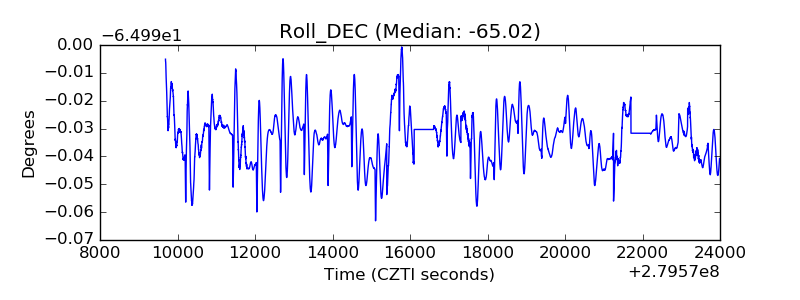

| _Roll_DEC |  |

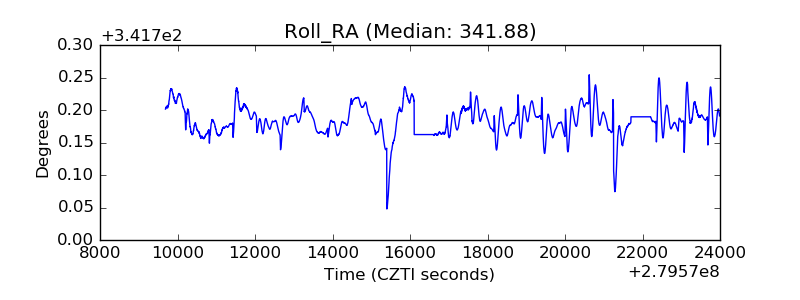

| _Roll_RA |  |

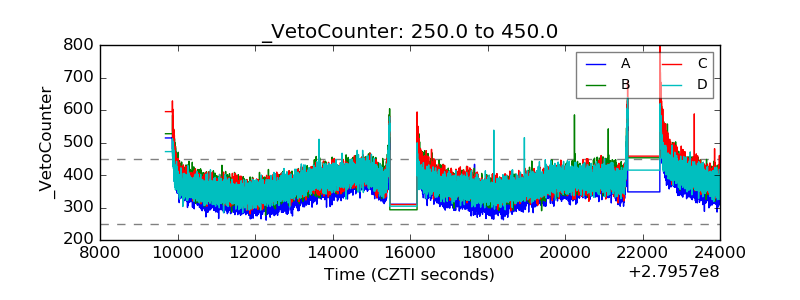

| Veto Counter |  |
