| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_034T01_9000002500_16865cztM0_level2.evt | modeM0/AS1T03_034T01_9000002500_16865cztM0_level2_quad_clean.evt |
| Size (bytes) | 629,838,720 | 78,998,400 |
| Size | 600.7 MB | 75.3 MB |
| Events in quadrant A | 3,560,125 | 494,880 |
| Events in quadrant B | 3,764,588 | 501,622 |
| Events in quadrant C | 3,382,752 | 485,528 |
| Events in quadrant D | 7,903,316 | 433,238 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14828 | 3 |
| B | 0 | 15180 | 2 |
| C | 0 | 14162 | 2 |
| D | 0 | 28247 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6838 | 149 | 2.179000% |
| B | 6838 | 145 | 2.120503% |
| C | 6838 | 142 | 2.076631% |
| D | 6838 | 2377 | 34.761626% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7684 | 6840 | 14 | 14 | 0.18% | 0.20% |  |
| B | 7684 | 6840 | 16 | 16 | 0.21% | 0.23% |  |
| C | 7684 | 6840 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7684 | 6840 | 649 | 649 | 8.45% | 9.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 186207 | 1058.34 | 866 | 849 | 175.1 |
| A | 15 | 174 | 27209 | 150.51 | 866 | 849 | 175.1 |
| A | 0 | 226 | 18429 | 100.38 | 866 | 849 | 175.1 |
| B | 15 | 35 | 163354 | 986.66 | 857 | 835 | 164.7 |
| B | 0 | 229 | 81355 | 488.84 | 857 | 835 | 164.7 |
| B | 4 | 173 | 39743 | 236.21 | 857 | 835 | 164.7 |
| C | 14 | 238 | 128241 | 651.45 | 832 | 837 | 195.6 |
| C | 13 | 61 | 5852 | 25.64 | 832 | 837 | 195.6 |
| C | 0 | 207 | 5340 | 23.02 | 832 | 837 | 195.6 |
| D | 1 | 52 | 5019233 | 27546.27 | 735 | 712 | 182.2 |
| D | 10 | 70 | 62021 | 336.52 | 735 | 712 | 182.2 |
| D | 2 | 234 | 26401 | 141.0 | 735 | 712 | 182.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

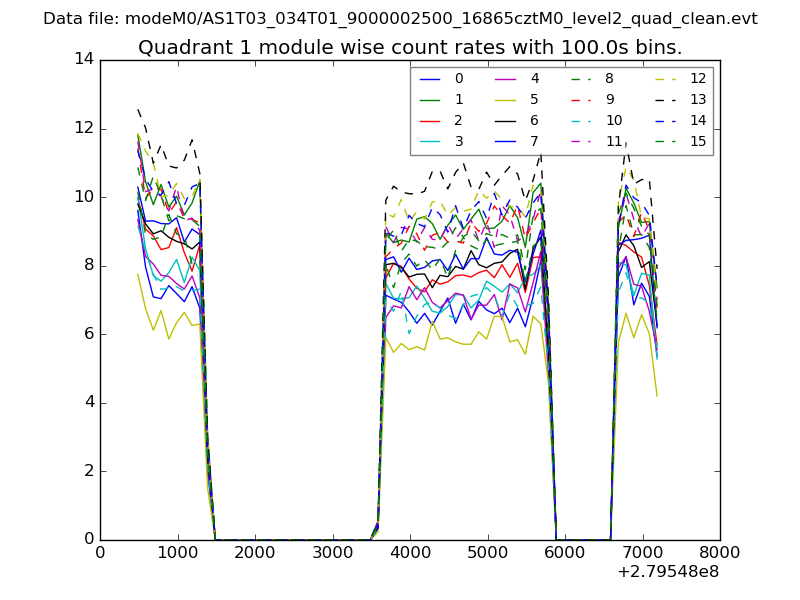

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

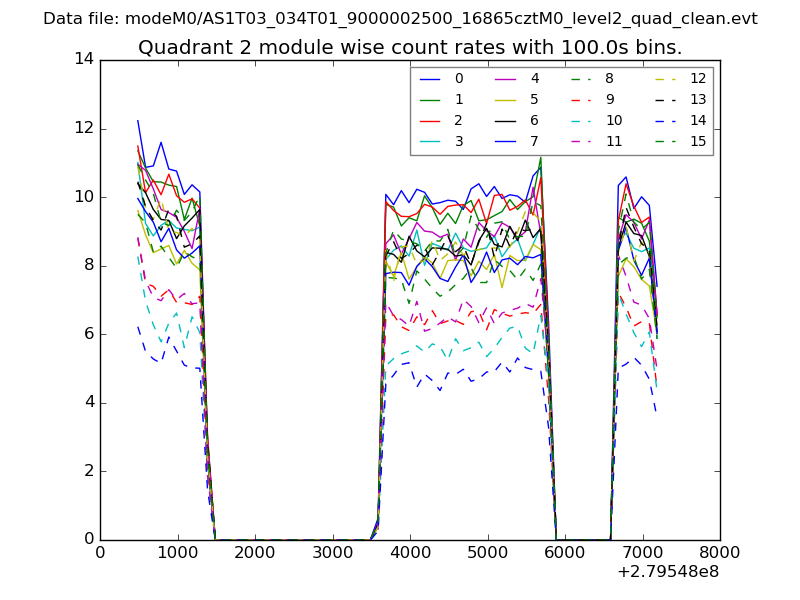

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

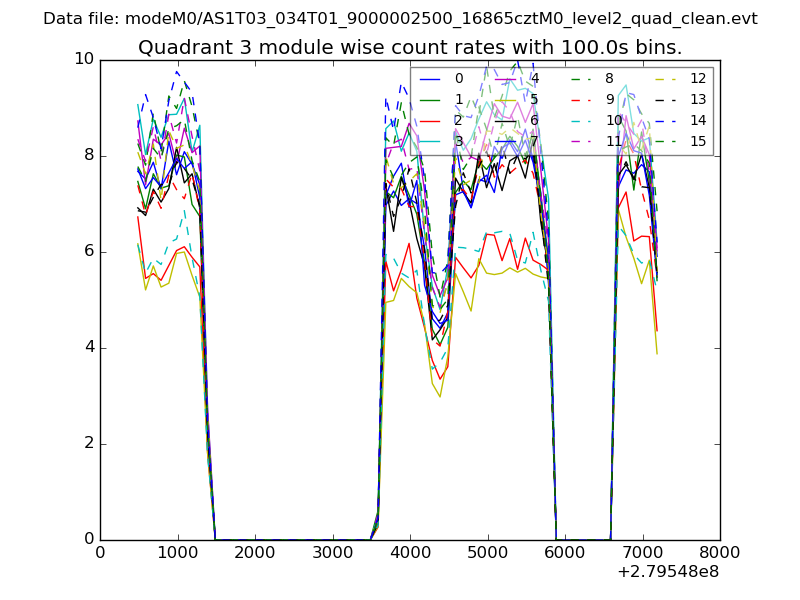

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

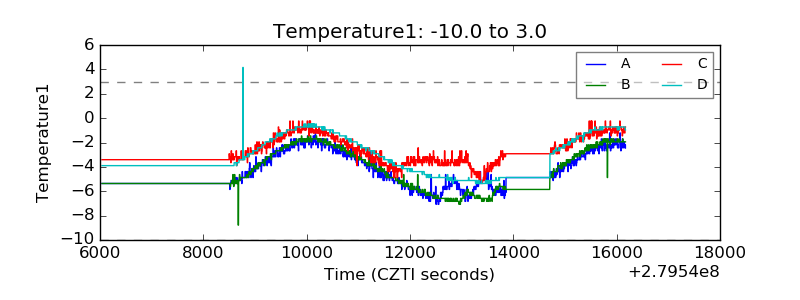

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

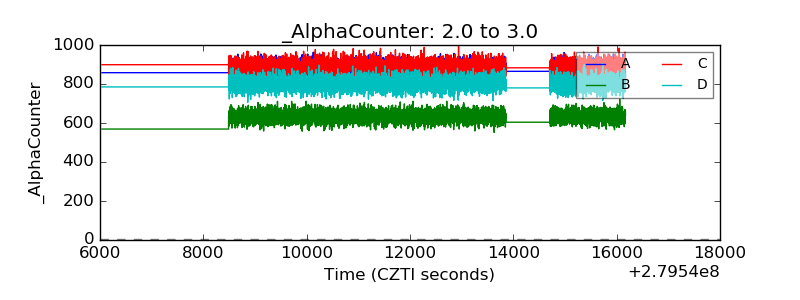

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

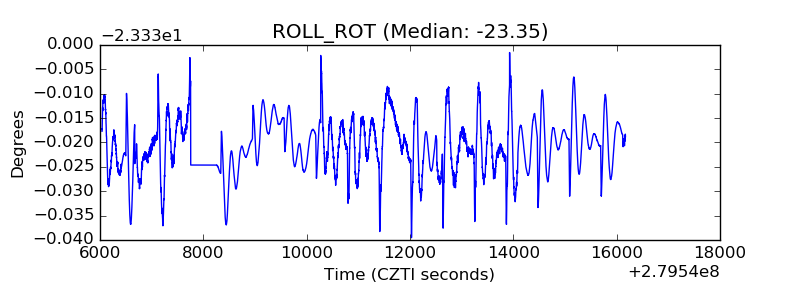

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

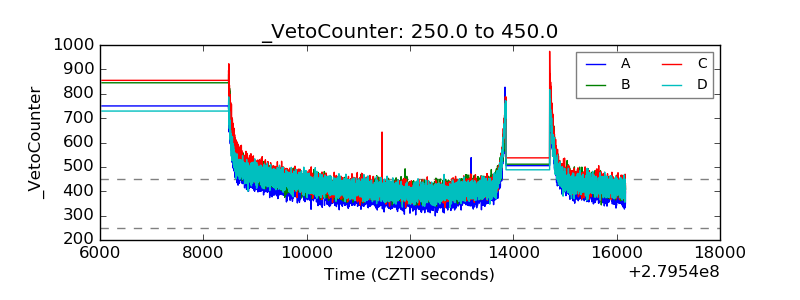

| Veto Counter |  |
