| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_004T06_9000002506_16891cztM0_level2.evt | modeM0/AS1A05_004T06_9000002506_16891cztM0_level2_quad_clean.evt |
| Size (bytes) | 625,668,480 | 65,992,320 |
| Size | 596.7 MB | 62.9 MB |
| Events in quadrant A | 6,434,059 | 361,422 |
| Events in quadrant B | 3,662,965 | 422,682 |
| Events in quadrant C | 3,206,310 | 401,245 |
| Events in quadrant D | 5,225,984 | 379,749 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23254 | 2 |
| B | 0 | 14601 | 2 |
| C | 0 | 13154 | 2 |
| D | 0 | 19787 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6195 | 1233 | 19.903148% |
| B | 6195 | 124 | 2.001614% |
| C | 6195 | 81 | 1.307506% |
| D | 6194 | 380 | 6.134969% |

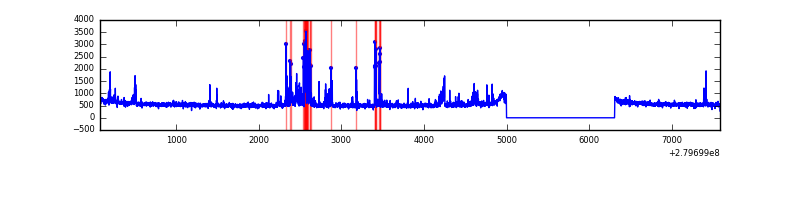

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7506 | 6196 | 882 | 882 | 11.75% | 14.23% |  |
| B | 7506 | 6197 | 33 | 33 | 0.44% | 0.53% |  |
| C | 7506 | 6197 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7505 | 6196 | 272 | 272 | 3.62% | 4.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 3460915 | 22788.57 | 764 | 749 | 151.8 |
| A | 9 | 143 | 21461 | 136.41 | 764 | 749 | 151.8 |
| A | 12 | 189 | 9443 | 57.26 | 764 | 749 | 151.8 |
| B | 10 | 16 | 262972 | 1673.07 | 831 | 812 | 156.7 |
| B | 15 | 35 | 72967 | 460.48 | 831 | 812 | 156.7 |
| B | 0 | 219 | 45819 | 287.23 | 831 | 812 | 156.7 |
| C | 14 | 238 | 123959 | 684.62 | 784 | 791 | 179.9 |
| C | 3 | 233 | 12351 | 64.26 | 784 | 791 | 179.9 |
| C | 7 | 247 | 9765 | 49.88 | 784 | 791 | 179.9 |
| D | 1 | 52 | 2041716 | 10899.78 | 780 | 758 | 187.2 |
| D | 12 | 32 | 169765 | 902.58 | 780 | 758 | 187.2 |
| D | 2 | 33 | 42225 | 221.45 | 780 | 758 | 187.2 |

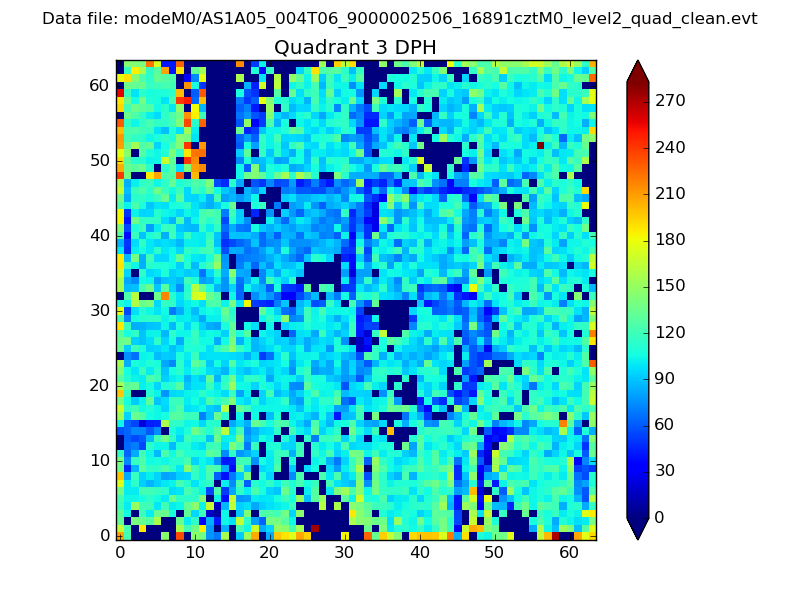

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

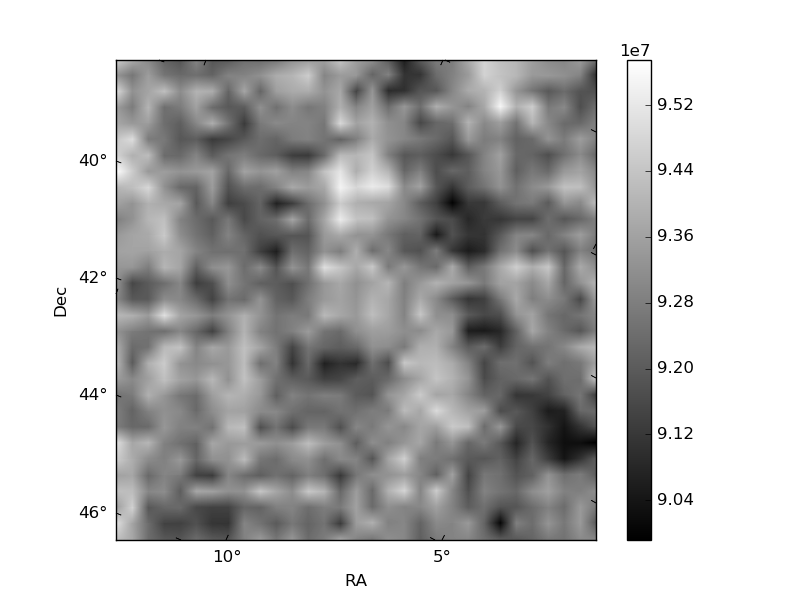

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

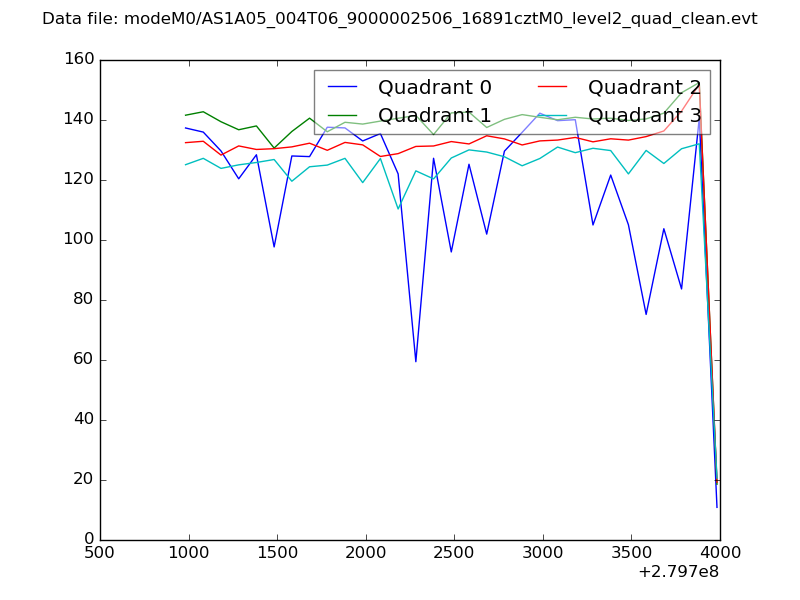

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

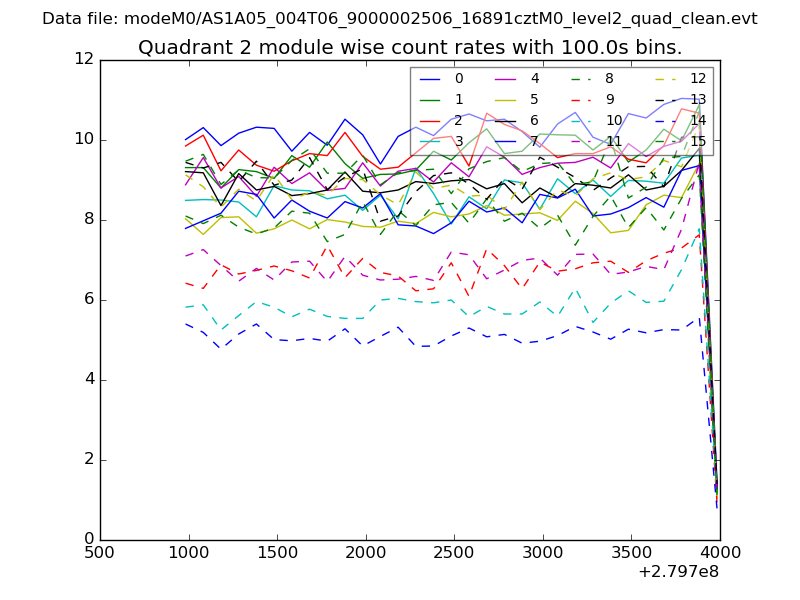

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

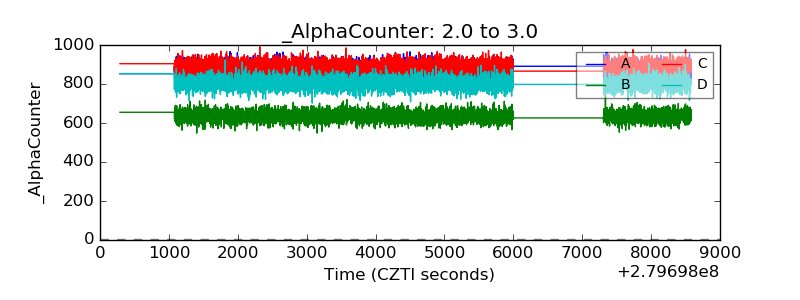

| Alpha Counter |  |
| _CPM_Rate |  |

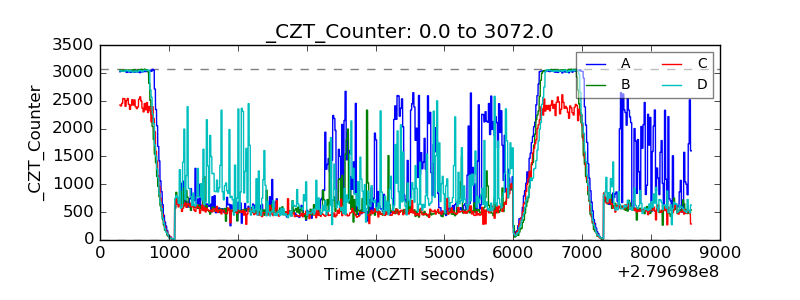

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

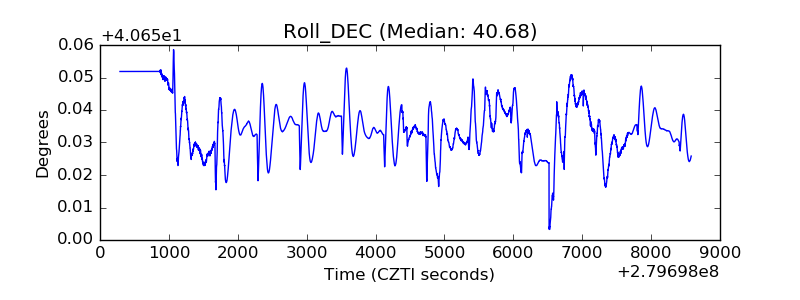

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
