| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_004T06_9000002506_16893cztM0_level2.evt | modeM0/AS1A05_004T06_9000002506_16893cztM0_level2_quad_clean.evt |
| Size (bytes) | 717,744,960 | 88,585,920 |
| Size | 684.5 MB | 84.5 MB |
| Events in quadrant A | 9,195,263 | 494,955 |
| Events in quadrant B | 3,838,438 | 604,417 |
| Events in quadrant C | 3,306,240 | 576,682 |
| Events in quadrant D | 4,957,250 | 552,411 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31714 | 2 |
| B | 0 | 15236 | 2 |
| C | 0 | 13661 | 2 |
| D | 0 | 18925 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6506 | 2624 | 40.332001% |
| B | 6507 | 218 | 3.350238% |
| C | 6507 | 134 | 2.059321% |
| D | 6507 | 371 | 5.701552% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7627 | 6508 | 1693 | 1693 | 22.20% | 26.01% |  |
| B | 7628 | 6509 | 67 | 67 | 0.88% | 1.03% |  |
| C | 7628 | 6509 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7628 | 6509 | 227 | 227 | 2.98% | 3.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 6383681 | 44394.62 | 719 | 703 | 143.8 |
| A | 15 | 190 | 34899 | 237.84 | 719 | 703 | 143.8 |
| A | 12 | 189 | 8208 | 52.2 | 719 | 703 | 143.8 |
| B | 6 | 36 | 248119 | 1547.79 | 836 | 816 | 159.8 |
| B | 15 | 35 | 129557 | 805.75 | 836 | 816 | 159.8 |
| B | 10 | 16 | 111013 | 689.69 | 836 | 816 | 159.8 |
| C | 14 | 238 | 126283 | 678.23 | 797 | 803 | 185.0 |
| C | 3 | 233 | 64981 | 346.89 | 797 | 803 | 185.0 |
| C | 5 | 112 | 5996 | 28.07 | 797 | 803 | 185.0 |
| D | 1 | 52 | 1421686 | 7281.8 | 802 | 779 | 195.1 |
| D | 12 | 32 | 441327 | 2257.7 | 802 | 779 | 195.1 |
| D | 2 | 234 | 27480 | 136.84 | 802 | 779 | 195.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

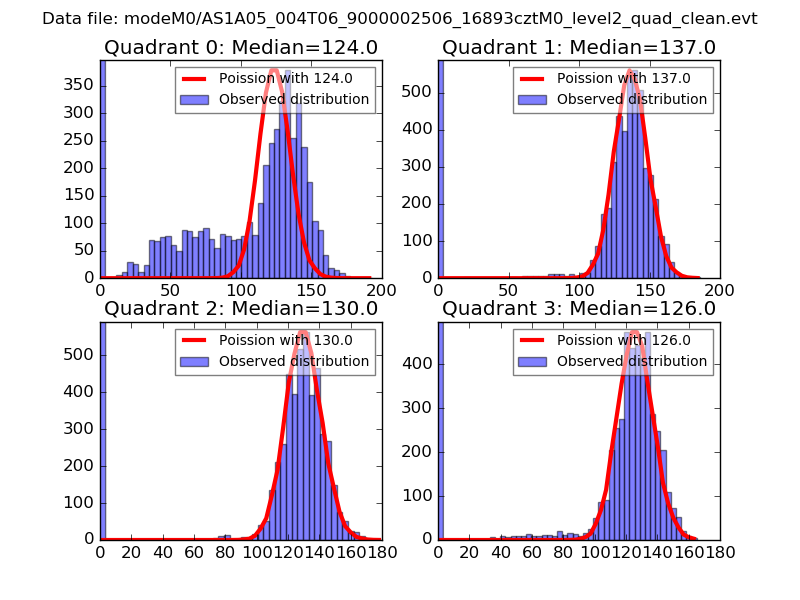

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

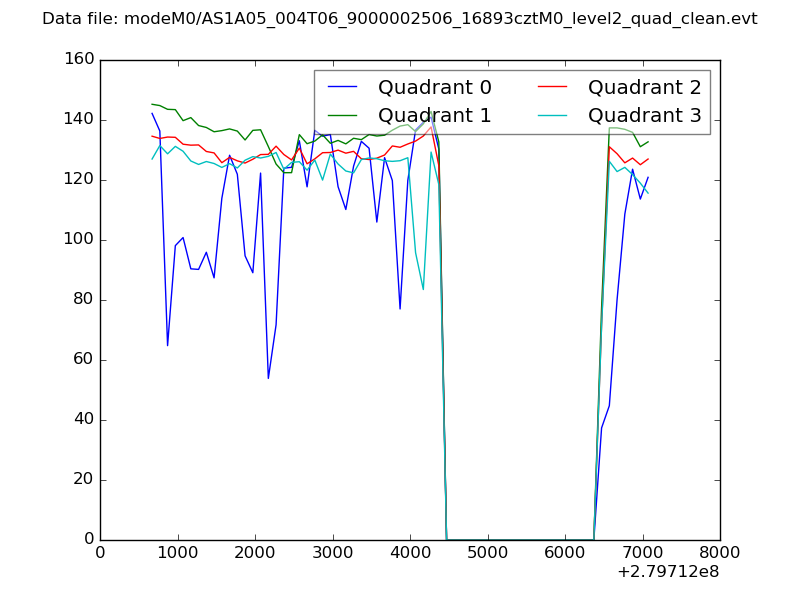

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

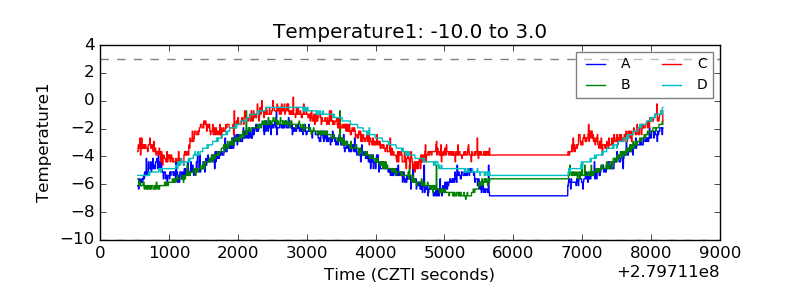

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

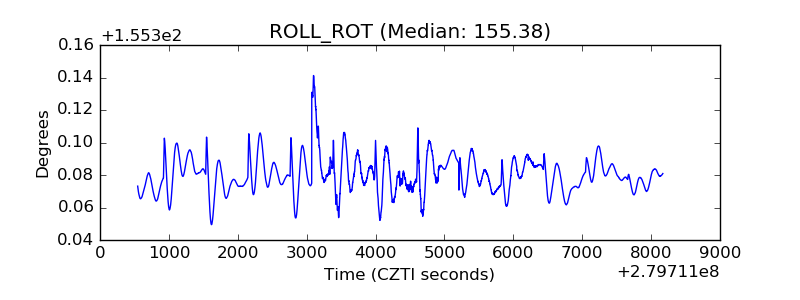

| _ROLL_ROT |  |

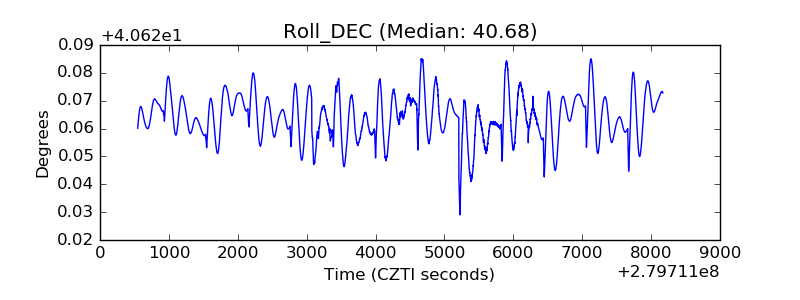

| _Roll_DEC |  |

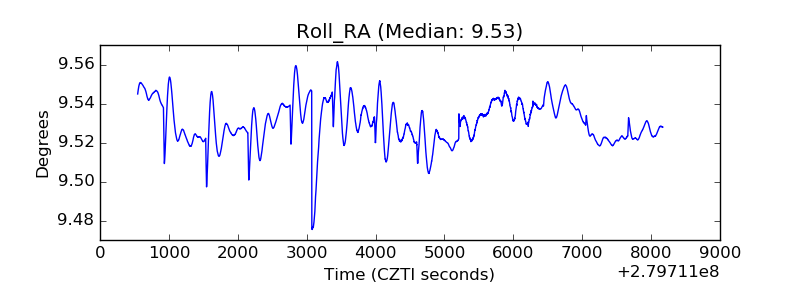

| _Roll_RA |  |
| Veto Counter |  |
