| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_074T02_9000002504_16876cztM0_level2.evt | modeM0/AS1A05_074T02_9000002504_16876cztM0_level2_quad_clean.evt |
| Size (bytes) | 619,286,400 | 63,846,720 |
| Size | 590.6 MB | 60.9 MB |
| Events in quadrant A | 3,278,497 | 392,961 |
| Events in quadrant B | 3,364,309 | 401,380 |
| Events in quadrant C | 3,356,012 | 386,916 |
| Events in quadrant D | 8,332,045 | 314,098 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13535 | 3 |
| B | 0 | 13799 | 2 |
| C | 0 | 13918 | 2 |
| D | 0 | 29120 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6260 | 79 | 1.261981% |
| B | 6260 | 95 | 1.517572% |
| C | 6260 | 139 | 2.220447% |
| D | 6260 | 1772 | 28.306709% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

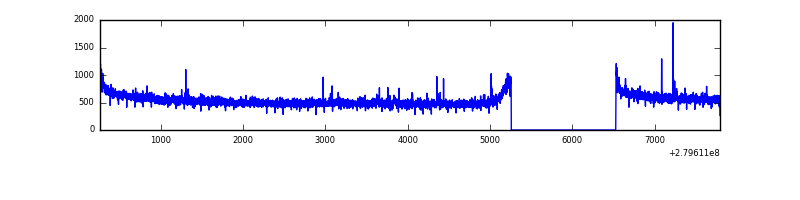

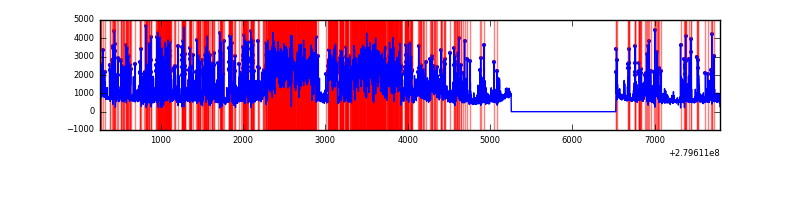

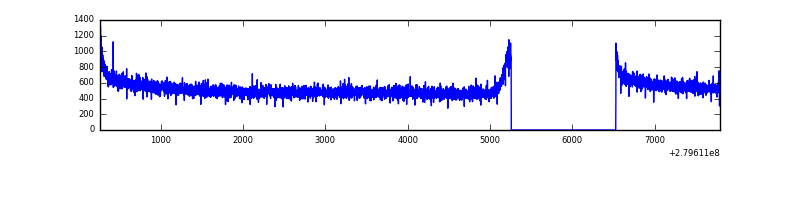

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7531 | 6262 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7531 | 6262 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7531 | 6262 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7531 | 6262 | 1386 | 1386 | 18.40% | 22.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7518 | 39.38 | 851 | 836 | 169.7 |
| A | 12 | 189 | 6561 | 33.74 | 851 | 836 | 169.7 |
| A | 12 | 194 | 6088 | 30.95 | 851 | 836 | 169.7 |
| B | 12 | 111 | 18394 | 109.75 | 854 | 835 | 160.0 |
| B | 11 | 111 | 16014 | 94.87 | 854 | 835 | 160.0 |
| B | 14 | 111 | 13884 | 81.56 | 854 | 835 | 160.0 |
| C | 14 | 238 | 131643 | 689.18 | 825 | 832 | 189.8 |
| C | 13 | 61 | 5801 | 26.18 | 825 | 832 | 189.8 |
| C | 3 | 233 | 5268 | 23.37 | 825 | 832 | 189.8 |
| D | 1 | 52 | 5169644 | 28699.58 | 749 | 728 | 180.1 |
| D | 12 | 32 | 264332 | 1463.62 | 749 | 728 | 180.1 |
| D | 11 | 66 | 39902 | 217.51 | 749 | 728 | 180.1 |

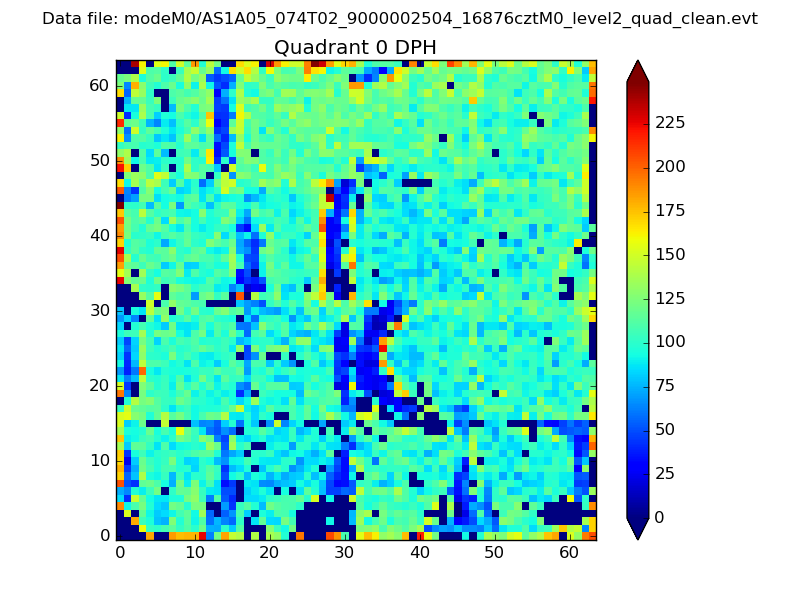

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

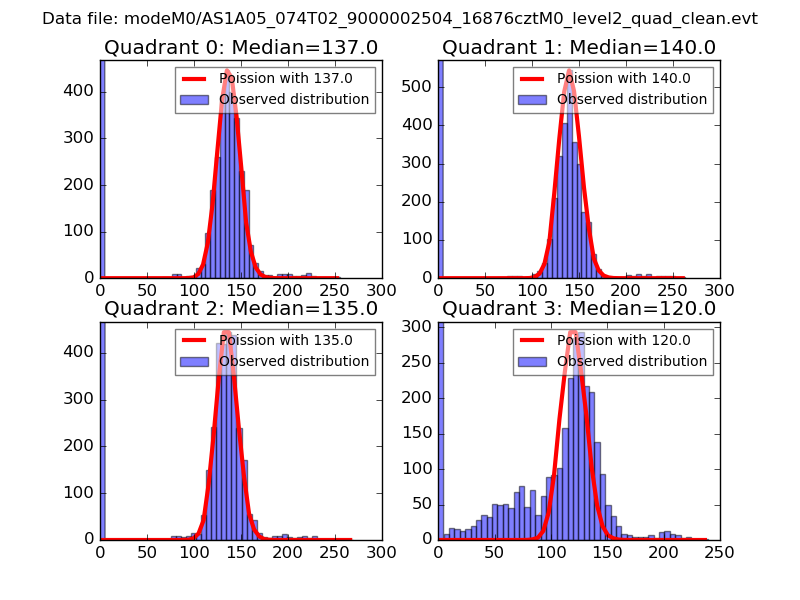

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

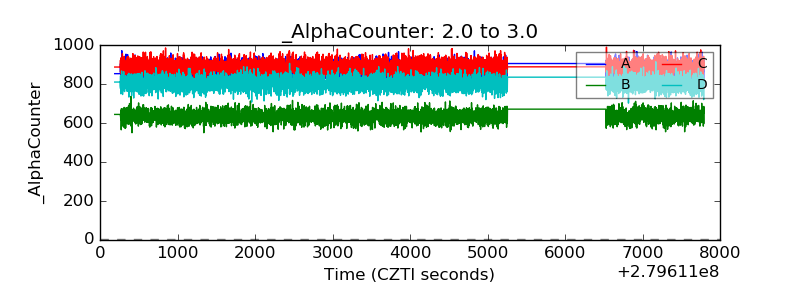

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

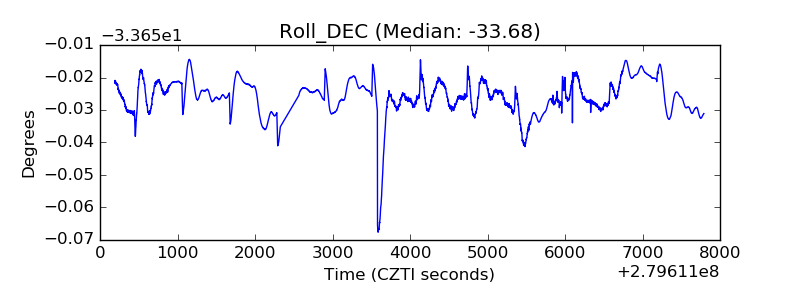

| _Roll_DEC |  |

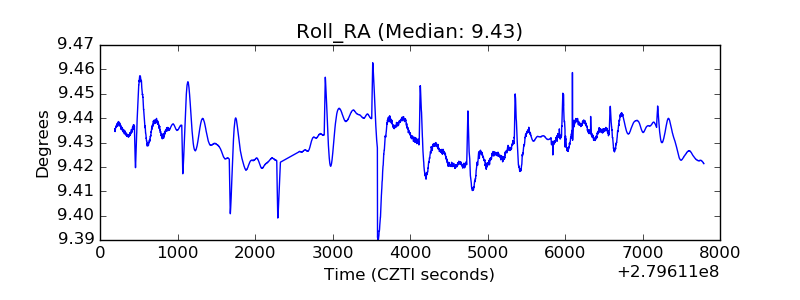

| _Roll_RA |  |
| Veto Counter |  |
