| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_004T03_9000002508_16896cztM0_level2.evt | modeM0/AS1A05_004T03_9000002508_16896cztM0_level2_quad_clean.evt |
| Size (bytes) | 648,970,560 | 102,101,760 |
| Size | 618.9 MB | 97.4 MB |
| Events in quadrant A | 6,823,342 | 636,358 |
| Events in quadrant B | 3,927,880 | 668,386 |
| Events in quadrant C | 3,740,787 | 641,430 |
| Events in quadrant D | 4,660,273 | 629,782 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25314 | 1 |
| B | 0 | 16453 | 1 |
| C | 0 | 15855 | 1 |
| D | 0 | 18647 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7414 | 973 | 13.123820% |
| B | 7414 | 106 | 1.429728% |
| C | 7414 | 111 | 1.497168% |
| D | 7414 | 84 | 1.132992% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7670 | 7416 | 489 | 489 | 6.38% | 6.59% |  |
| B | 7670 | 7416 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7670 | 7416 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7670 | 7416 | 15 | 15 | 0.20% | 0.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 3353798 | 19197.24 | 863 | 841 | 174.7 |
| A | 12 | 189 | 143797 | 818.49 | 863 | 841 | 174.7 |
| A | 0 | 226 | 7593 | 38.66 | 863 | 841 | 174.7 |
| B | 15 | 35 | 224383 | 1316.39 | 887 | 866 | 169.8 |
| B | 4 | 216 | 74629 | 434.42 | 887 | 866 | 169.8 |
| B | 0 | 229 | 42949 | 247.84 | 887 | 866 | 169.8 |
| C | 3 | 233 | 259993 | 1293.83 | 854 | 857 | 200.3 |
| C | 14 | 238 | 130676 | 648.16 | 854 | 857 | 200.3 |
| C | 0 | 207 | 7663 | 33.98 | 854 | 857 | 200.3 |
| D | 1 | 52 | 1168528 | 5478.7 | 871 | 845 | 213.1 |
| D | 10 | 199 | 53404 | 246.6 | 871 | 845 | 213.1 |
| D | 15 | 145 | 50859 | 234.66 | 871 | 845 | 213.1 |

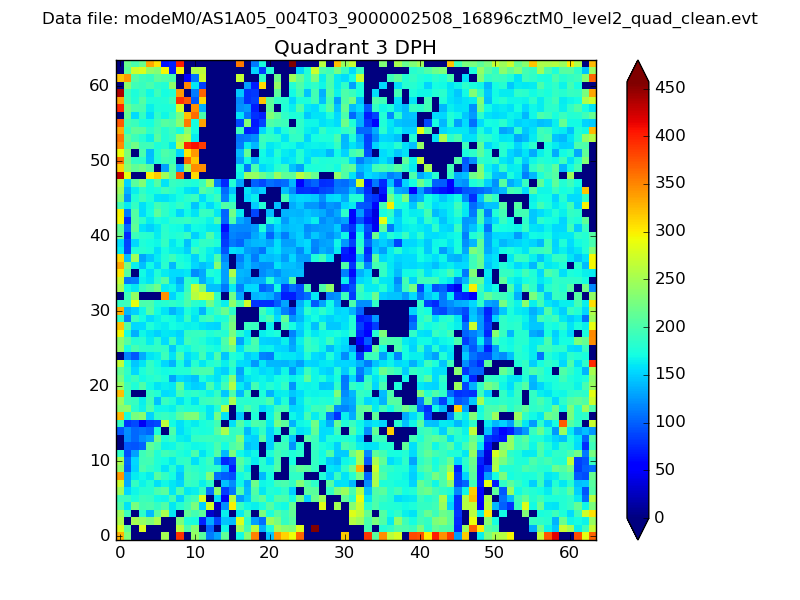

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

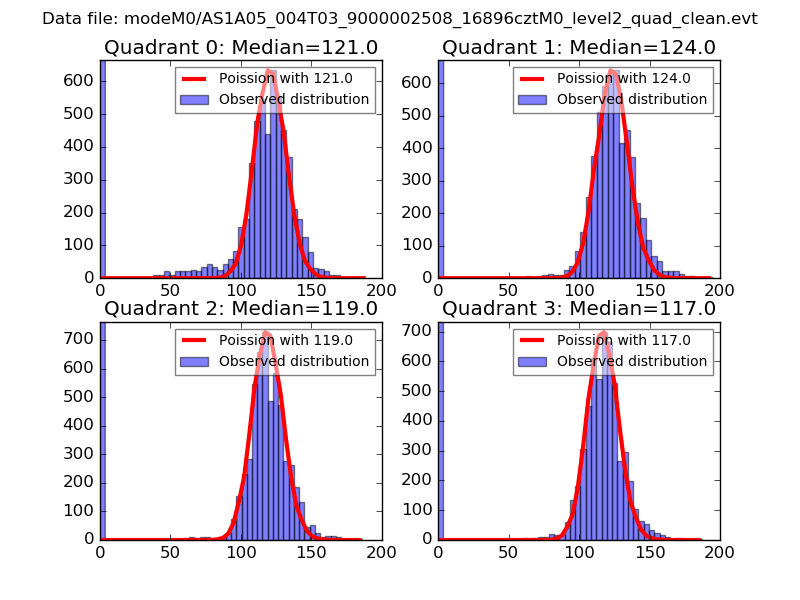

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

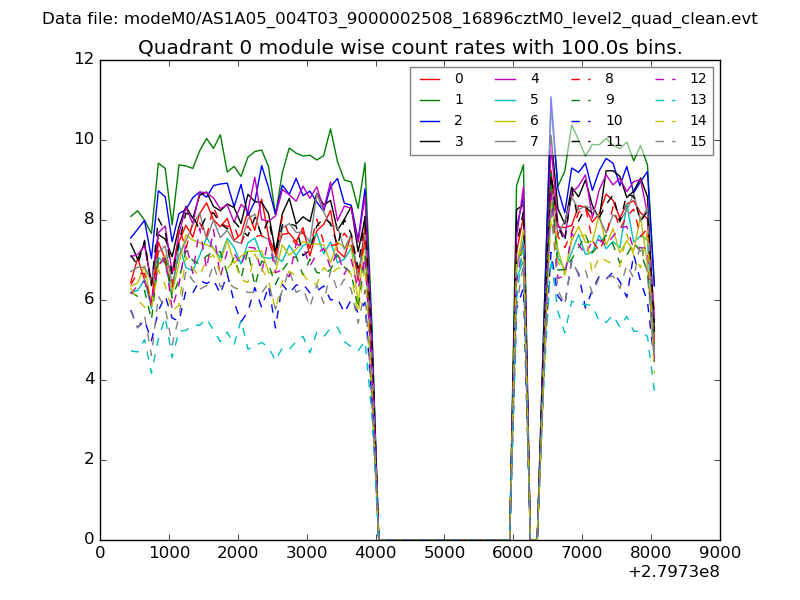

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

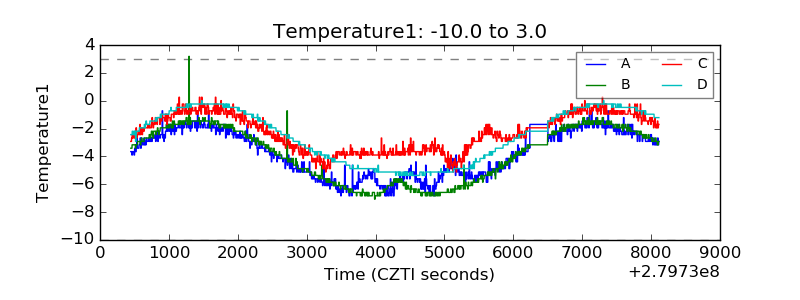

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

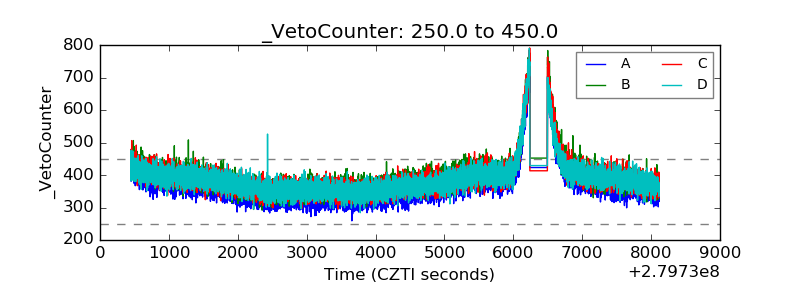

| Veto Counter |  |
