| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_030T01_9000002512_16911cztM0_level2.evt | modeM0/AS1T03_030T01_9000002512_16911cztM0_level2_quad_clean.evt |
| Size (bytes) | 673,251,840 | 102,663,360 |
| Size | 642.1 MB | 97.9 MB |
| Events in quadrant A | 7,671,915 | 614,256 |
| Events in quadrant B | 3,899,295 | 686,550 |
| Events in quadrant C | 3,755,001 | 659,375 |
| Events in quadrant D | 4,545,125 | 616,203 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28056 | 1 |
| B | 0 | 16465 | 1 |
| C | 0 | 16039 | 1 |
| D | 0 | 18754 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7649 | 1346 | 17.597072% |
| B | 7649 | 147 | 1.921820% |
| C | 7649 | 153 | 2.000261% |
| D | 7649 | 599 | 7.831089% |

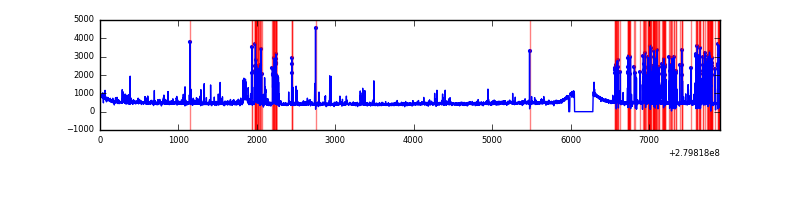

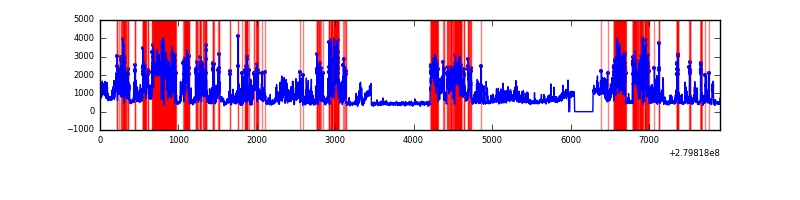

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7900 | 7652 | 815 | 815 | 10.32% | 10.65% |  |
| B | 7900 | 7652 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7900 | 7652 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7900 | 7652 | 176 | 176 | 2.23% | 2.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 4160814 | 23078.49 | 879 | 859 | 180.3 |
| A | 12 | 189 | 84389 | 463.41 | 879 | 859 | 180.3 |
| A | 15 | 190 | 23822 | 127.39 | 879 | 859 | 180.3 |
| B | 15 | 35 | 124819 | 690.27 | 933 | 908 | 179.5 |
| B | 0 | 229 | 34236 | 185.66 | 933 | 908 | 179.5 |
| B | 0 | 198 | 29319 | 158.27 | 933 | 908 | 179.5 |
| C | 14 | 238 | 135555 | 636.37 | 896 | 902 | 211.6 |
| C | 3 | 233 | 105495 | 494.31 | 896 | 902 | 211.6 |
| C | 8 | 128 | 10806 | 46.81 | 896 | 902 | 211.6 |
| D | 1 | 52 | 1052893 | 4851.22 | 885 | 859 | 216.9 |
| D | 15 | 0 | 40492 | 182.76 | 885 | 859 | 216.9 |
| D | 15 | 145 | 39731 | 179.25 | 885 | 859 | 216.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

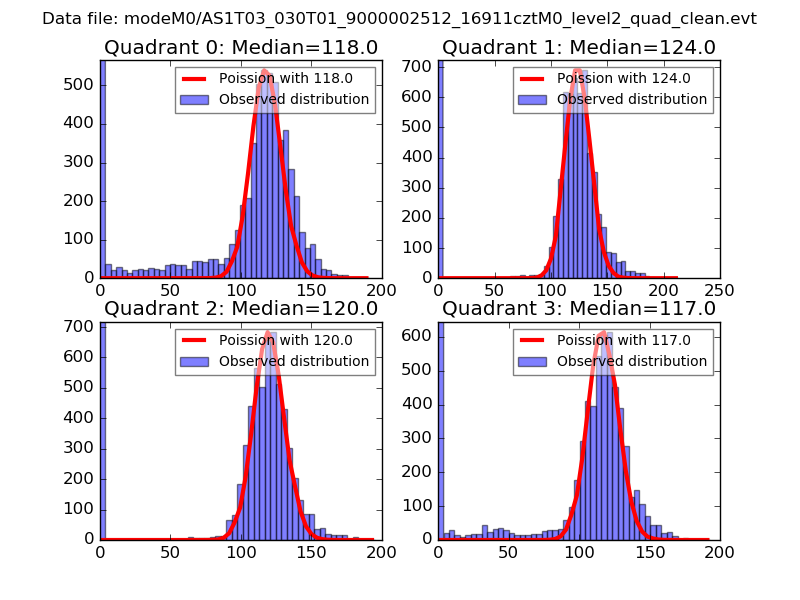

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

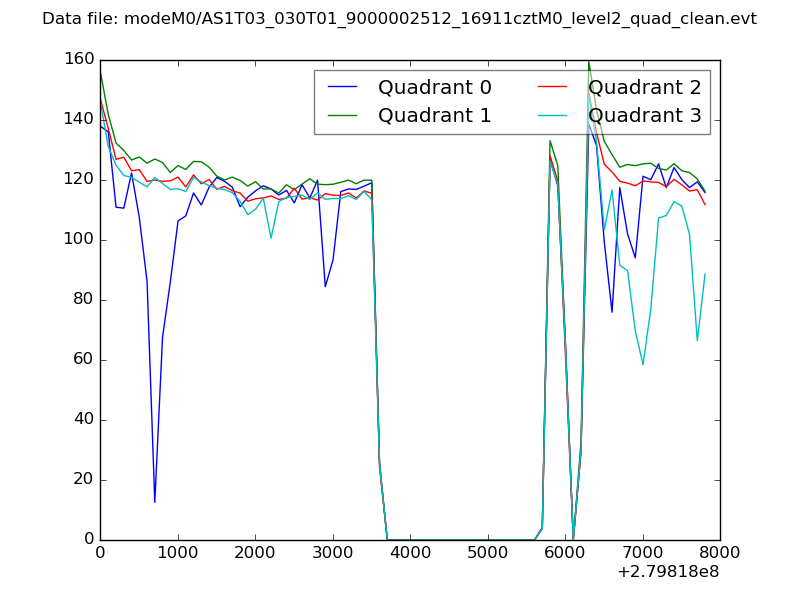

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

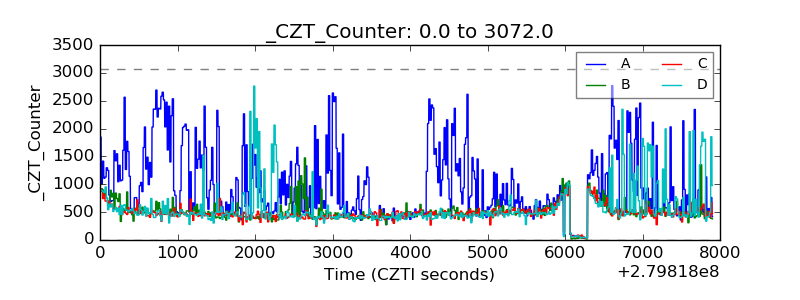

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

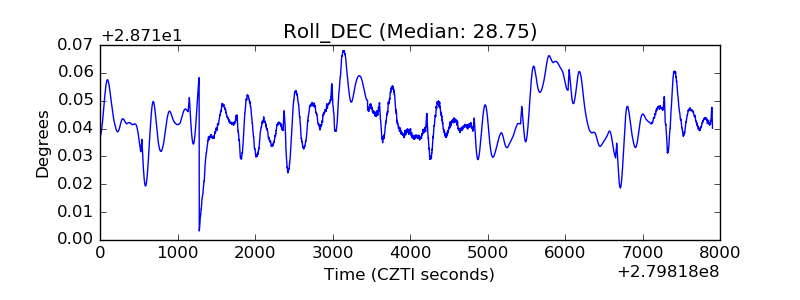

| _Roll_DEC |  |

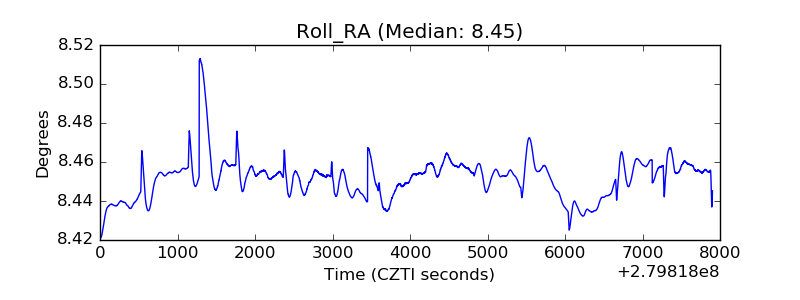

| _Roll_RA |  |

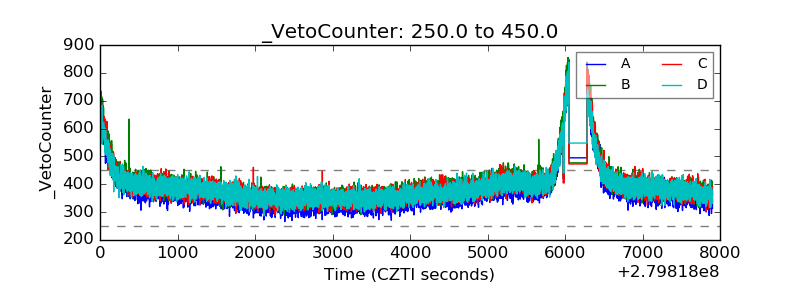

| Veto Counter |  |
