| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_030T01_9000002512_16923cztM0_level2.evt | modeM0/AS1T03_030T01_9000002512_16923cztM0_level2_quad_clean.evt |
| Size (bytes) | 620,562,240 | 89,873,280 |
| Size | 591.8 MB | 85.7 MB |
| Events in quadrant A | 4,483,550 | 571,847 |
| Events in quadrant B | 4,866,981 | 574,106 |
| Events in quadrant C | 3,469,551 | 558,828 |
| Events in quadrant D | 5,504,630 | 534,073 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17609 | 2 |
| B | 0 | 18908 | 2 |
| C | 0 | 14503 | 2 |
| D | 0 | 20937 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6927 | 332 | 4.792840% |
| B | 6928 | 542 | 7.823326% |
| C | 6928 | 159 | 2.295035% |
| D | 6928 | 515 | 7.433603% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7708 | 6929 | 170 | 170 | 2.21% | 2.45% |  |
| B | 7709 | 6930 | 220 | 220 | 2.85% | 3.17% |  |
| C | 7709 | 6930 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7709 | 6930 | 340 | 340 | 4.41% | 4.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 1169116 | 6725.81 | 861 | 840 | 173.7 |
| A | 0 | 226 | 7612 | 38.99 | 861 | 840 | 173.7 |
| A | 11 | 29 | 7263 | 36.98 | 861 | 840 | 173.7 |
| B | 3 | 64 | 1228197 | 7620.78 | 850 | 831 | 161.1 |
| B | 15 | 35 | 108732 | 669.96 | 850 | 831 | 161.1 |
| B | 7 | 220 | 100401 | 618.24 | 850 | 831 | 161.1 |
| C | 3 | 233 | 134497 | 703.37 | 822 | 828 | 190.0 |
| C | 14 | 238 | 127463 | 666.36 | 822 | 828 | 190.0 |
| C | 13 | 61 | 5668 | 25.47 | 822 | 828 | 190.0 |
| D | 1 | 52 | 2177528 | 10819.33 | 825 | 800 | 201.2 |
| D | 2 | 152 | 77482 | 381.14 | 825 | 800 | 201.2 |
| D | 15 | 0 | 62613 | 307.24 | 825 | 800 | 201.2 |

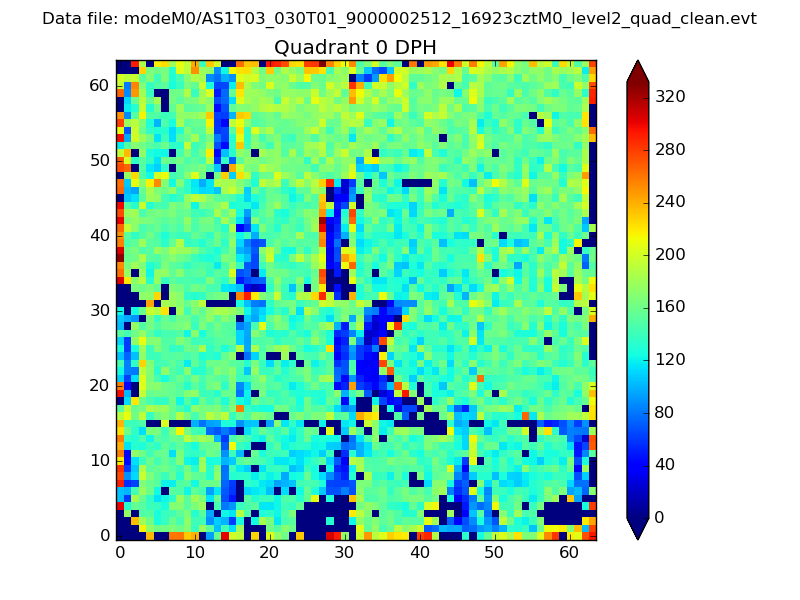

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

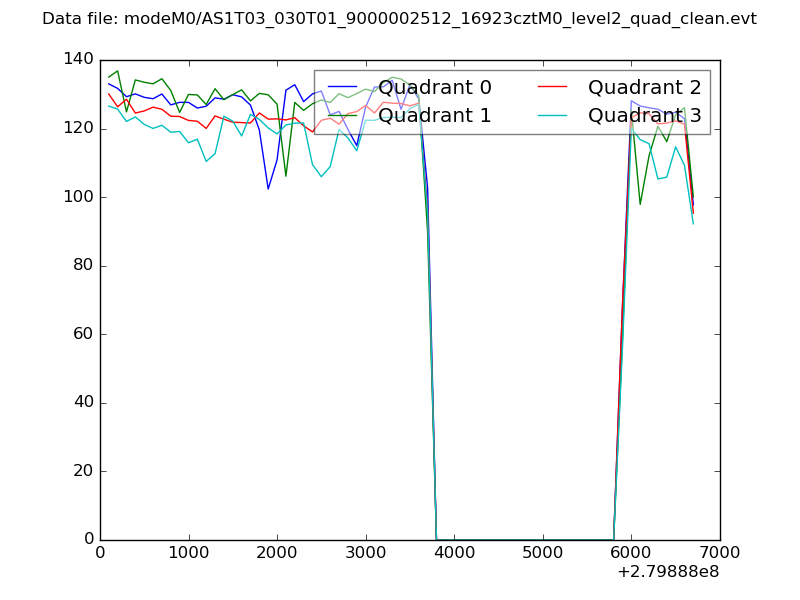

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

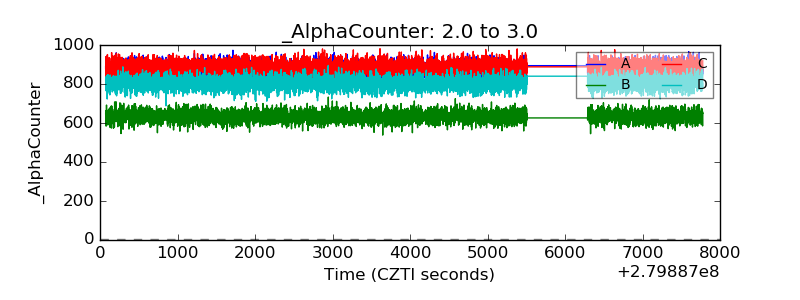

| Alpha Counter |  |

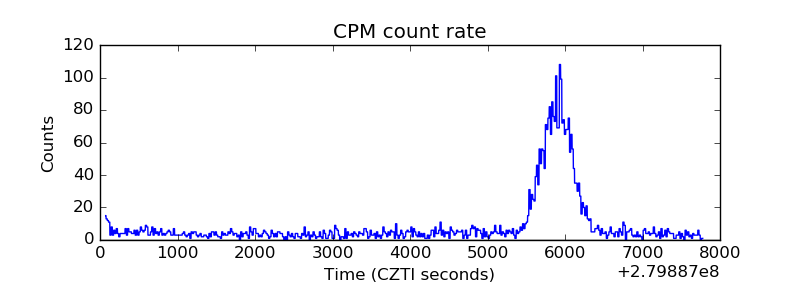

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

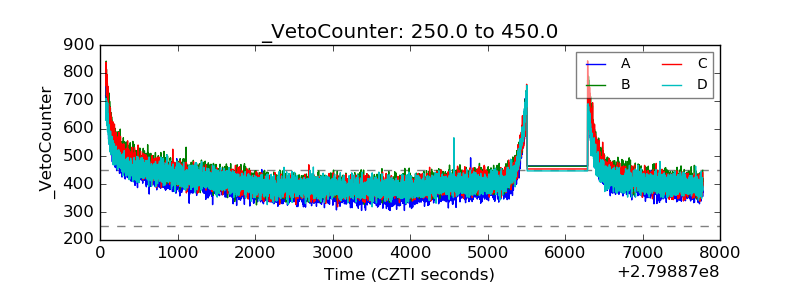

| Veto Counter |  |
