| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_013T01_9000002514_16935cztM0_level2.evt | modeM0/AS1T03_013T01_9000002514_16935cztM0_level2_quad_clean.evt |
| Size (bytes) | 533,338,560 | 96,687,360 |
| Size | 508.6 MB | 92.2 MB |
| Events in quadrant A | 3,553,100 | 635,051 |
| Events in quadrant B | 3,113,990 | 654,889 |
| Events in quadrant C | 3,546,539 | 610,855 |
| Events in quadrant D | 5,520,908 | 597,204 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14305 | 1 |
| B | 0 | 12924 | 1 |
| C | 0 | 14193 | 1 |
| D | 0 | 20640 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6165 | 170 | 2.757502% |
| B | 6166 | 64 | 1.037950% |
| C | 6166 | 101 | 1.638015% |
| D | 6166 | 488 | 7.914369% |

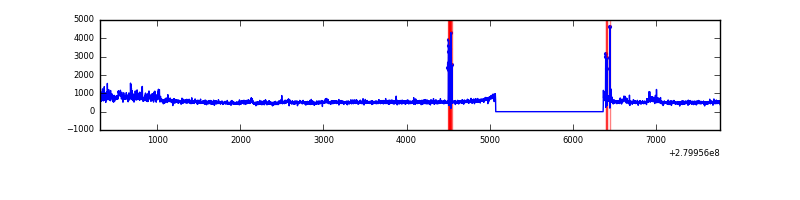

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7461 | 6166 | 107 | 107 | 1.43% | 1.74% |  |
| B | 7462 | 6168 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7462 | 6168 | 25 | 25 | 0.34% | 0.41% |  |
| D | 7462 | 6168 | 307 | 307 | 4.11% | 4.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 617770 | 4001.93 | 764 | 747 | 154.2 |
| A | 0 | 226 | 6945 | 40.2 | 764 | 747 | 154.2 |
| A | 12 | 194 | 5671 | 31.94 | 764 | 747 | 154.2 |
| B | 15 | 35 | 36034 | 243.85 | 768 | 749 | 144.7 |
| B | 4 | 216 | 25260 | 169.39 | 768 | 749 | 144.7 |
| B | 3 | 64 | 22902 | 153.1 | 768 | 749 | 144.7 |
| C | 3 | 233 | 516401 | 3091.55 | 725 | 730 | 166.8 |
| C | 14 | 238 | 116029 | 691.24 | 725 | 730 | 166.8 |
| C | 5 | 112 | 84566 | 502.61 | 725 | 730 | 166.8 |
| D | 1 | 52 | 2736683 | 15855.79 | 713 | 693 | 172.6 |
| D | 2 | 152 | 38230 | 217.54 | 713 | 693 | 172.6 |
| D | 2 | 234 | 25004 | 140.89 | 713 | 693 | 172.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

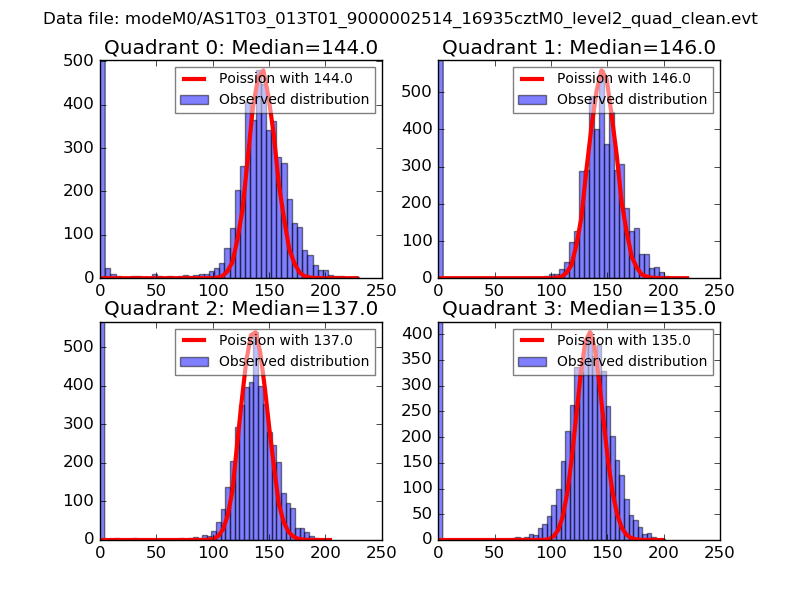

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

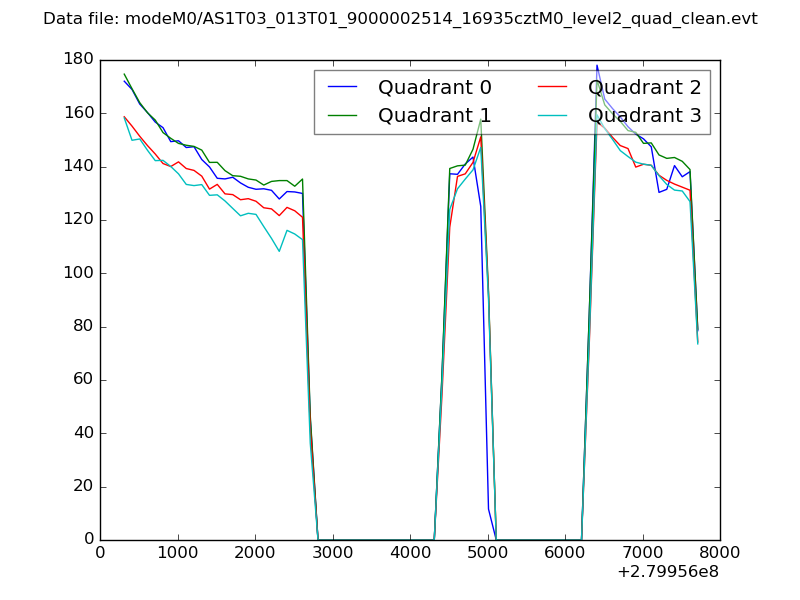

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

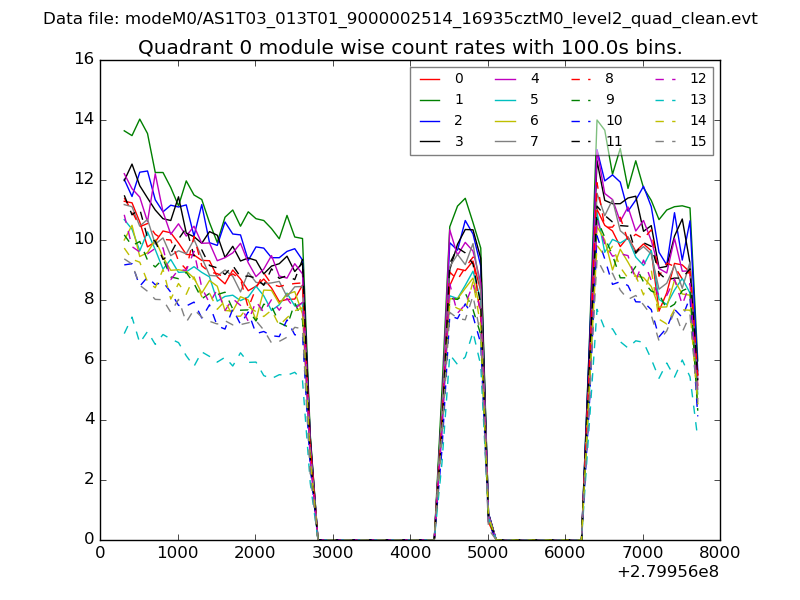

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

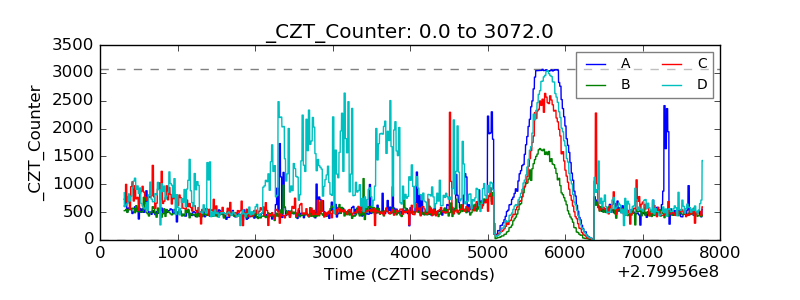

| CZT Counter |  |

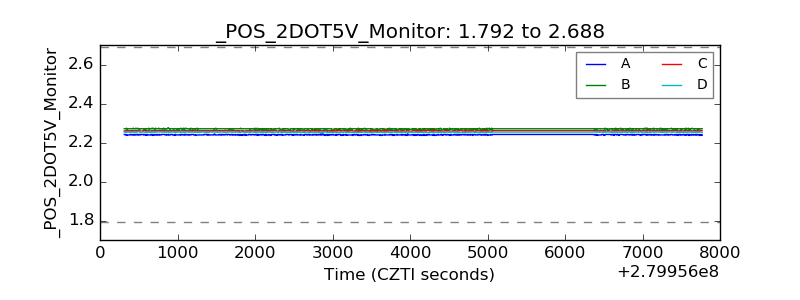

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

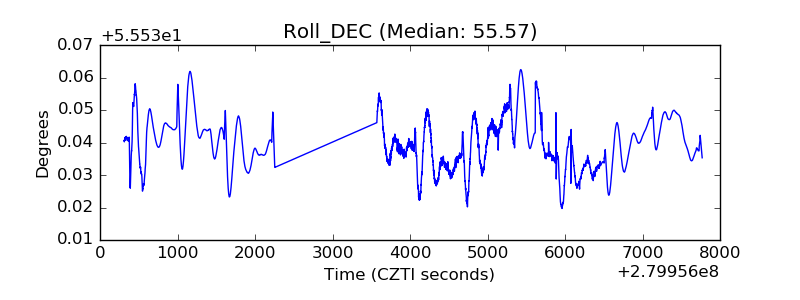

| _Roll_DEC |  |

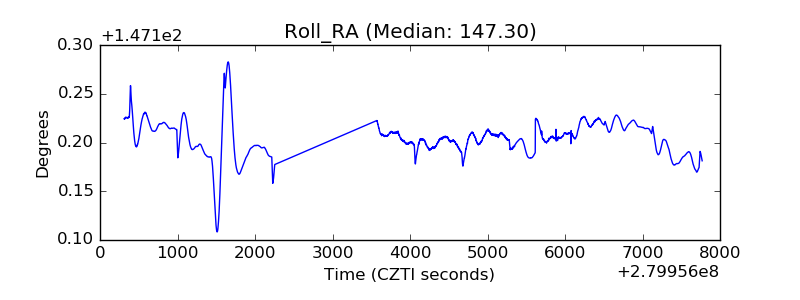

| _Roll_RA |  |
| Veto Counter |  |
