| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_206T01_9000002518_16952cztM0_level2.evt | modeM0/AS1A05_206T01_9000002518_16952cztM0_level2_quad_clean.evt |
| Size (bytes) | 445,380,480 | 92,367,360 |
| Size | 424.7 MB | 88.1 MB |
| Events in quadrant A | 3,083,001 | 587,582 |
| Events in quadrant B | 3,559,565 | 599,325 |
| Events in quadrant C | 3,178,810 | 582,700 |
| Events in quadrant D | 3,219,770 | 569,089 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13529 | 0 |
| B | 0 | 14651 | 1 |
| C | 0 | 13479 | 0 |
| D | 0 | 13897 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6574 | 90 | 1.369030% |
| B | 6574 | 124 | 1.886218% |
| C | 6574 | 116 | 1.764527% |
| D | 6574 | 59 | 0.897475% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7360 | 6576 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7360 | 6576 | 12 | 12 | 0.16% | 0.18% |  |
| C | 7360 | 6576 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7360 | 6576 | 8 | 8 | 0.11% | 0.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 38427 | 238.73 | 779 | 761 | 157.8 |
| A | 15 | 174 | 33243 | 205.88 | 779 | 761 | 157.8 |
| A | 0 | 23 | 17305 | 104.86 | 779 | 761 | 157.8 |
| B | 15 | 35 | 142806 | 962.65 | 777 | 758 | 147.6 |
| B | 7 | 220 | 120939 | 814.45 | 777 | 758 | 147.6 |
| B | 0 | 229 | 53824 | 359.62 | 777 | 758 | 147.6 |
| C | 14 | 238 | 118314 | 670.66 | 753 | 757 | 175.3 |
| C | 3 | 233 | 116906 | 662.63 | 753 | 757 | 175.3 |
| C | 0 | 207 | 6257 | 31.38 | 753 | 757 | 175.3 |
| D | 1 | 52 | 92751 | 493.47 | 768 | 744 | 186.4 |
| D | 12 | 235 | 71282 | 378.33 | 768 | 744 | 186.4 |
| D | 10 | 70 | 35325 | 185.47 | 768 | 744 | 186.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

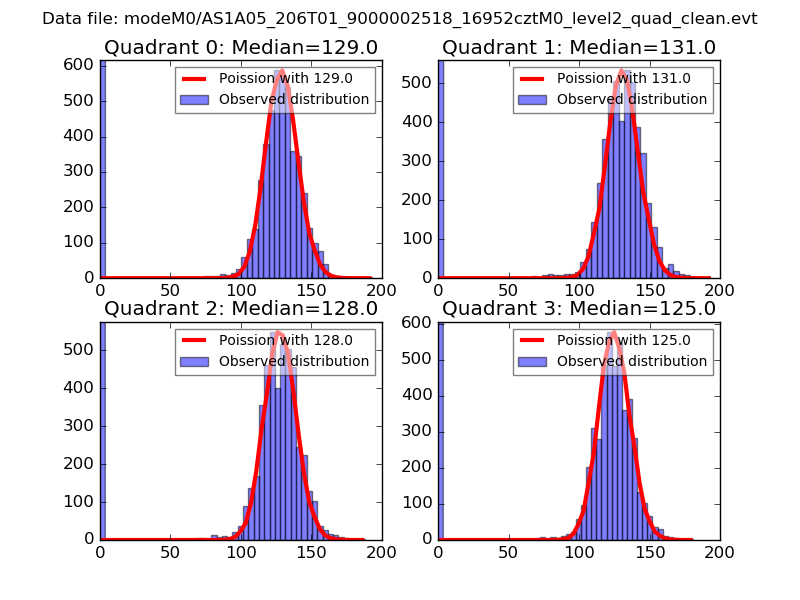

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

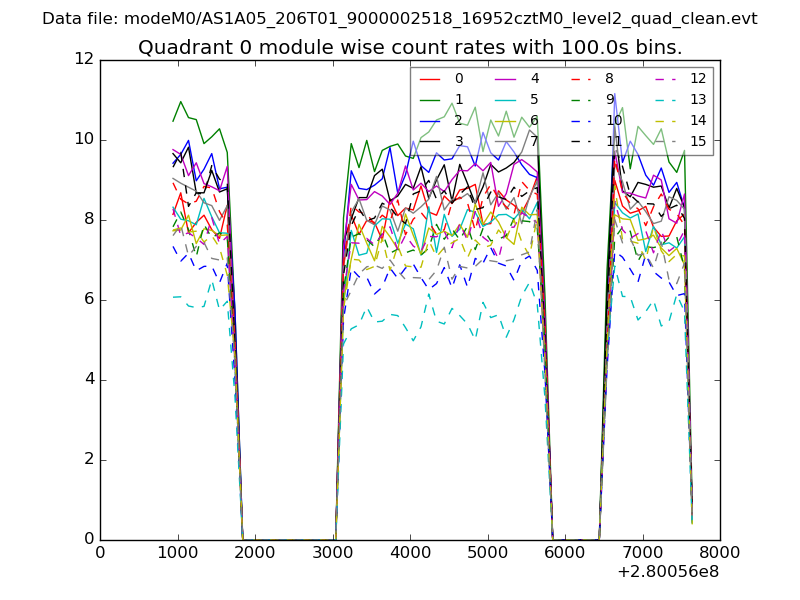

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

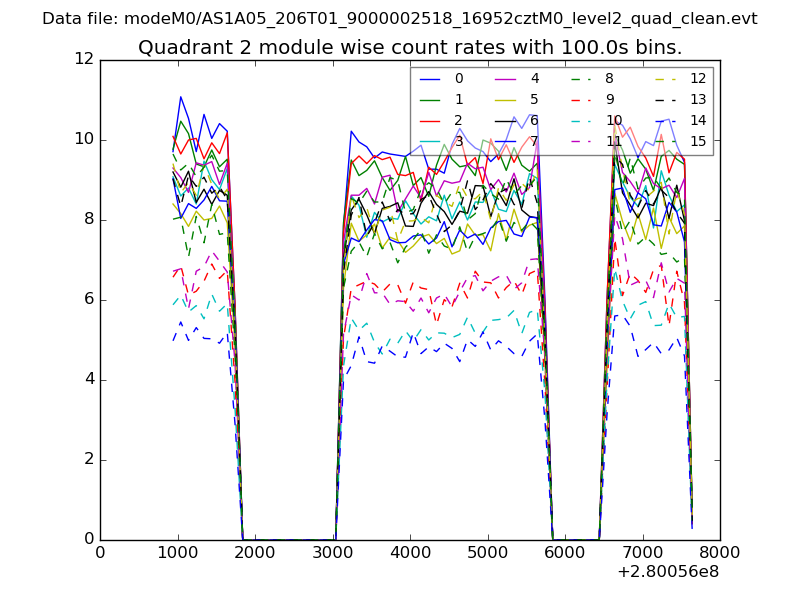

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

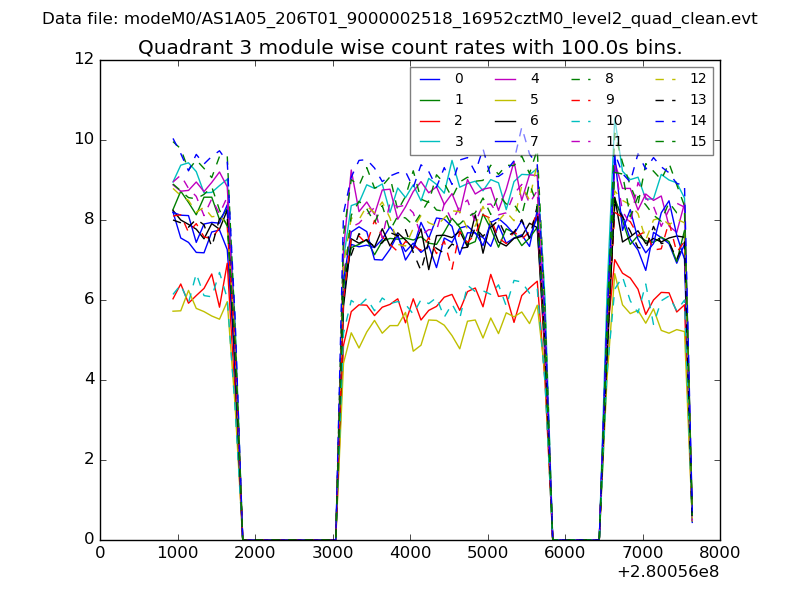

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

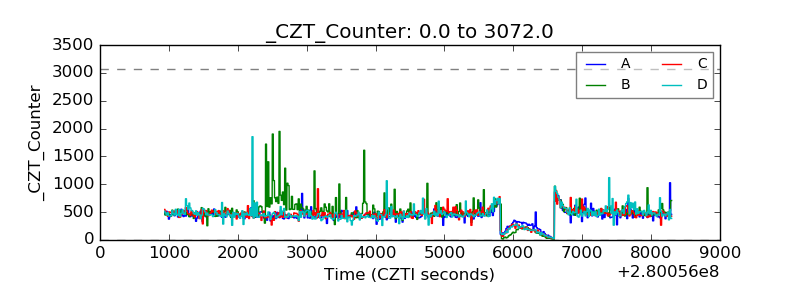

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

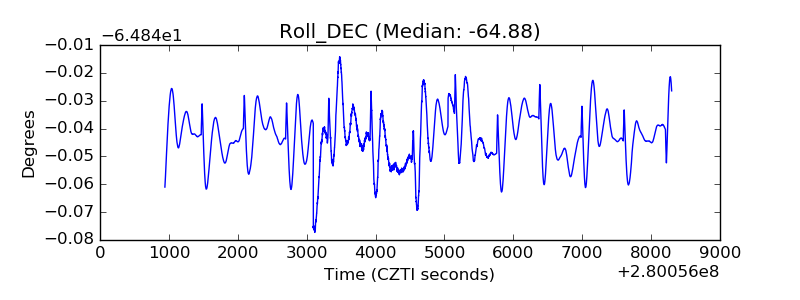

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
