| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_143T01_9000002524_17001cztM0_level2.evt | modeM0/AS1A05_143T01_9000002524_17001cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,455,687,360 | 224,902,080 |
| Size | 1.4 GB | 214.5 MB |
| Events in quadrant A | 8,686,472 | 1,424,368 |
| Events in quadrant B | 9,679,955 | 1,420,023 |
| Events in quadrant C | 9,963,557 | 1,385,221 |
| Events in quadrant D | 14,536,143 | 1,335,680 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 368 | 0 |
| B | 0 | 368 | 0 |
| C | 0 | 368 | 0 |
| D | 0 | 368 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38270 | 3 |
| B | 0 | 40485 | 8 |
| C | 0 | 41195 | 3 |
| D | 0 | 55698 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18077 | 135 | 0.746805% |
| B | 18076 | 451 | 2.495021% |
| C | 18077 | 209 | 1.156165% |
| D | 18077 | 1092 | 6.040825% |

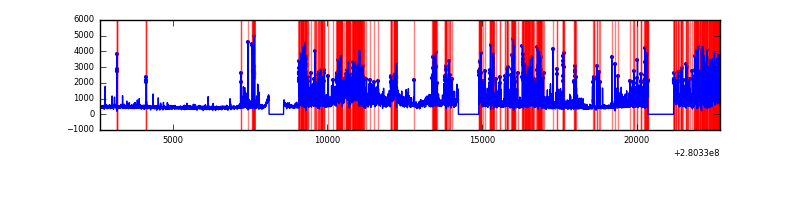

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20043 | 18081 | 0 | 0 | 0.00% | 0.00% |  |
| B | 20041 | 18079 | 240 | 240 | 1.20% | 1.33% |  |
| C | 20043 | 18081 | 5 | 5 | 0.02% | 0.03% |  |
| D | 20043 | 18081 | 835 | 835 | 4.17% | 4.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 434887 | 1005.6 | 2134 | 2083 | 430.4 |
| A | 12 | 189 | 52513 | 117.17 | 2134 | 2083 | 430.4 |
| A | 0 | 226 | 18846 | 38.95 | 2134 | 2083 | 430.4 |
| B | 3 | 64 | 746198 | 1826.94 | 2124 | 2068 | 407.3 |
| B | 15 | 35 | 154940 | 375.32 | 2124 | 2068 | 407.3 |
| B | 0 | 197 | 99641 | 239.56 | 2124 | 2068 | 407.3 |
| C | 3 | 233 | 1588120 | 3315.31 | 2055 | 2067 | 478.4 |
| C | 14 | 238 | 316390 | 657.03 | 2055 | 2067 | 478.4 |
| C | 5 | 112 | 25177 | 48.31 | 2055 | 2067 | 478.4 |
| D | 1 | 52 | 6344594 | 12721.11 | 2042 | 1980 | 498.6 |
| D | 2 | 152 | 156356 | 309.63 | 2042 | 1980 | 498.6 |
| D | 4 | 239 | 88082 | 172.69 | 2042 | 1980 | 498.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

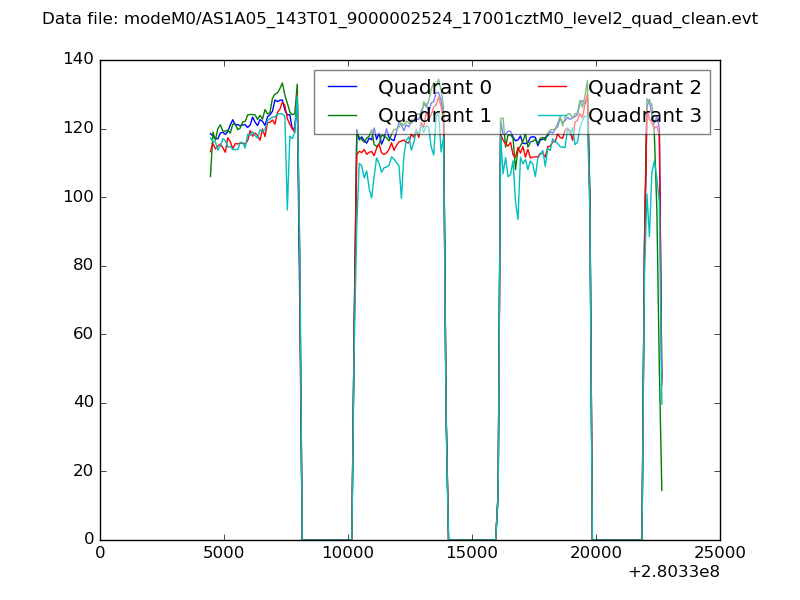

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

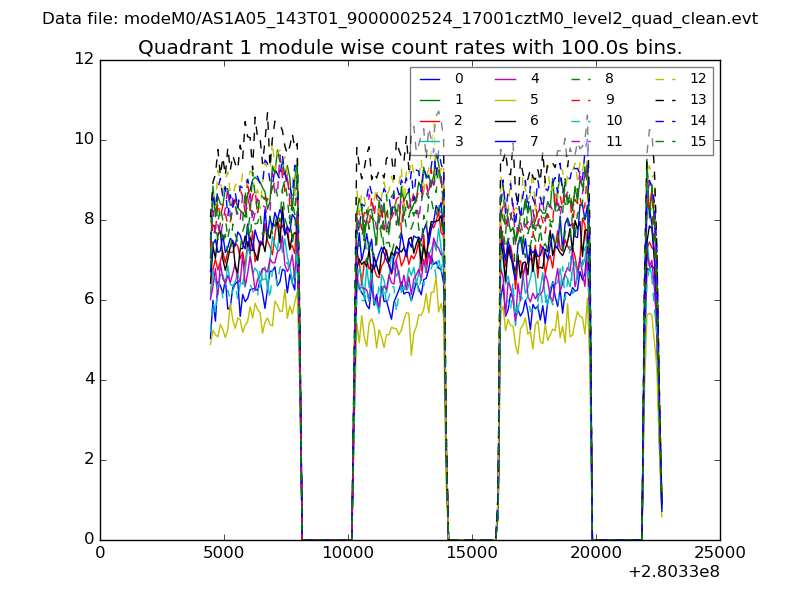

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

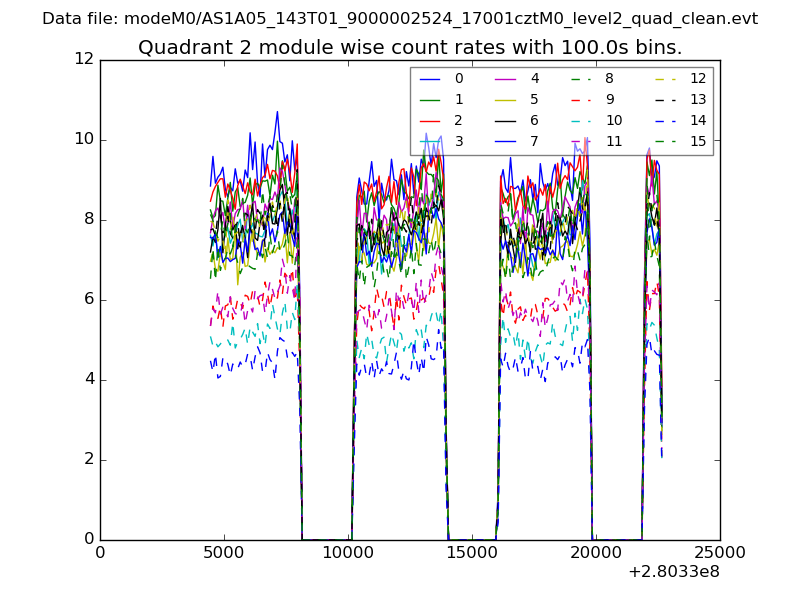

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

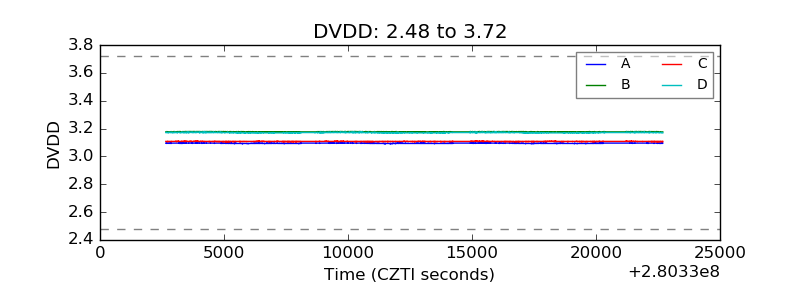

| D_VDD |  |

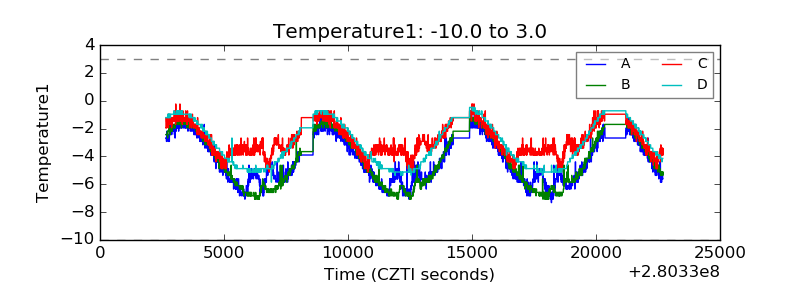

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

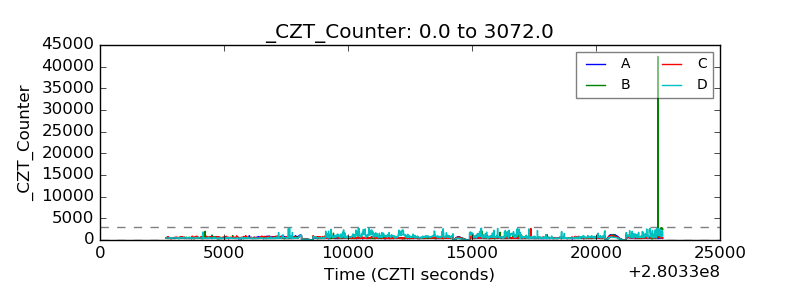

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

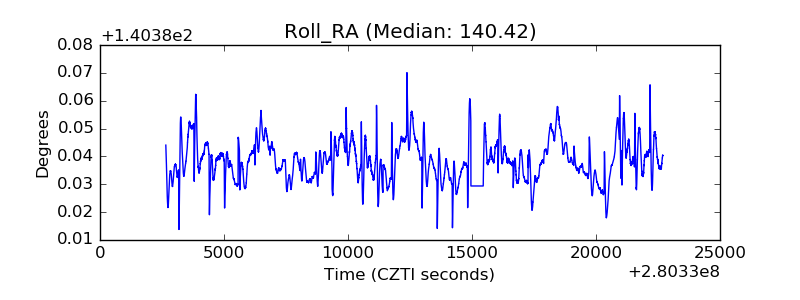

| _Roll_RA |  |
| Veto Counter |  |
