| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_143T01_9000002524_17006cztM0_level2.evt | modeM0/AS1A05_143T01_9000002524_17006cztM0_level2_quad_clean.evt |
| Size (bytes) | 409,864,320 | 83,390,400 |
| Size | 390.9 MB | 79.5 MB |
| Events in quadrant A | 2,713,419 | 539,173 |
| Events in quadrant B | 2,965,472 | 561,823 |
| Events in quadrant C | 2,942,735 | 538,754 |
| Events in quadrant D | 3,425,749 | 509,172 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11512 | 2 |
| B | 0 | 12413 | 2 |
| C | 0 | 12146 | 2 |
| D | 0 | 13748 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5373 | 35 | 0.651405% |
| B | 5373 | 45 | 0.837521% |
| C | 5373 | 56 | 1.042248% |
| D | 5373 | 154 | 2.866183% |

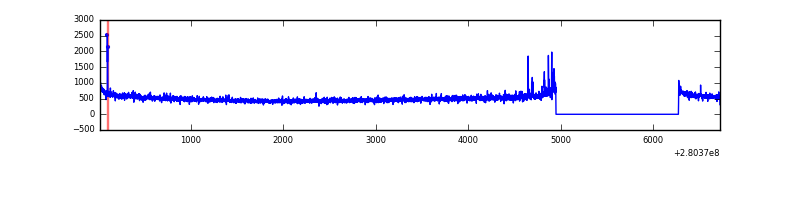

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6699 | 5375 | 2 | 2 | 0.03% | 0.04% |  |
| B | 6699 | 5375 | 2 | 2 | 0.03% | 0.04% |  |
| C | 6699 | 5375 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6699 | 5375 | 99 | 99 | 1.48% | 1.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 50244 | 354.24 | 693 | 679 | 139.9 |
| A | 0 | 226 | 6040 | 38.32 | 693 | 679 | 139.9 |
| A | 12 | 194 | 5038 | 31.15 | 693 | 679 | 139.9 |
| B | 0 | 189 | 81259 | 607.17 | 704 | 686 | 132.7 |
| B | 4 | 216 | 45094 | 334.65 | 704 | 686 | 132.7 |
| B | 15 | 35 | 22996 | 168.12 | 704 | 686 | 132.7 |
| C | 3 | 233 | 166210 | 1036.78 | 683 | 691 | 159.6 |
| C | 14 | 238 | 105839 | 658.63 | 683 | 691 | 159.6 |
| C | 13 | 61 | 4846 | 26.03 | 683 | 691 | 159.6 |
| D | 1 | 52 | 820216 | 5048.39 | 673 | 655 | 162.3 |
| D | 2 | 234 | 24525 | 147.04 | 673 | 655 | 162.3 |
| D | 4 | 239 | 19617 | 116.8 | 673 | 655 | 162.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

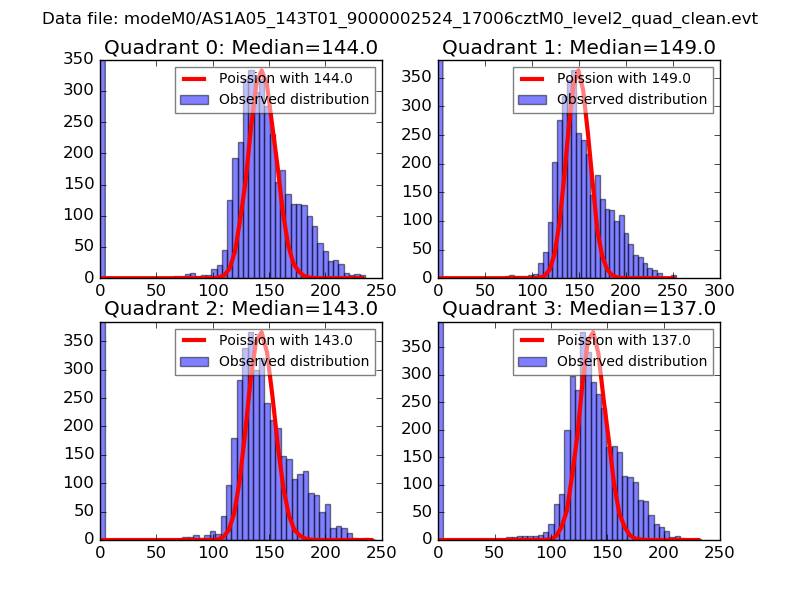

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

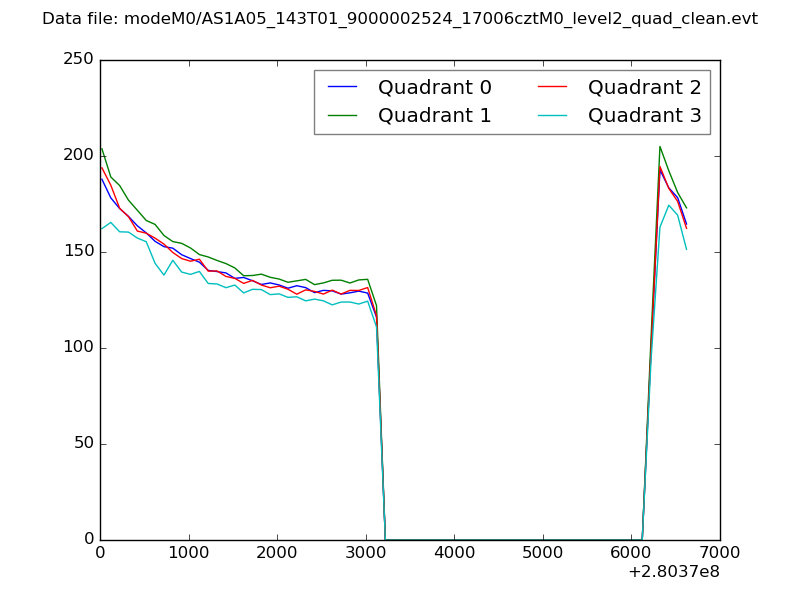

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

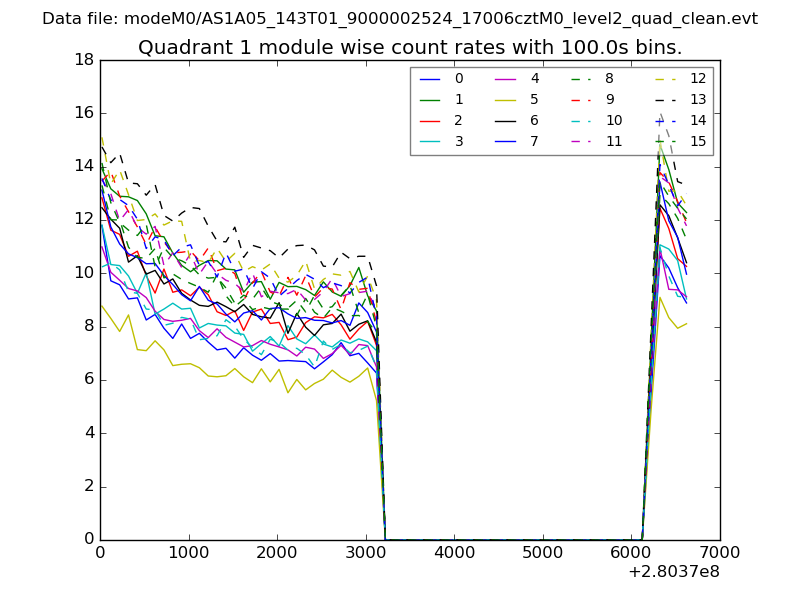

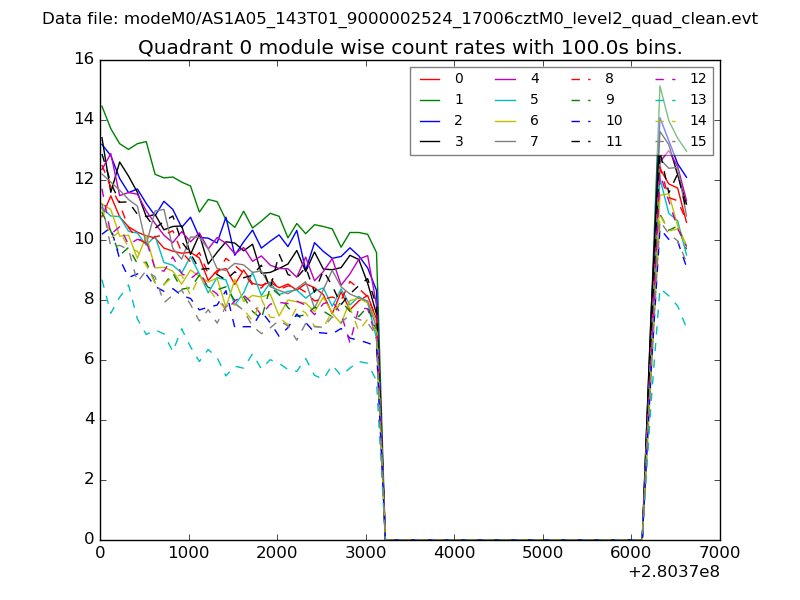

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

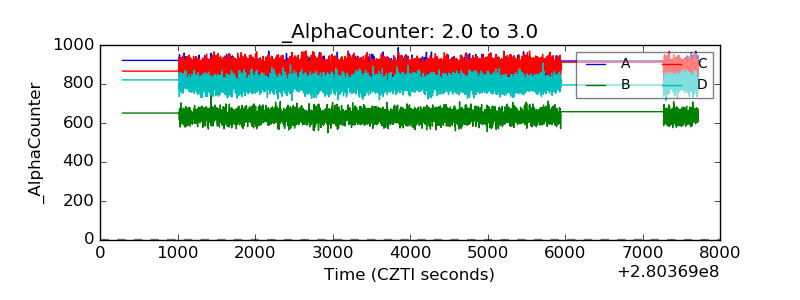

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

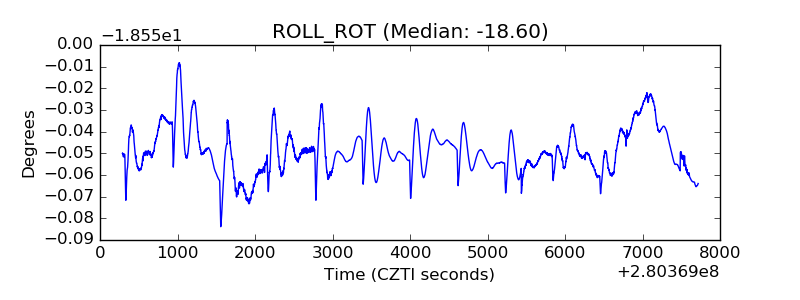

| _ROLL_ROT |  |
| _Roll_DEC |  |

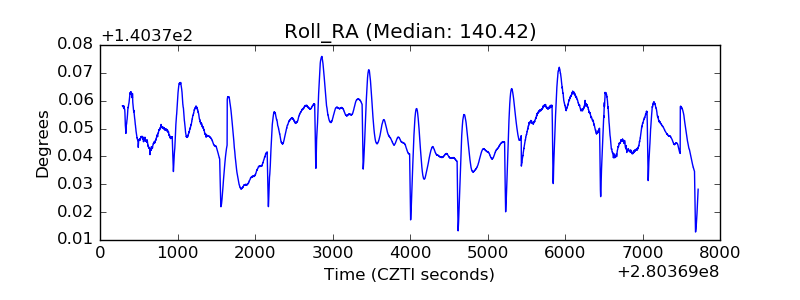

| _Roll_RA |  |
| Veto Counter |  |
