| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_058T01_9000002522_16977cztM0_level2.evt | modeM0/AS1T03_058T01_9000002522_16977cztM0_level2_quad_clean.evt |
| Size (bytes) | 495,567,360 | 119,773,440 |
| Size | 472.6 MB | 114.2 MB |
| Events in quadrant A | 3,206,326 | 802,363 |
| Events in quadrant B | 3,465,966 | 824,510 |
| Events in quadrant C | 4,293,288 | 787,631 |
| Events in quadrant D | 3,608,074 | 766,254 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13445 | 2 |
| B | 0 | 14245 | 2 |
| C | 0 | 17485 | 2 |
| D | 0 | 14875 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6409 | 31 | 0.483695% |
| B | 6409 | 54 | 0.842565% |
| C | 6409 | 114 | 1.778749% |
| D | 6409 | 92 | 1.435481% |

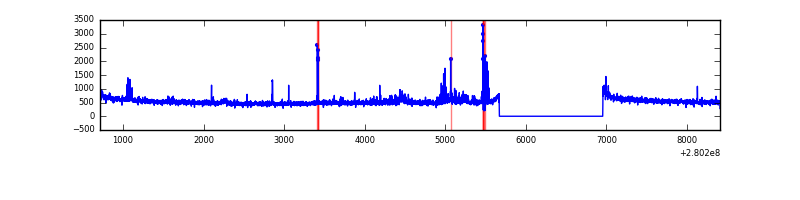

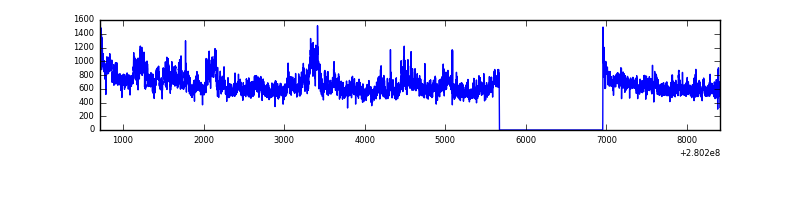

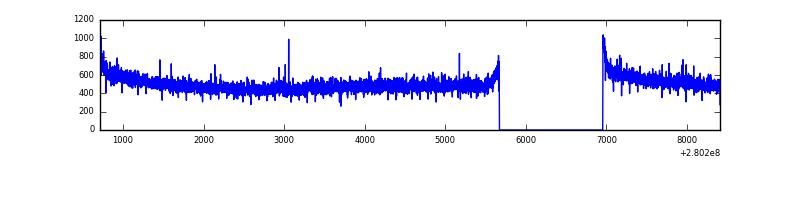

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7695 | 6411 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7695 | 6411 | 11 | 11 | 0.14% | 0.17% |  |
| C | 7695 | 6411 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7695 | 6411 | 34 | 34 | 0.44% | 0.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7296 | 39.33 | 834 | 820 | 164.6 |
| A | 12 | 194 | 6150 | 32.37 | 834 | 820 | 164.6 |
| A | 3 | 137 | 5394 | 27.78 | 834 | 820 | 164.6 |
| B | 7 | 220 | 42781 | 271.12 | 842 | 822 | 154.8 |
| B | 0 | 229 | 30971 | 194.81 | 842 | 822 | 154.8 |
| B | 3 | 209 | 28416 | 178.3 | 842 | 822 | 154.8 |
| C | 3 | 233 | 922223 | 4904.73 | 820 | 828 | 187.9 |
| C | 14 | 238 | 129819 | 686.64 | 820 | 828 | 187.9 |
| C | 0 | 207 | 40650 | 211.98 | 820 | 828 | 187.9 |
| D | 1 | 52 | 469035 | 2416.27 | 818 | 796 | 193.8 |
| D | 2 | 234 | 26070 | 130.42 | 818 | 796 | 193.8 |
| D | 2 | 152 | 16577 | 81.44 | 818 | 796 | 193.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

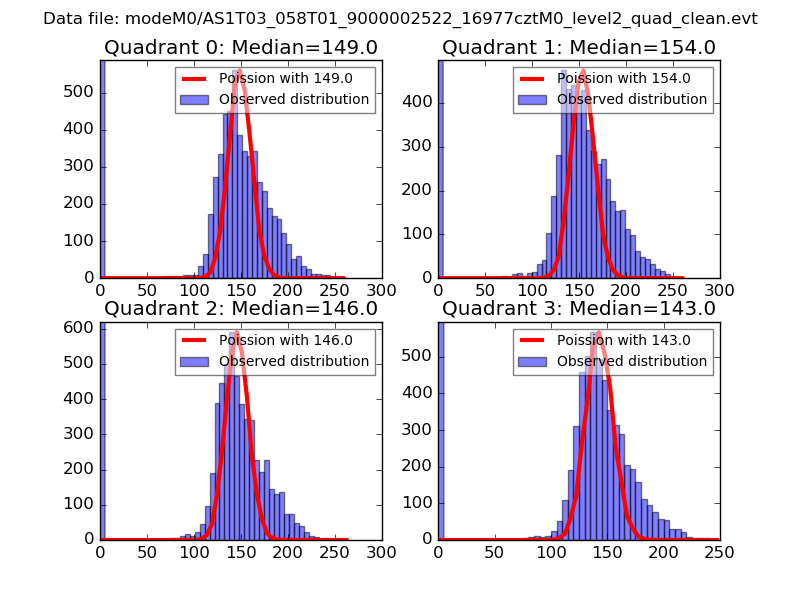

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

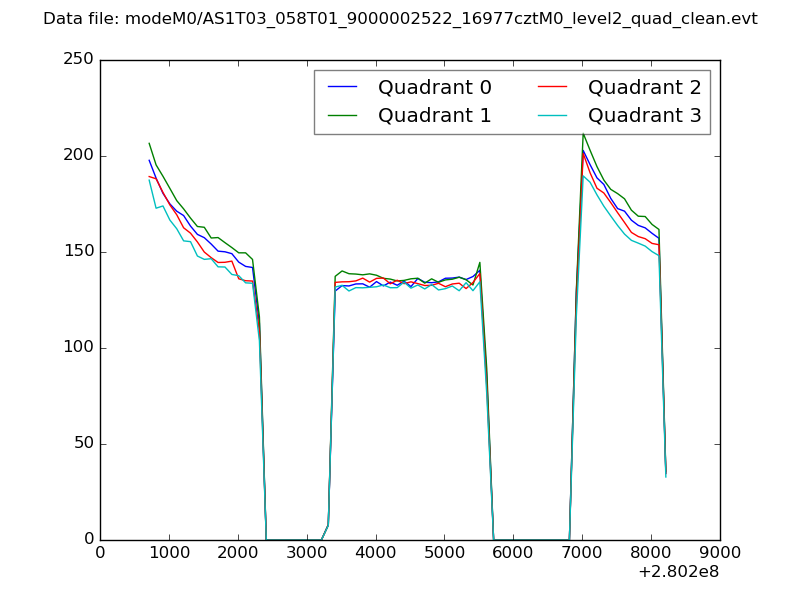

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

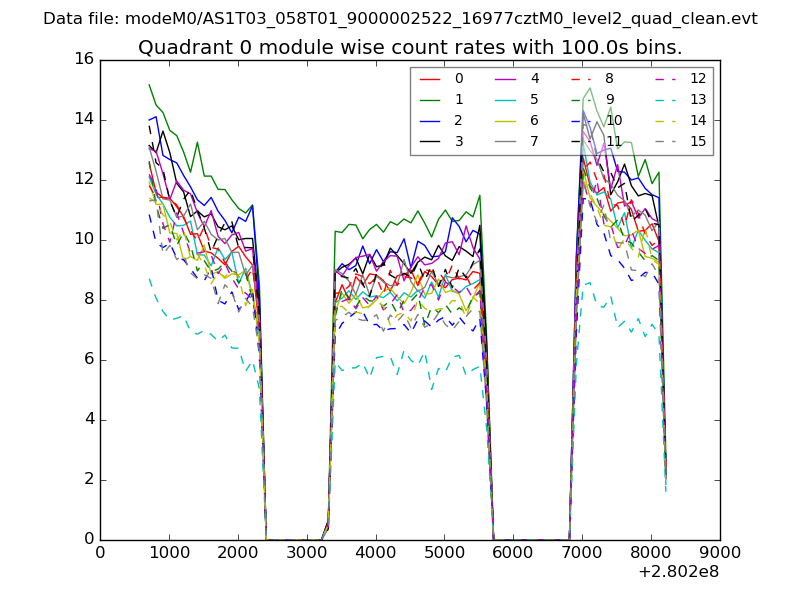

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

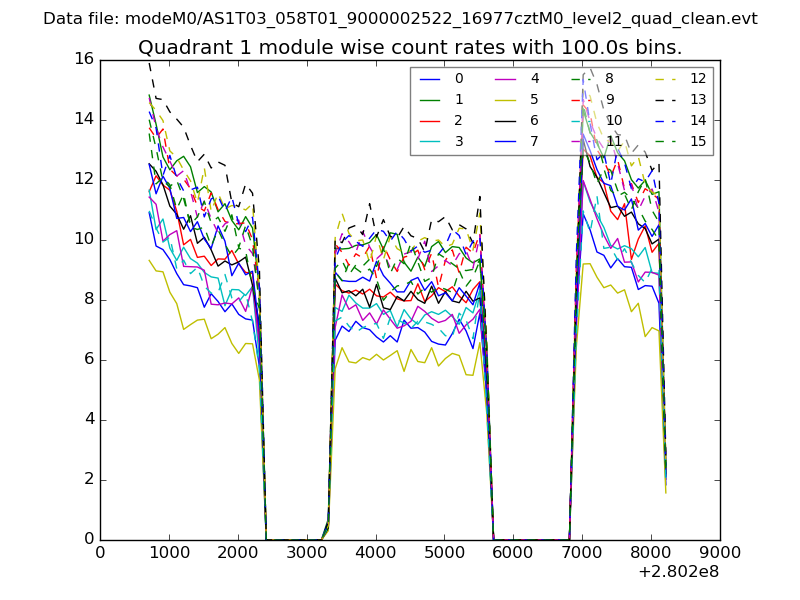

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

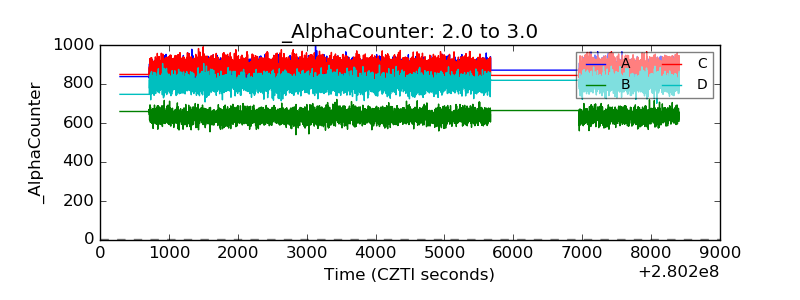

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
