| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_058T01_9000002522_16986cztM0_level2.evt | modeM0/AS1T03_058T01_9000002522_16986cztM0_level2_quad_clean.evt |
| Size (bytes) | 602,170,560 | 127,938,240 |
| Size | 574.3 MB | 122.0 MB |
| Events in quadrant A | 3,753,426 | 844,745 |
| Events in quadrant B | 4,442,559 | 848,945 |
| Events in quadrant C | 4,901,962 | 813,538 |
| Events in quadrant D | 4,593,146 | 808,142 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16821 | 2 |
| B | 0 | 18620 | 2 |
| C | 0 | 20081 | 2 |
| D | 0 | 19144 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8046 | 62 | 0.770569% |
| B | 8047 | 153 | 1.901330% |
| C | 8047 | 103 | 1.279980% |
| D | 8047 | 91 | 1.130856% |

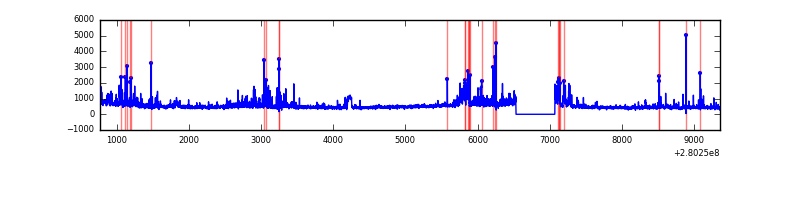

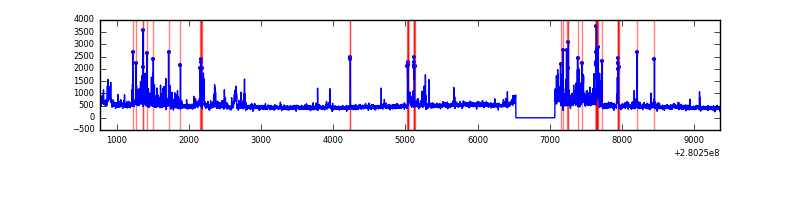

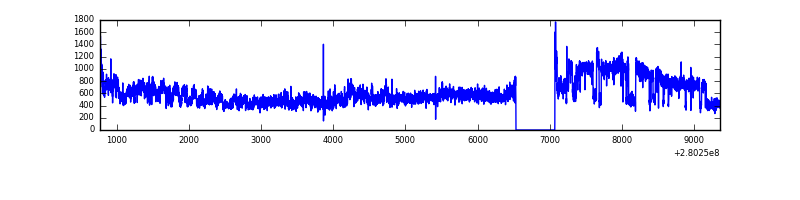

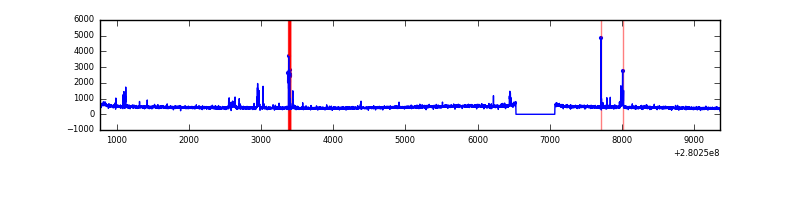

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8587 | 8048 | 19 | 19 | 0.22% | 0.24% |  |
| B | 8588 | 8049 | 50 | 50 | 0.58% | 0.62% |  |
| C | 8588 | 8049 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8588 | 8049 | 30 | 30 | 0.35% | 0.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 187108 | 991.85 | 927 | 906 | 187.7 |
| A | 0 | 226 | 8375 | 39.78 | 927 | 906 | 187.7 |
| A | 12 | 194 | 6873 | 31.78 | 927 | 906 | 187.7 |
| B | 7 | 220 | 237686 | 1342.49 | 925 | 902 | 176.4 |
| B | 15 | 35 | 157549 | 888.14 | 925 | 902 | 176.4 |
| B | 4 | 216 | 87194 | 489.25 | 925 | 902 | 176.4 |
| C | 3 | 233 | 1329831 | 6436.88 | 881 | 886 | 206.5 |
| C | 14 | 238 | 137199 | 660.25 | 881 | 886 | 206.5 |
| C | 13 | 61 | 6268 | 26.07 | 881 | 886 | 206.5 |
| D | 1 | 52 | 1043465 | 4728.77 | 892 | 862 | 220.5 |
| D | 6 | 18 | 51159 | 228.12 | 892 | 862 | 220.5 |
| D | 15 | 145 | 43093 | 191.54 | 892 | 862 | 220.5 |

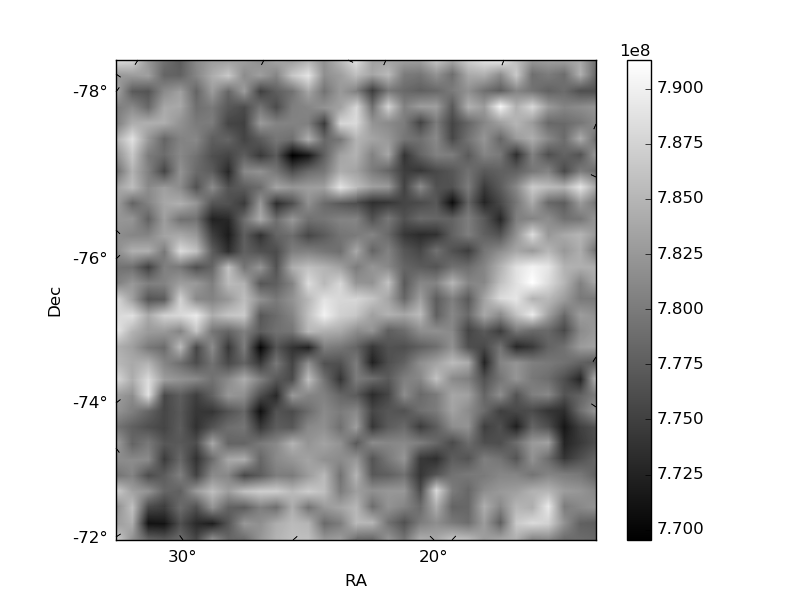

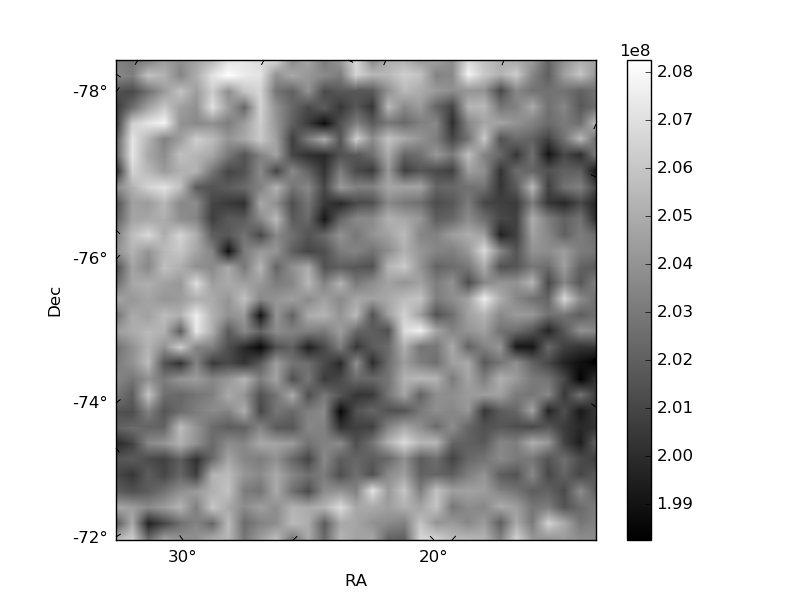

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

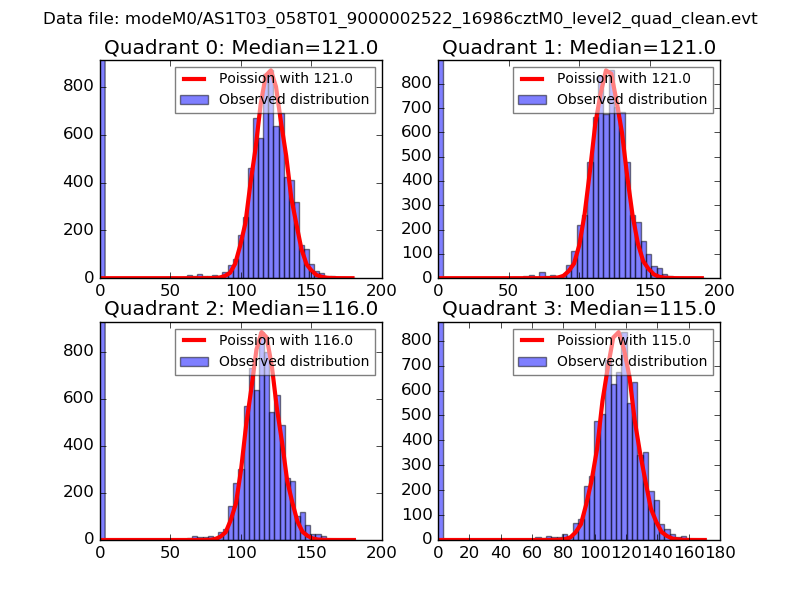

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

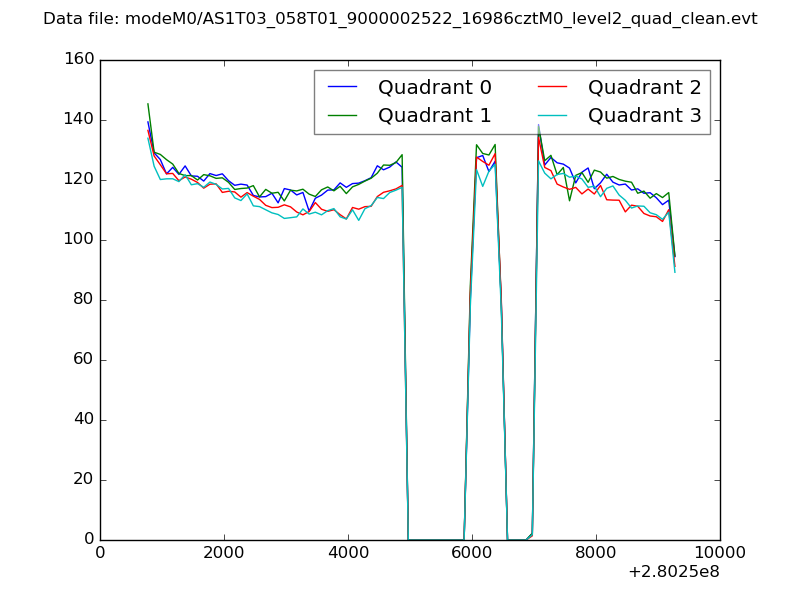

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

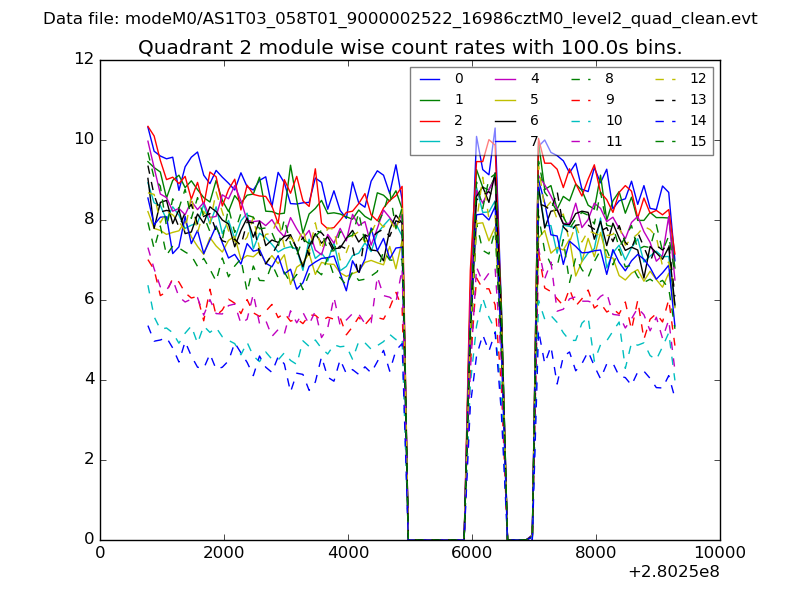

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

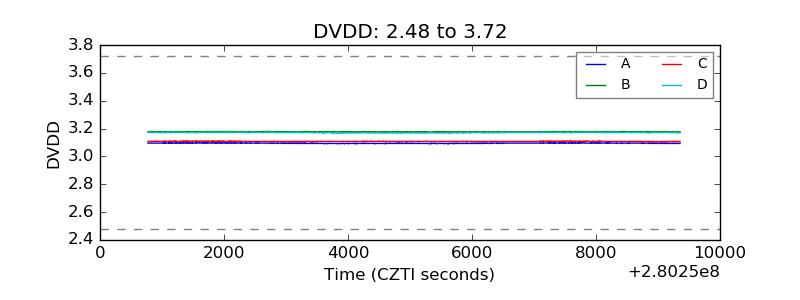

| D_VDD |  |

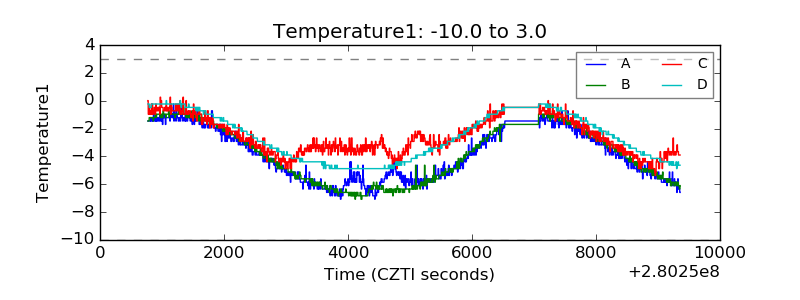

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

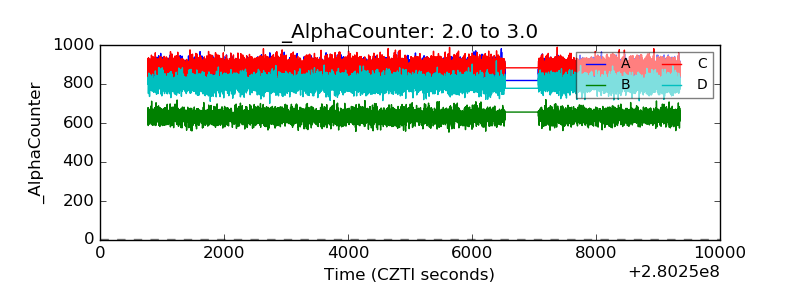

| Alpha Counter |  |

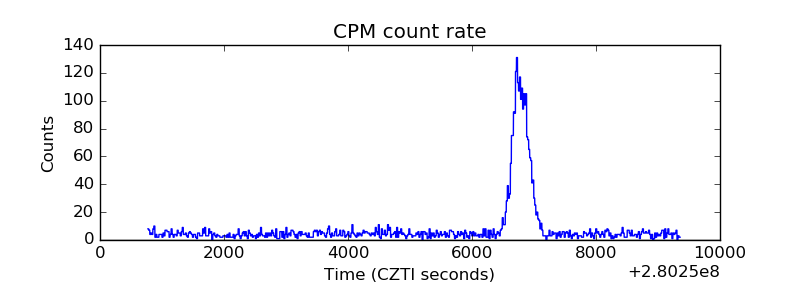

| _CPM_Rate |  |

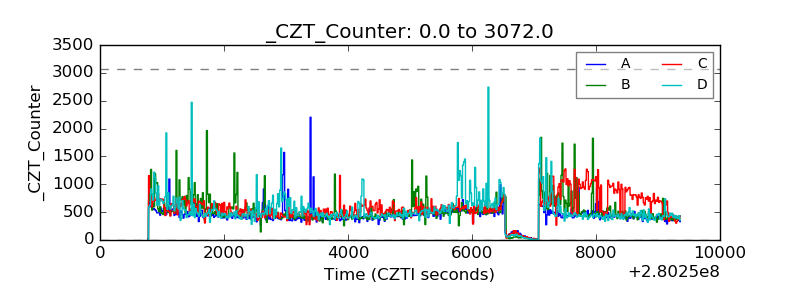

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

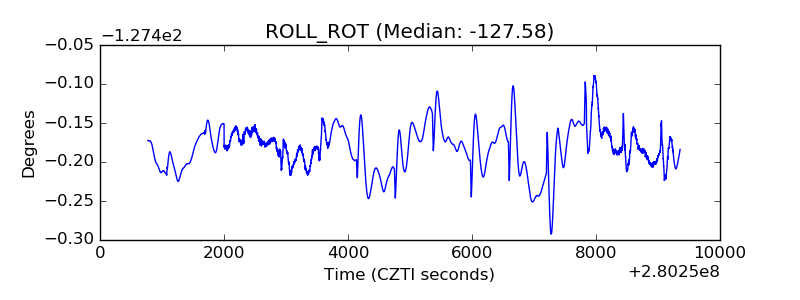

| _ROLL_ROT |  |
| _Roll_DEC |  |

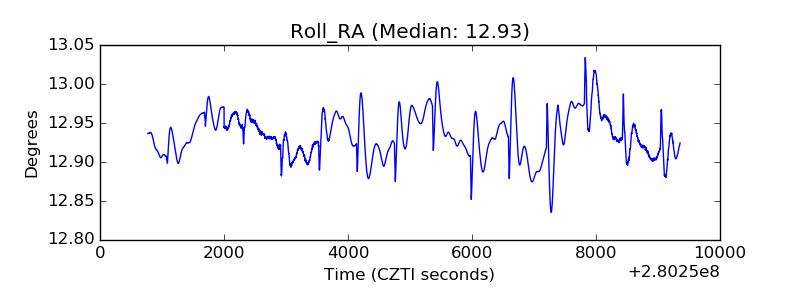

| _Roll_RA |  |
| Veto Counter |  |
