| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_206T01_9000002528_17017cztM0_level2.evt | modeM0/AS1A05_206T01_9000002528_17017cztM0_level2_quad_clean.evt |
| Size (bytes) | 449,271,360 | 115,603,200 |
| Size | 428.5 MB | 110.2 MB |
| Events in quadrant A | 3,089,345 | 771,096 |
| Events in quadrant B | 3,502,760 | 784,710 |
| Events in quadrant C | 3,178,494 | 751,878 |
| Events in quadrant D | 3,388,422 | 734,834 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13614 | 2 |
| B | 0 | 14737 | 2 |
| C | 0 | 13621 | 2 |
| D | 0 | 14564 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6586 | 44 | 0.668084% |
| B | 6586 | 96 | 1.457637% |
| C | 6586 | 35 | 0.531430% |
| D | 6586 | 54 | 0.819921% |

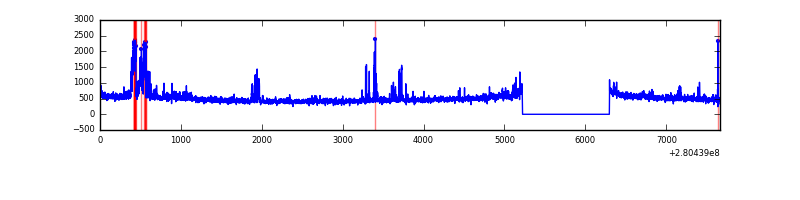

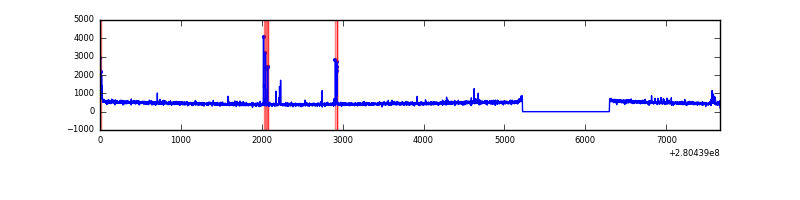

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7662 | 6588 | 12 | 12 | 0.16% | 0.18% |  |
| B | 7662 | 6588 | 23 | 23 | 0.30% | 0.35% |  |
| C | 7662 | 6588 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7662 | 6588 | 32 | 32 | 0.42% | 0.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 47482 | 297.55 | 778 | 760 | 157.0 |
| A | 14 | 250 | 21995 | 135.24 | 778 | 760 | 157.0 |
| A | 4 | 2 | 20240 | 124.06 | 778 | 760 | 157.0 |
| B | 15 | 35 | 177497 | 1178.79 | 785 | 765 | 149.9 |
| B | 0 | 219 | 65922 | 434.59 | 785 | 765 | 149.9 |
| B | 3 | 64 | 40598 | 265.68 | 785 | 765 | 149.9 |
| C | 3 | 233 | 123792 | 702.59 | 748 | 751 | 175.1 |
| C | 14 | 238 | 116213 | 659.31 | 748 | 751 | 175.1 |
| C | 8 | 128 | 9892 | 52.2 | 748 | 751 | 175.1 |
| D | 1 | 52 | 350063 | 1910.12 | 751 | 730 | 182.9 |
| D | 5 | 222 | 37667 | 201.97 | 751 | 730 | 182.9 |
| D | 10 | 70 | 37196 | 199.39 | 751 | 730 | 182.9 |

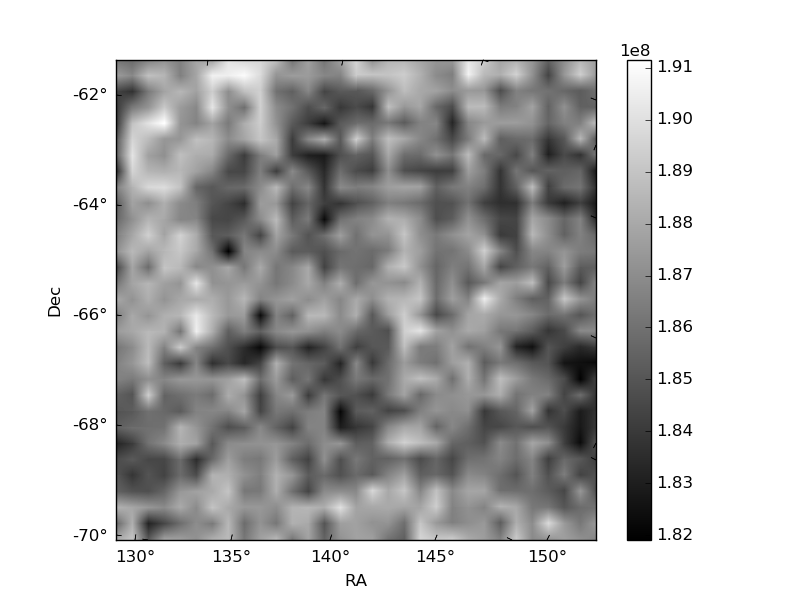

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

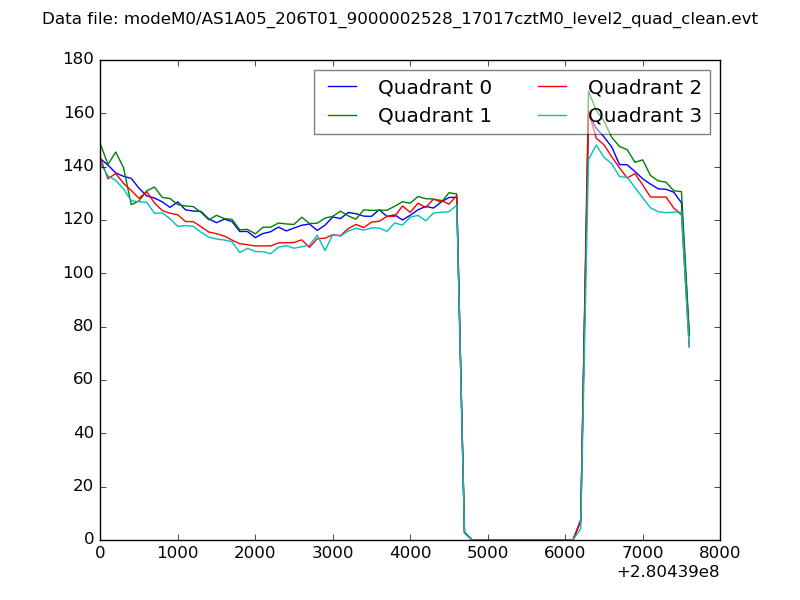

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

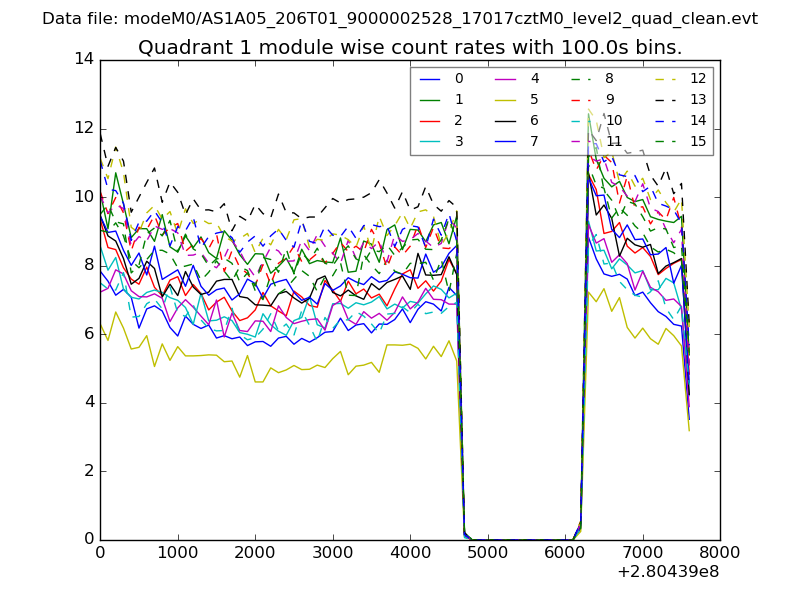

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

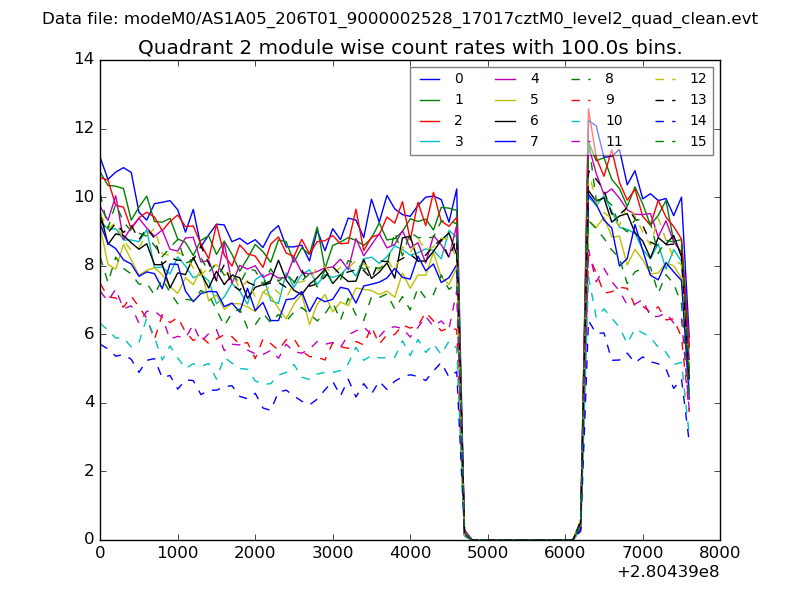

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

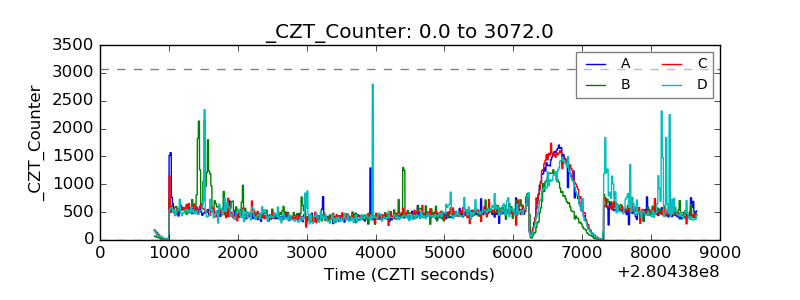

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

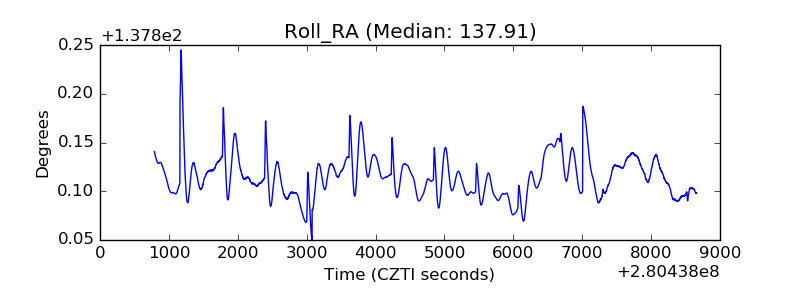

| _Roll_RA |  |
| Veto Counter |  |
