| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_206T01_9000002528_17020cztM0_level2.evt | modeM0/AS1A05_206T01_9000002528_17020cztM0_level2_quad_clean.evt |
| Size (bytes) | 484,128,000 | 116,498,880 |
| Size | 461.7 MB | 111.1 MB |
| Events in quadrant A | 3,196,204 | 768,933 |
| Events in quadrant B | 4,179,216 | 802,135 |
| Events in quadrant C | 3,268,280 | 769,406 |
| Events in quadrant D | 3,580,009 | 737,949 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13733 | 2 |
| B | 0 | 16658 | 2 |
| C | 0 | 13629 | 2 |
| D | 0 | 14971 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6448 | 15 | 0.232630% |
| B | 6448 | 419 | 6.498139% |
| C | 6448 | 53 | 0.821960% |
| D | 6448 | 56 | 0.868486% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7739 | 6450 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7739 | 6450 | 262 | 262 | 3.39% | 4.06% |  |
| C | 7739 | 6450 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7739 | 6450 | 53 | 53 | 0.68% | 0.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 95845 | 596.41 | 797 | 781 | 159.4 |
| A | 12 | 189 | 29375 | 179.39 | 797 | 781 | 159.4 |
| A | 4 | 2 | 9885 | 57.12 | 797 | 781 | 159.4 |
| B | 3 | 64 | 875083 | 5977.13 | 796 | 777 | 146.3 |
| B | 7 | 220 | 91499 | 620.21 | 796 | 777 | 146.3 |
| B | 0 | 219 | 39164 | 262.43 | 796 | 777 | 146.3 |
| C | 14 | 238 | 123356 | 671.75 | 789 | 798 | 182.4 |
| C | 3 | 233 | 56961 | 307.83 | 789 | 798 | 182.4 |
| C | 7 | 247 | 9542 | 47.93 | 789 | 798 | 182.4 |
| D | 1 | 52 | 472523 | 2495.23 | 784 | 764 | 189.1 |
| D | 10 | 70 | 85383 | 447.57 | 784 | 764 | 189.1 |
| D | 2 | 234 | 28542 | 146.92 | 784 | 764 | 189.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

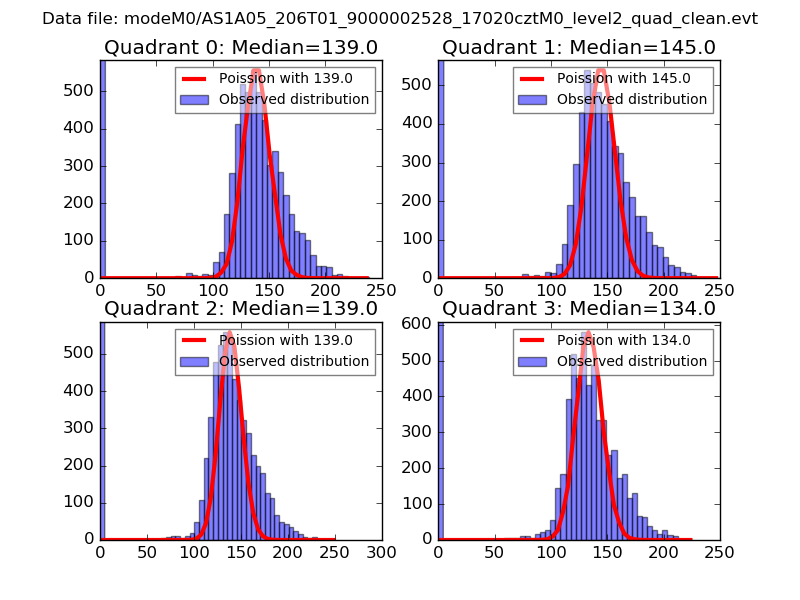

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
