| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_206T01_9000002528_17024cztM0_level2.evt | modeM0/AS1A05_206T01_9000002528_17024cztM0_level2_quad_clean.evt |
| Size (bytes) | 490,754,880 | 110,373,120 |
| Size | 468.0 MB | 105.3 MB |
| Events in quadrant A | 3,215,660 | 729,820 |
| Events in quadrant B | 4,088,651 | 726,387 |
| Events in quadrant C | 3,579,688 | 722,750 |
| Events in quadrant D | 3,532,723 | 706,174 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13891 | 1 |
| B | 0 | 16313 | 1 |
| C | 0 | 14725 | 1 |
| D | 0 | 14773 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6559 | 68 | 1.036743% |
| B | 6560 | 316 | 4.817073% |
| C | 6560 | 101 | 1.539634% |
| D | 6559 | 118 | 1.799055% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7500 | 6561 | 10 | 10 | 0.13% | 0.15% |  |
| B | 7501 | 6562 | 190 | 190 | 2.53% | 2.90% |  |
| C | 7501 | 6562 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7500 | 6561 | 56 | 56 | 0.75% | 0.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 145602 | 923.8 | 782 | 765 | 156.8 |
| A | 12 | 189 | 49740 | 312.37 | 782 | 765 | 156.8 |
| A | 4 | 2 | 14926 | 90.32 | 782 | 765 | 156.8 |
| B | 3 | 64 | 662635 | 4629.25 | 770 | 747 | 143.0 |
| B | 7 | 220 | 142912 | 994.3 | 770 | 747 | 143.0 |
| B | 3 | 209 | 78911 | 546.68 | 770 | 747 | 143.0 |
| C | 3 | 233 | 449711 | 2517.52 | 768 | 772 | 178.3 |
| C | 14 | 238 | 119071 | 663.38 | 768 | 772 | 178.3 |
| C | 7 | 247 | 8545 | 43.59 | 768 | 772 | 178.3 |
| D | 1 | 52 | 394729 | 2097.97 | 776 | 752 | 187.8 |
| D | 12 | 110 | 94924 | 501.48 | 776 | 752 | 187.8 |
| D | 2 | 33 | 36773 | 191.82 | 776 | 752 | 187.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

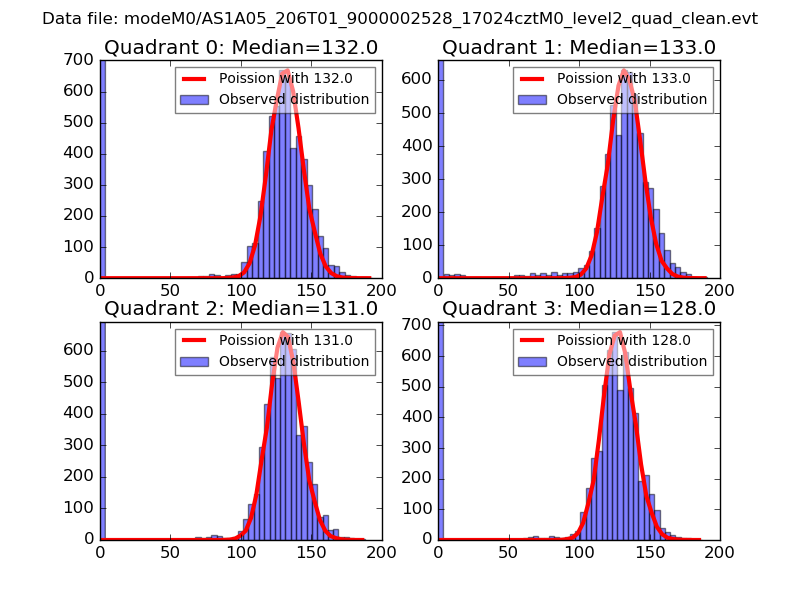

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

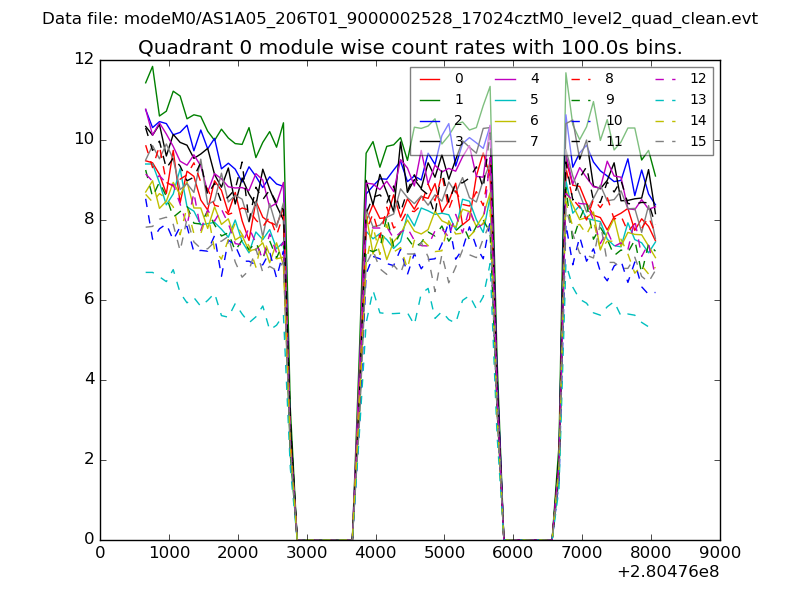

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

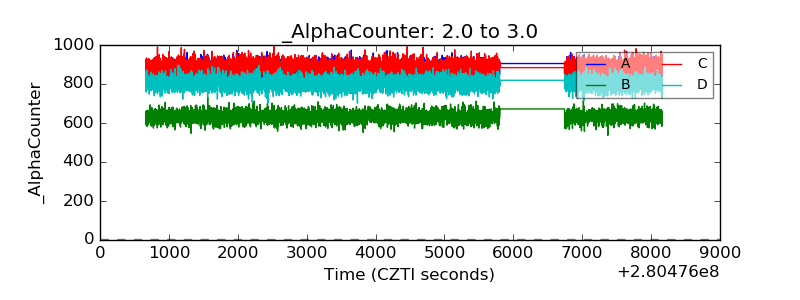

| Alpha Counter |  |
| _CPM_Rate |  |

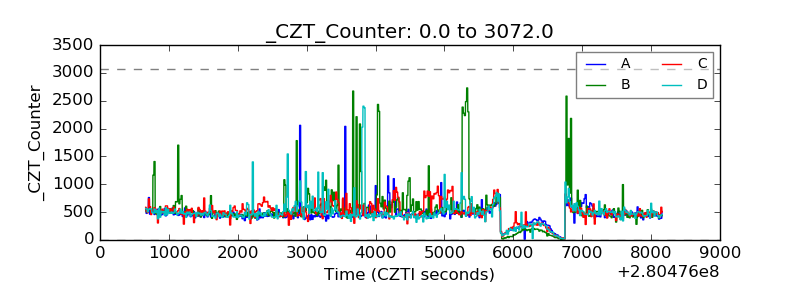

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

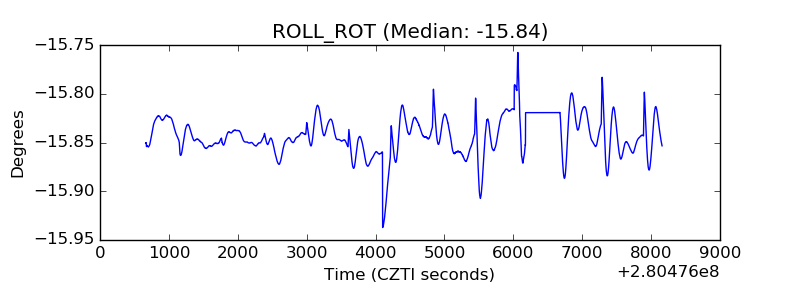

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

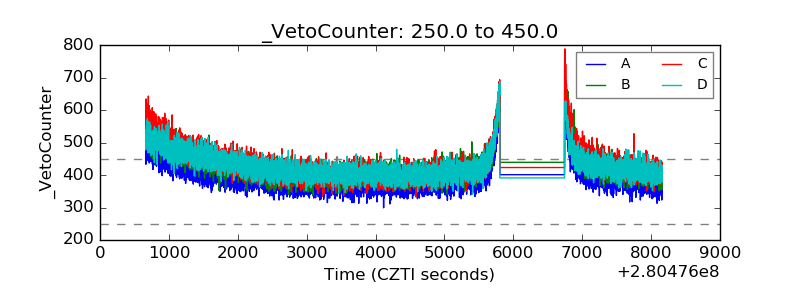

| Veto Counter |  |
